Euro3 Dongfeng 20T Towing Vehicle Integrated
v1v2v3
Complete Truck · Wrecker

Euro3 Dongfeng 20T Towing Vehicle Integrated

  • Rated Power375 hp
  • Engine ModelCummins ISLe375 30
  • Emission StandardEuro 3
  • Total Mass25,000 kg
  • Winch Capacity10 tons each (20 tons combined)
  • Retracted Lifting Capacity25,000 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48388023

Overview

About this truck

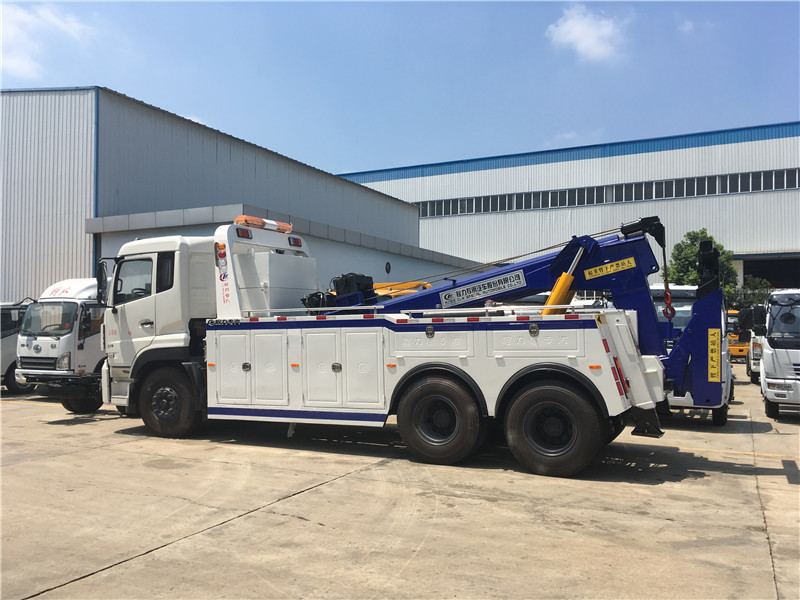

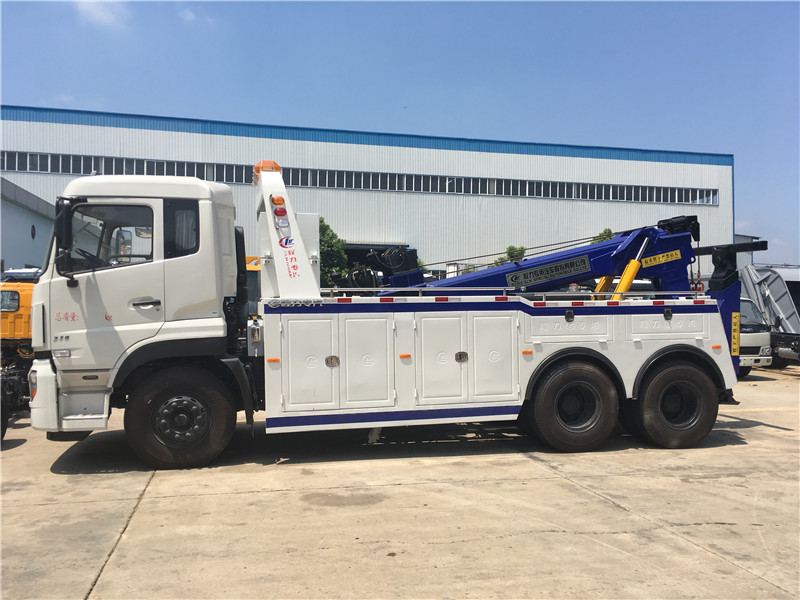

This integrated wrecker truck features heavy-duty construction designed for strength, reliability, and durability. The 20-ton capacity system includes dual 10-ton planetary winches delivering combined 44,500 lbs pulling power. The vehicle incorporates a G70 material boom with two hexagonal sections and a three-stage underlift capable of 25-ton retracted lifting with 50-ton towing capacity. The truck offers optional wireless remote control and manual operation modes. Standard features include hydraulic rear supporting legs, LED lighting frame, dual-side carbon steel toolboxes, and comprehensive safety attachments including forks and tire holders. The system supports optional front outriggers and side pullers. All hydraulic components meet DOT certification standards, with three-year warranty coverage. Multiple chassis and powertrain options are available, including various truck brands (Dongfeng, HOWO, ISUZU, JAC) with Euro 2-6 emissions and left/right-hand drive configurations.

Specifications

Technical parameters

ConditionNew
Warranty3 Year
Drive Type6x4 left-hand drive
Wheel Base5600+1350 mm
Gearbox12JSD180T (12-speed forward, 2-speed reverse)
Tire Size315/80R22.5
Tire Quantity10+1 spare
Frame300X90X8+5
Engine ModelCummins ISLe375 30
Rated Power375 hp
Fuel TypeDiesel
Displacement8900 ml
Emission StandardEuro 3
Cylinder ConfigurationStraight-6, turbocharged, intercooled
Max Torque1550 N.m at 2100 rpm
Main Winch Quantity2 units
Winch Capacity10 tons each (20 tons combined)
Winch TypePlanetary
Steel Wire Length45 m
Steel Wire Diameter18 mm
Retracted Lifting Capacity25,000 kg
Retracted Length1746 mm
Extended Lifting Capacity7,310 kg
Extended Length3110 mm
Underlift Tilt-10 deg
Towing Capacity50 tons
Underlift MaterialG70
Boom Retracted Lifting Capacity (45 deg)20 tons
Boom Extended Lifting Capacity (45 deg)12 tons
Max Lifting Tilt33 deg
Max Lifting Height7,022 mm
Boom Sections2 stages
Boom MaterialG70 hexagonal
Overall Length x Width x Height10,580 x 2,550 x 3,120 mm
Total Mass25,000 kg
Kerb Weight20,130 kg
Passenger Capacity3
Remote ControlWireless (optional)
Toolbox CompositionCarbon steel Q345R with stainless handles
Attachments Included5 fork sets, U-shape tire holder, safety chains
Optional AccessoriesFront legs, side pullers, aluminum toolbox, joystick remote
