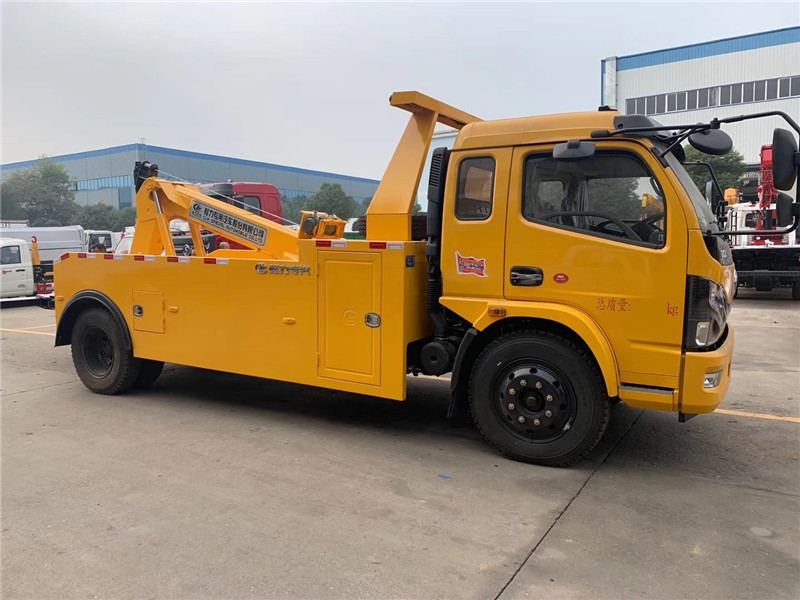

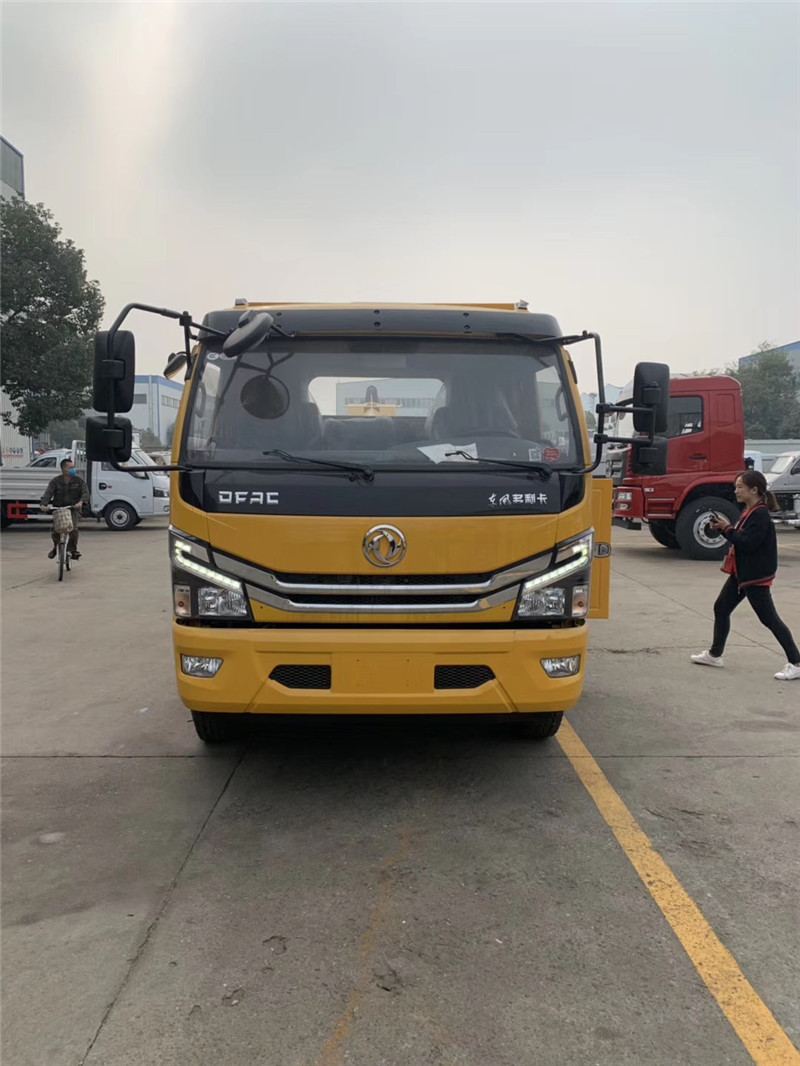

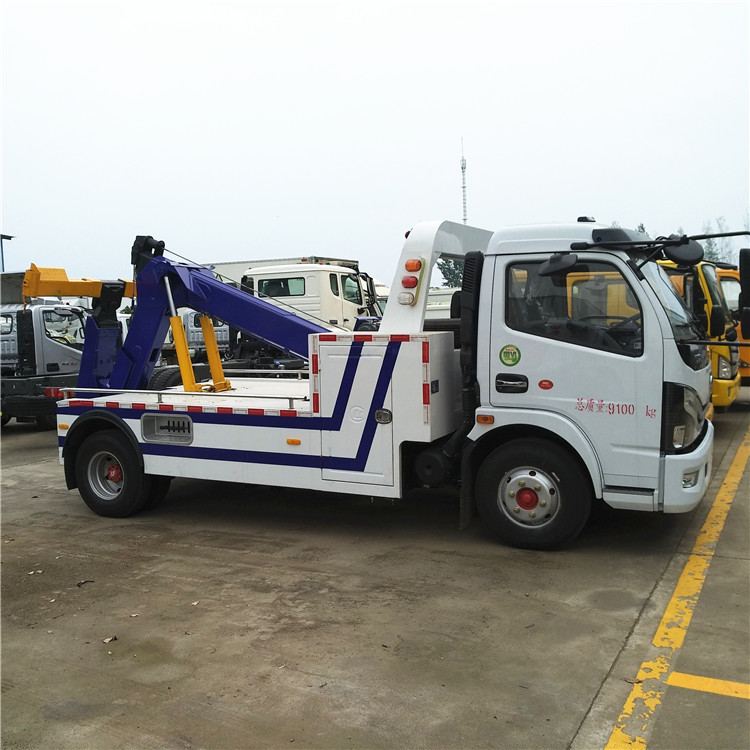

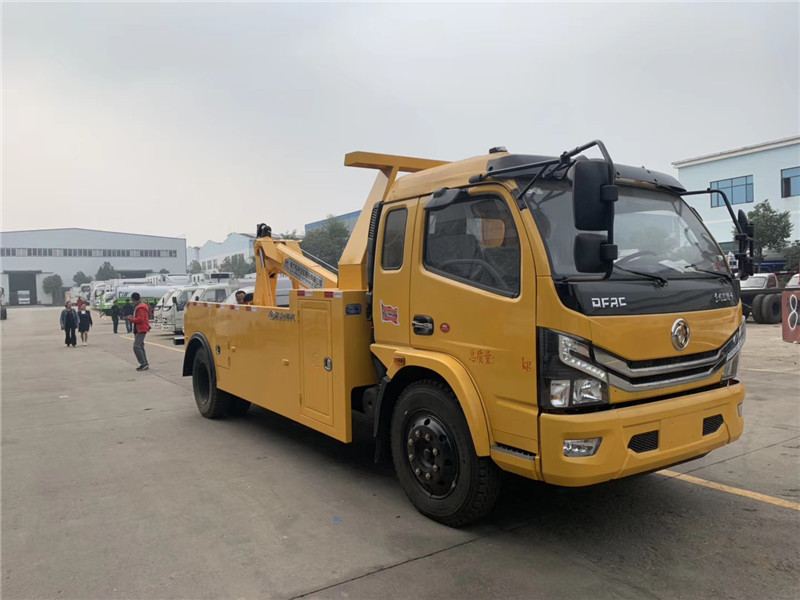

Euro6 Dongfeng Underlift Recovery Truck 12 Tonne
v1v2v3v4v5v6
Complete Truck · Wrecker

Euro6 Dongfeng Underlift Recovery Truck 12 Tonne

  • Chassis Manufacturer/ModelDongfeng
  • Rated Power140 hp
  • Engine Manufacturer/ModelYunnei/YCY24140-60
  • Emission StandardEuro 6
  • Driving Type4×2 left hand drive
  • Total Mass9100 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48386970

Overview

About this truck

The light-duty to medium-duty integrated wrecker series encompasses capacities between 3 and 10 tons. This 6-ton integrated wrecker features a 13,500 lb-rated winch and underlift system, designed with modular steel construction to maximize storage and deck space. An optional aluminum body is available. Multiple chassis brands are offered—including Isuzu, Dongfeng, Howo, Jac, Foton, Jmc, Faw, Shacman, and Iveco—with Euro 2 through Euro 6 emission standards. Right-hand and left-hand drive configurations are available with drivetrain options spanning 4×2, 4×4, 6×4, 6×6, 8×4, and 8×8. Main features include a 6-ton planetary winch (13,500 lbs), 6-ton underlift capacity with minimum 12-ton tow rating (26,600 lbs), optional remote control, and side tool boxes.

Specifications

Technical parameters

Chassis Manufacturer/ModelDongfeng
Driving Type4×2 left hand drive
Wheel Base3800 mm
GearboxSix speed forward and one reverse, manual
Tyre7.50R16
Number of Tyres6+1 (spare tyre)
Leaf Spring Number8/10+7
Chassis FeaturesAC, Power Window, Central Locking
Engine Manufacturer/ModelYunnei/YCY24140-60
Rated Power140 hp
Fuel TypeDiesel oil
Displacement/Capacity2360 ml
Emission StandardEuro 6
Cylinder ConfigurationIn-line/4/turbo/intercooling/+EGR+DOC+DPF+SCR+ASC
Max. Torque400 N.m
Velocity2950 rpm
Dimension (L×W×H)6450×2300×2400 mm
Total Mass9100 kg
Rated Payload4000 kg
Kerb Weight5900 kg
Passenger Capacity3
Product NameIntegrated Wrecker Truck
ConditionNew
Drive Type4×2 Driving
Main Winch6 Tons, 1 Pcs
Auxiliary WinchOptional

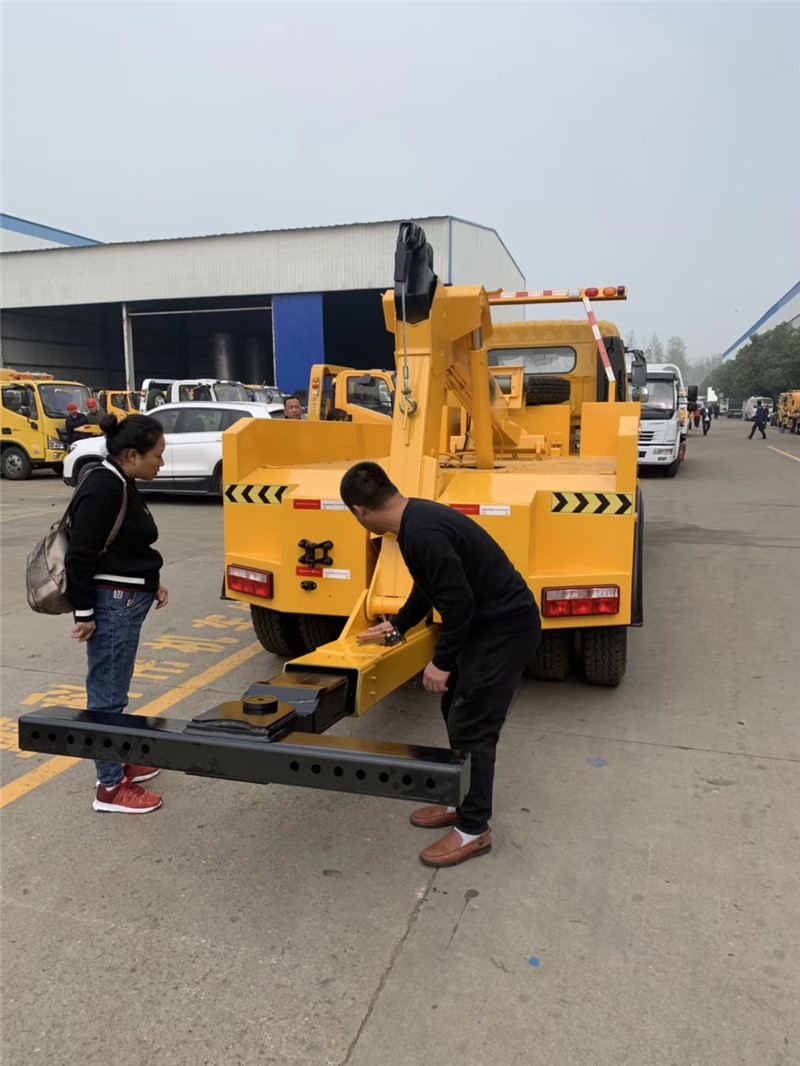

UnderliftG70, 2 Sections
BoomG70, 2 Sections
Remote ControlOptional
Warranty2 Year
