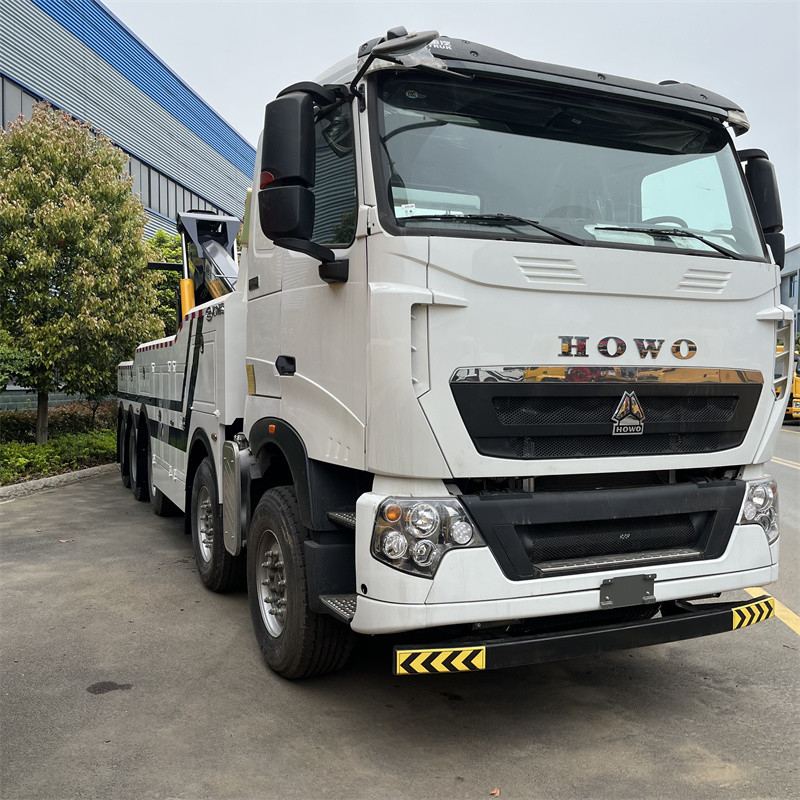

Sinotruck 40T Tow Truck Wheel Lift 10x6
v1v2
Complete Truck · Wrecker

Sinotruck 40T Tow Truck Wheel Lift 10x6

  • Rated Power380hp
  • Emission StandardEuro 3
  • Driving Type10*6 RHD/LHD
  • Total Mass31000Kg
  • Displacement/Capacity9726ml
  • Dimensions (L X W H) (mm)Customs Made

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48388556

Overview

About this truck

The heavy-duty integrated wrecker series offers capacities ranging from 30 to 50 tons. This integrated wrecker features a powerful 2- or 3-stage boom with corrosion-resistant construction and optional 3- or 4-stage underlifts designed for strength and performance. Available with multiple truck brands including ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, and IVECO, with Euro 2, 3, 5, or 6 emissions standards. Configuration options include RHD/LHD and various drive types (4x2, 4x4, 6x4, 6x6, 8x4, 8x8). Main features include planetary winches rated 15-25 tons each (2 units totaling 30-50 tons capacity), underlift capacity of 28 tons with towing rates of at least 56 tons, optional remote control, side toolboxes, and optional front legs and side pullers.

Specifications

Technical parameters

Product NameIntegrated Wrecker Truck
Transmission TypeManual
Dimensions (L X W H) (mm)Customs Made
ConditionNew
SubframeEquipped
Main Winch20/25 Tons, 2 Pcs
Underlift3 Sections, Optional 4
Underlift Tow Rating25 Ton/50 Tons
OperationBoth Sides Manual
Remote ControlOptional
Warranty2 Year
Name50 Tons HOWO Integrated Wrecker Truck
Dimension (LxWxH)11310x2500x3500(mm)
Total Mass31000Kg
Kerb Weight20770Kg
Passenger3
Approach/Departure Angle16/18
Manufacture/ModelHOWO
Driving Type10*6 RHD/LHD
Wheel Base1800+3000+1350+1350 mm
GearboxHW19710, ten speed forward and two reverse, manual
Front/Rear Track2022,2041,2022,2041/1830(mm)
Tyre12.00R20
Number of Tyre14+1 (spare tyre)
Front/Rear Suspension1500/750(mm)
Leaf Spring Number14,13/14,13/12
Manufacturer/ModelHOWO/D10.38-30
Rated Power380hp
Fuel TypeDiesel oil
Displacement/Capacity9726ml
Emission StandardEuro 3
CylinderIn-line/6/watercooling/turbo charge/intercooling/common rail high pressure
Max. torque1590N.m
Velocity2000rpm
More models

You may also compare

Already have a chassis?

We also build the recovery equipment on its own — underlift booms, rotators, flatbed carrier beds, tow bars and complete kits, shipped ready to mount on the chassis you already run. Many buyers pay far less import duty this way than on a finished truck.

Our recovery-equipment site: itruckrecovery.com
See wrecker bodies & kits →
