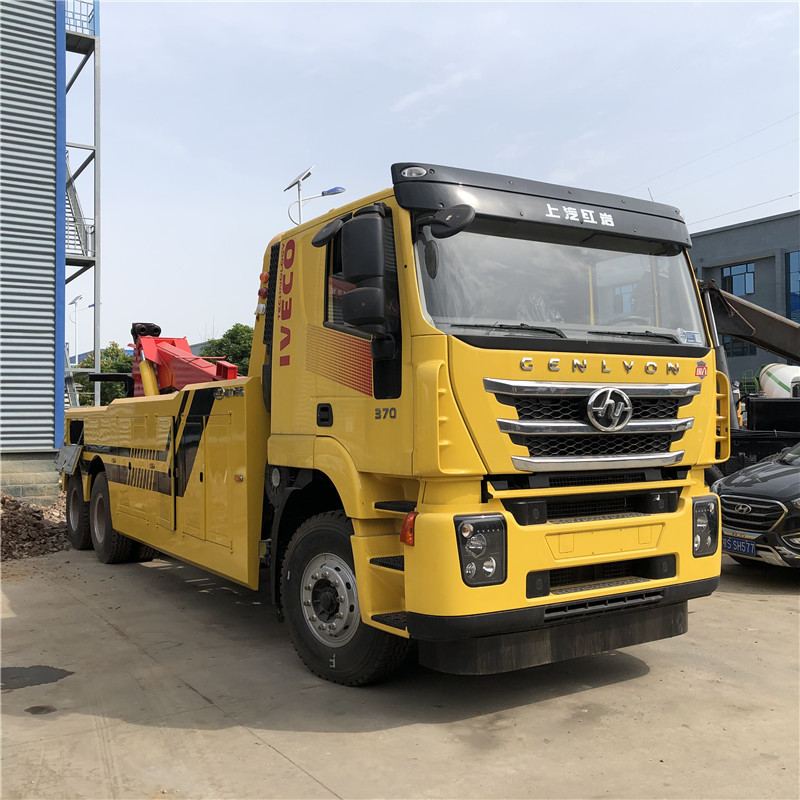

Iveco 25T Wrecker 50T Tow Truck 6x4
v1v2
Complete Truck · Wrecker

Iveco 25T Wrecker 50T Tow Truck 6x4

  • Rated Power290 hp
  • Engine Manufacturer/ModelCursor/C9 290
  • Emission StandardEuro 3
  • Total Mass25000 kg
  • Passenger Capacity3
  • Underlift Retracted Lifting Capacity25000 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48387953

Overview

About this truck

This integrated wrecker truck represents heavy-duty towing capability built for strength and durability. The 25-ton model features dual 10-ton planetary winches delivering 44,500 lbs. total pulling power, a 25-ton underlift capacity with 50-ton towing rate, and a G70 material boom with two stages. The truck comes equipped with optional remote wireless control, side toolboxes, and optional front legs and side pullers. Available through multiple chassis manufacturers including ISUZU, Dongfeng, HOWO, and JAC with Euro 2-6 emissions standards and configurable left-hand or right-hand drive options.

Specifications

Technical parameters

Product NameIntegrated Wrecker Truck
ConditionNew
Drive Type6x4 Driving
Main Winch10 Tons, 2 Pcs
Auxiliary WinchOptional
UnderliftG70, 3 Sections
BoomG70, 2 Sections
Remote ControlWireless
HydraulicDOT Certified
Warranty3 Year
Dimension (LxWxH)10730×2550×3120 mm
Total Mass25000 kg
Kerb Weight21000 kg
Passenger Capacity3
Engine Manufacturer/ModelCursor/C9 290
Rated Power290 hp
Fuel TypeDiesel oil
Displacement8709 ml
Emission StandardEuro 3
CylindersStraight/6/turbo charge
Max Torque1250 N·m
Velocity2100 rpm
GearboxFAST RT-11509C nine-speed
Tyre12.00R20
Number of Tyres10+1 spare
Wheelbase4400+1350 mm
Underlift Retracted Lifting Capacity25000 kg
Underlift Towing Capacity50 ton
Boom Retracted Lifting Capacity (45°)20 ton
Boom Extended Lifting Capacity (45°)12 ton
Boom Max Lifting Height7022 mm
Main Winches Quantity2 pcs
Main Winches Pulling Power10 ton
Main Winches TypePlanetary
Steel Wire Length45 m
Steel Wire Diameter18 mm
