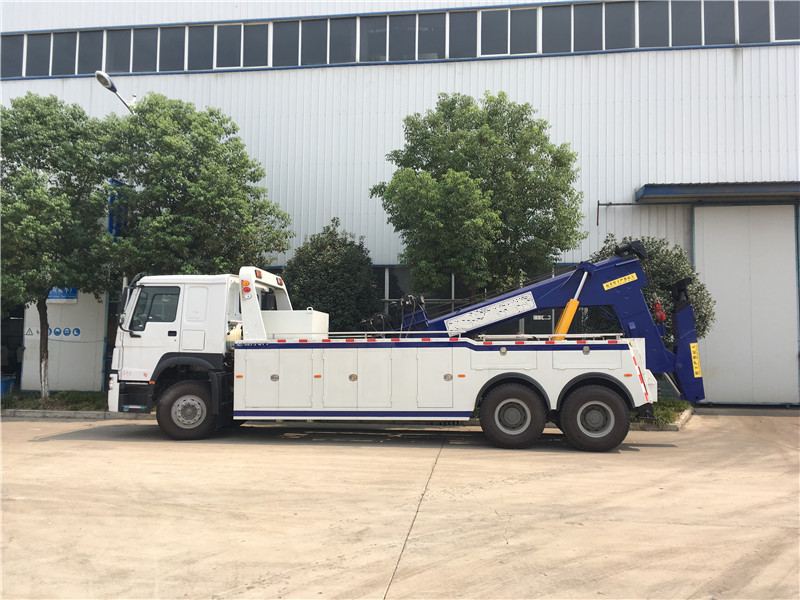

6x4 Howo 20T Heavy Recovery Truck Underlift
v1v2v3v4v5v6v7v8
Complete Truck · Wrecker

6x4 Howo 20T Heavy Recovery Truck Underlift

  • Rated Power290hp/213kw
  • Emission StandardEuro 2
  • Driving Type6*4 RHD/LHD
  • Total Mass25000 Kg
  • Displacement/Capacity9726ml
  • Dimension(LxWxH)10480x2550x3150 (mm)

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48387718

Overview

About this truck

6X4 HOWO 20 TONS HEAVY RECOVERY TRUCK UNDERLIFT TOW TRUCK The heavy duty integrated series have different capacities from 20 tons to 50 tons. BUILT FOR STRENGTH, RELIABILITY AND DURABILITY The 20 tons integrated wrecker features a 44,500 lb. 2- or 3-stage wrecker boom, corrosion, resistant body and optional 3- or 4-stage underlifts – all designed with strength and performance in mind. The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc. With Euro 2, Euro 3, Euro 5, Euro 6 emission. With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8. Other special requirements you want. 1. 10 Tons / 22,200 lbs. Planetary Winch, 2 Pcs. Total 20 Tons / 44,500 lbs. 2. 20 Tons / 44,500 lbs. Underlift Capacity, Tow Rate At Least 40 Tons / 88,800 lbs. 3. Optional Remote Control 5. Optional Front Legs and Side Pullers

Specifications

Technical parameters

Product NameIntegrated Wrecker Truck
ConditionNew
Drive Type6x4 Driving

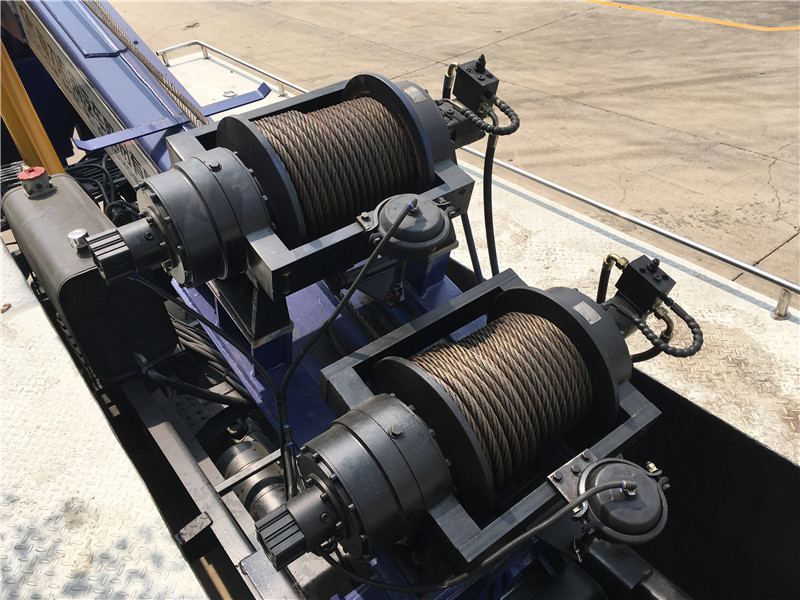

Main Winch10 Tons, 2 Pcs
Auxiliary WinchOptional
UnderliftG70, 3 Sections
BoomG70, 2 Sections
Remote ControlWireless
HydraulicDOT Certified
Warranty3 Year
Highlight20 Tons Heavy Recovery Truck, 6x4 Driving Heavy Recovery Truck, 20 Tons Underlift Tow Truck
Name6x4 20 Tons HOWO Integrated Wrecker Truck
Dimension(LxWxH)10480x2550x3150 (mm)
Total Mass25000 Kg
Rated Payload20000 Kg
Kerb Weight21900 Kg
Passenger3
Approach/Departure Angle16/14
Manufacture/ModelHOWO
Driving Type6*4 RHD/LHD
Wheel Base4600+1350 mm
GearboxHW13710, ten speed forward and two reverse, manual
Front/Rear Track2022,2041/1830,1830(mm)
Tyre12R22.5
The Number of Tyre10+1(spare tyre)
Front/Rear Suspension1500/2900,2875(mm)
Leaf Spring Number10/12
Manufacturer/ModelSinotruck/WD615.87
Rated Power290hp/213kw
Fuel TypeDiesel oil
Displacement/Capacity9726ml
Emission StandardEuro 2
CylinderDirect injection/6 cylinders/4 strokes/turbo/intercooling/watercooling
Max. torque1160N.m
Velocity2200rpm
No.Item
1Name
2Winches
3Under lift
4Boom
5Legs
6Frame

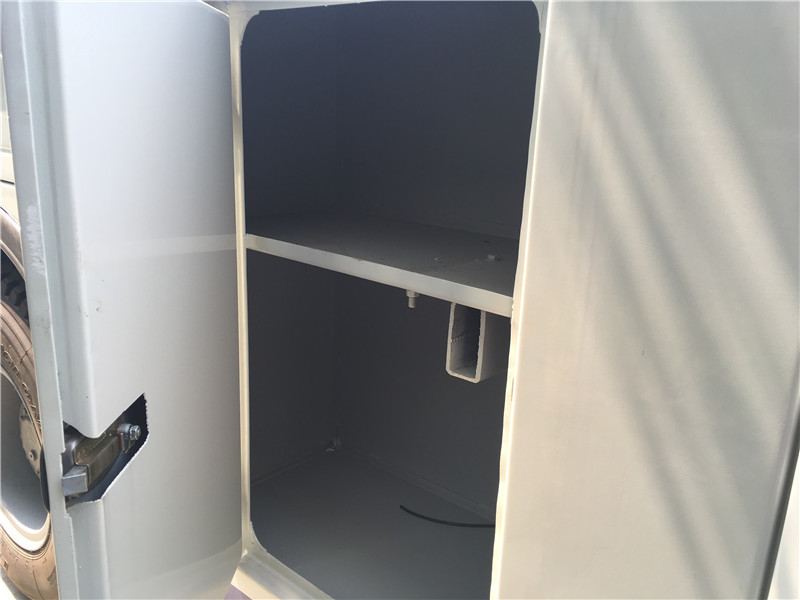

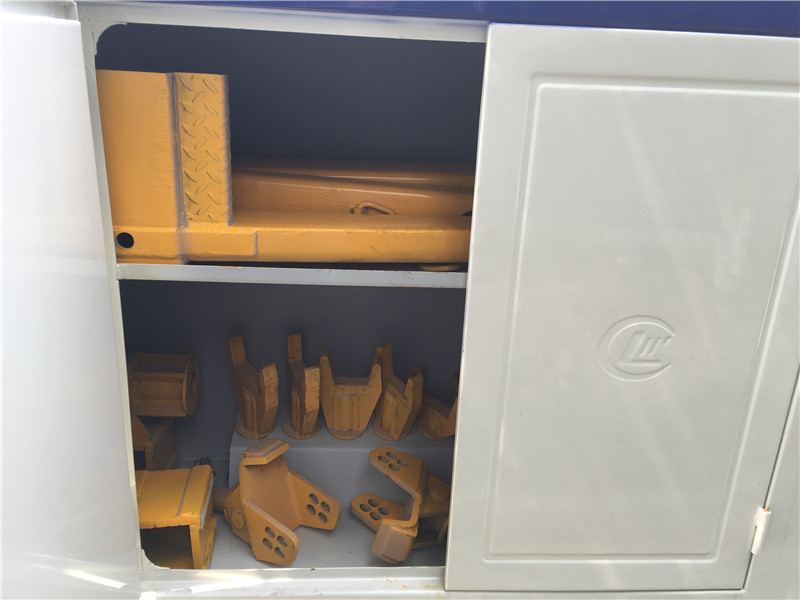

7Toolbox
8Hook-Ups

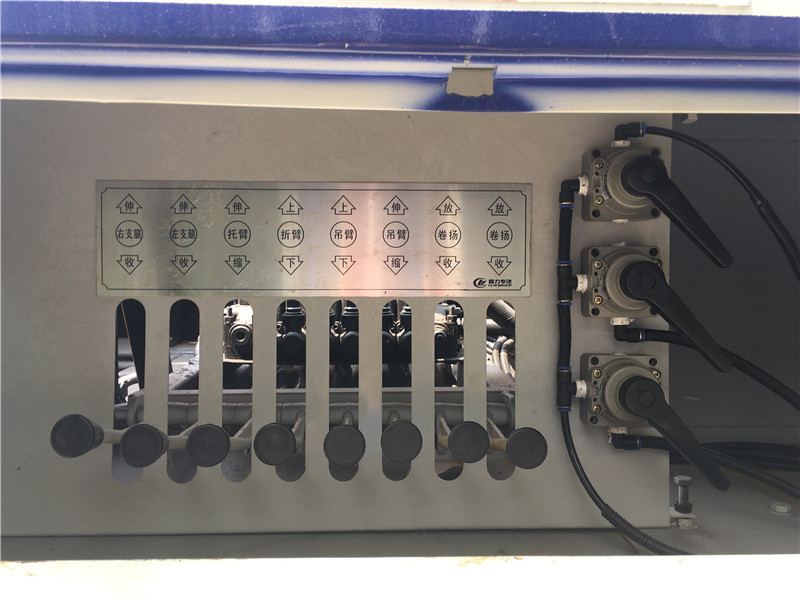

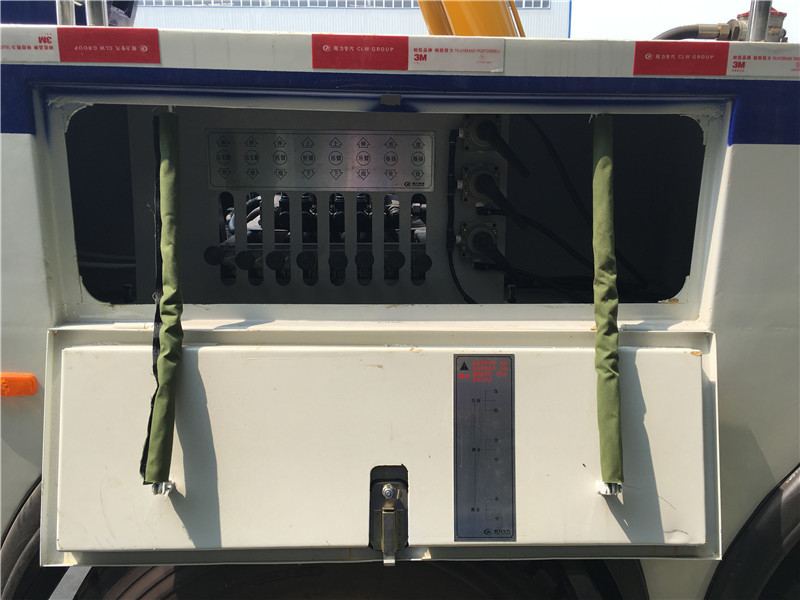

9Control
10Hydraulic Parts
11Attachments
12Painting and Indication
1Underlift
2Boom
3Main Winches
