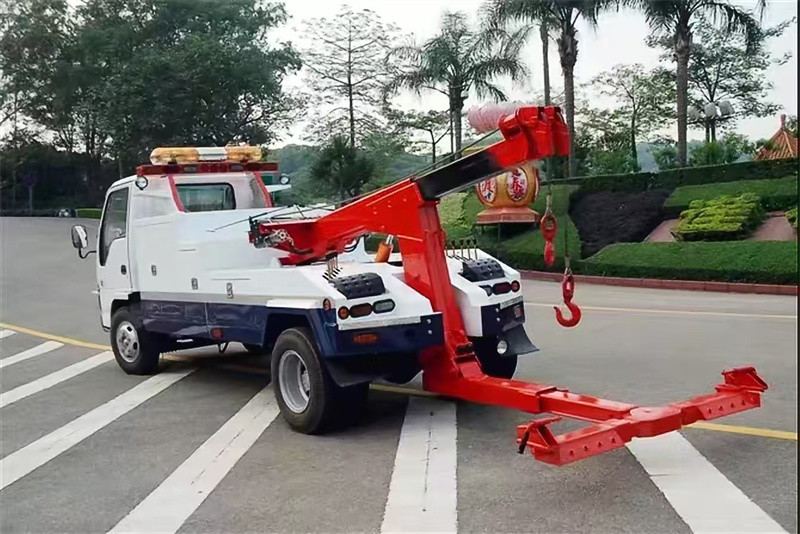

6T Euro5 Isuzu Tow Truck Wheel Lift Light Duty
v1v2
Complete Truck · Wrecker

6T Euro5 Isuzu Tow Truck Wheel Lift Light Duty

  • Rated Power130hp/96kw
  • Emission StandardEuro 5
  • Driving Type4*2 left hand drive
  • Total Mass8550Kg
  • Displacement/Capacity2999ml
  • Dimension (LxWxH)6990x1940x2280(mm)

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48387229

Overview

About this truck

6 TONS EURO 5 ISUZU TOW TRUCK WHEEL LIFT LIGHT DUTY INTERGRATED WRECKER The light duty medium duty integrated series have different capacities from 3 tons to 10 tons. The 6 ton Integrated wrecker body with a 13,500 lb. rated winch and underlift. A modern, modular steel body that is maximized for available storage and deck space. Optional aluminum body available. The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc. With Euro 2, Euro 3, Euro 5, Euro 6 emission. With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8. Other special requirements you want. 1. 6 Tons / 13,500 lbs. Planetary Winch, 1 Pcs 2. 6 Tons / 13,500 lbs. Underlift Capacity, Tow Rate At Least 12 Tons / 26,600 lbs. 3. Optional Remote Control

Specifications

Technical parameters

Product NameIntegrated Wrecker Truck
ConditionNew
Drive Type4x2 Driving
Main Winch6 Tons, 1 Pcs
Auxiliary WinchOptional
UnderliftG70, 2 Sections
BoomG70, 2 Sections
Remote ControlOptional
Warranty2 Year
Highlight6 Tons Isuzu Tow Trucks, Euro 5 Isuzu Tow Trucks, 6 Tons Light Duty Wrecker
NameISUZU 6 Tons Wrecker Tow Truck
Dimension (LxWxH)6990x1940x2280(mm)
Total Mass8550Kg
Rated Payload5000Kg
Kerb Weight3550Kg
Passenger3
Approach/Departure Angle24/16
Manufacture/ModelISUZU
Driving Type4*2 left hand drive
Wheel Base3815 mm
GearboxISUZU MSB, five speed forward and one reverse, manual
Front/Rear Track1377,1425(mm)
Tyre700R16
The Number of Tyre6+1(spare tyre)
Front/Rear Suspension1015/1620(mm)
Manufacturer/ModelISUZU/4KH1CN5HS
Rated Power130hp/96kw
Fuel TypeDiesel oil
Displacement/Capacity2999ml
Emission StandardEuro 5
CylinderStraight/4
Max. torque290N.m
S.N.Item
1Boom
2Wheel Lift
3Boom Extension Cylinder
4Boom Lift Cylinder
5Wheel Lift Extension Cylinder
6Wheel Lift Tilt Cylinder
7Multi Way Valve
8Balance Valve
9Pump
10Winch
11Hose
12Remote Control
13Manual Control
14Toolbox
15Trolleys
16Wheel Grids
17L Arms
18Forks
19Forks Holder
20Binding Strips
21Lights
