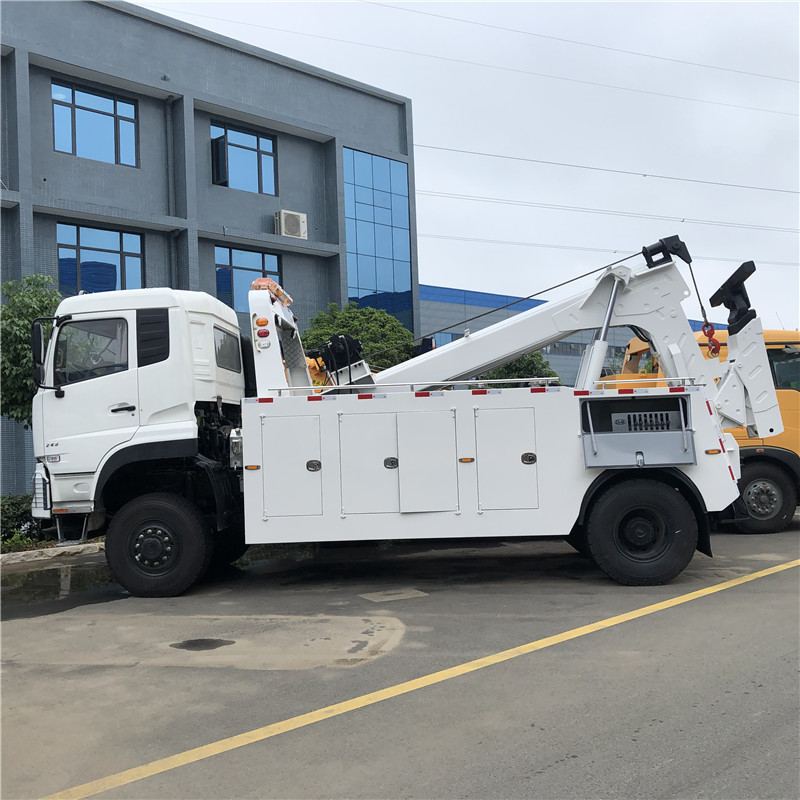

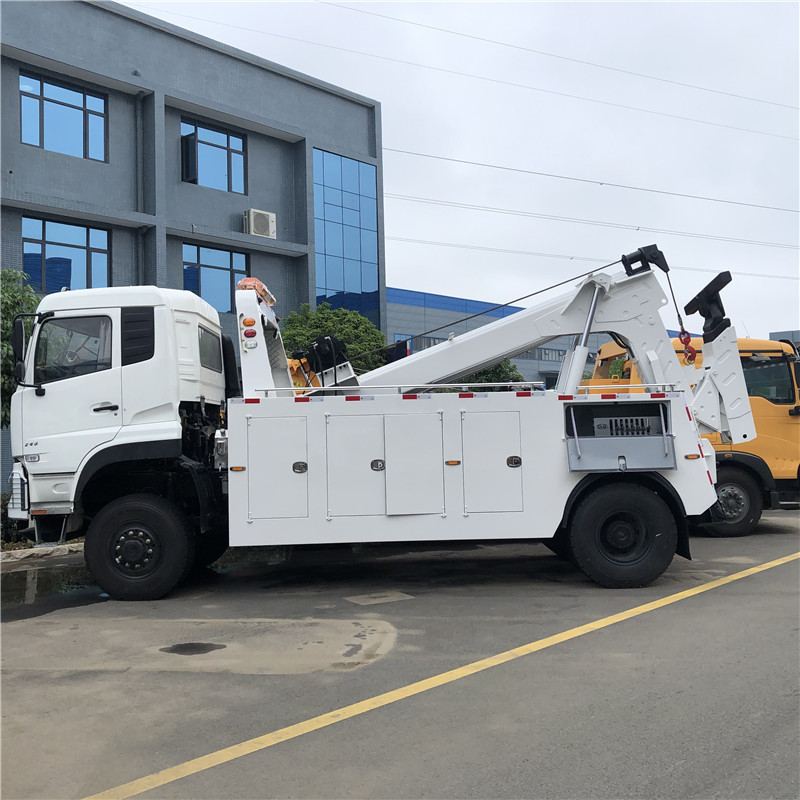

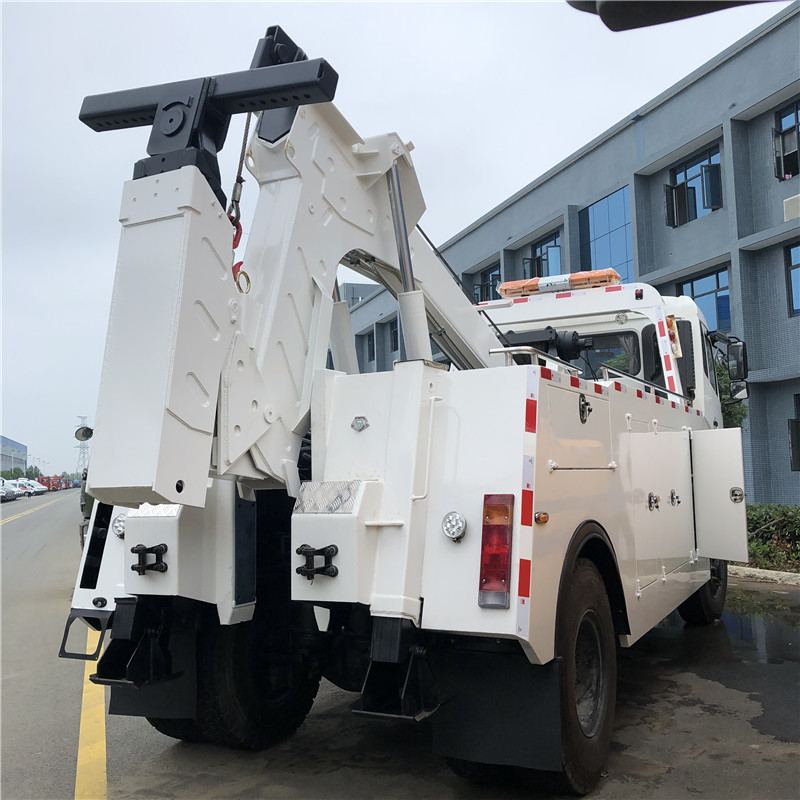

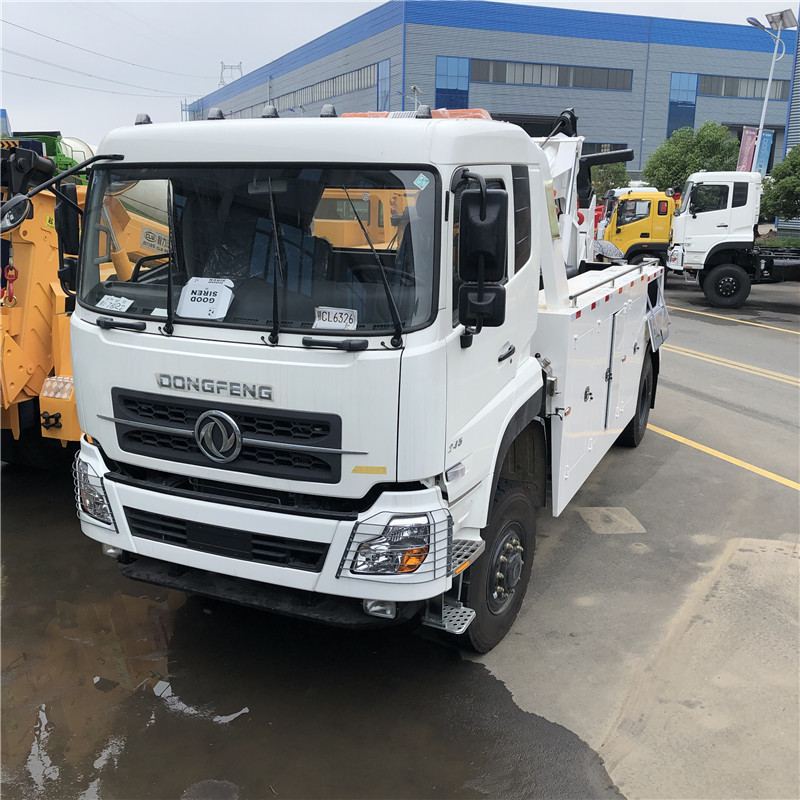

4x4 Dongfeng RHD/LHD Underlift Recovery 16T-18T
v1v2v3v4v5
Complete Truck · Wrecker

4x4 Dongfeng RHD/LHD Underlift Recovery 16T-18T

  • Underlift Retracted Lifting Capacity12,000 kg
  • Underlift Extended Lifting Capacity4,200 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48317021

Overview

About this truck

The medium-duty integrated wrecker series encompasses capacities spanning 8 to 18 tons. This 16-ton model features a 35,600-pound rated underlift capacity combined with a modern steel body optimized for storage and deck space. Available chassis options include Isuzu, Dongfeng, Howo, Jac, Foton, Jmc, Faw, Shacman, and Iveco. The truck supports Euro 2 through Euro 6 emissions standards and offers both right-hand and left-hand drive configurations with 4x2, 4x4, 6x4, 6x6, 8x4, and 8x8 drivetrain options. Key features include dual 10-ton planetary winches (20 tons combined), 12-ton underlift capacity with minimum 24-ton tow rating, spacious tool compartments, multi-positional rear jacks, optional wireless remote control, and low-profile tow bar availability.

Specifications

Technical parameters

ConditionNew
Product NameIntegrated Wrecker Truck
Drive Type4x4 Driving
Main Winch8 Tons/10 Tons, 2 Pcs
Auxiliary WinchOptional
UnderliftG70, 3 Sections
BoomG70, 2 Sections
Remote ControlWireless
HydraulicDOT Certified
Warranty3 Year
Underlift Retracted Lifting Capacity12,000 kg
Underlift Retracted Length1,505 mm
Underlift Extended Lifting Capacity4,200 kg
Underlift Extended Length2,760 mm
Underlift Tilt-10°
Towing Capacity24-36 ton
Boom Retracted Lifting Capacity (45°)18 ton
Boom Extended Lifting Capacity (45°)6.3 ton
Main Winches Quantity2 pcs
Main Winch Pulling Power10 ton
Main Winch TypePlanetary
Steel Wire Length45 m
Steel Wire Diameter18 mm
