4T JAC Euro6 Rollback Flatbed Tow Truck 3 Passengers
v1v2
Complete Truck · Flatbed

4T JAC Euro6 Rollback Flatbed Tow Truck 3 Passengers

  • Chassis Manufacturer/ModelJAC
  • Rated Power160 hp
  • Engine Manufacturer/ModelCummins/HFC4DE2-2E
  • Emission StandardEuro 6
  • Driving Type4×2 left hand drive
  • Total Mass9100 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48265794

Overview

About this truck

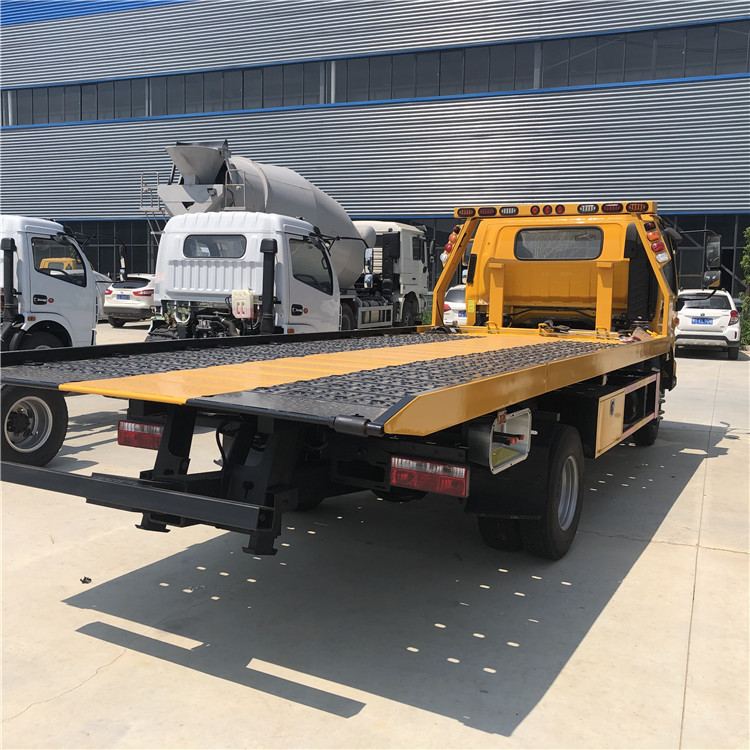

The 4-ton flatbed wrecker truck features steel construction with configurable deck dimensions and structural capacity for enhanced job site durability. Multiple chassis brands are available including ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, and IVECO with Euro 2-6 emissions standards and right or left-hand drive options. Key capabilities include a 5.6-meter bed with 4-ton capacity, optional hitch ball and wireless remote control, and customizable platform materials (Q235B, Q345, G70, NM500, Hardox 450). The truck offers both manual operation controls positioned on each side and a hydraulic winch system with lift and extension functions.

Specifications

Technical parameters

Chassis Manufacturer/ModelJAC
Driving Type4×2 left hand drive
Wheel Base3800 mm
GearboxSix speed forward and one reverse, manual
Tyre7.50R16LT 14PR
Number of Tyres6+1 (spare)
Front Axle3 tons
Rear Axle7.2 tons
Chassis FeaturesAir brake, AC, power steering, central locking, power windows
Engine Manufacturer/ModelCummins/HFC4DE2-2E
Rated Power160 hp
Fuel TypeDiesel
Displacement2951 ml
Emission StandardEuro 6
Cylinder ConfigurationIn-line/4/EGR+DOC+DPF+SCR+ASC
Max Torque460 N.m
Velocity2900 rpm
Overall Dimensions (L×W×H)7450×2350×2575 mm
Total Mass9100 kg
Kerb Weight5560 kg
Passenger Capacity3
Platform Dimension5600×2300 mm
Platform MaterialQ235B, 4 mm thick
Platform TypeCheckered
Main Winch Capacity4 tons
Lift Capacity4 tons
Extension Capacity4 tons
Underlift Capacity4 tons
Underlift Configuration2 sections, 3 tons
Underlift Tow Rating6 tons
OperationBoth sides manual
Remote ControlOptional
ColorCustomizable, electrophoresis painting optional (+USD 400)
Warranty1 year
