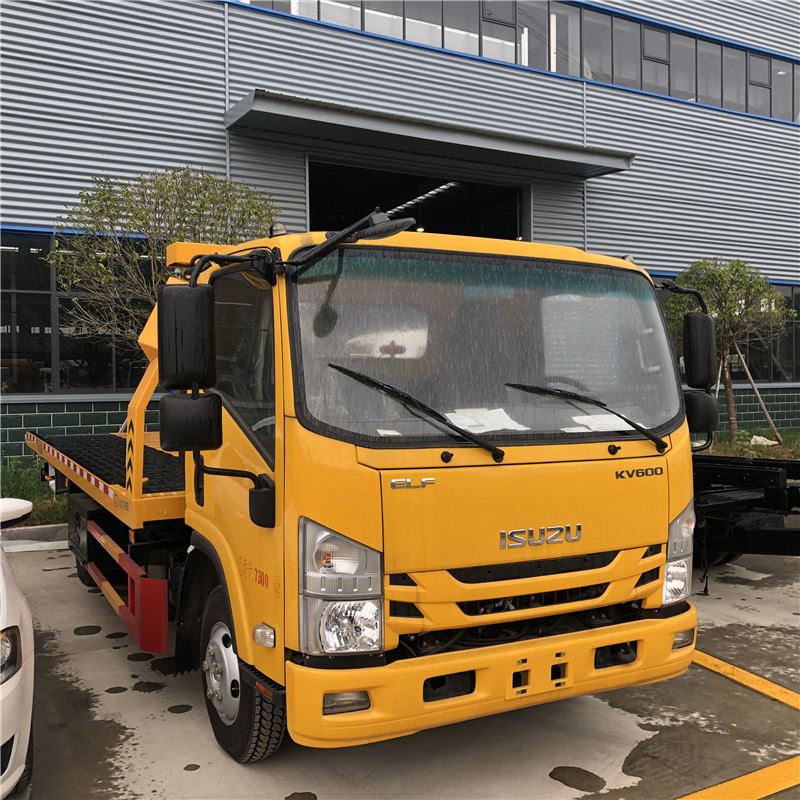

5T KV600 Isuzu Japan Flatbed Tow Truck Euro5
v1v2v3v4
Complete Truck · Flatbed

5T KV600 Isuzu Japan Flatbed Tow Truck Euro5

  • Chassis Manufacturer/ModelIsuzu
  • Rated Power130 hp / 96 kW
  • Engine ModelIsuzu 4KH1CN5HS
  • Emission StandardEuro 5
  • Driving Type4×2 left-hand drive
  • Total Mass11,200 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48266267

Overview

About this truck

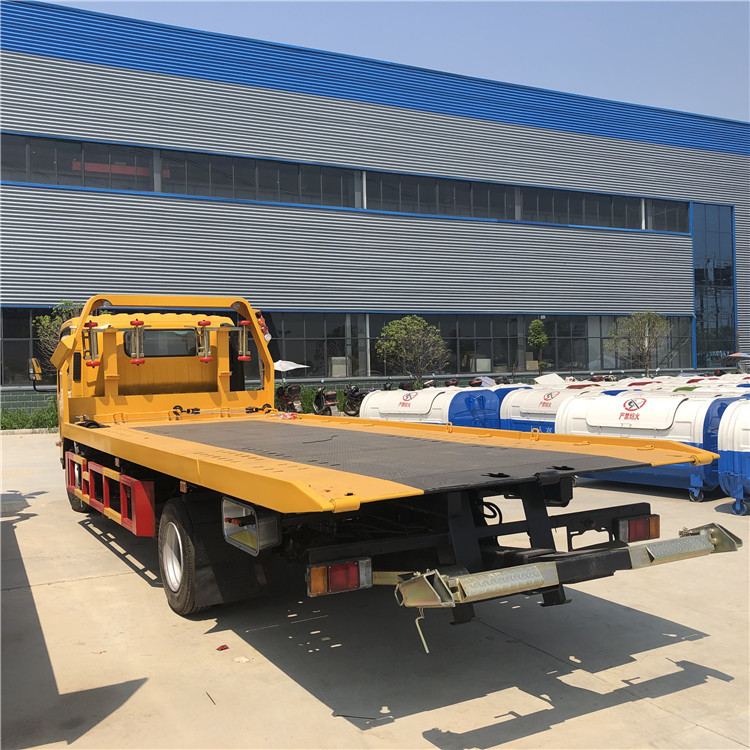

The 5-ton flatbed wrecker truck features a steel construction with configurable deck lengths and widths, designed for strength and durability in recovery operations. The vehicle is available with multiple chassis options including Isuzu, Dongfeng, Howo, Jac, Foton, Jmc, Faw, Shacman, and Iveco. Emission standards range from Euro 2 through Euro 6, accommodating right-hand and left-hand drive configurations with 4x2 or 4x4 setups. The platform measures 5.6 meters in length with a 5-ton lifting capacity. Optional features include hitch balls, wireless remote controls, and material selections from Q235B, Q345, G70, NM500, and Hardox 450 steel variants.

Specifications

Technical parameters

Product NameFlatbed Wrecker Truck
ModelKV600 Isuzu
ConditionNew
Warranty1 Year
Dimensions (L×W×H)7600×2350×2400 mm
Bed Dimension5600×2350 mm
Total Mass11,200 kg
Kerb Weight6,200 kg
Rated Payload5,000 kg
Passenger Capacity3
Approach/Departure Angle21.5°/11°
Chassis Manufacturer/ModelIsuzu
Driving Type4×2 left-hand drive
Wheelbase3,815 mm
GearboxFive-speed forward, one reverse (manual)
Tyre Size700R16
Number of Tyres6 + 1 spare
Front Axle Capacity2.5 tons
Rear Axle Capacity4.8 tons
Chassis FeaturesAC, power steering, ABS, air brake, tilt cab
Engine ModelIsuzu 4KH1CN5HS
Rated Power130 hp / 96 kW
Fuel TypeDiesel oil
Displacement2,999 ml
Emission StandardEuro 5
Cylinder ConfigurationStraight 4, turbocharged, intercooled, high-pressure common rail
Max. Torque290 N·m
Velocity3,400 rpm
Winch Capacity5 tons
Lift Capacity5 tons
Extension Capacity5 tons

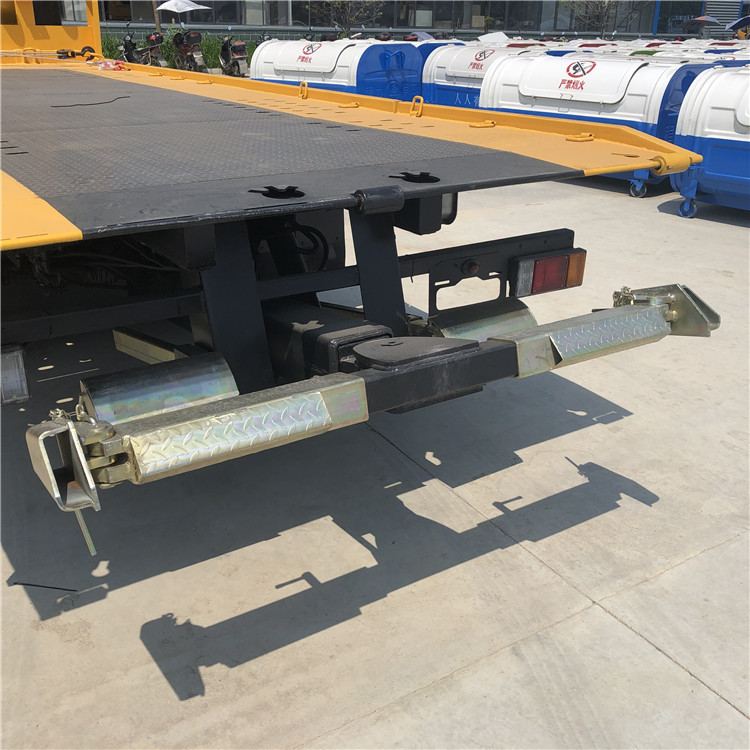

Underlift Capacity5 tons
Underlift Type2 sections, 5 tons
Underlift Tow Rating10 tons
Platform MaterialQ235B steel, 4 mm thick
Platform TypeCheckered
ColourCustomizable (electrophoresis painting optional +$400)
OperationBoth sides manual
Remote ControlOptional
Siren Long Lamp1 piece
Side Lights8 pieces
Frame Lights6 pieces
Bed Extension Cylinders1 piece
Bed Lift Cylinders2 pieces
Underlift Lift Cylinders2 pieces
Underlift Extension Cylinders1 piece
Hydraulic Winch1 piece
Hydraulic Pump1 piece
Hydraulic Multi-Way Valve1 piece
Hydraulic Balance Valves2 pieces
Manual Control Sets2 sets (both sides)
Oil Tank1 piece
Auxiliary Wheels2 pieces
Securing Straps4 pieces
Toolboxes2 pieces
Wheel Guards2 pieces
L-Arms2 pieces
Fencing2 pieces
Mudflaps2 pieces
Lamp Frame1 piece
Tow Chain1 piece
