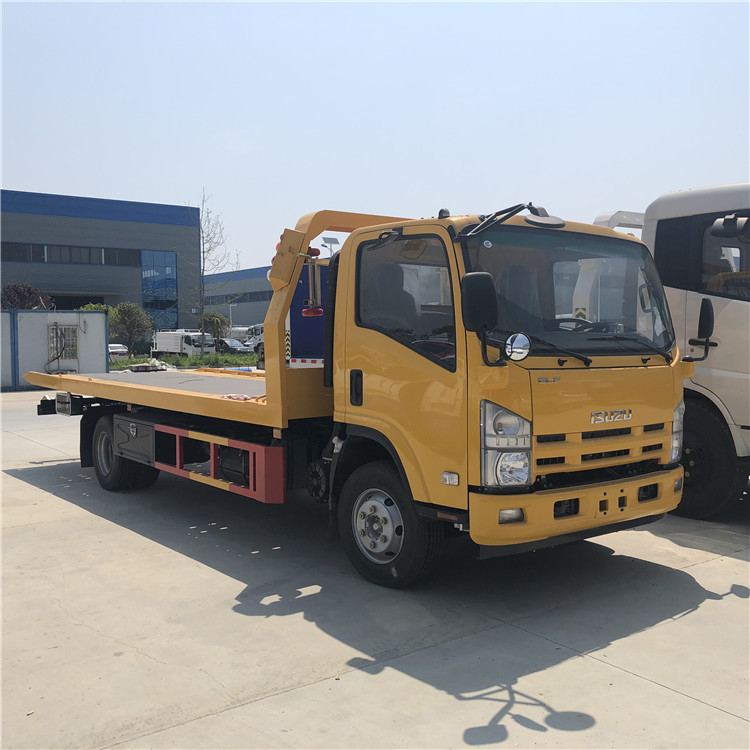

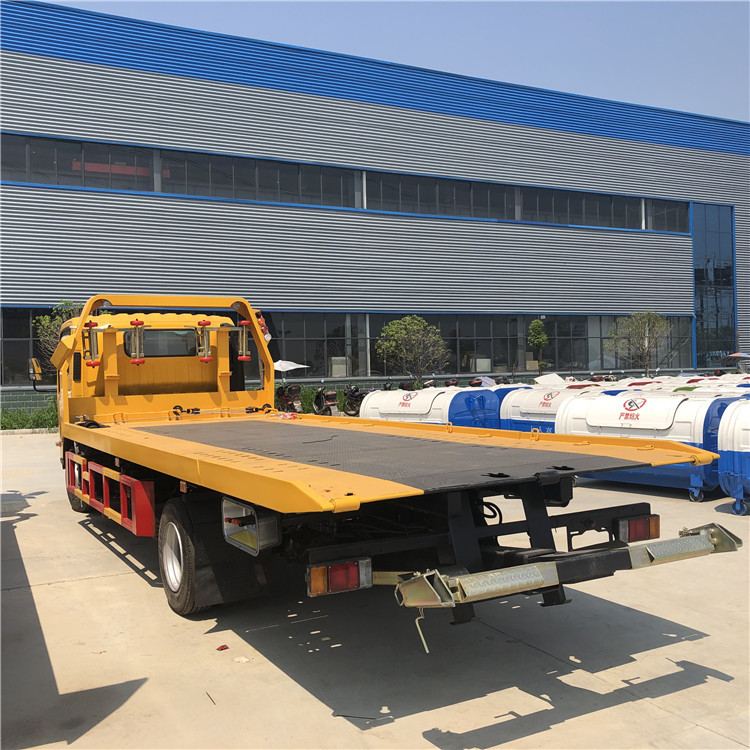

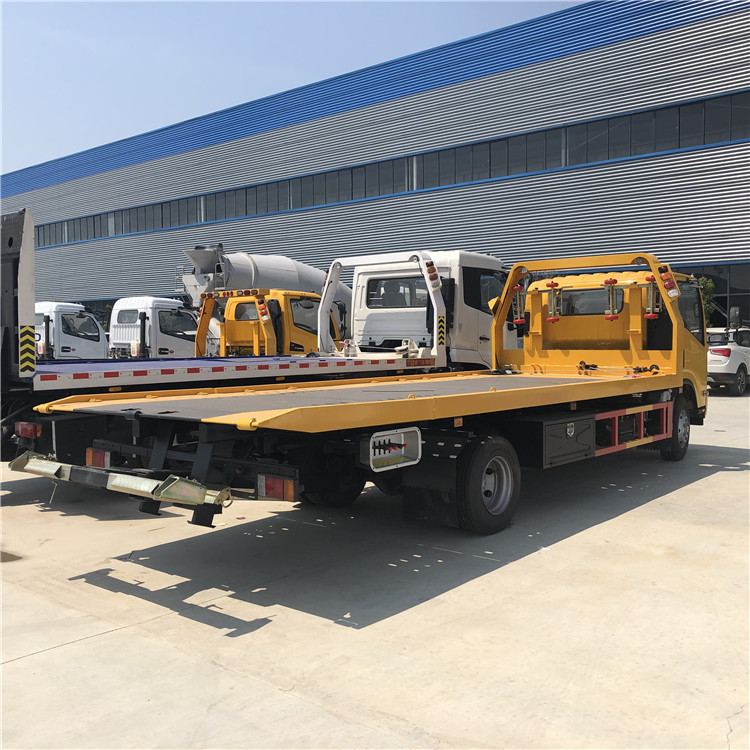

6T 700p Isuzu Japan Light Duty Flatbed Tow Truck 2-sec Underlift
v1v2v3v4v5
Complete Truck · Flatbed

6T 700p Isuzu Japan Light Duty Flatbed Tow Truck 2-sec Underlift

  • Rated Power190hp/141kw
  • Engine Manufacturer/ModelISUZU/4HK1-TC51
  • Emission StandardEuro 5
  • Driving Type4x2 left hand drive
  • Total Mass12500 Kg
  • Displacement/Capacity5193ml

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48266458

Overview

About this truck

The 6 tons flatbed wrecker truck features steel construction with multiple deck length and width configurations and different structural deck capacity for enhanced strength and durability in field operations. Truck brand options are available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, and others. The vehicle supports Euro 2, Euro 3, Euro 5, and Euro 6 emission standards with right-hand drive or left-hand drive configurations and 4x2 or 4x4 drive types. Primary features include a 7-meter bed length with 6-ton capacity, optional hitch ball and remote control systems, and platform material choices from Q235B, Q345, G70, NM500, and Hardox 450 steel types.

Specifications

Technical parameters

Product NameFlatbed Wrecker Truck
ConditionNew

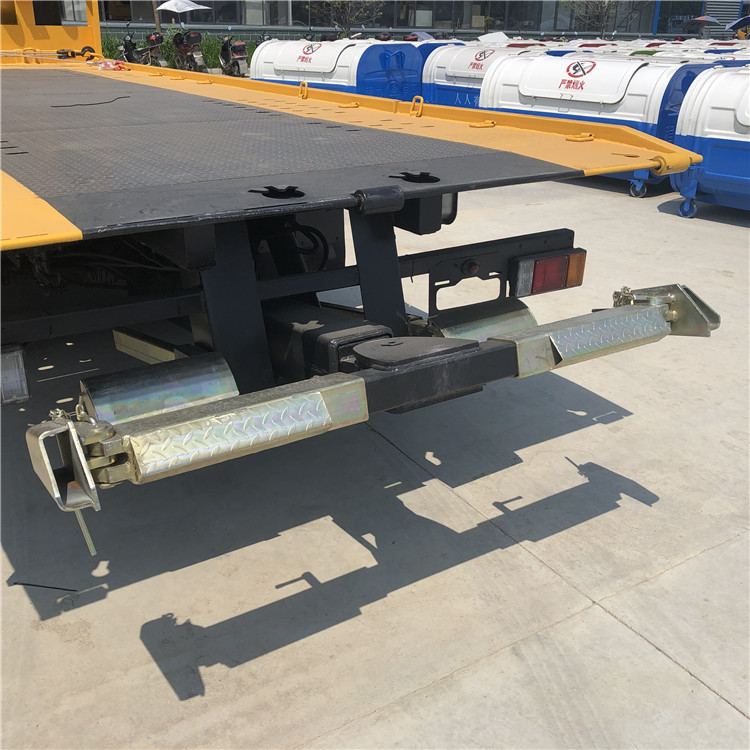

Underlift2 Sections, 5 Tons
OperationBoth Sides Manual
Warranty1 Year
Highlight6 Tons light duty flatbed tow truck, 700p light duty flatbed tow truck
Dimensions (L X W X H)8490x2350x2700mm
Main Winch6 Tons
Underlift Tow Rating10 Tons
Remote ControlOptional
Bed Dimension7000x2350mm
Manufacture/ModelISUZU/QL1100A8MAY
Driving Type4x2 left hand drive
Wheel Base4475 mm
GearboxMLD-6Q, six speed forward and one reverse, manual
Tyre235/75R17.5
Number of Tyre6+1 (spare tyre)
AxleFront 4 tons and rear 7 tons
Leaf Spring Number8/10+6
AC, Power Steer, ABS, Air Brake, Tilt CabEquipped
Engine Manufacturer/ModelISUZU/4HK1-TC51
Rated Power190hp/141kw
Fuel TypeDiesel oil
Displacement/Capacity5193ml
Emission StandardEuro 5
CylinderStraight/4/turbo charge/intercooling/high pressure common rail
Max. Torque510N.m
Velocity2600rpm
Total Mass12500 Kg
Rated Payload6000 Kg
Kerb Weight6500 Kg
Passenger3
Approach/Departure Angle18/10
Winch Capacity6 tons
Lift Capacity6 tons
Extension Capacity6 tons
Underlift Capacity6 tons (tow up to 12 tons)
Platform MaterialQ235B, 5mm thick
Platform TypeCheckered
Platform DimensionAround 6500 x 2500 mm (dimension customizable)
Wireless Remote ControlOptional, extra USD500
