6-Wheel Sinotruck Howo Wrecker Bed Winch Excavator Loading
v1v2v3v4v5v6v7
Complete Truck · Flatbed

6-Wheel Sinotruck Howo Wrecker Bed Winch Excavator Loading

  • Engine ManufacturerWeichai
  • Winch Capacity5 tons
  • Loading Capacity10-15 tons
  • Overall Dimensions8,570 x 2,550 x 2,830 mm

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 49595297

Overview

About this truck

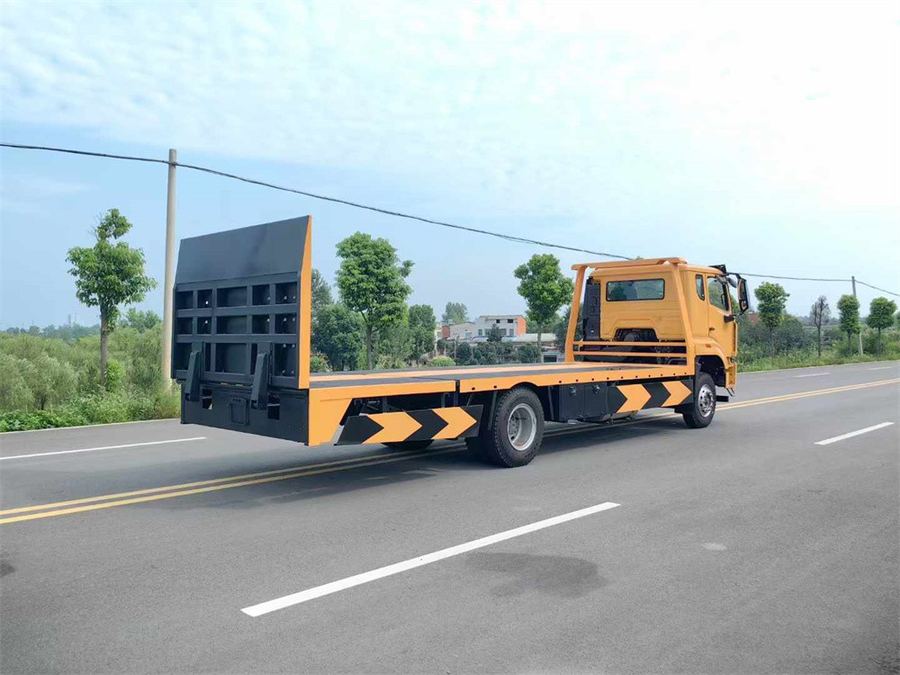

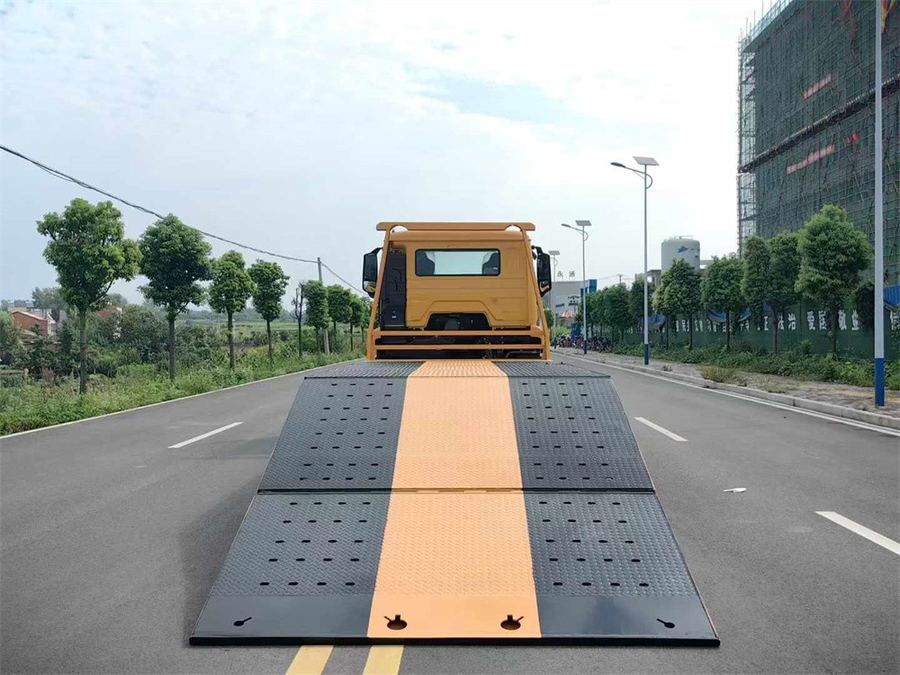

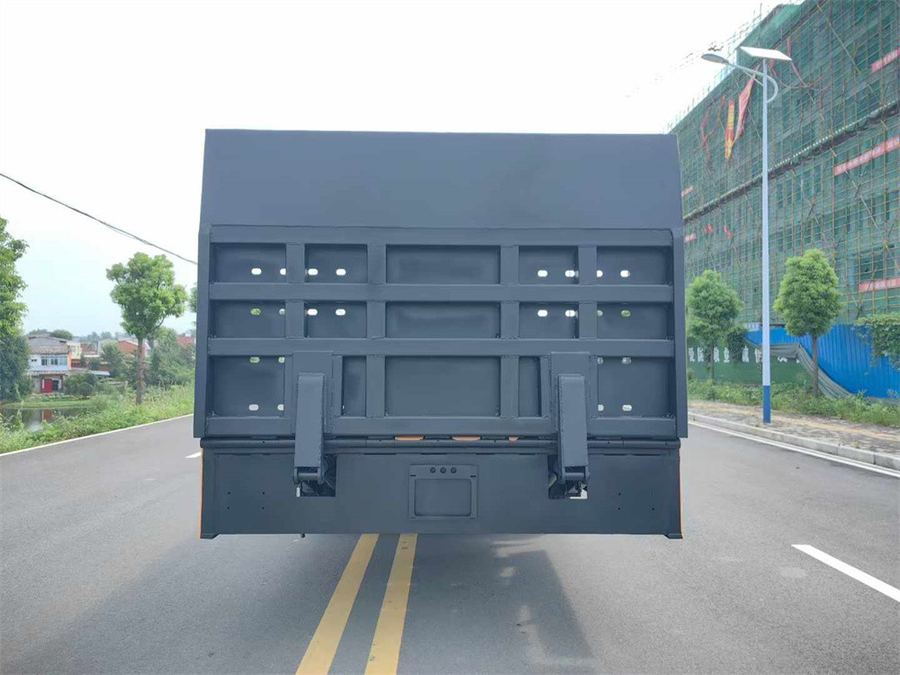

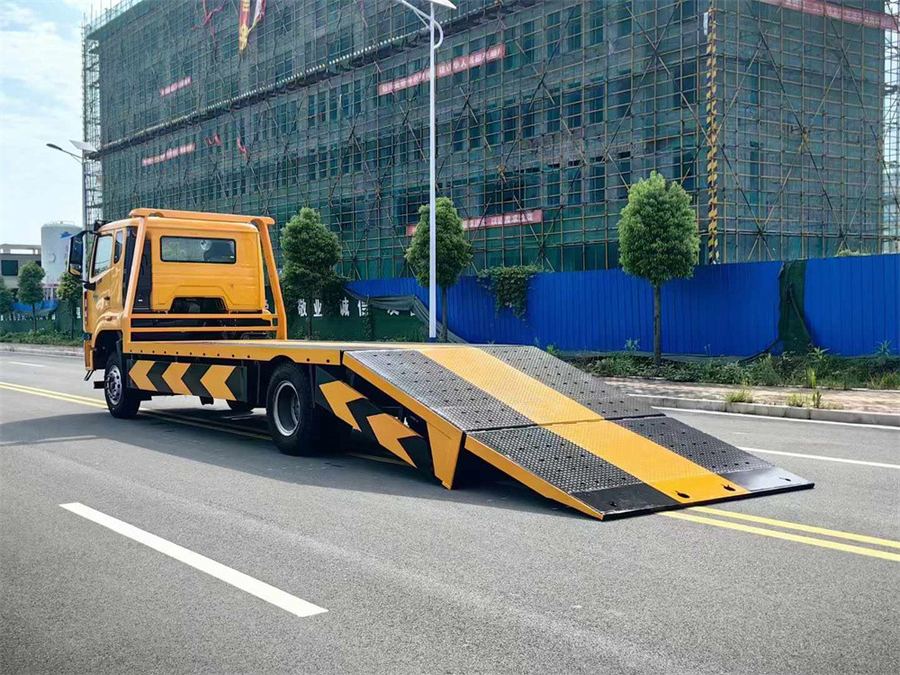

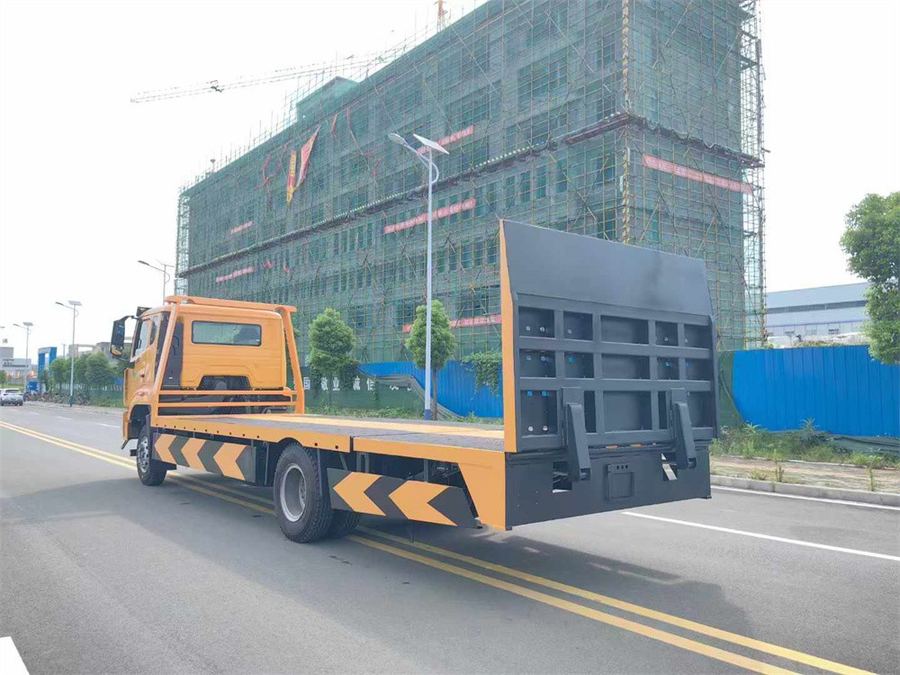

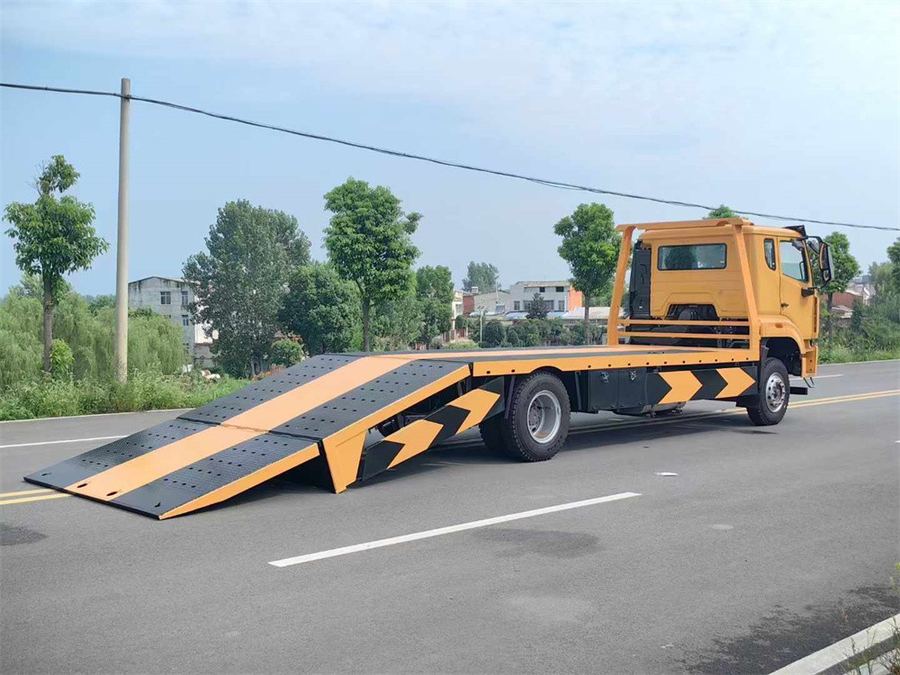

This 6-wheel Sinotruck Howo wrecker bed truck serves multiple recovery and road rescue functions including lifting, pulling, and obstacle clearing. Designed for handling malfunctioning vehicles, illegal parking removals, and emergency situations, the vehicle features a winch support system and excavator loading capacity. The wrecker bed configuration includes a main 5-meter bed with 1.5-meter fold bed extension, capable of supporting 10-15 tons of loading. Standard equipment provides automatic clamping and hydraulic operation suitable for diverse road conditions and construction machinery transport applications.

Specifications

Technical parameters

Model NumberSinotruck Howo
Overall Dimensions8,570 x 2,550 x 2,830 mm
Flatbed Dimensions7,000 x 2,400 mm
Total Weight18,000 kg
Curb Weight10,420 kg
Wheelbase4,600 mm
Front/Rear Track1,870/1,800 mm
Number of Wheels6 (12R22.5 tires, 7 units)
Number of Axles2
Approach/Departure Angle17°/10°
Maximum Speed90 km/h
Axle Load7,000/16,000 kg
Engine ManufacturerWeichai
Engine ModelWD615.62
Engine TypeDiesel, 6-cylinder, direct-line, turbocharged, water-cooled
Displacement9,726 ml
Power Output196 kW (266 hp)
Rated Speed2,200 r/min
Maximum Torque1,100 N·m @ 1,100-1,600 r/min
Transmission10 gears
Power SteeringYes
Front Suspension1,410 mm
Rear Suspension3,200 mm
Steering SystemECO108 steering gear
Winch Capacity5 tons
Main Bed Capacity~15 tons (4.2 m)
Auxiliary Board Capacity~4 tons (1.5 m)
Flip Tail Capacity~2 tons (1.65 m)
Loading Capacity10-15 tons
