Sinotruk Howo 4x2 12cbm Street Sweeper Truck
v1v2v3
Complete Truck · Road Sweeper

Sinotruk Howo 4x2 12cbm Street Sweeper Truck

  • Chassis BrandSinotruk
  • Rated Power266 hp
  • Engine ModelSinotruk WD615.62
  • Emission StandardEuro 2
  • Driving Type4x2, LHD / RHD optional
  • Total Mass21800 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: SW-12HW

Overview

About this truck

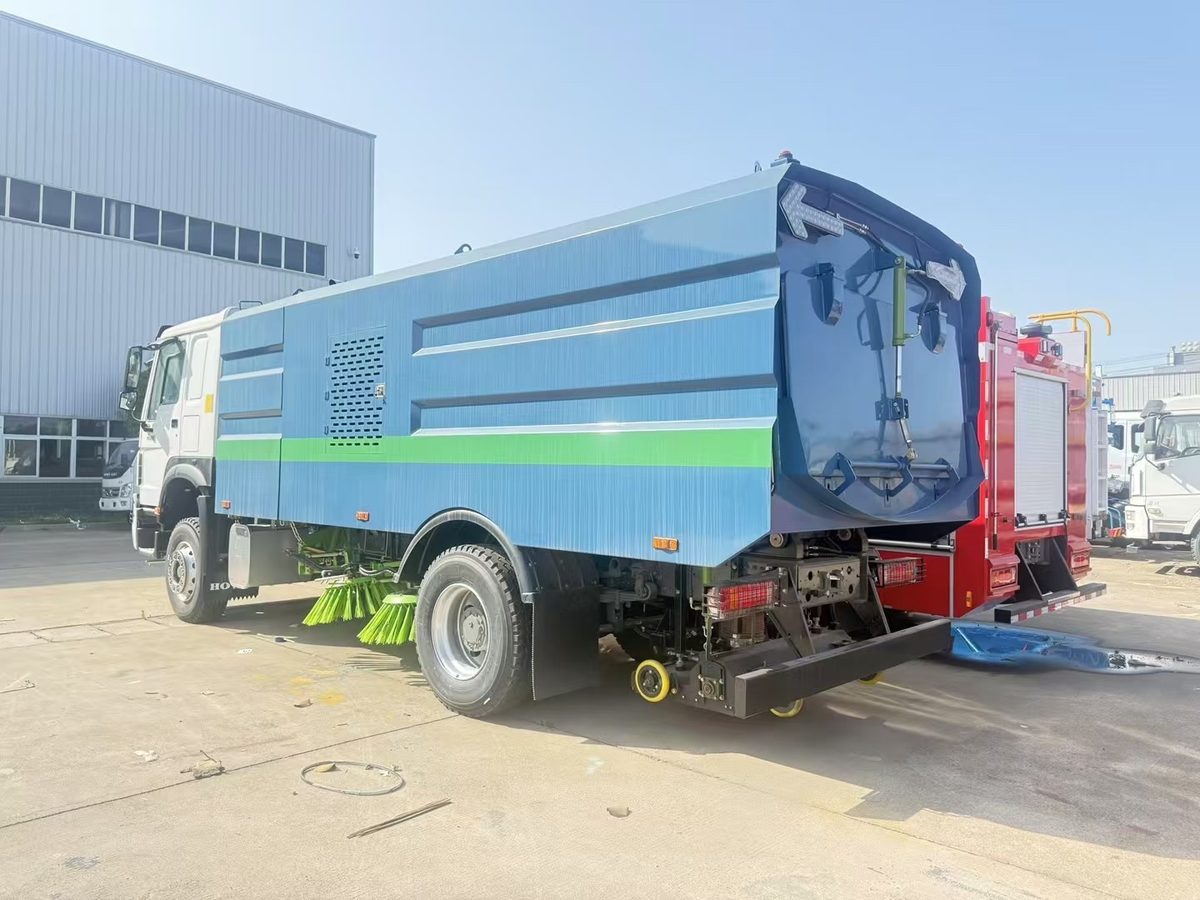

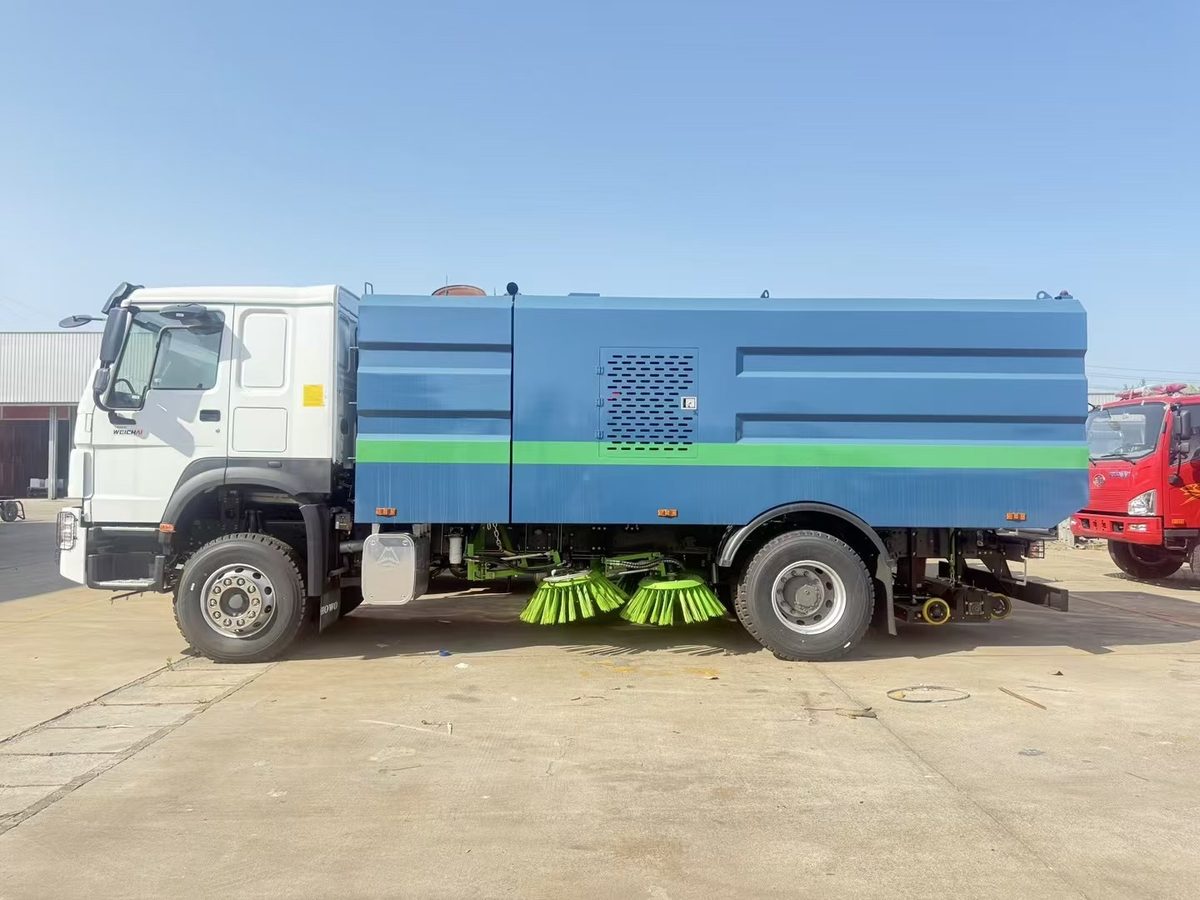

The Sinotruk Howo 4x2 street sweeper is built on the proven ZZ1167M4611W chassis with a 266 hp Sinotruk WD615.62 engine and 10-speed manual gearbox. It combines sweeping, washing and dust suppression in one unit, featuring a 4000 L water tank and 8 m³ dust bin for efficient cleaning. With a 3.5 m cleaning width and 95% cleaning efficiency, it is suitable for urban roads and industrial areas. LHD and RHD options are available to meet different market requirements.

Specifications

Technical parameters

Chassis BrandSinotruk
Chassis ModelZZ1167M4611W
Driving Type4x2, LHD / RHD optional
Wheelbase4600 mm
Engine ModelSinotruk WD615.62
Rated Power266 hp
Emission StandardEuro 2
Fuel TypeDiesel
Gearbox10-speed manual
Tyre12R22.5
CabinOne-and-half row, A/C
Total Mass21800 kg
Kerb Weight9800 kg
Rated Payload12000 kg
Dimension (L×W×H)8100 x 2500 x 3050 mm
Clean Width3.5 m
Water Tank Capacity4000 L
Dust Bin Capacity8 m³
Auxiliary EngineCUMMINS 140 hp
Max Clean Capacity70000 m²/h
Cleaning Efficiency95%
Clean Speed3-20 km/h
Brush Diameter850 mm
Maximum Suction Particle Size200 mm
FunctionsSweeping + Washing + Dust suppression
ConditionNew
Warranty1 Year
