6-7 Tons DFAC High Pressure Road Cleaning Truck
v1v2v3v4v5v6v7v8v9
Complete Truck · Road Sweeper

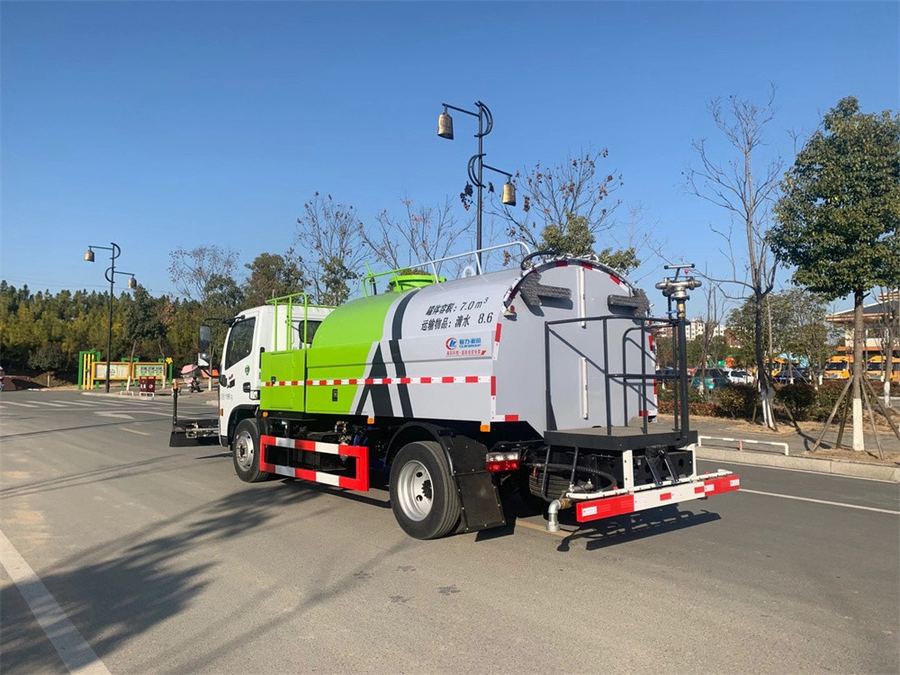

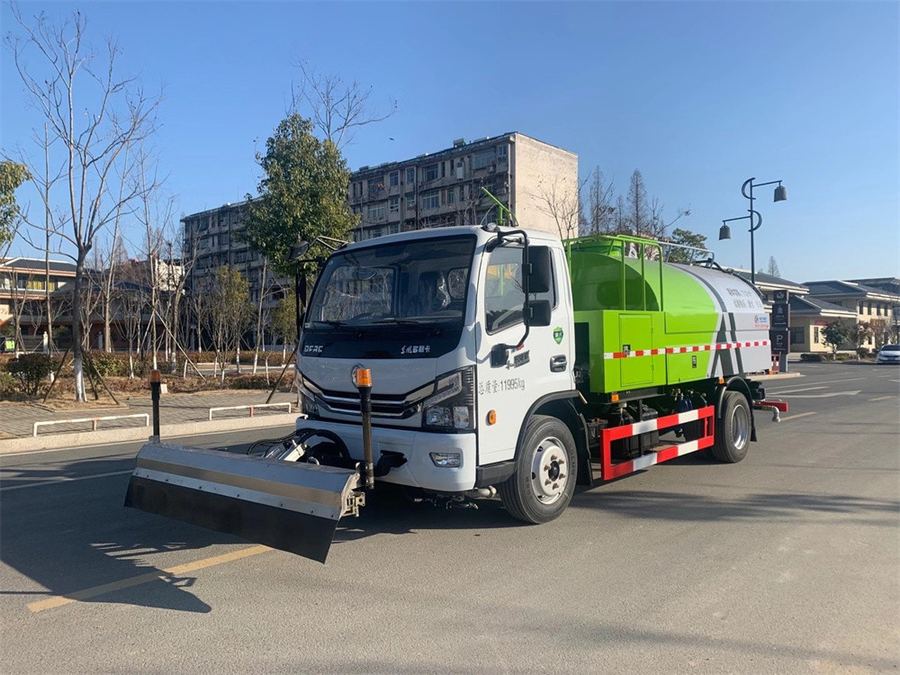

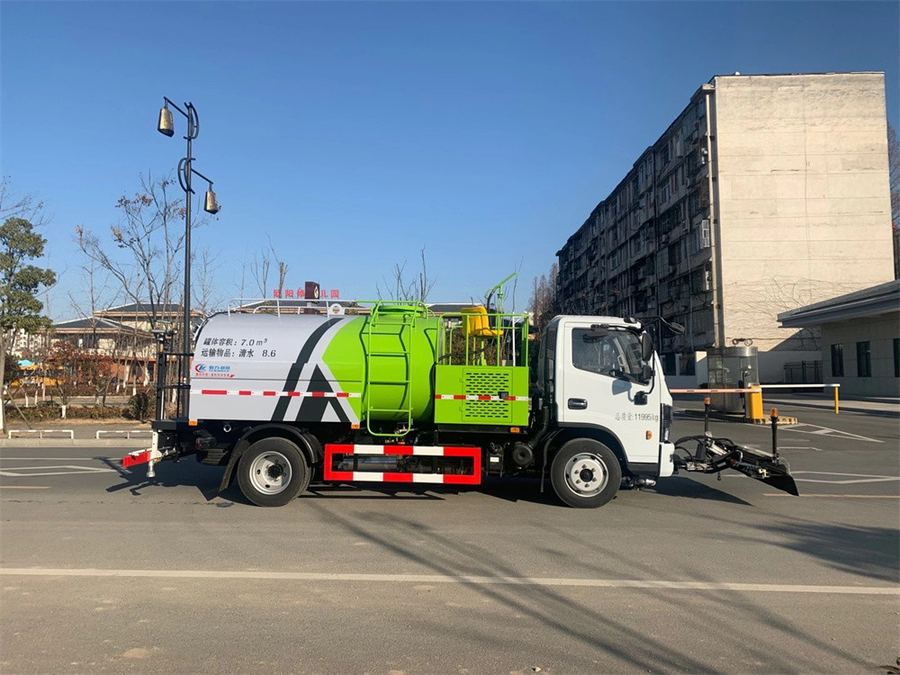

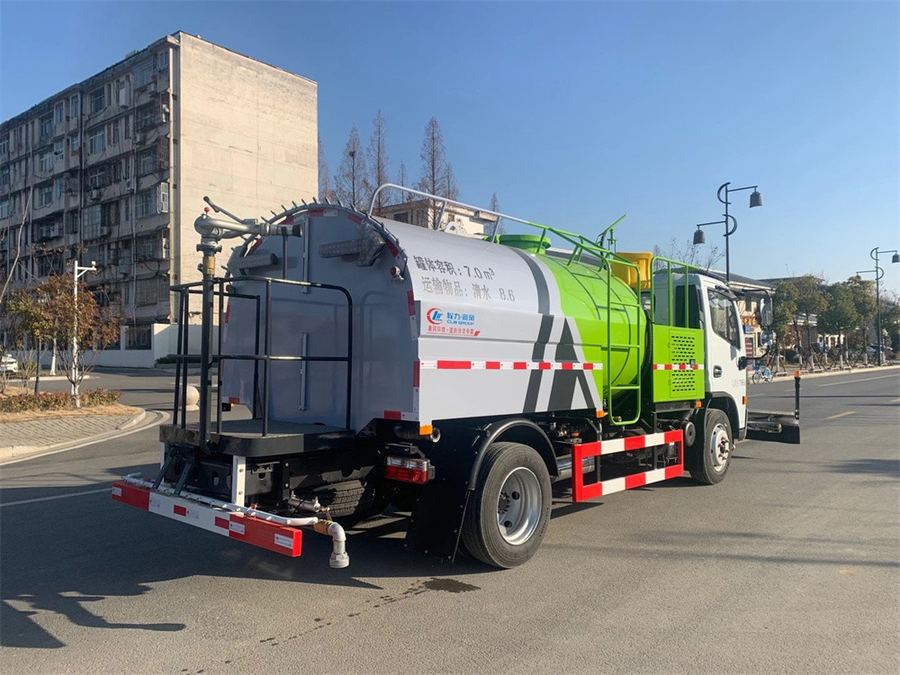

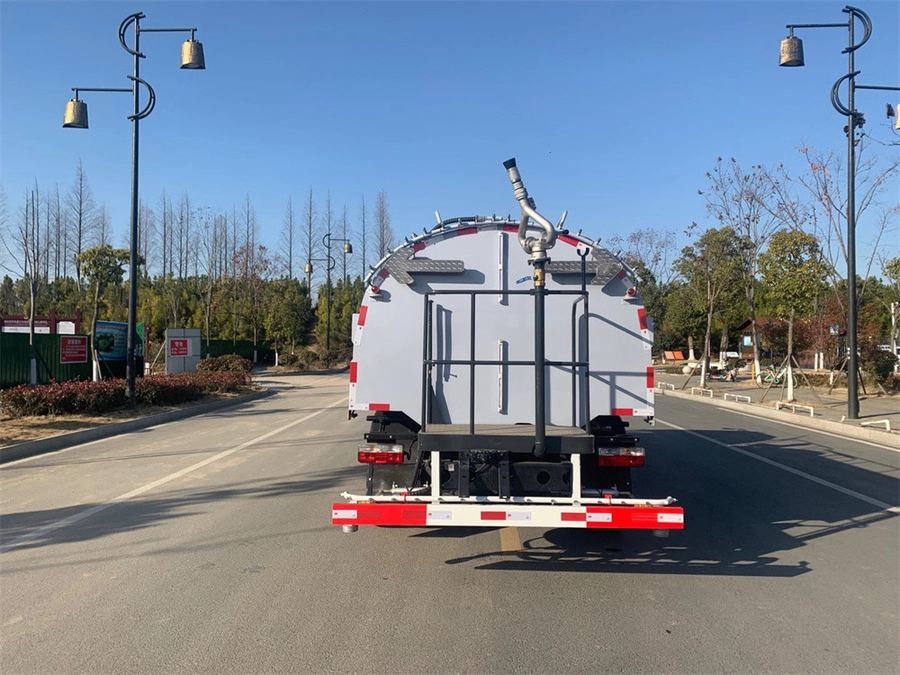

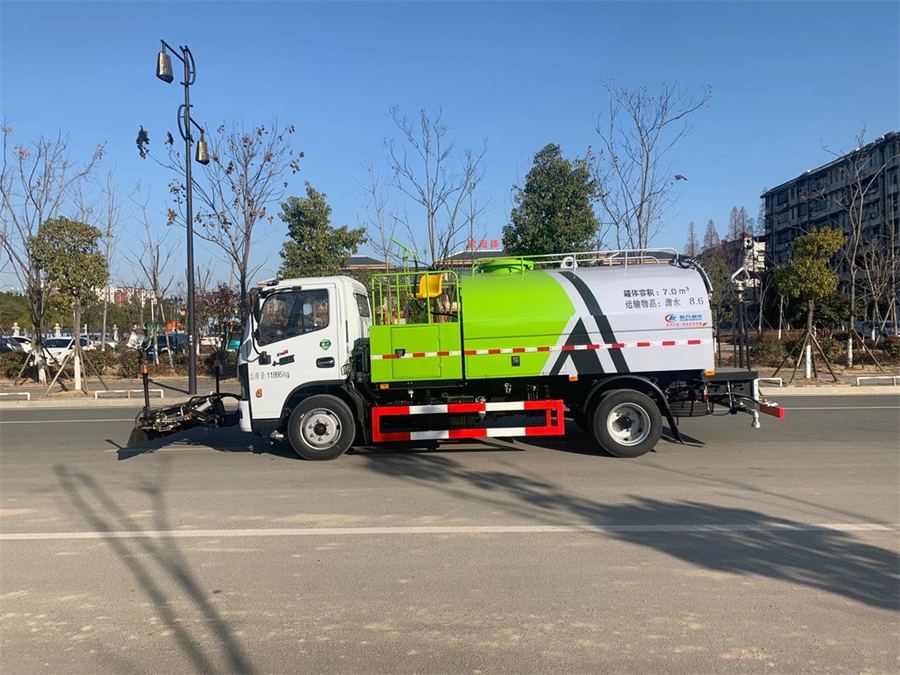

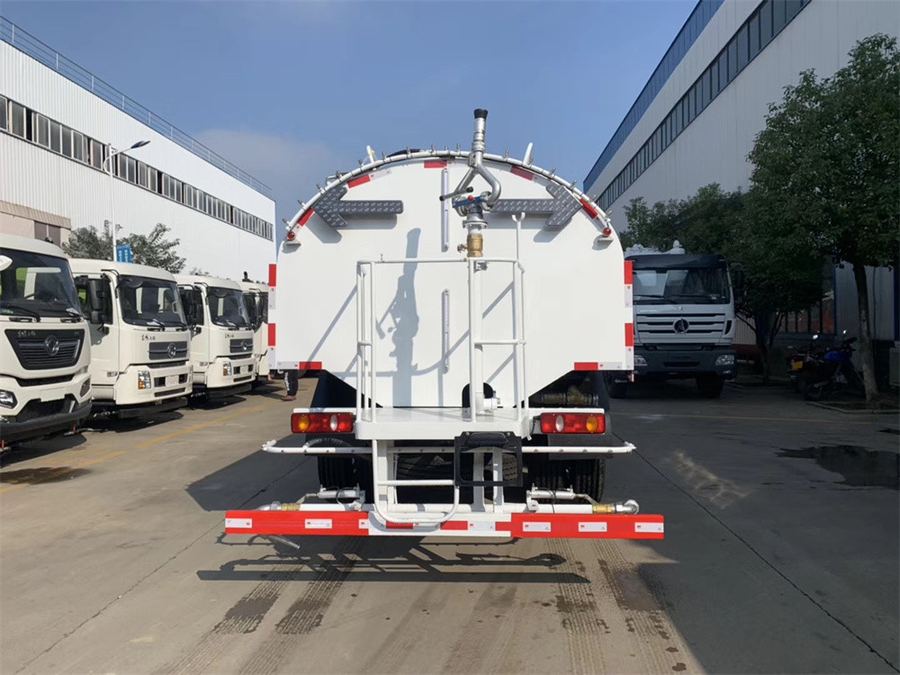

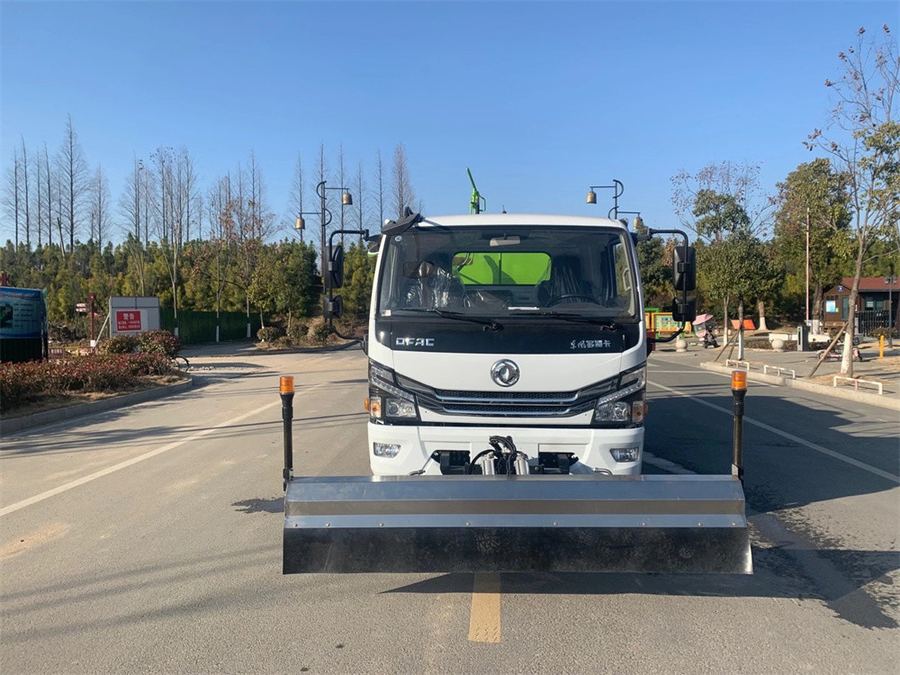

6-7 Tons DFAC High Pressure Road Cleaning Truck

  • Rated Power Speed3200RPM
  • Engine ModelYC4E135-33
  • Tank Dimension2900x2100x1450 mm
  • Tank Volume7 m³
  • Overall Dimensions7435×2500×2780 mm

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48013002

Overview

About this truck

This high-pressure road cleaning truck features advanced cleaning capabilities for various applications. Equipped with a front spray rack, the vehicle compresses water molecules into fine droplets under high pressure, achieving efficient cleaning results. It effectively removes dirt, grease, mud, and stubborn stains from road surfaces. The truck is applicable in industrial settings including factories and warehouses, where it removes harmful substances from the air to improve working environment quality. Beyond road cleaning, it serves building cleaning and vehicle sanitization purposes. The high-pressure system penetrates hidden vehicle corners, thoroughly eliminating dirt and oil stains while providing sterilization and disinfection benefits, ensuring safe and hygienic vehicle use.

Specifications

Technical parameters

Dust Suppression SystemYes
Power SourceDiesel
Cleaning Speed5-15 Km/h
TypeMechanical
Curb Climbing Ability30 Cm
Cleaning Spray Rack Width2.3-3.5 M
Spray Rack Deflection Angle30 °
Clean Water Rated Flow≥ 150 L/min
Spray Flow≥ 125 L/min
Rated Pressure Washing Water10 Mpa
Low Pressure Clean Flow500-900 L/min
Low Pressure Clean Width≥ 16 M
Water Gun Range≥ 35 M
Overall Dimensions7435×2500×2780 mm
Tank Dimension2900x2100x1450 mm
Tank Volume7 m³
GVW11995 kg
Curb Weight5130 kg
Payload6670 kg
Wheelbase3800 mm
Front/Rear Track Base1750/1630 mm
Front/Rear Suspension1130/1960 mm
Approach/Departure Angle21/13 °
Max Speed80 km/h
Axle Load2200/5500 kg
Tire7.50R16
Number of Axles2
SteeringPower
TransmissionWLY6
Cab Passenger3
Electric System24V
Engine ModelYC4E135-33
Engine ManufacturerYUCHAI ENGINE
Engine TypeDiesel, 4 direct-line, turbocharge and water cooling
Displacement4257ml
Engine Power100Kw, 135Hp
Rated Power Speed3200RPM
Maximum Torque345Nm at 1400-1800rpm
Cylinder Bore96mm
Stroke100mm
Secondary Engine ModelJX493G3, 2771cc/57kw/3600r/min
Maximum Grade30 °
Braking Length10 m
Minimum Turning Diameter19 m
Clutch TypeSACHS
Clutch Plate Diameter¢430mm
Clutch Operating SystemHydraulic control with air booster, pulling
PTO TypePTO with gear pump
PTO Maximum Output Torque850Nm
Self-Priming Height≥ 6 m
