6x4 Dongfeng Road Jetter Truck with 15000L Water Tank
v1v2v3v4v5v6
Complete Truck · Road Sweeper

6x4 Dongfeng Road Jetter Truck with 15000L Water Tank

  • Rated power speed2200 RPM
  • Engine ManufacturerDongfeng Cummins
  • Emission/kW8900ml/276kW, 375 hp
  • Tank dimension6800x2280x1380 mm
  • Cab passenger capacity3
  • Tank volume15 m³

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48010777

Overview

About this truck

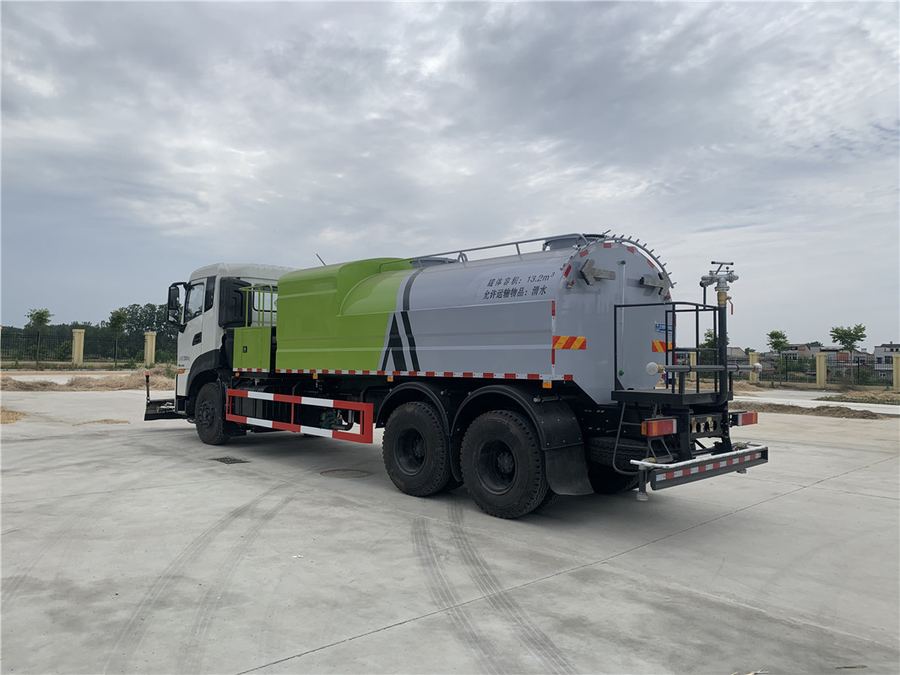

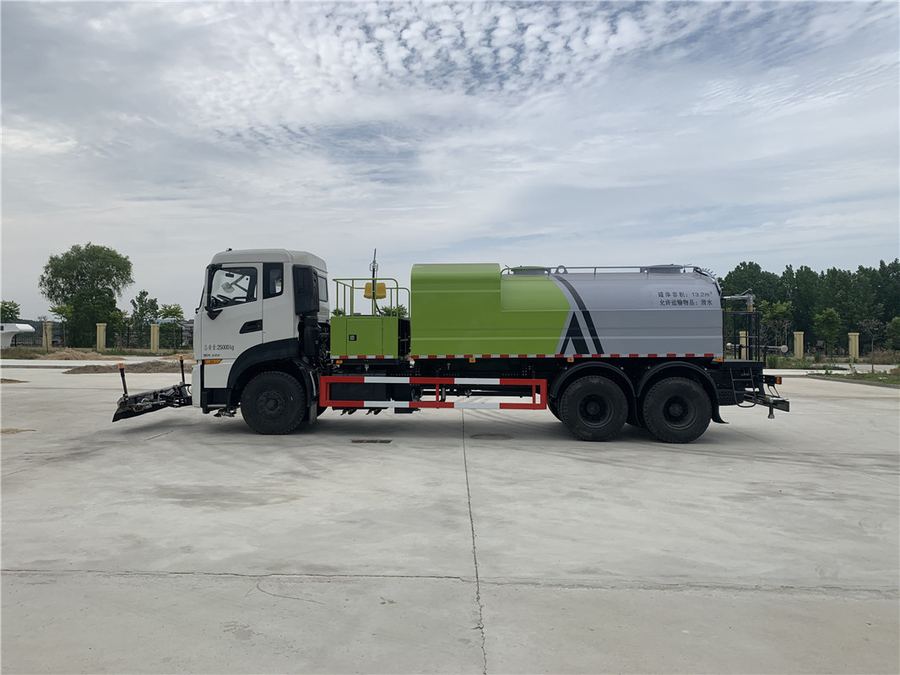

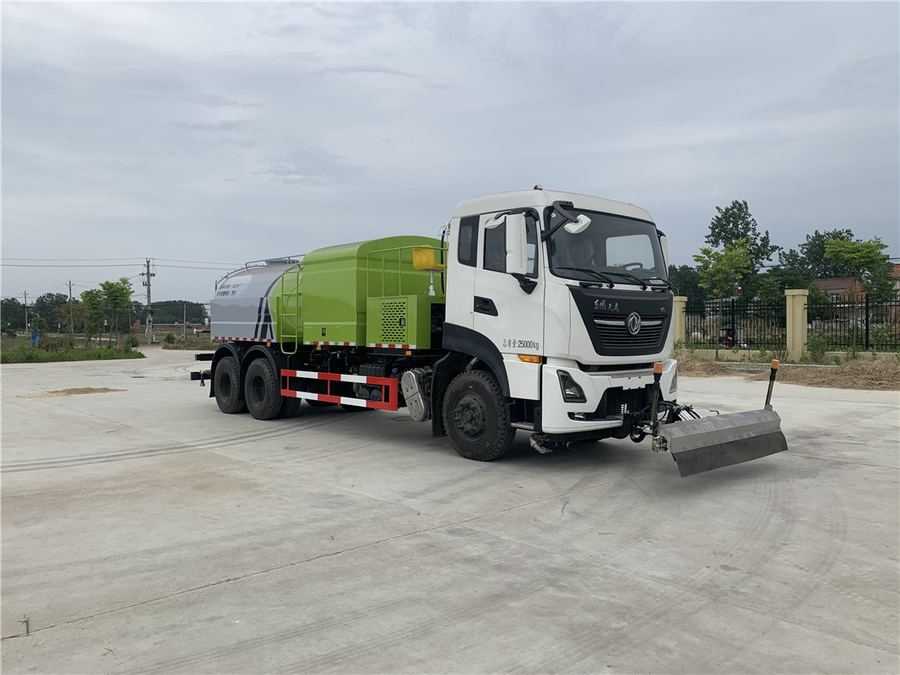

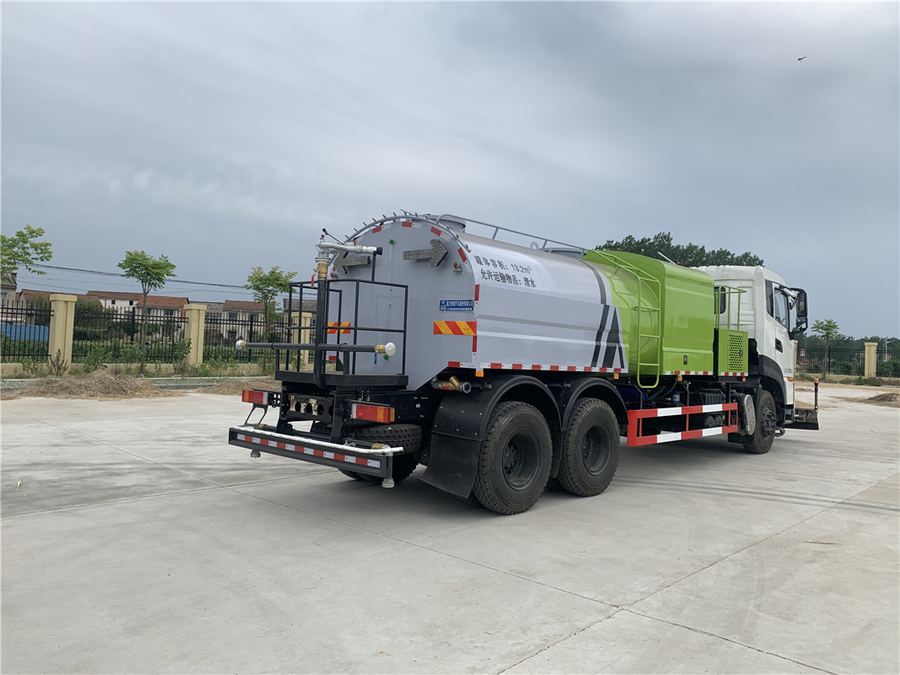

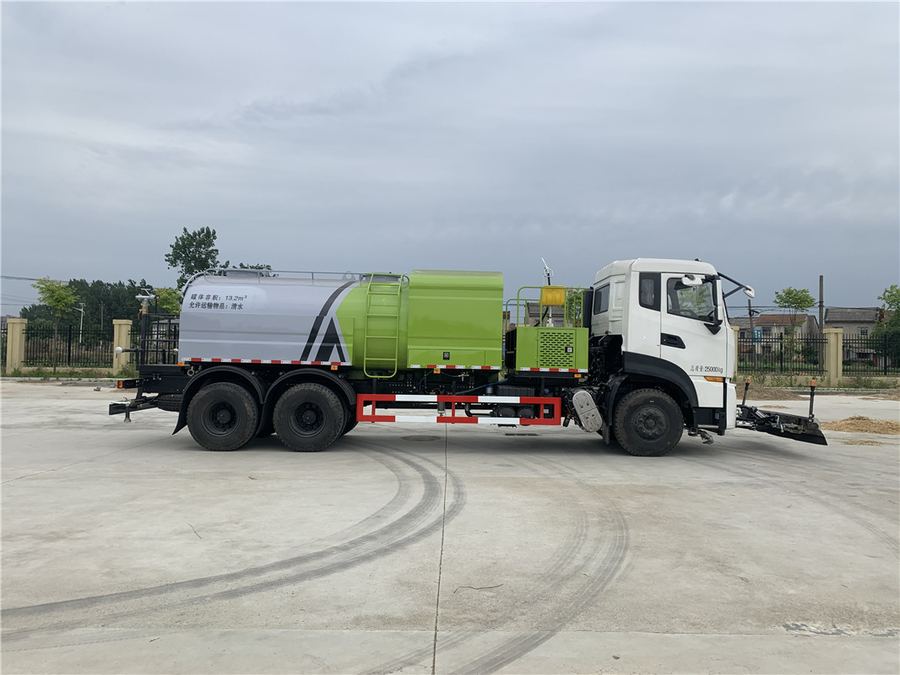

This Dongfeng truck-mounted road sweeping machine combines high-pressure cleaning with low-pressure spray capabilities for comprehensive surface cleaning. Equipped with a front spray rack that compresses water molecules into fine droplets under high pressure, it efficiently removes dirt, grease, mud, and stubborn stains from road surfaces. The vehicle finds application in industrial settings including factories and warehouses for air quality improvement, building cleaning, and vehicle maintenance. It can penetrate hidden corners of vehicles to eliminate various contaminants and provides sterilization and disinfection benefits, ensuring operational safety and hygiene.

Specifications

Technical parameters

Overall dimensions9800×2500×3080 mm
Tank dimension6800x2280x1380 mm
Tank volume15 m³
GVW25000 kg
Curb weight12500 kg
Payload14150 kg
Wheelbase4350+1300 mm
Front/Rear track base1880/1800 mm
Front/Rear suspension1430/2160 mm
Approach/departure angle23/12°
Max speed90 km/h
Axle Load5000/10000/10000 kg
Tire specification315/80R22.5
Number of axles3
SteeringPower
Transmission9F&1R ZF9S1820
Cab passenger capacity3
Electric System24V
Engine ManufacturerDongfeng Cummins
Engine TypeL375 30
Emission/kW8900ml/276kW, 375 hp
Rated power speed2200 RPM
Maximum torque1480 Nm at 1400 rpm
Engine typeDiesel, 6 direct-line, turbocharged and water cooling
Cylinder bore114 mm
Stroke145 mm
Secondary engine modelJX493G3, 2771cc/57kW/3600r/min
Cleaning spray rack width2.3-3.5 m
Spray rack deflection angle30°
Sweeping speed5-15 km/h
Rated pressure washing water10 MPa
Clean water rated flow≥150 L/min
Spray flow≥125 L/min
Low pressure clean width≥16 m
Clean water flow500-900 L/min
Water gun range≥35 m
Self-priming height≥6 m
Maximum grade30°
Braking length10 m
Minimum turning diameter19 m
Clutch TypeSACHS
Plate diameterØ430 mm
Operating systemHydraulic control with air booster, pulling
PTO TypePTO with gear pump
Maximum output torque850 Nm
Dust Suppression SystemYes
Power SourceDiesel
Operating Weight15 Tons
Sweeping Width10-15 Meters
Cleaning Speed5-15 km/h
TypeMechanical
Curb Climbing Ability30 cm
