9CBM Isuzu 700P Street Sweeper and Cleaning Truck
v1v2v3v4v5v6v7v8
Complete Truck · Road Sweeper

9CBM Isuzu 700P Street Sweeper and Cleaning Truck

  • Chassis ModelQL1100ANKAY
  • Engine Power190hp
  • Emission StandardEuro 6
  • Driving Type4x2
  • Gross Vehicle Weight12000 kg
  • Water Tank Volume4 m³

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 47951641

Overview

About this truck

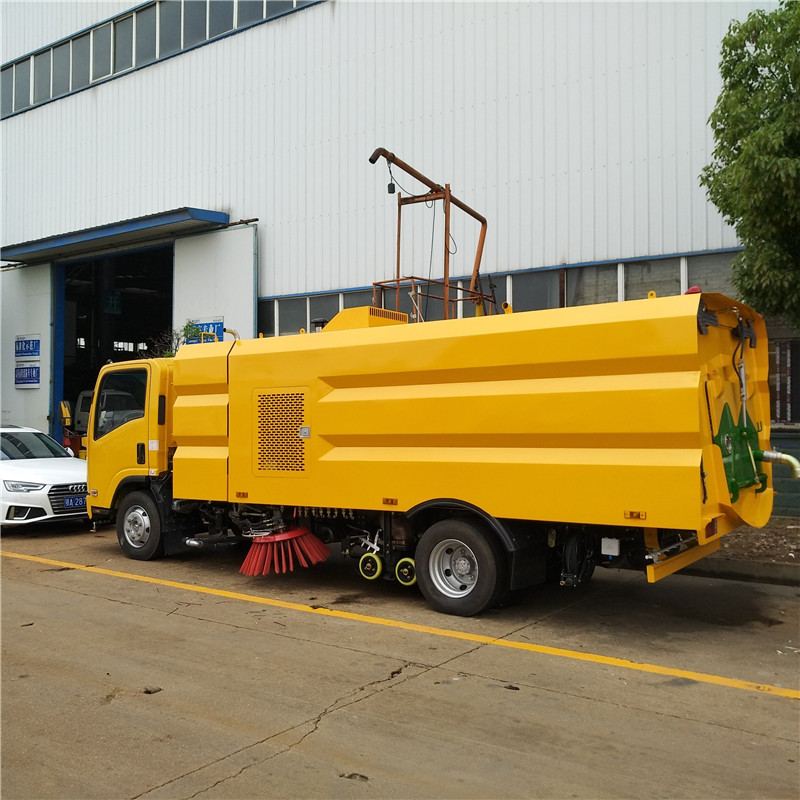

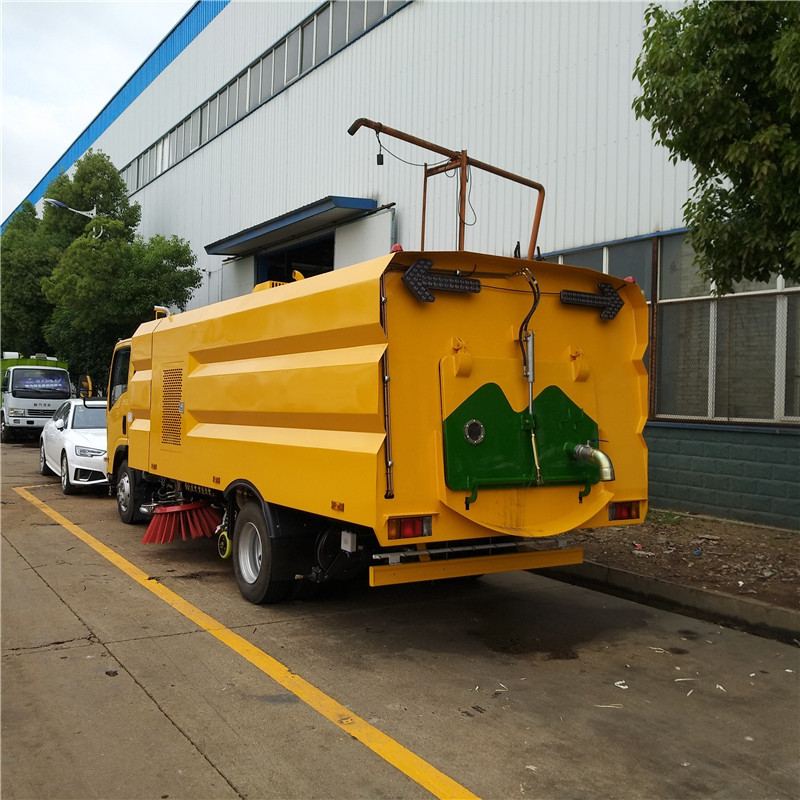

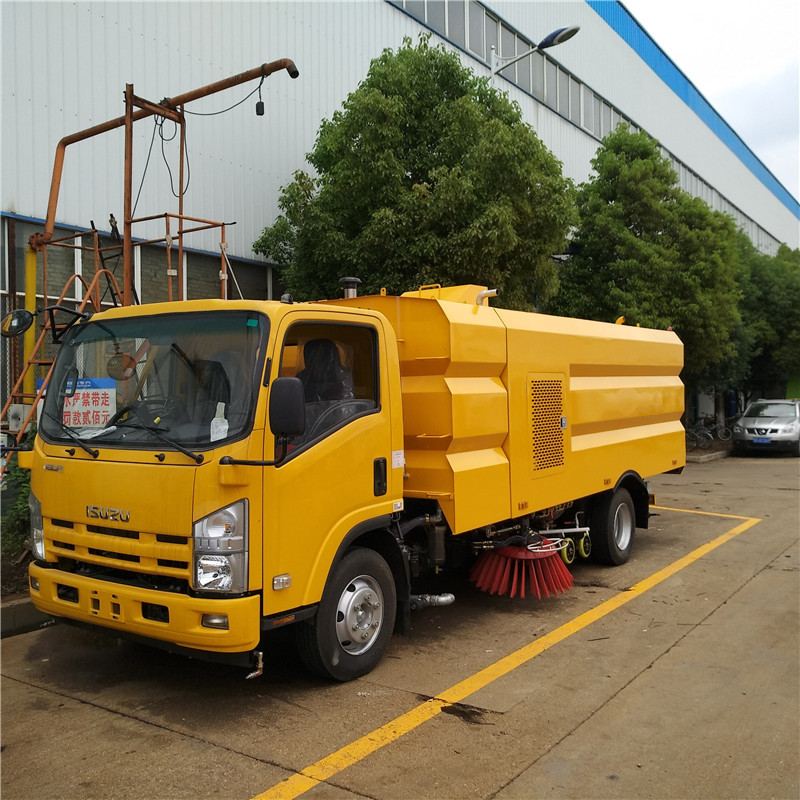

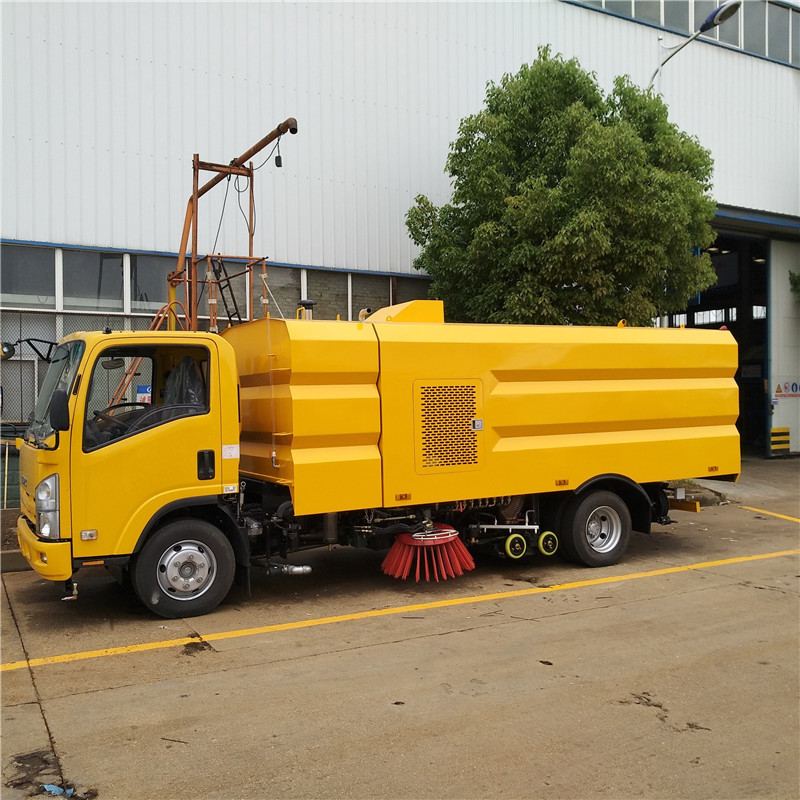

The ISUZU KV600 700P is a versatile air sweeper truck combining road sweeping and high-pressure cleaning capabilities. This vehicle comes equipped with two center-mounted brushes featuring a V-shaped high-pressure water spray rod positioned in front, along with a center-mounted suction nozzle containing an integrated high-pressure water spray system. During operation, the truck sprays high-pressure water to dislodge stubborn debris from road surfaces, simultaneously vacuuming water and collected refuse into an onboard garbage bin. The truck features a 17-meter high-pressure water flushing reel and spray gun for enhanced cleaning efficiency. It is designed for mechanized cleaning and dust suppression operations across diverse urban and infrastructure environments, including roads, highways, squares, airports, docks, tunnels, bridges, and various curb applications. The vehicle delivers effective cleaning with convenient maintenance capabilities.

Specifications

Technical parameters

ConditionNew
Emission StandardEuro 6
Dimensions (L X W X H)7000X2300X2700 mm
Gross Vehicle Weight12000 kg
Transmission TypeManual
Fuel TypeDiesel
After-sales ServiceVideo Technical Support, Field Installation, Commissioning And Training, Free Spare Parts
Driving Type4x2
Engine Power190hp
KeywordStreet Clean Truck
HighlightISUZU KV600 air Sweeper Truck, ISUZU KV600 street sweeper truck, Versatile Air Sweeper Truck
Chassis ModelQL1100ANKAY
Wheelbase3815mm
Front/Rear Suspension1130/2070 mm
Chassis Engine Model4HK1-TCG61
Spare Engine Power64 kW
Max Upgrade Angle30%
Accelerating Outside Noise≤84dB(A)
Max Speed100 km/h
Approach Angle20°
Departure Angle11°
Curb Weight7045 kg
Whole Weight11450kg
Whole Dimension7000×2200×2700mm
Minimum Height Above Ground250 mm
Clean Speed3~20 Km/h
Clean Width3 m
Water Pressure12 MPa
Water Pump Flow115 L/min
Cleaning Efficiency≥95%
Maximum Suction Particle Size110 mm
Clean and Suction Width3 m
Max Clean Capacity60000 m2/h
Disc Brush Size≥400 mm
Clean and Suction Speed3-20 km/h
Water Tank Volume4 m³
Dust Tank Volume5 m³
Dump Bin Tilting Angle≥46°

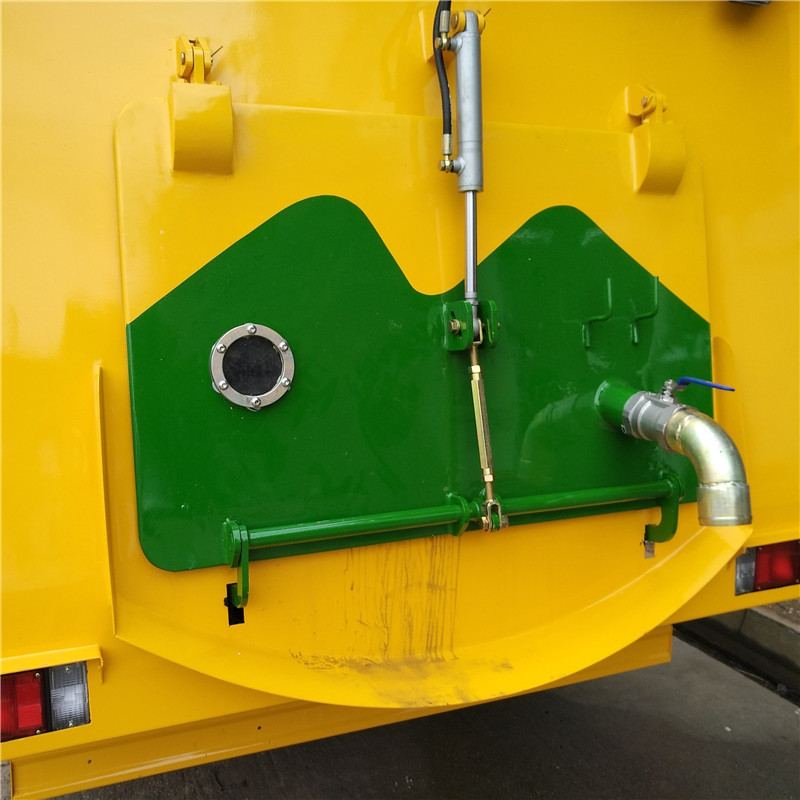

Discharge Door Opening Angle≥85°
Hydraulic System ModelOpen, electrical control
Hydraulic System Major PartsGear pump, hydraulic motor, hydraulic cylinder, solenoid valve
Hydraulic System Pressure16 MPa
Oil Tank Capacity60 L
Oil Temperature60 ˚C
Electrical System ModelDC24 V
Electrical System Voltage24 V
Battery24 V

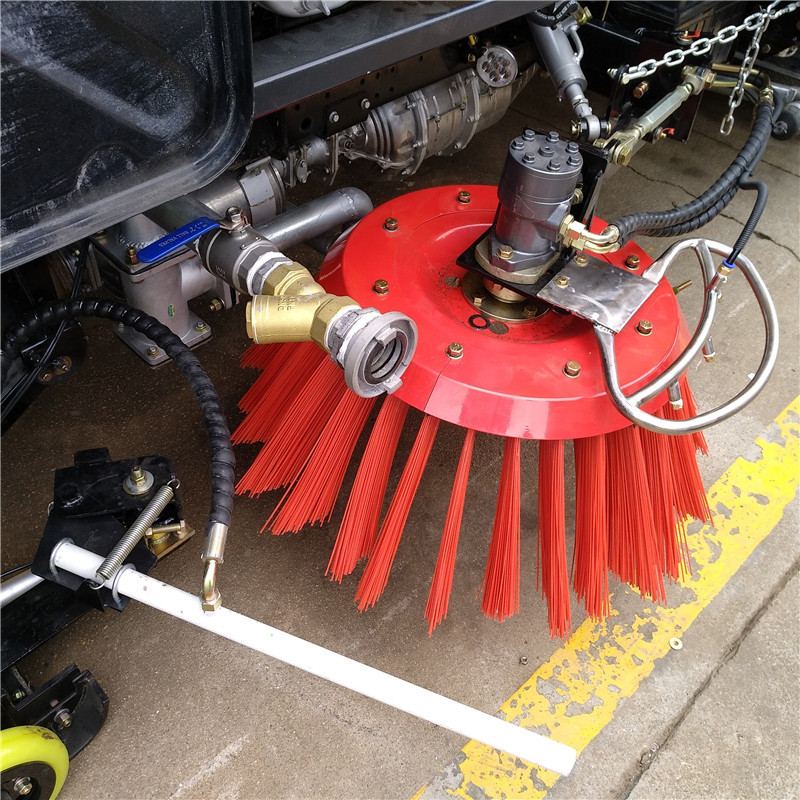

Sweeping Device ModelCenter two swabs, driven by hydraulic motor, front right independently controlled
Brush Diameter850 mm
Brush AngleTilt forward: 4-6 degrees Tilt: 4-7 degrees
Suction Plate ModelDouble suction, hydraulic control, spring suspension
Suction Plate Diameter180 mm
Suction Plate Width1800mm
High Pressure Water System Modelpost pump
High Pressure Pump No.Germany PT36
High Pressure System Pressure10 MPa
High Pressure Pump Speed1150 r/min
Water Valve ModelHydraulic pressure ball valve
Water Valve Pressure7 MPa
Spray Nozzles ModelHigh pressure washing type
Water FilterMesh type
Water Spray SystemElectric diaphragm pumps, water filters, nozzles, etc.
