ModelYC4FA120-33

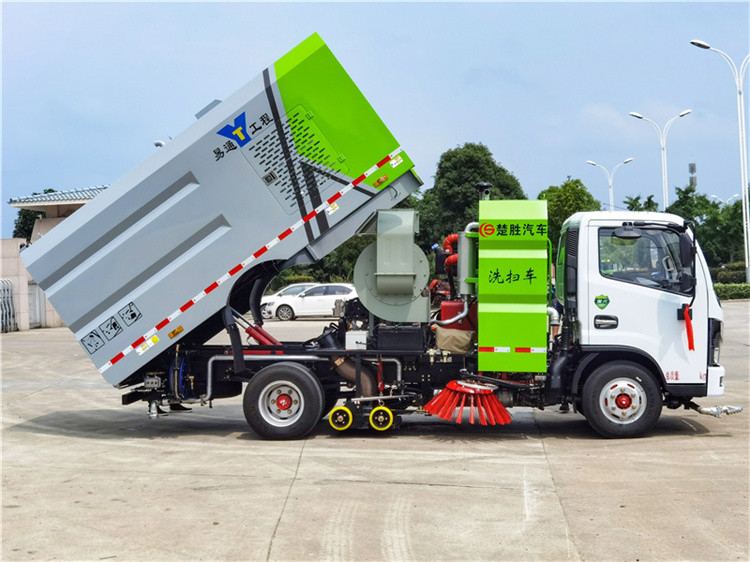

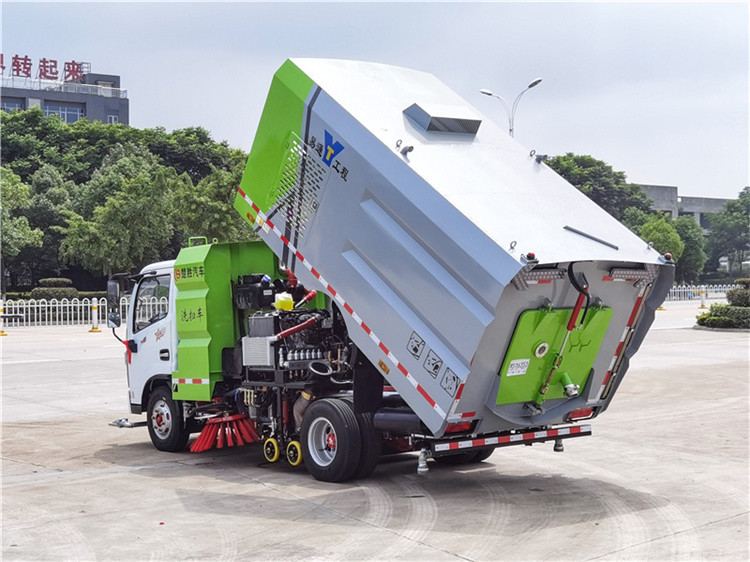

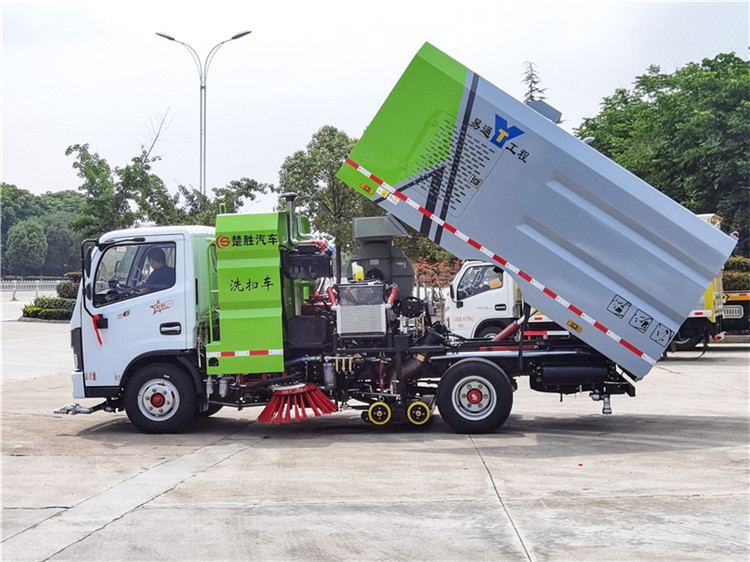

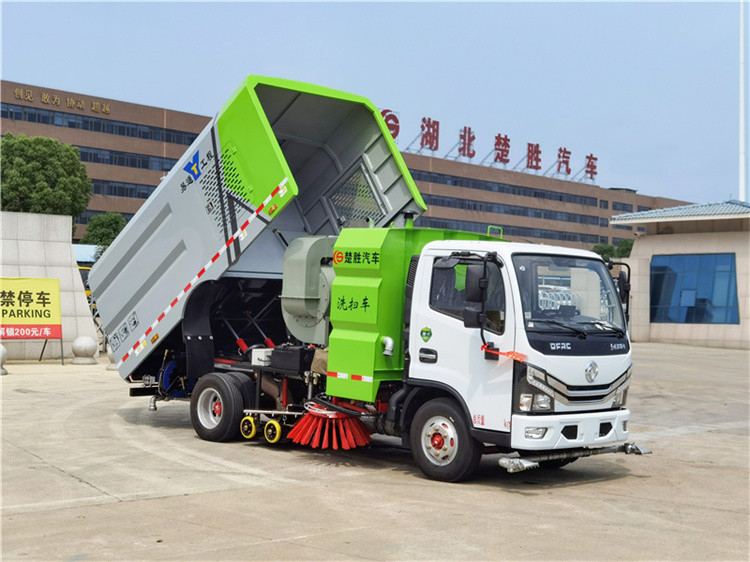

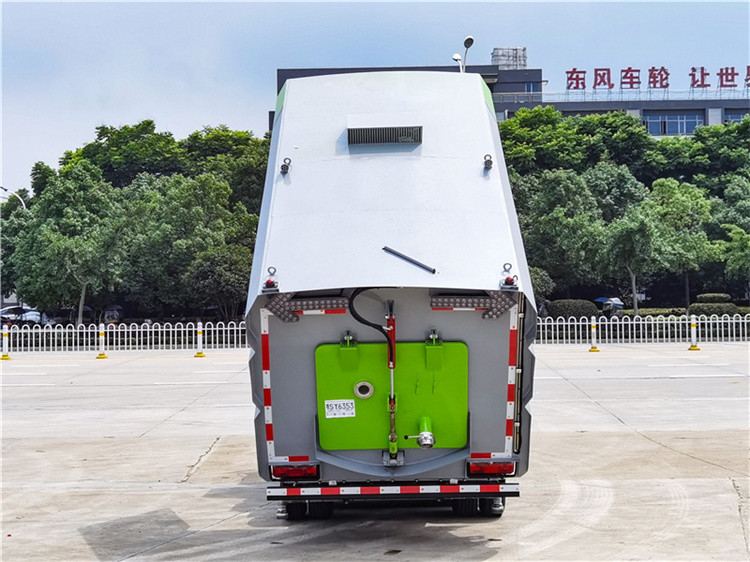

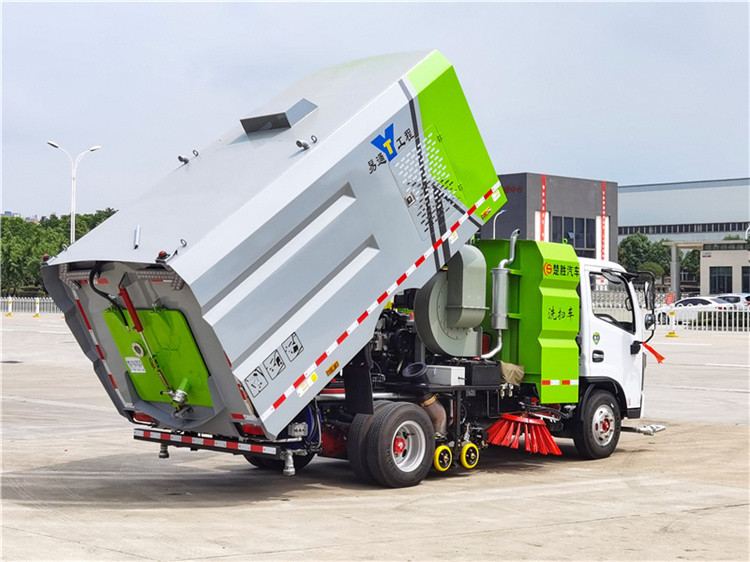

NameRoad Sweeper
Water Tank Capacity2500 Liters
Braking SystemAir Brake
Steering TypePower Steering
Transmission TypeManual
Cabin TypeSingle
Max Speed100 km/h
Gross Vehicle Weight7360 kg
Engine Power120 hp
Engine TypeDiesel
Hopper Capacity3000 Liters
Clean Width2500-3000 mm
Sweeping Width2.8 Meters
Max Clean Capacity30,000 m²/h
Suction Particle Size>=100 mm
High Pressure Water PumpGTM
System Overflow Pressure10-12 MPa
Fan System Air Volume5000-8000 m³/h
Brush Spreading Diameterφ800-900 mm
Scan Number2
Suction Straw BrandNORRES
Emission StandardEU 3
Engine Model (Main)YC4FA120-30
Engine Model (Secondary)JE493ZG3
Main Engine Power88 kW
Main Engine Horsepower120 hp
Main Engine Displacement2982 cc
Secondary Engine Power63 kW
Secondary Engine Horsepower87 hp
Secondary Engine Displacement1400 cc
Fuel TypeNo. 0 light diesel
Dimension6350 × 2300 × 2500 mm
Wheelbase3300 mm
Tire Size7.00R16
Tire Number7
Front Trace1525, 1519 mm
Rear Trace1498, 1516 mm
Passenger Capacity2
Front Suspension1055 mm
Rear Suspension1987 mm
Approach Angle27°
Departure Angle11°
Ground Clearance1430 mm
Loading Weight1430 kg
Curb Weight5800 kg
Maximum Total Mass7360 kg
Clean Water Tank2.5 m³
Dust Tank3 m³ (stainless steel)
Clean Speed3-15 km/h
Working Speed15-20 km/h
Suction Capacity Density2.0 g/cm³
Suction Capacity Mass1.5 kg
Dumping Angle of Garbage Bin>=30°
Cleaning Efficiency>=96%
Operation Noise<88 dB
Drive Type4×2
Suspension TypeLeaf spring
Front Steel Plate Springs8
Rear Steel Plate Springs10+7
Braking TypeDual circuit pneumatic, drum type
Braking Distance (full load 30 km/h)<=10 m
Maximum Speed110 km/h
Minimum Turning Radius8 m
Maximum Climbing Slope>=30%
Clutch SystemSingle piece dry diaphragm spring, hydraulically operated
Transmission SystemMechanical 5-speed with synchronizer, manual
Engine Fuel Consumption (Drive)<=14 L/100 km
Engine Fuel Consumption (Working)<=8 L/h
Engine Fuel Consumption (Working per Area)<=3 L/10,000 m²
Water Discharge PatternLow pressure mist
High Pressure Water Pump BrandGTM
Hydraulic System TypeOpen, electrically controlled centralized
Orbital Motor BrandLipton Motor/Lipwo Motor
Gear Oil Pump BrandShiyan Changshun
Hydraulic Cylinder BrandHepris
Hydraulic Cylinder Seal BrandDingji
Hydraulic Oil Pipe BrandDahang
Electromagnetic Valve Group BrandHepris
Pressure Gauge BrandChengdu Tianwei
Return Oil Filter BrandSofima
System Overflow Pressure (2)10-12 MPa
Hydraulic Oil Tank Capacity>=50 L
Chassis Vehicle System Voltage24 V
Working Device System Voltage12 V
Control Switch BrandShanghai Schneider
Programmable Logic Controller BrandBaozhaofu
Circuit Breaker BrandHagrid
Battery Model12V-70Ah (2)
Fan TypeMaintenance-free centrifugal fan 6.0
Fan Rated Operating Speed2000 r/min
Fan Drive SystemAuxiliary engine, clutch, toothed A-belt transmission (4 pieces)
Fan Belt BrandZhejiang
Automatic Clutch TypeCentrifugal, imported material
Fan Air Volume5000-8000 m³/h
Brush Spreading Diameter (2)φ800-900 mm
Scanning Disc Motor Speed140 r/min
Number of Scans2
Brushes per Scan Disk22
Scanning Disc Forward Tilt Angle5°-15°
Scanning Disc Outward Tilt Angle5°-10°
Suction Nozzle Straw Diameterφ180 mm
Suction Straw Brand (2)NORRES
Traveling Wheel Bearing BrandSKF
Wear Resistant Outer Ring BrandStellana
Suction Nozzle Edge Rigid Part5-8 mm
Suction Nozzle Wind Speed50-65 m/s
Negative Pressure of Suction Nozzle380 mmH₂O
Alarm System (Optional)Reverse voice alarm system
