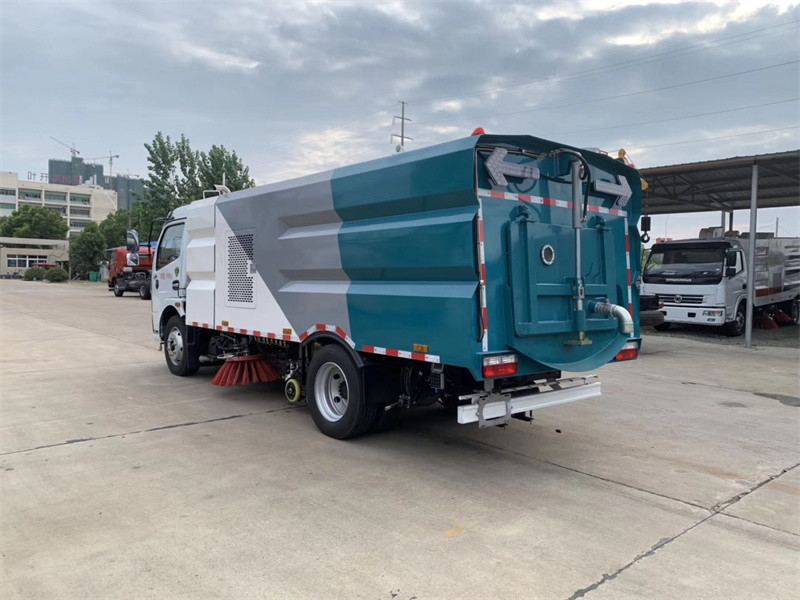

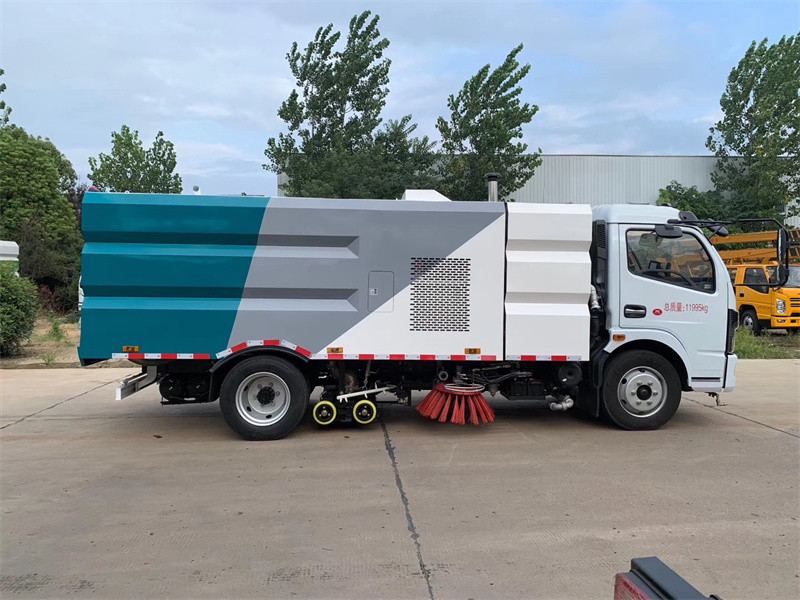

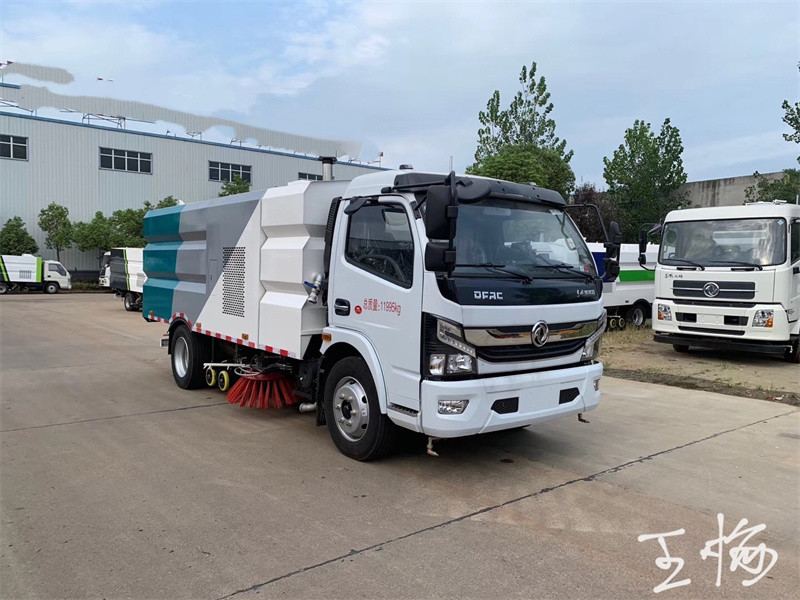

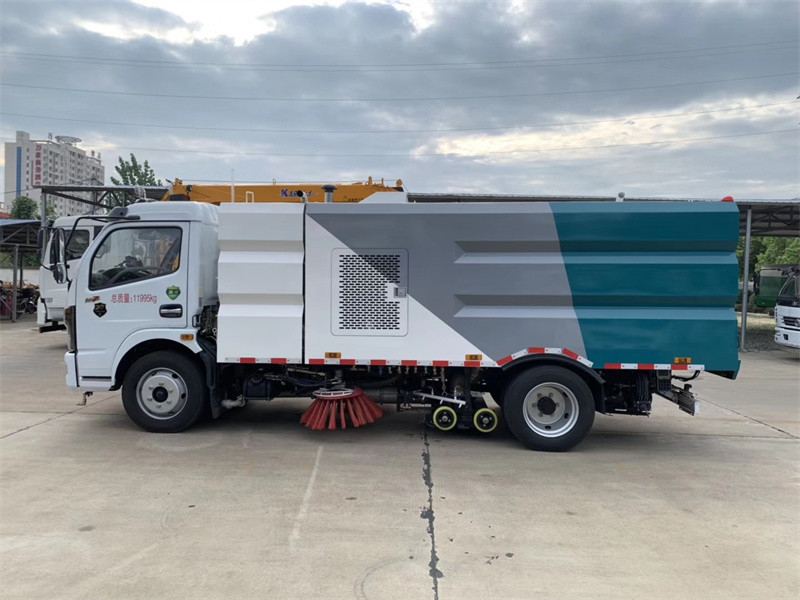

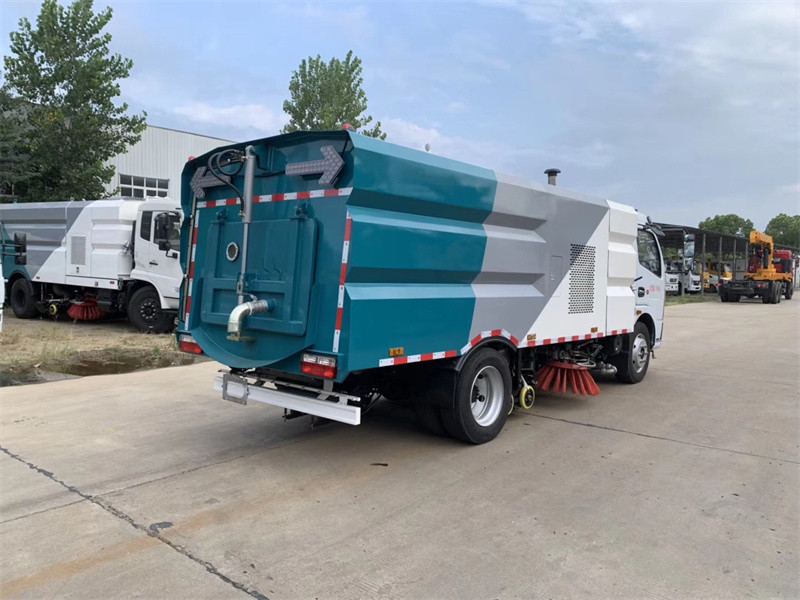

EU3 Dongfeng Street Sweeper Cleaning Truck 9m3
v1v2v3v4v5v6
Complete Truck · Road Sweeper

EU3 Dongfeng Street Sweeper Cleaning Truck 9m3

  • Chassis ModelEQ1110SJ8BDC
  • Engine ModelB125-33
  • Emission StandardEU 3
  • Driving Type4×2
  • Gross Vehicle Weight11995 kg
  • Water Tank Volume4 m³ (4000 liters)

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 47814267

Overview

About this truck

This street cleaning truck combines high-pressure washing and mechanical sweeping capabilities for comprehensive road maintenance. The vehicle features dual center-mounted brushes equipped with V-shaped high-pressure water spray rods and a center-mounted suction nozzle for collecting debris. Operating at speeds of 3-20 km/h, it achieves cleaning coverage of approximately 60,000 square meters per hour with a cleaning efficiency of 95% or greater. The truck is designed for urban roads, highways, squares, airports, docks, tunnels, bridges, and curbs. Water pressure reaches 12 MPa through a high-performance pump system, while the suction mechanism accommodates particles up to 110 mm. The vehicle includes a 17-meter high-pressure water flushing reel and manual high-pressure water gun for detailed cleaning tasks. After-sales support encompasses video technical assistance, field installation, commissioning, training, and complimentary spare parts.

Specifications

Technical parameters

Chassis ModelEQ1110SJ8BDC
Dimensions (L×W×H)7000×2200×2700 mm
Wheelbase3800 mm
Curb Weight7045 kg
Gross Vehicle Weight11995 kg
Minimum Height Above Ground250 mm
Approach Angle20°
Departure Angle11°
Engine ModelB125-33
Engine Power125 hp
Engine Displacement3900 cc
Fuel TypeDiesel
Max Speed100 km/h
Max Upgrade Angle30%
Emission StandardEU 3
Accelerating Noise≤84 dB(A)
Driving Type4×2
Transmission TypeManual
Water Pressure12 MPa
Water Pump Flow115 L/min
Water Pump ModelGermany PT36
Water Pump Speed1150 r/min
Water Valve Pressure7 MPa
Clean Speed3-20 km/h
Clean Width3 m
Brush TypeCenter two swabs (hydraulic-driven)
Brush Diameter850 mm
Brush Forward Tilt4-6 degrees
Brush Side Tilt4-7 degrees
Suction Plate TypeDouble suction (hydraulic control)
Suction Plate Diameter180 mm
Suction Plate Width1800 mm
Maximum Suction Particle Size110 mm
Clean & Suction Width3 m
Clean & Suction Speed3-20 km/h
Max Clean Capacity60000 m²/h
Cleaning Efficiency≥95%
Water Tank Volume4 m³ (4000 liters)
Dust Tank Volume5 m³ (5000 liters)
Dump Bin Tilting Angle≥46°
Discharge Door Opening Angle≥85°
Hydraulic System TypeOpen, electrically controlled
Hydraulic System Pressure16 MPa
Hydraulic Oil Tank Capacity60 L
Oil Temperature60°C
Hydraulic Major PartsGear pump, hydraulic motor, cylinder, solenoid valve
Hydraulic Motor ModelBMR125
VoltageDC 24 V
Battery24 V
CPU Model6ES7 214-1AD23-OXB0 (Siemens)
