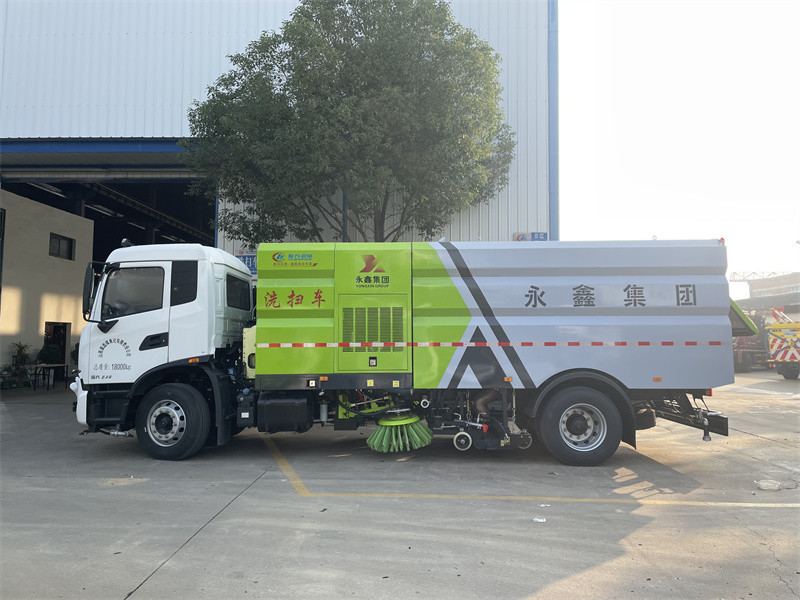

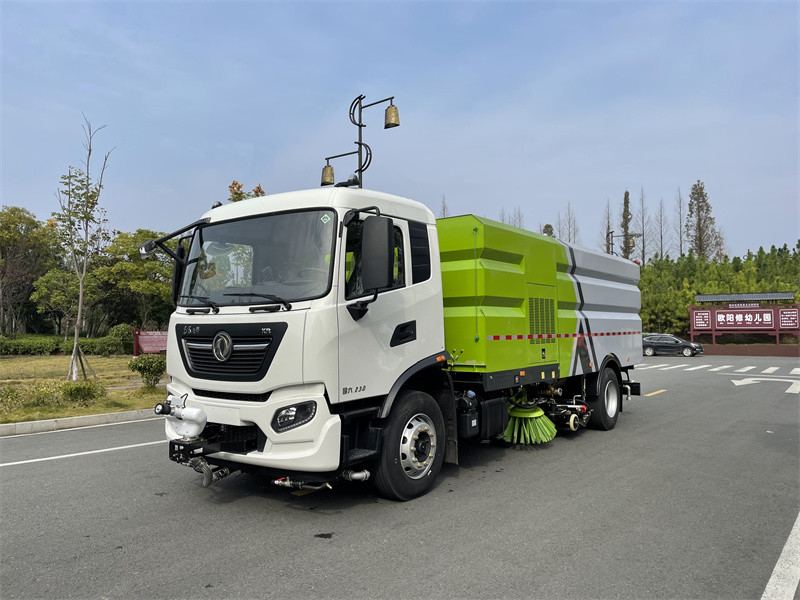

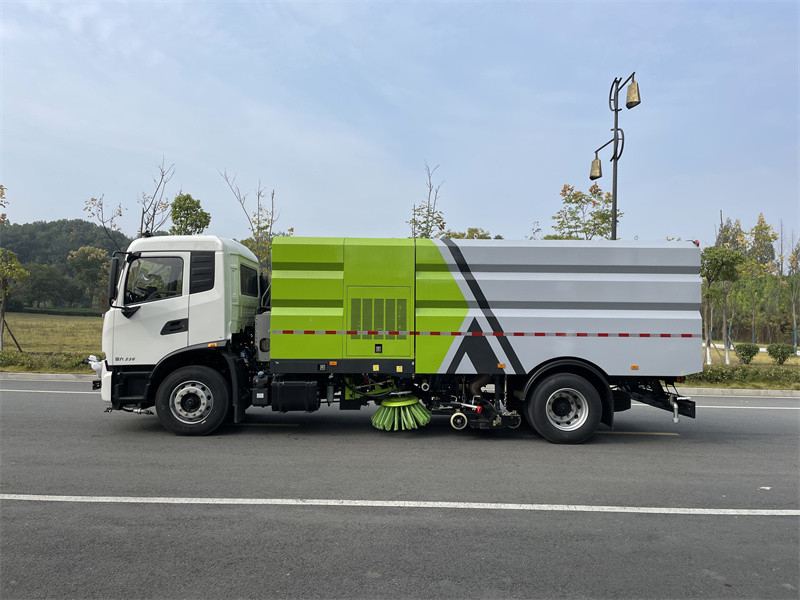

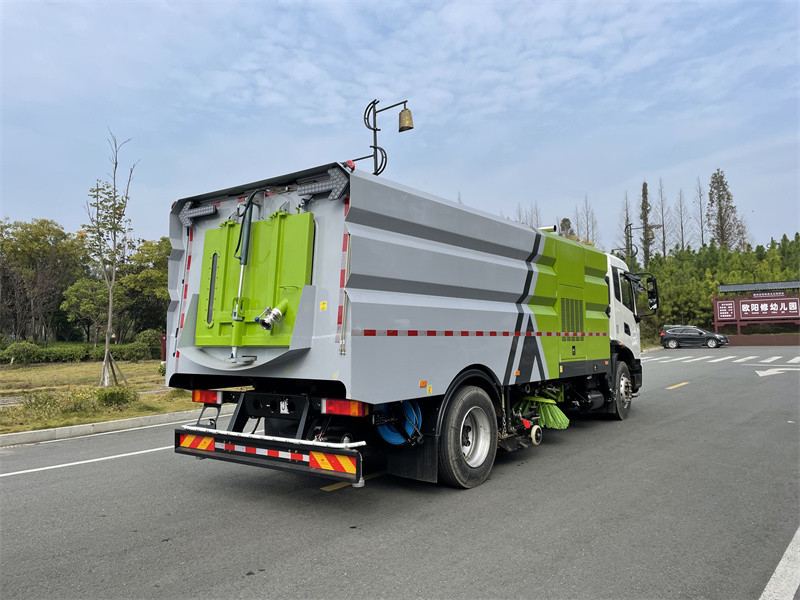

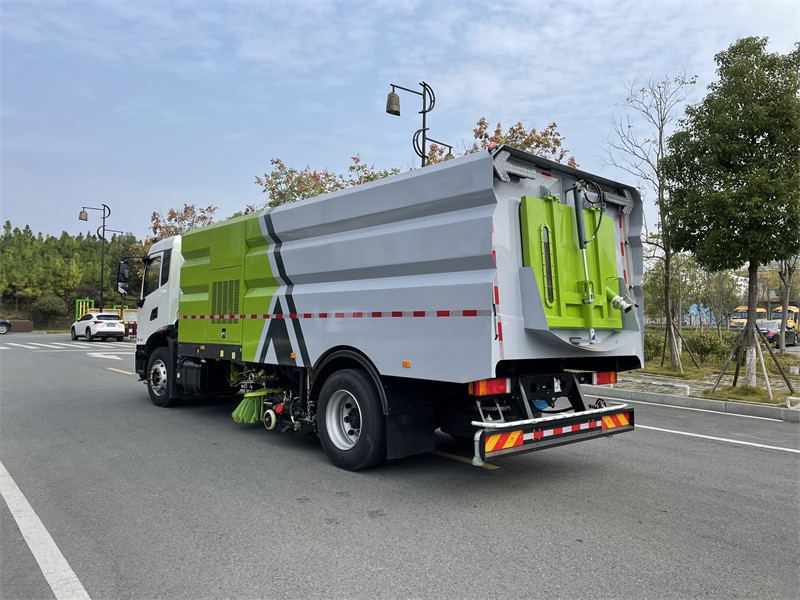

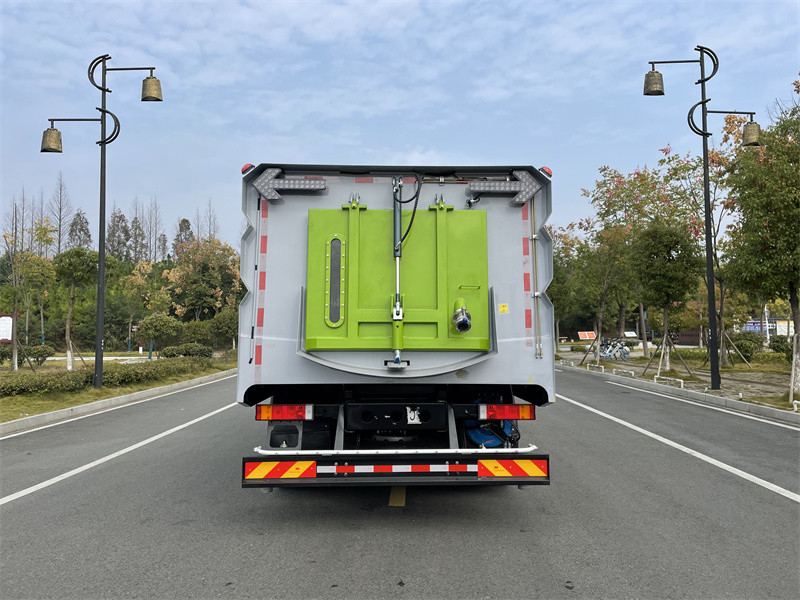

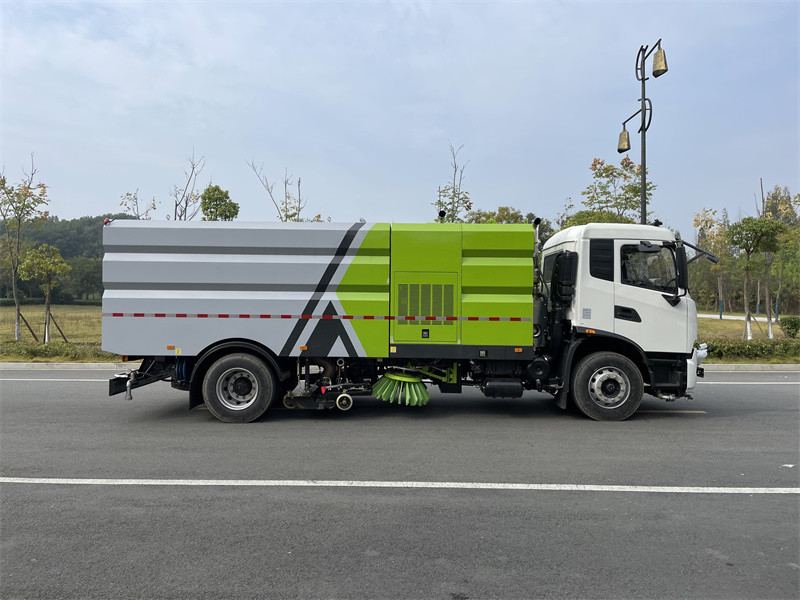

EU6 16m3 Dongfeng Truck-Mounted Road Sweeper
v1v2v3v4v5v6v7v8
Complete Truck · Road Sweeper

EU6 16m3 Dongfeng Truck-Mounted Road Sweeper

  • Spare Engine170hp CUMMINS engine
  • Gross Weight Vehicle18,000 Kg
  • Water Tank Capacity9000 Liters
  • Max Clean Capacity70000 M2/h

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 47950636

Overview

About this truck

This truck-mounted road sweeper combines high-pressure water spraying with suction capabilities for comprehensive surface cleaning. The vehicle features two center-mounted brushes equipped with V-shaped high-pressure water spray rods positioned ahead of the brushes, alongside a center-mounted suction nozzle containing integrated spray functionality. During operation, pressurized water flushes stubborn debris from road surfaces while simultaneously drawing water and refuse into the waste receptacle via the suction system. The generous water tank accommodates the substantial consumption required during cleaning cycles. The unit includes a 17-meter high-pressure water reel and manual spray gun for enhanced versatility in cleaning roads, highways, sidewalks, squares, airports, docks, tunnels, bridges, and vertical surfaces like curbs and barriers.

Specifications

Technical parameters

Drive Model4x2
Dumping MethodRear Dump
Water Tank Capacity9000 Liters
Dust Tank7000 Liters
Curb Weight11,350 Kg
Transmission6 Gears
Spare Engine170hp CUMMINS engine
Fuel TypeDiesel
Gross Weight Vehicle18,000 Kg
Clean Speed3-20 Km/h
Clean Width3.5m
Water Pressure10 MPa
Water Pump Flow154 L/min
Cleaning Efficiency≥95%
Maximum Suction Particle Size110 Mm
Max Clean Capacity70000 M2/h
Disc Brush Size≥400 Mm
Dump Bin Tilting Angle≥46°
Discharge Door Opening Angle≥85°
Hydraulic System Pressure16 MPa
Hydraulic Oil Tank60 L
Brush Diameter850 Mm
High Pressure PumpGermany PT36
