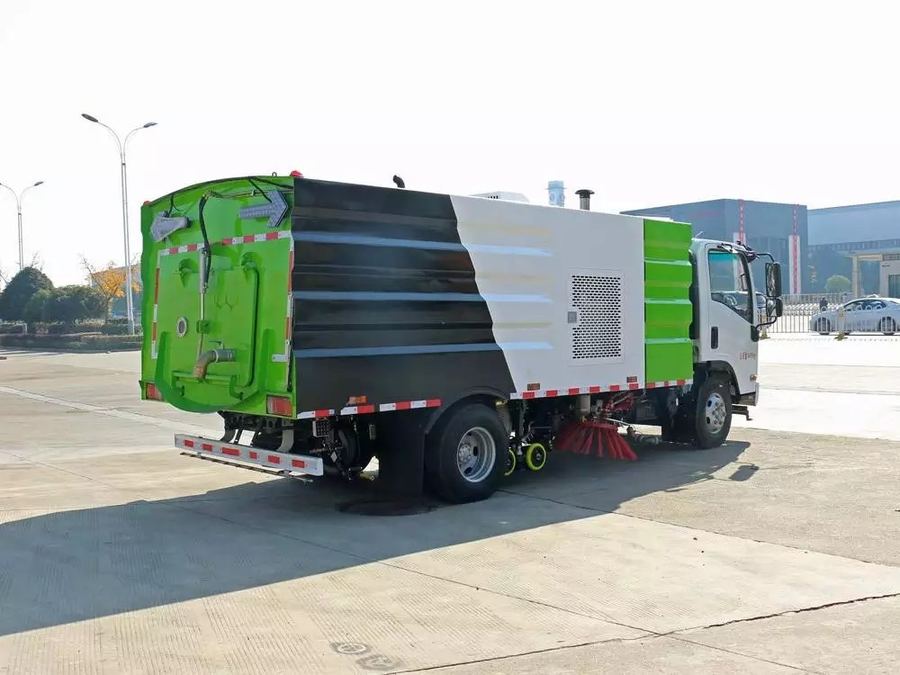

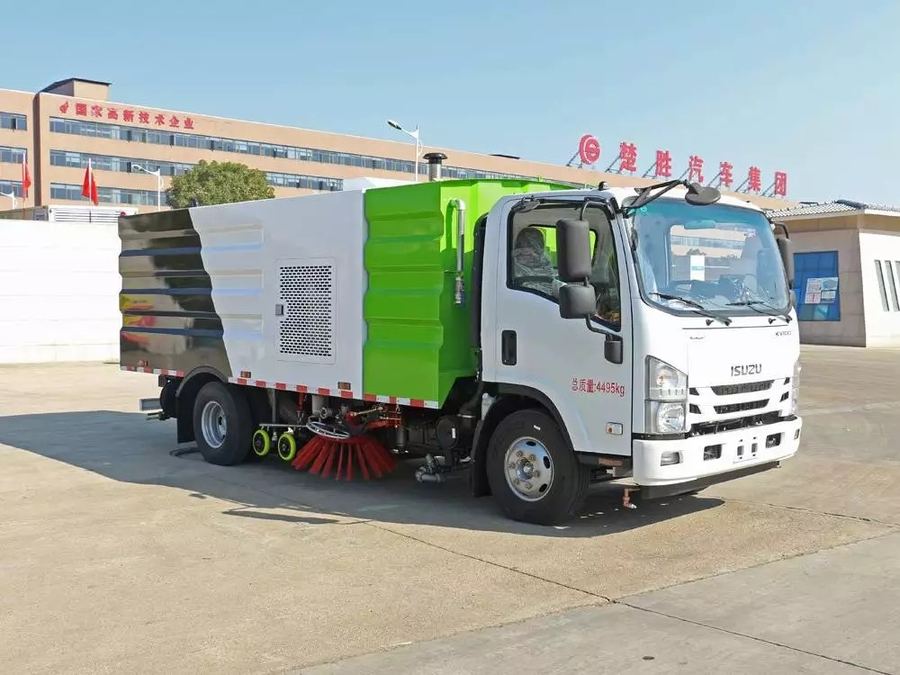

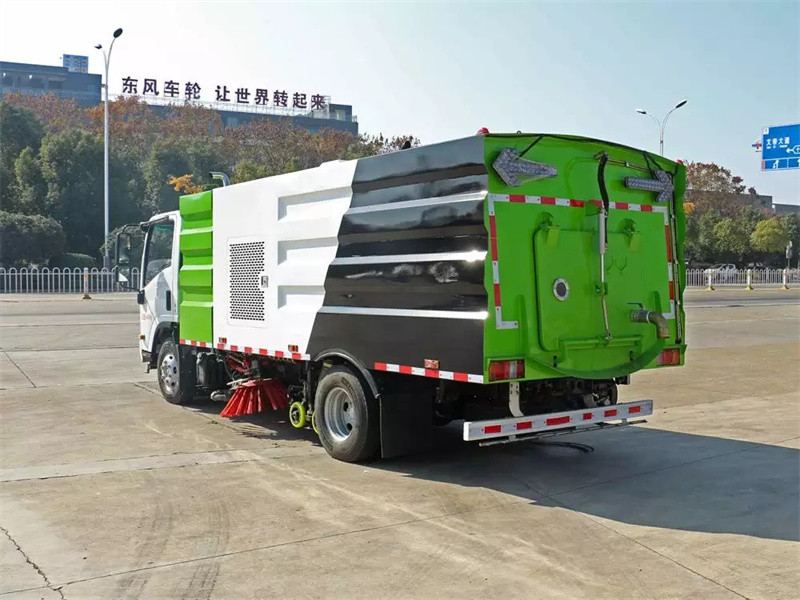

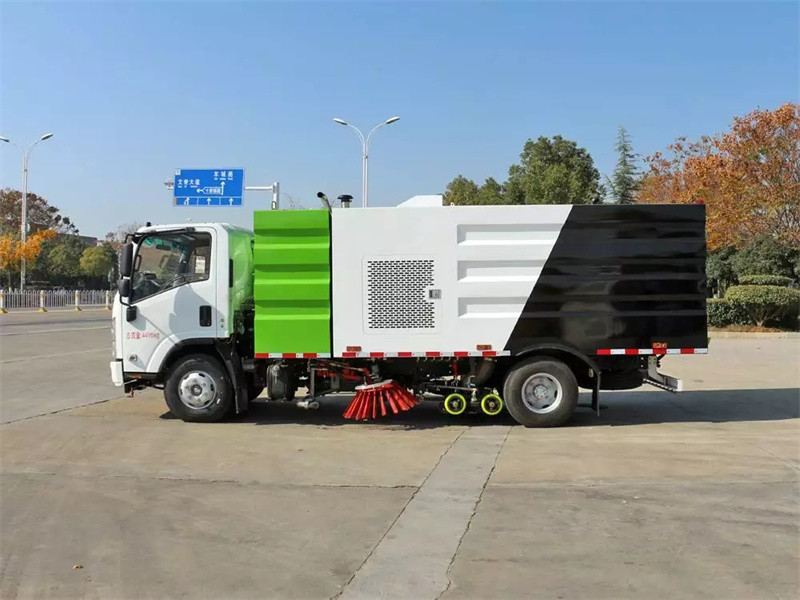

EU6 Isuzu KV100 Road Sweeping Truck 5.5cbm Volume
v1v2v3v4v5
Complete Truck · Road Sweeper

EU6 Isuzu KV100 Road Sweeping Truck 5.5cbm Volume

  • Electrical System Voltage (Chassis)24V
  • Engine Model (Main)4KH1CN6LB
  • Emission StandardEuro 6
  • Gross Vehicle Weight (kg)7360
  • Clean Water Tank Capacity (m3)2.5
  • Dust/Hopper Tank Capacity (m3)3 (stainless steel)

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 47951447

Overview

About this truck

This is a diesel-powered road sweeper and high-pressure cleaning truck combining sweeping and washing functions. The vehicle features two center-mounted rotating brushes with integrated high-pressure water spray nozzles positioned ahead of the brushes, plus a center-mounted suction nozzle for collecting debris. During operation, the truck sprays pressurized water to dislodge stubborn road surface attachments while simultaneously vacuuming water and waste into the hopper. The large water tank accommodates the high consumption rates typical of combined wash-sweep operations. The truck includes a 17-meter high-pressure water reel and handheld gun for convenient cleaning of roads, sidewalks, highways, squares, airports, docks, tunnels, bridges, and curb facades. It suits mechanized urban cleaning, sweeping, and dust suppression applications.

Specifications

Technical parameters

Model NumberQL1073
Dimensions (mm)6350x2300x2500
Wheelbase (mm)3360
Drive Type4x2
Engine Model (Main)4KH1CN6LB
Engine Power (kW)88
Engine Horsepower120 hp
Engine Displacement (cc)2999
Emission StandardEuro 6
Fuel TypeDiesel
Maximum Speed (km/h)110
Gross Vehicle Weight (kg)7360
Curb Weight (kg)5800
Maximum Climbing Slope>=30%
Braking SystemDual circuit pneumatic, drum type
Steering TypePower steering
Transmission TypeManual 5-speed
Suspension TypeLeaf spring
Tire Model7.00R16
Tire Number7
Passengers2
Ground Clearance (mm)1430
Approach Angle27 deg
Departure Angle11 deg
Minimum Turning Radius (m)8
Clean Water Tank Capacity (m3)2.5
Dust/Hopper Tank Capacity (m3)3 (stainless steel)
Sweeping Width (m)3.5
Clean Width (mm)2500-3000
Cleaning Speed (km/h)3-15
Working Speed (km/h)15-20
Maximum Cleaning Capacity (m2/h)30,000
Brush Spreading Diameter (mm)800-900
Number of Scans2
Number of Brushes per Disc22
Suction Straw Diameter (mm)180
Suction Straw BrandNORRES
Suction Particle Size (mm)>=100
Suction Pipe Wind Speed (m/s)50-65
Negative Pressure (mmH2O)380
Cleaning Efficiency>=96%
High-Pressure Water PumpGTM
System Overflow Pressure (MPa)10-12
Fan System TypeMaintenance-free centrifugal 6.0
Fan Rated Speed (r/min)2000
Fan Air Volume (m3/h)5000-8000
Operation Noise (dB)<88
Hydraulic Oil Tank Capacity (L)>=50
Control SystemElectronic, one-click operation
Electrical System Voltage (Chassis)24V
Electrical System Voltage (Working Device)12V
Battery Model12V-70Ah (2)
Engine Fuel Consumption Drive (L/100km)<=14
Engine Fuel Consumption Working (L/h)<=8
Engine Fuel Consumption Working (L/10,000m2)<=3
Braking Distance at Full Load 30km/h<=10m
Dumping Angle of Garbage Bin>=30 deg
Scanning Disc Motor Speed (r/min)140
Gear Oil PumpShiyan Changshun
Hydraulic MotorLipton/Lipwo
Hydraulic CylinderHepris
Hydraulic SealsDingji
Hydraulic HosesDahang
Solenoid Valve GroupHepris
Pressure GaugeChengdu Tianwei
Return Oil FilterSofima
Control SwitchesShanghai Schneider
PLCBaizhaozhufu
Circuit BreakerHagrid
Fan BeltZhejiang
Automatic ClutchCentrifugal, imported material
Traveling Wheel BearingSKF
Wear-Resistant Wheel RingStellana
Nozzle Count on Suction Rod8
Suction Nozzle Edge (Working State)5-8mm
