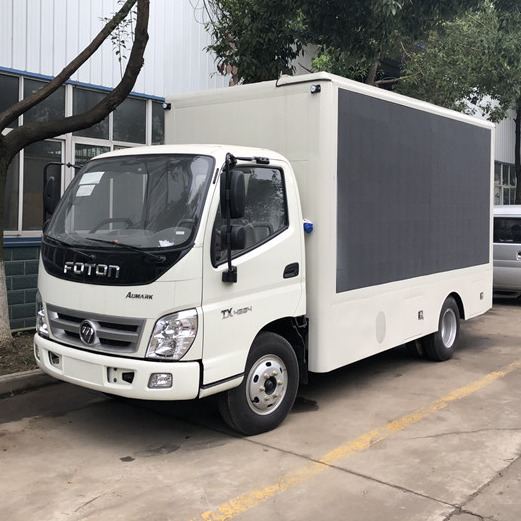

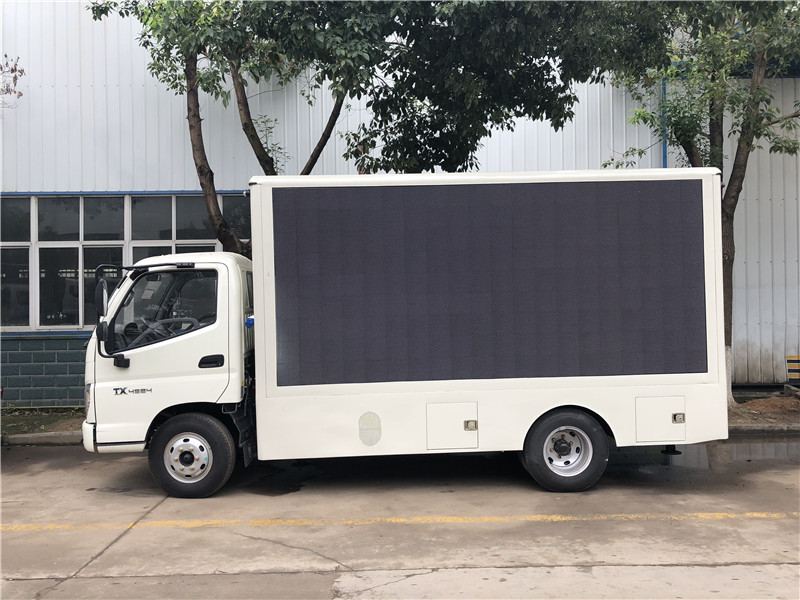

4x2 Foton Diesel RHD/LHD LED Screen Van
v1v2v3v4v5v6
Complete Truck · LED / Stage

4x2 Foton Diesel RHD/LHD LED Screen Van

  • Rated Power141hp
  • Emission StandardEuro 3
  • Driving Type4*2 left/right hand drive
  • Total Mass8205Kg
  • Displacement/Capacity3760ml
  • Dimension(LxWxH)5995x1960x3100(mm)

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48853700

Overview

About this truck

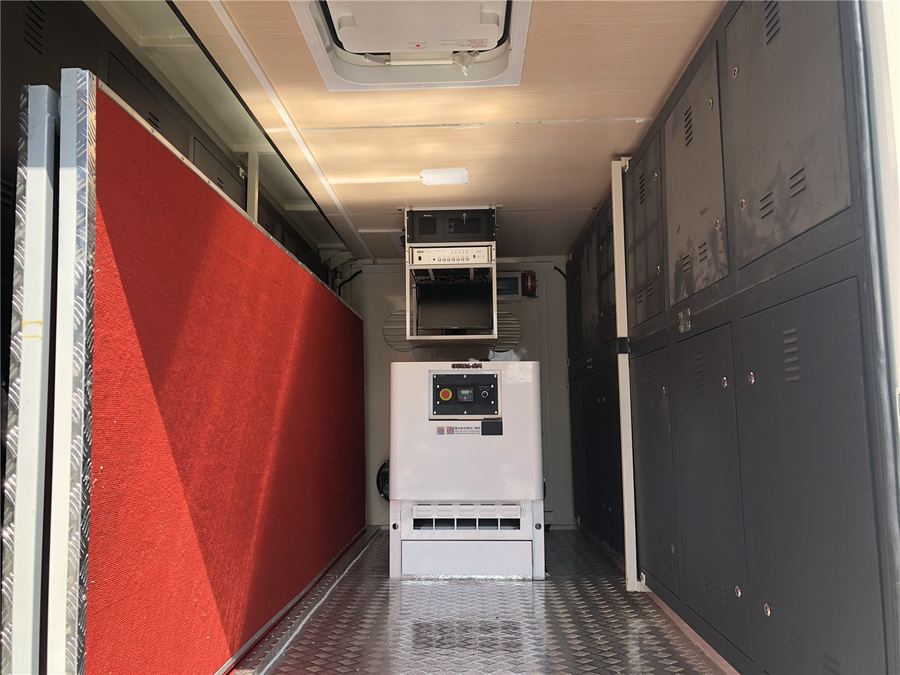

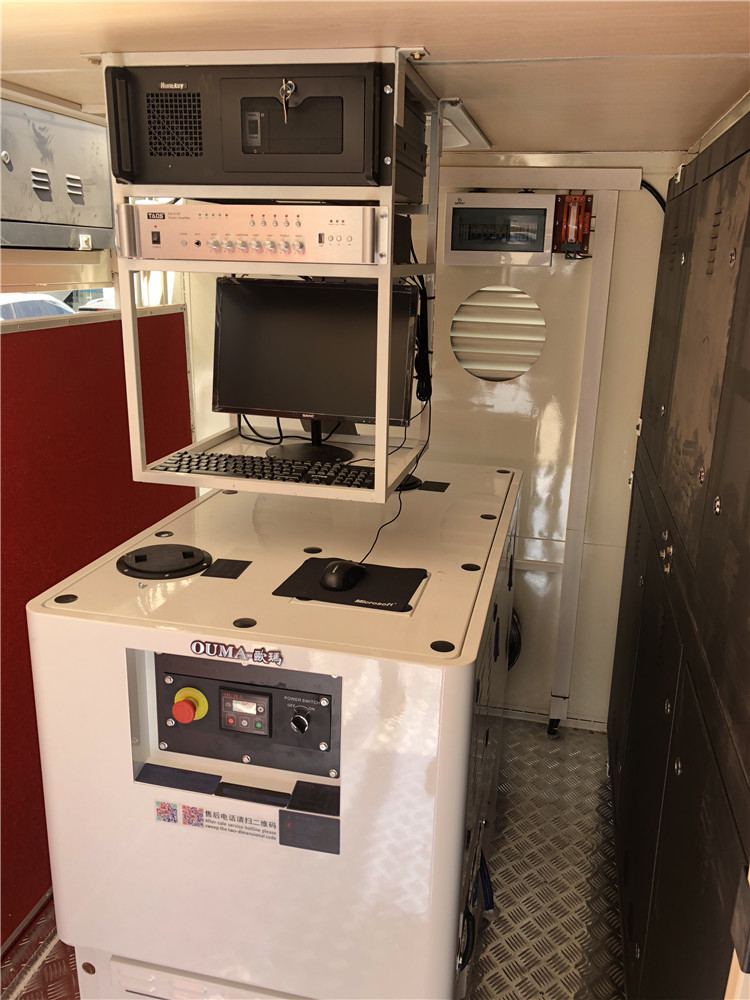

This mobile advertising vehicle features a rectangular compartment with aluminum checkered plate flooring, interior lighting, and front and rear shutters with exhaust fans. The cabin includes 2-4 speakers, a power amplifier, a computer, and a control system. The truck is equipped with P5/P4/P3 high-resolution LED screens customizable to customer specifications, available on one to three sides, and an optional hydraulic lifting system raises screens 1.2-1.5 meters for better audience visibility. Power comes from an independent high-power ultra-quiet diesel generator requiring no grid connection, with optional external power supply capability. Four hydraulic outriggers provide stability on uneven terrain, allowing normal operation in windy conditions. Optional features include an advertising light box with intelligent digital picture-switching (2-6 images) and tempered glass exterior, plus hydraulic stage systems, letting the vehicle operate independently of location or power infrastructure.

Specifications

Technical parameters

NameLED Advertising Truck
Wheelbase3300 Mm
CabinSingle Cab
Tire7.00R16
Screen PixelP5/P4/P3
Screen Sides1/2/3
Generator15kW
ComputerIncluded
AmplifierIncluded
Speakers4 Pcs
FloorAlumunum Checkered Plate
Hydrulic LiftOptional
Hydraulic StageOptional
NameFoton LED Advertising Truck
Dimension(LxWxH)5995x1960x3100(mm)
Total Mass8205Kg
Rated Payload5000Kg
Kerb Weight3205Kg
Passenger2
Approach/Departure Angle21/15
Manufacture/ModelFoton
Driving Type4*2 left/right hand drive
Wheel Base3360 mm
GearboxZF 6S558, six speed forward and one reverse, manual
Tyre7.50R16
The Number of Tyre6+1(spare tyre)
AxleFront 2.85 tons and rear 6 tons
Air Brake, AC, Power SteerEquipped
Manufacturer/ModelCummins/F3.8s3141
Rated Power141hp
Fuel TypeDiesel
Displacement/Capacity3760ml
Emission StandardEuro 3
CylinderIn-line/4/turbo charge/inter cooling/ Bosch high pressure common rail
Max. torque450N.m
LED Screen Size (L*H)3840*1728=6.62 (left/right), 1280*1440 (rear).
Type of ScreenThree sides full color screens
LED's Pixel Pitch5 mm
Spare P6 LED Modulas5 pcs for free, 320mm x 160mm each pcs
LED Modula BrandTEEHO/ROYAL DISPLAY/GKGD
DisplayerAOC,14 inch
ComputerPentium dual-core, WIN, 2GB memory card, 120G hard disk, discrete graphics card, Huntkey case
Amplifier200w, USB for wire and wireless microphone.
Speaker4pcs, 30w, waterproof
Displaying softwareOnbon
Supporting FormatVideo(avi,wmv,mpg,rmvb,mov,vob,mp4,flv,etc.);audio (mp3,wav,wma,ogg,ape,acc,etc.);picture(bmp,jpg,png,gif,etc); word(txt,rtf,word,excel,etc.)
Live TelecastOptional videoprocessor, camera, box, etc.
Generator BrandOUMA
TypeDiesel
Capacity15kw
Noise TypeSilent low noise generator
Alternative Power SupplyExternal power plug and 30m wire
Screen Lift and StageOptional
SubframeEquipped and match for crossbeam of customer's truck
InteriorAluminum checkered plate floors, waterproof wooden ceiling
LightsEqipped
LadderEqipped
Ventilation fansEqipped

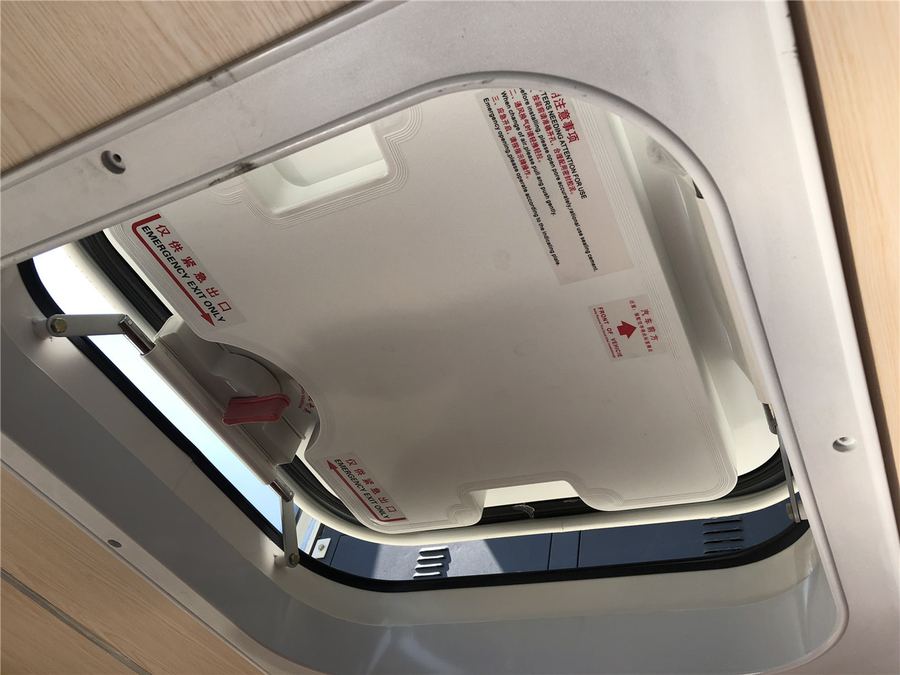

SkylightsEqipped
