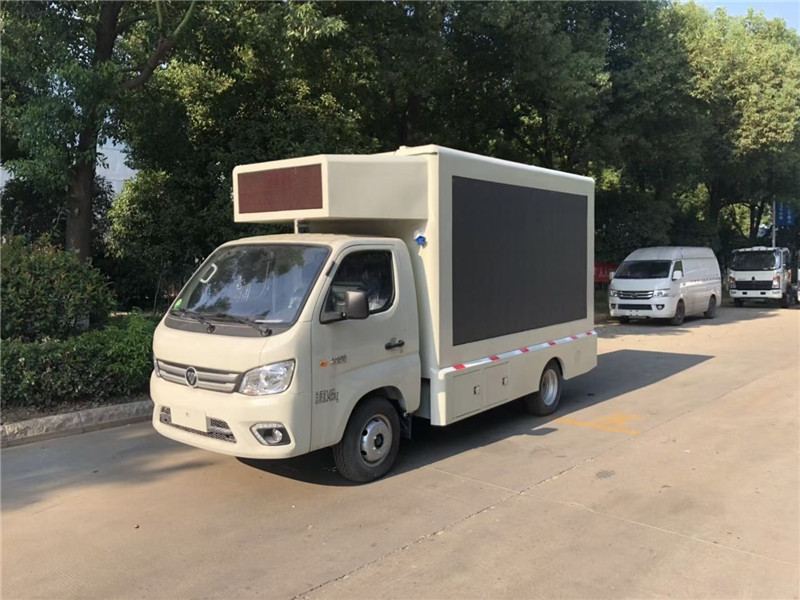

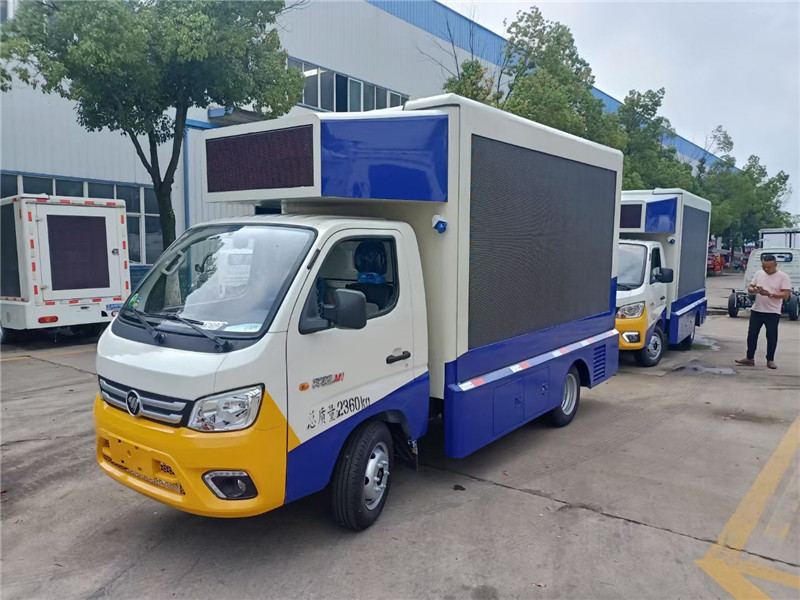

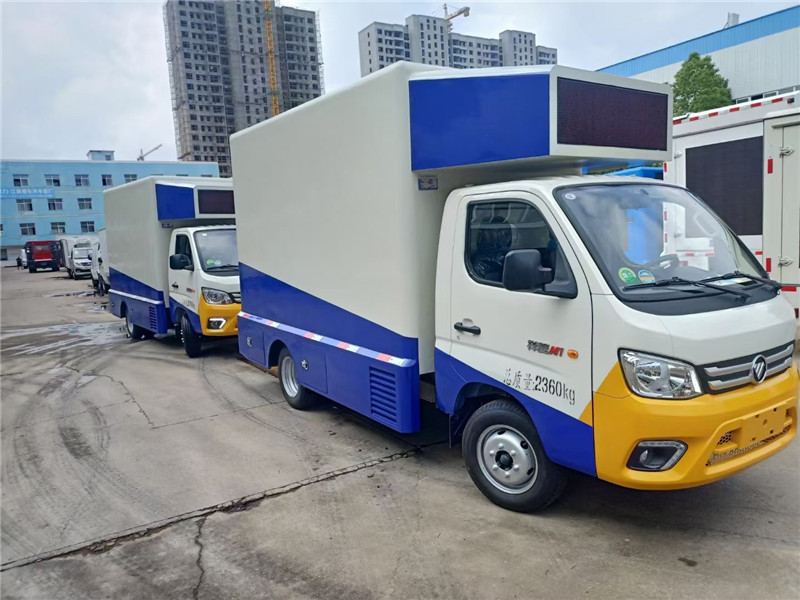

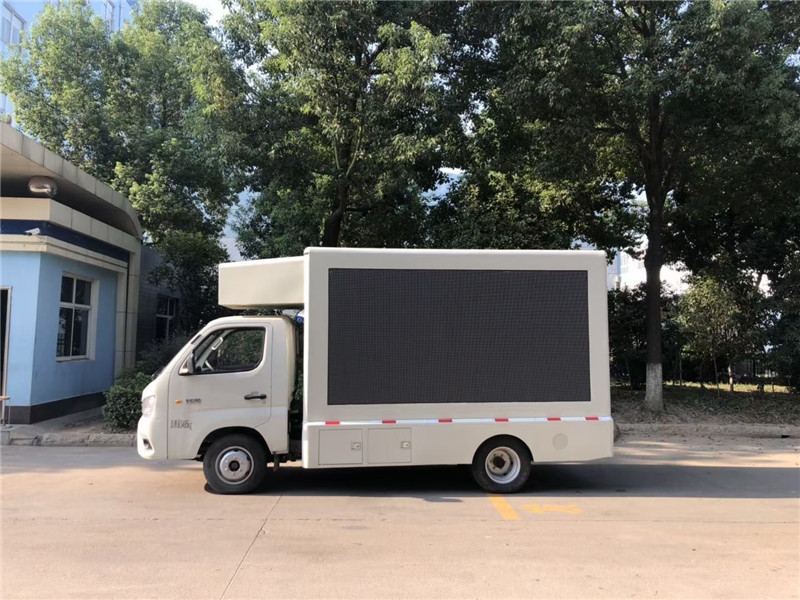

4x2 Foton M1 6-Tire LED Digital Billboard
v1v2v3v4v5v6
Complete Truck · LED / Stage

4x2 Foton M1 6-Tire LED Digital Billboard

  • Rated Power112hp
  • Emission StandardEuro 5
  • Driving Type4*2 left hand drive
  • Total Mass3760Kg
  • Displacement/Capacity1498ml
  • Dimension(LxWxH)5020x1720x2480(mm)

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48853832

Overview

About this truck

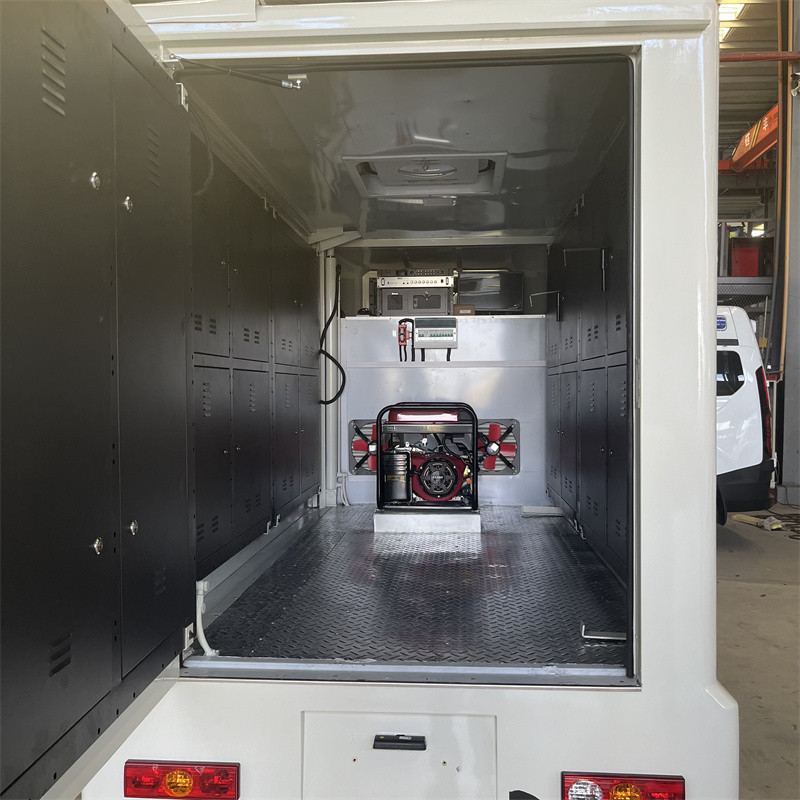

4X2 FOTON M1 6 TIRES LED TRUCK ADVERTISING TRUCK DIGITAL BILLBOARD The composition of the LED advertising vehicle: 1. LED advertising truck compartment: The compartment is a rectangular square frame structure, the interior of the compartment is aluminum checkered plate, installed with lighting, and the front face and rear door are equipped with shutters and exhaust fans. The cabin is equipped with: 2-4 speakers, a power amplifier, a brand computer, and a set of control. 2. LED screen: The car adopts P5/P4/P3 high-resolution LED screen; the area of the LED screen can be customized according to the actual requirements of customers, and it can be done on one side to three sides. 3. Lifting system(optional): The LED screen can be lifted by two hydraulic cylinders. The lifting height is 1.5 or 1.2 meters, so that the audience behind can clearly see the LED screen. 4. Power: The car comes with a high-power ultra-quiet diesel generator, which can be used independently without the support of the power grid and is not limited by the power supply. It is also equipped with a switching distribution box, which can directly use the grid power supply when there is a power supply. 5. Hydraulic outrigger: It is a supporting mechanism installed on the vehicle frame or sub-frame. The whole vehicle is supported by four hydraulic outriggers, so that the whole LED advertising vehicle forms a settlement-free one. The LED screen can be used normally even in the case of windy and uneven ground. 6. Advertising light box (optional): The advertising light box is equipped with an intelligent digital computer to switch pictures, 2-6 pictures are automatically switched, and the exterior is equipped with tempered high transparent glass. The top of the light box can be used as a monochrome LED advertising screen.

Specifications

Technical parameters

NameLED Advertising Truck
Wheelbase2800 Mm
CabinSingle Cab
Tire175R14LT
Screen PixelP5/P4/P3
Screen Sides1/2/3
Generator8/9 KW
ComputerIncluded
AmplifierIncluded
Speakers2 Pcs
FloorAlumunum Checkered Plate
Hydrulic LiftOptional
Hydraulic StageOptional
HighlightDIGITAL BILLBOARD LED TRUCK ADVERTISING TRUCK, 6 TIRES LED TRUCK ADVERTISING TRUCK, 4X2 LED TRUCK ADVERTISING TRUCK
NameFoton M1 LED Truck
Dimension(LxWxH)5020x1720x2480(mm)
Total Mass3760Kg
Rated Payload2000Kg
Kerb Weight1760Kg
Passenger3
Approach/Departure Angle22/20
Manufacture/ModelFoton/BJ1030V5JV2-AX
Driving Type4*2 left hand drive
Wheel Base2750 mm
GearboxFive speed forward and one reverse, manual
Front/Rear Track1075/1195(mm)
Tyre175R14LT 8PR
The Number of Tyre6+1(spare tyre)
Front/Rear Suspension1075/1195(mm)
Leaf Spring Number3/5
AC,Power SteerEquipped
Manufacturer/ModelDongAn/DAM15L
Rated Power112hp
Fuel TypeGasoline
Displacement/Capacity1498ml
Emission StandardEuro 5
CylinderIn-line/4
LED Screen Size (L*H)2304mm*1536mm=3.53 (left/right),960mm*1280mm(rear).
Type of ScreenThree sides full color screens
LED's Pixel Pitch5/4/3 mm
LED Modula BrandTEEHO/ROYAL DISPLAY/GKGD
DisplayerAOC,14 inch
ComputerPentium dual-core, WIN, 2GB memory card,120G hard disk, discrete graphics card, Huntkey case
Amplifier200w, USB for wire and wireless microphone.
Speaker2pcs, 30w, waterproof
Displaying softwareOnbon
Supporting FormatVideo(avi,wmv,mpg,rmvb,mov,vob,mp4,flv,etc.); audio(mp3,wav,wma,ogg,ape,acc,etc.);picture(bmp,jpg,png,gif,etc); word(txt,rtf,word,excel,etc.)
Generator BrandYihu
TypeGasoline
Capacity9kw
SpecsSingle cylinder, watercooling, electric and manual start
Oil Consumption328g/kw/h
Alternative Power SupplyExternal power plug and 30m wire
InteriorAluminum checkered plate wall, waterproof wooden floors
LightsEqipped
LadderEqipped
Ventilation fansEqipped
