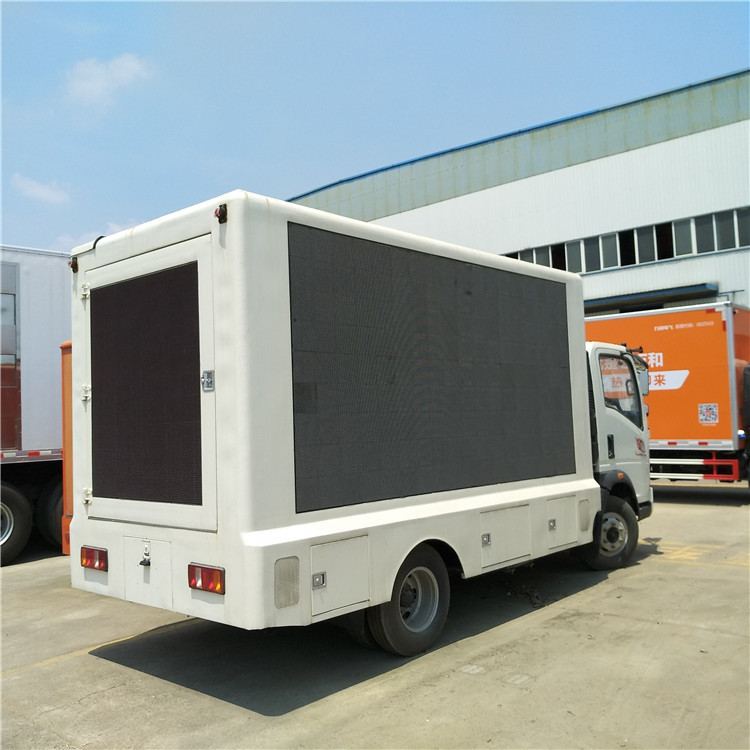

4x2 Howo Mobile LED Display Billboard
v1v2
Complete Truck · LED / Stage

4x2 Howo Mobile LED Display Billboard

  • Chassis Manufacturer/ModelHOWO
  • Rated Power116 hp
  • Engine Manufacturer/ModelYunnei YN4102QBZL
  • Emission StandardEuro 3
  • Driving Type4×2 left/right hand drive
  • Total Mass4495 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48852812

Overview

About this truck

The LED advertising vehicle comprises six key components: an aluminum checkered plate compartment with interior lighting, front shutters, and rear exhaust fans; a high-resolution LED screen available in P5/P4/P3 configurations customizable to one to three sides; an optional hydraulic lifting system enabling 1.2–1.5 meter elevation for improved visibility; a high-power diesel generator providing independent operation without grid dependence; hydraulic outriggers that stabilize the vehicle on uneven terrain; and an optional advertising light box with intelligent picture-switching capability and tempered glass exterior.

Specifications

Technical parameters

NameHOWO LED Truck
Dimension (L×W×H)5995×2190×3050 mm
Total Mass4495 kg
Kerb Weight4300 kg
Passengers3
Approach/Departure Angle19/19 degrees
Chassis Manufacturer/ModelHOWO
Driving Type4×2 left/right hand drive
Wheelbase3360 mm
GearboxWLY6T100 (6-speed manual)
Tire7.00R16
Number of Tires6 + 1 spare
Leaf Spring11/9+7H
FeaturesAC, power steering, air brake, electric heater, clutch booster
Engine Manufacturer/ModelYunnei YN4102QBZL
Rated Power116 hp
Fuel TypeDiesel oil
Displacement3760 ml
Emission StandardEuro 3
CylindersIn-line 4
Max Torque290 N·m at 3000 rpm
Screen TypeTwo-side full color, rear monochrome
LED Screen Size3840×1728 mm (left & right); 1280×1440 mm (rear)
LED Pixel Pitch5/4/3 mm
Generator15 kW OUMA diesel
ComputerHuntkey
Amplifier200W
LoudspeakersFour 30W waterproof column speakers
Hydraulic StageEquipped
Screen Hydraulic LiftEquipped
AccessoriesWood ceiling, waterproof aluminum flooring, power distribution system, lighting, 30 m external power line
