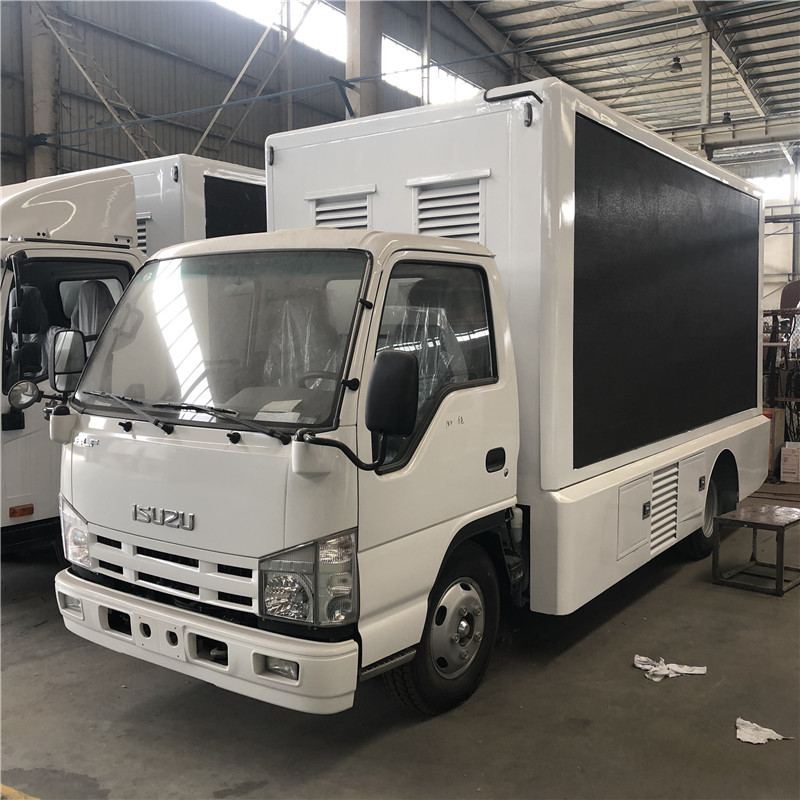

4x2 Isuzu 3-Sides P5 LED Display Advertising
v1v2v3v4v5v6v7
Complete Truck · LED / Stage

4x2 Isuzu 3-Sides P5 LED Display Advertising

  • Rated Power98hp/72kw
  • Engine4KH1CN5LS
  • Emission StandardEuro 4/5
  • Driving Type4*2 left hand drive
  • Total Mass4495 Kg
  • Displacement/Capacity2999ml

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48852720

Overview

About this truck

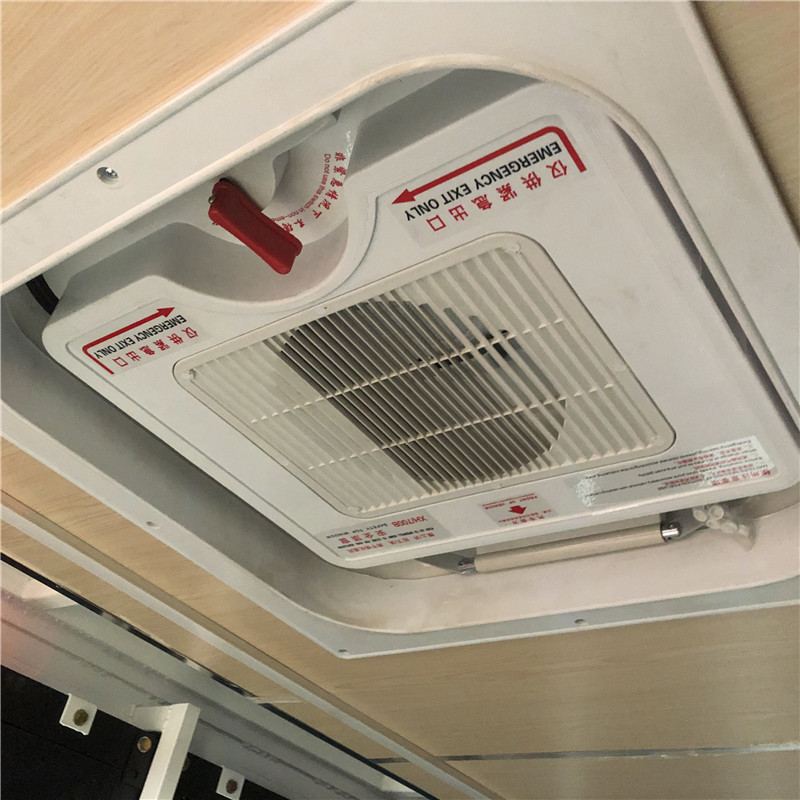

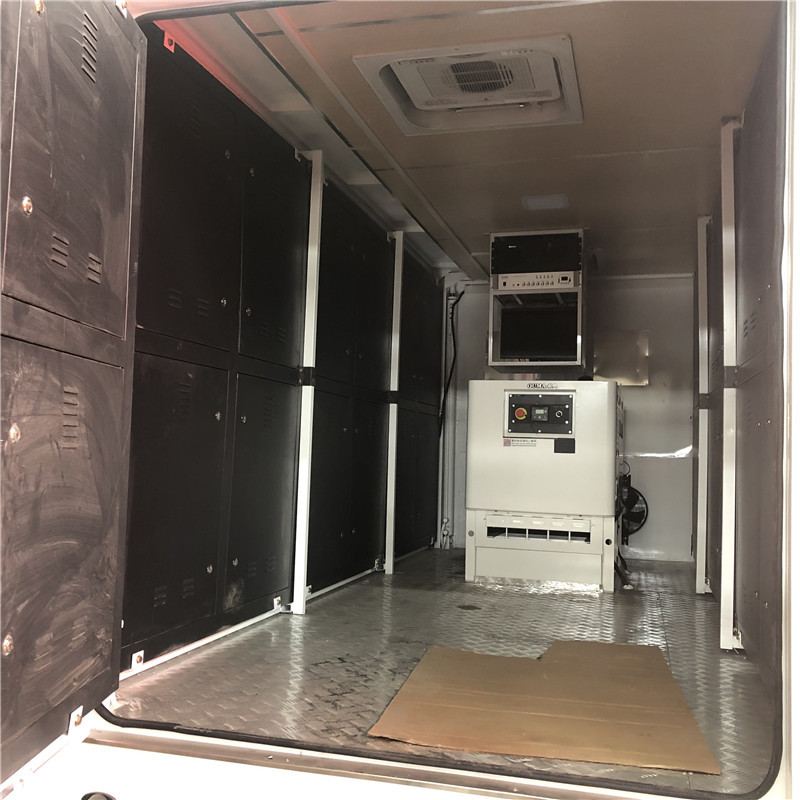

This advertising vehicle combines a rectangular compartment structure with advanced LED technology for mobile promotions. The unit features aluminum checkered plate flooring, integrated lighting, and front shutters with exhaust fans. It incorporates a P5/P4/P3 high-resolution LED screen with customizable display areas across one to three sides, and an optional hydraulic lifting system elevates the screen 1.2 to 1.5 meters, improving visibility for audiences behind the vehicle. Power comes from an independent high-capacity diesel generator, eliminating grid dependency while offering connection capability when available, with a switching distribution box managing power selection automatically. The platform includes four hydraulic outriggers that stabilize the vehicle, enabling operation on uneven terrain and in windy conditions. Interior equipment encompasses multiple speakers, a power amplifier, a brand computer, and control systems. Optional features include advertising light boxes with intelligent digital picture-switching capabilities (2-6 automated rotations) and tempered glass exteriors, with various customization options tailored to specific requirements.

Specifications

Technical parameters

NameLED Advertising Truck
Wheelbase3300 Mm
CabinSingle Cab
Tire7.00R16
Engine4KH1CN5LS
Screen PixelP5/P4/P3
Screen Sides1/2/3
Generator15kW
ComputerIncluded
AmplifierIncluded
Speakers4 Pcs
FloorAlumunum Checkered Plate
Hydrulic LiftOptional
Hydraulic StageOptional
NameISUZU P5 LED Truck
Dimension (LxWxH)5995x2190x3050(mm)
Total Mass4495 Kg
Kerb Weight4300 Kg
Passenger3
Appr/Dep Angle19/19
Manufacture/ModelISUZU
Driving Type4*2 left hand drive
Wheel Base3360 mm
GearboxISUZU MSB, five speed forward and one reverse, manual
Front/Rear Track1377,1425(mm)
Tyre700R16
The Number of Tyre6+1(spare tyre)
Front/Rear Suspension1015/1620(mm)
Manufacturer/ModelISUZU/4KH1CN5LS
Rated Power98hp/72kw
Fuel TypeDiesel oil
Displacement/Capacity2999ml
Emission StandardEuro 4/5
CylinderStraight/4
Max. torque220N.m
Type of ScreenThree sides full color P5 screens
LED Screen Size (L*H)3840*1760=6.75 ㎡ (left & right), 1280*1440=1.84 ㎡ (rear) 1280*1440 (rear).
LED's Pixel Pitch5 mm
Generator15KW OUMA diesel generator
ComputerHuntkey
Amplifier200W

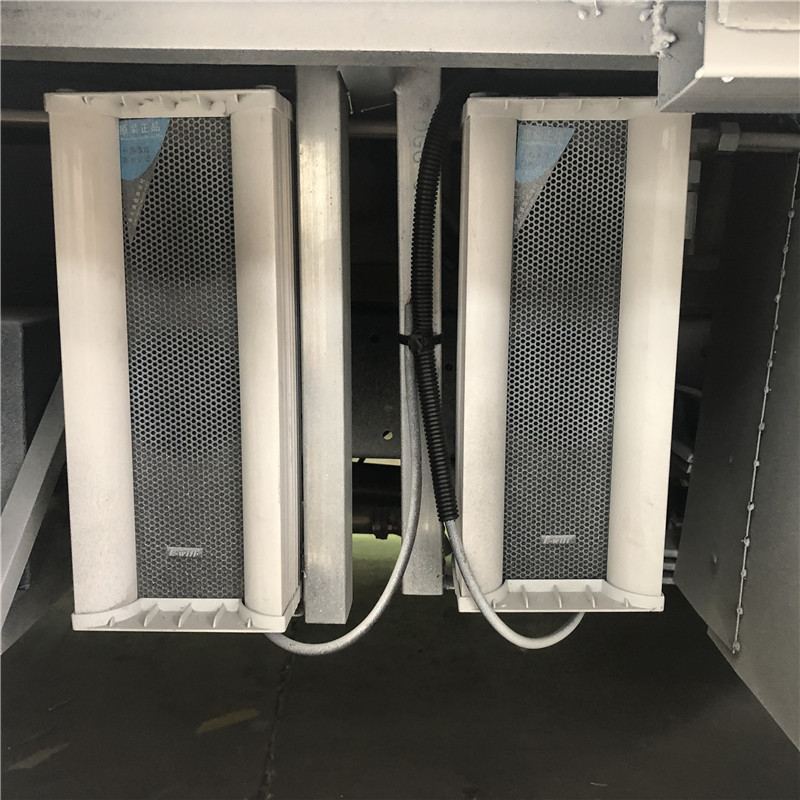

Loudspeaker30w waterproof column loudspeakers x 4
Hydraulic StageEquipped
Screen Hydraulic LiftEquipped
Other AccessoriesWood ceiling, waterproof aluminum floors, safe and intelligent switch power distribution system, lighting, integrated electromechanical control, two skylight,30m grid powerline, and other tiny accessory facilities.
