JMC Carrying Plus Cargo Van 2T
v1v2v3v4v5
Complete Truck · Cargo

JMC Carrying Plus Cargo Van 2T

  • ChassisJMC
  • Engine Rated Power68kw/92hp
  • Engine ModelJX493ZQ4A
  • Emission StandardEU 2
  • Driving Type4x2
  • Total Mass6350 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 52116112

Overview

About this truck

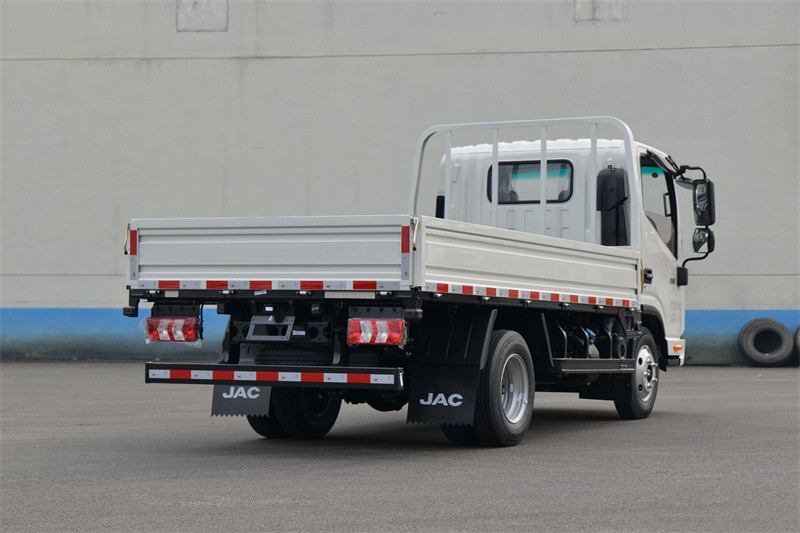

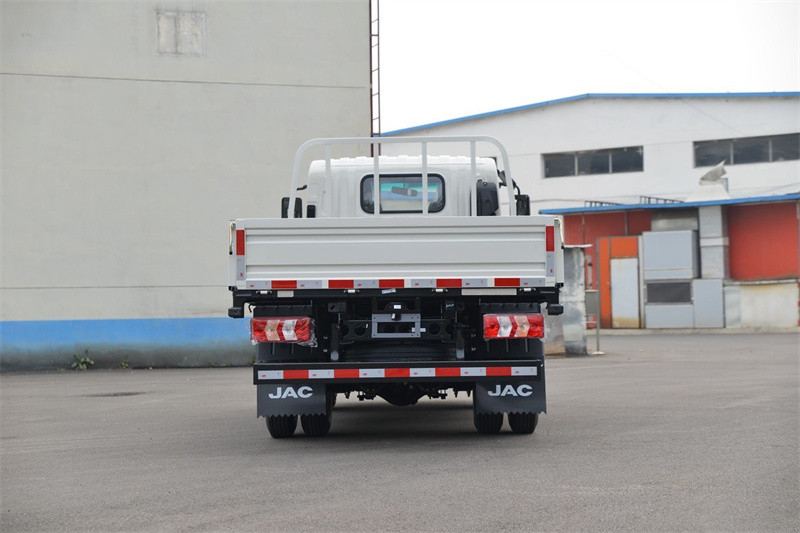

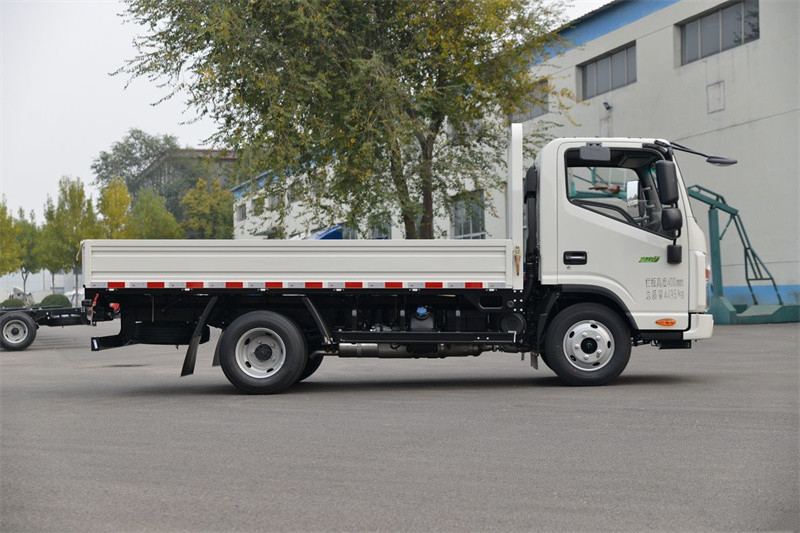

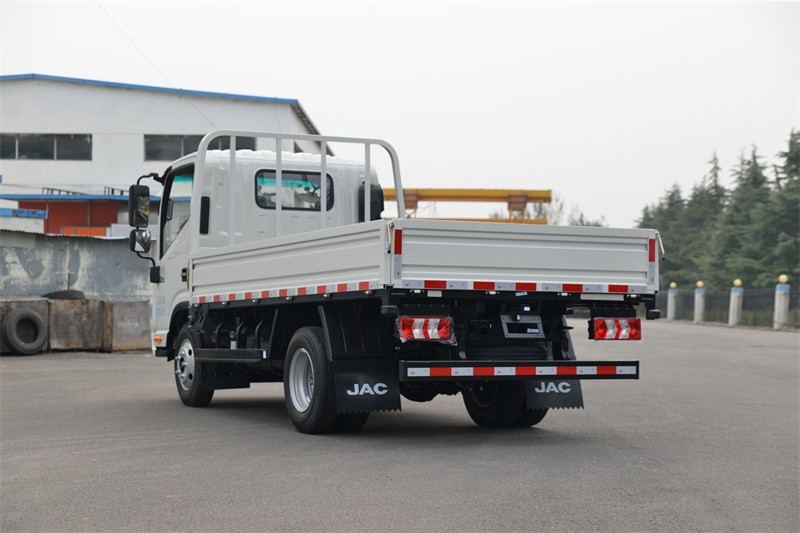

This cargo truck features a JMC chassis with a 2-3 ton loading capacity, powered by a JX493ZQ4A diesel engine producing 92 horsepower. The vehicle is designed primarily for transporting goods and can function as either a standard cargo truck or with optional dump functionality. Its dimensions measure 5990x2200x2750mm, with a kerb weight of 3350kg and total mass of 6350kg. The truck accommodates three passengers and features a manual transmission with a 120-liter fuel tank. It utilizes a 4x2 driving configuration with six tires plus one spare, mounted on a 3360mm wheelbase. The vehicle complies with EU 2 emission standards and offers customizable exterior colors and branding options.

Specifications

Technical parameters

Model NumberHFC1042L3K
ChassisJMC
Loading Capacity2-3 Tons
Engine ModelJX493ZQ4A
Engine Rated Power68kw/92hp
Front Axles Loading1500 KG
Rear Axles Loading3000 KG
TransmissionManuel
Tire Model7.00R16
Springs7/4+6
Driving Type4x2
Wheel Base3360 mm
GearboxLC5T255M3
Front/Rear Track1640/1655 mm
Tire Quantity6+1 (spare)
Fuel TypeDiesel oil
Displacement2771 ml
Emission StandardEU 2
Cylinders4
Max Torque/Speed200N.m/1500-2900rpm
Velocity3600 rpm
Overall Dimensions5990x2200x2750 mm
Total Mass6350 kg
Rated Payload3000 kg
Kerb Weight3350 kg
Passenger Capacity3
Approach/Departure Angle23/13 deg
Suspension (Front/Rear)1120/2095 mm
Oil Tank120L Iron
Rear Bucket Dimensions4000x2000x500 mm
Dump FunctionOptional
Color/LogoCustomized
