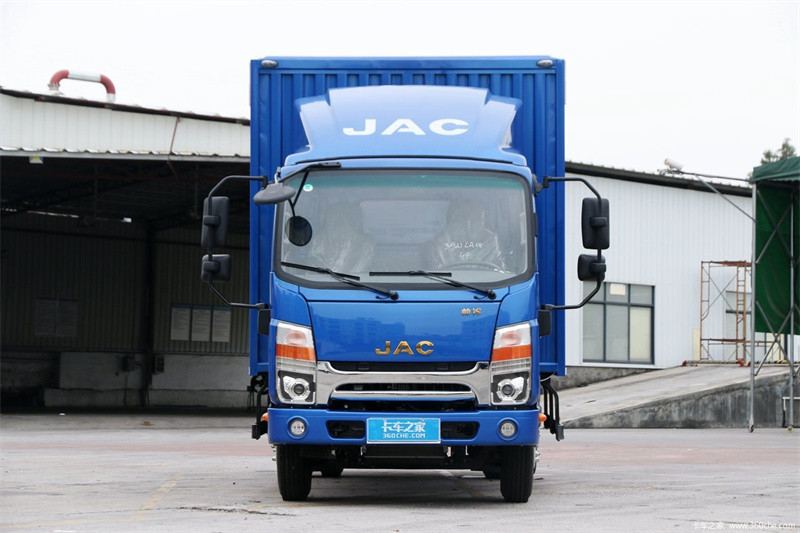

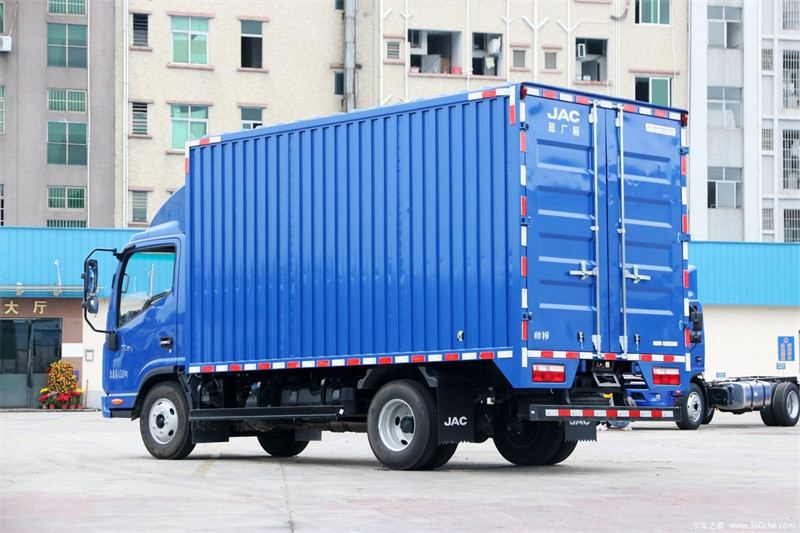

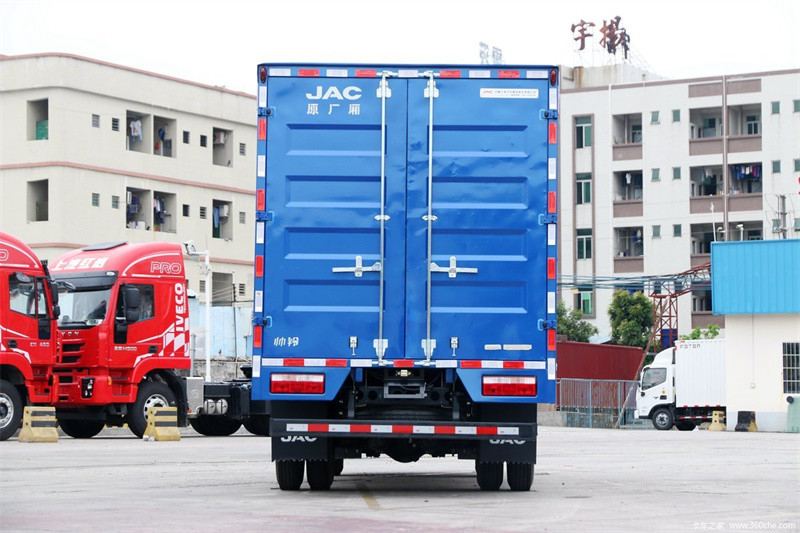

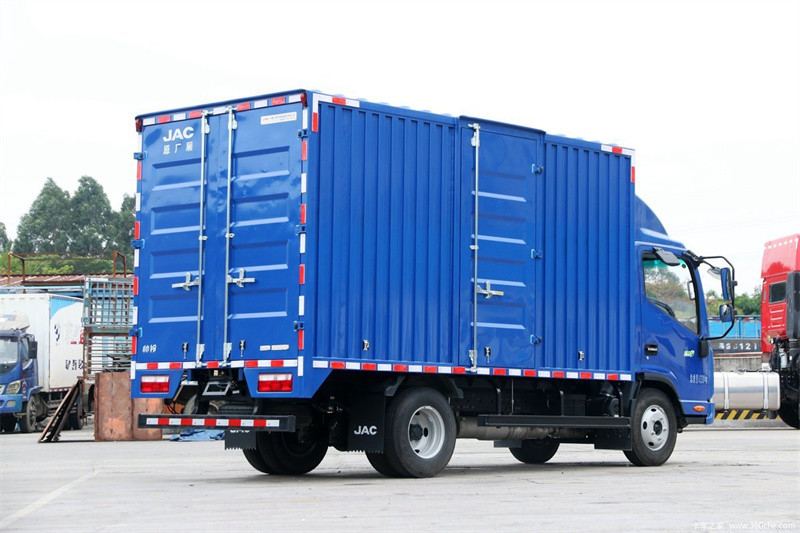

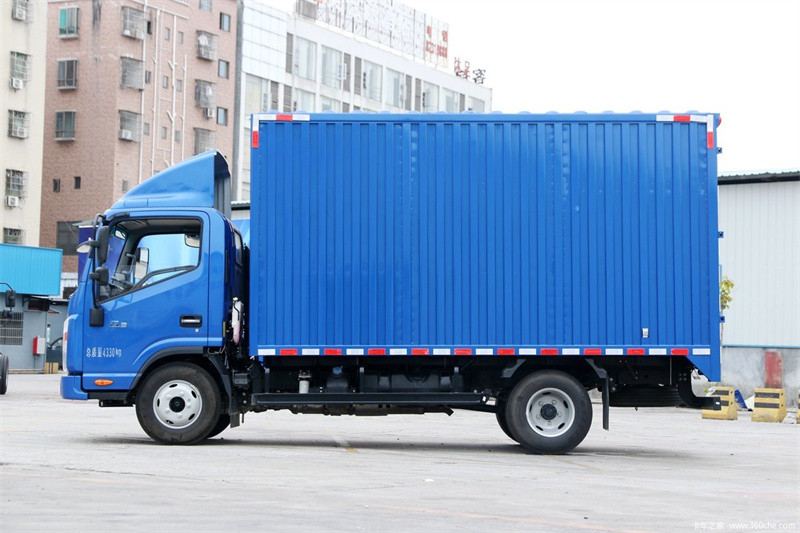

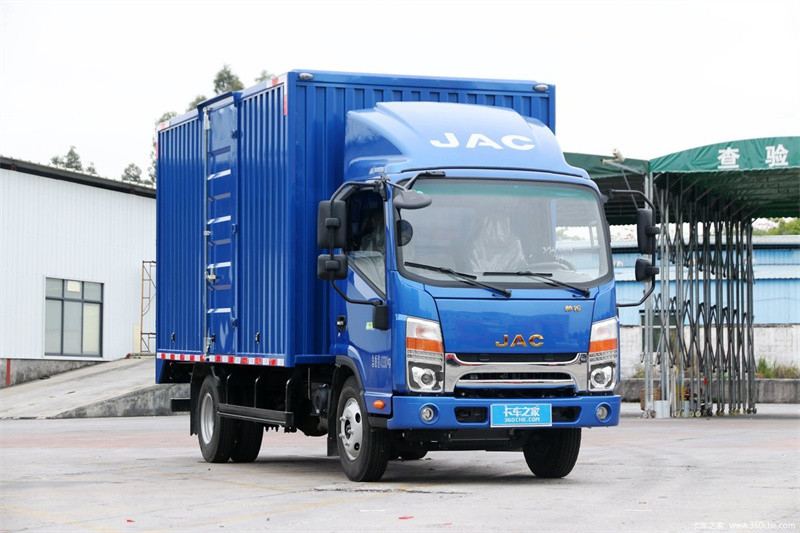

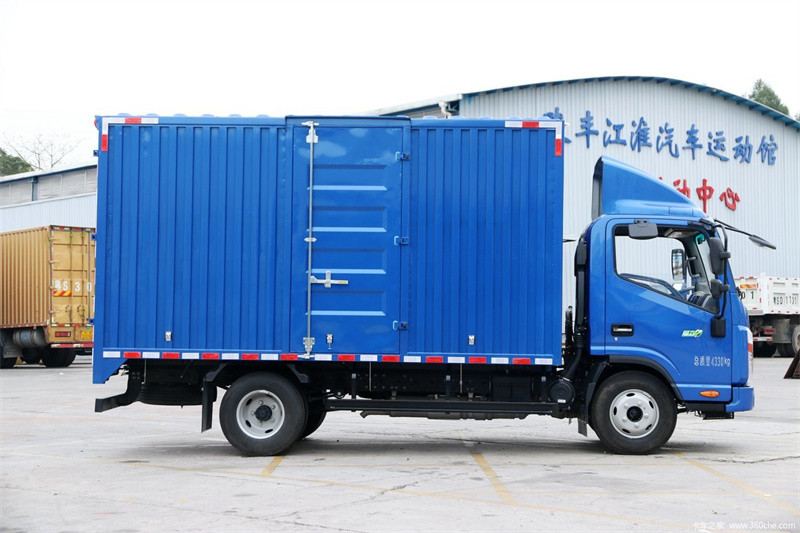

4x2 JAC Cargo Van Box 2-3T
v1v2v3v4v5v6v7v8
Complete Truck · Cargo

4x2 JAC Cargo Van Box 2-3T

  • ChassisJAC
  • Rated Power68kw/92hp
  • EngineHFC4DA1-1
  • Emission StandardEu 2
  • Driving Type4x2
  • Total Mass6350 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 50544466

Overview

About this truck

This JAC cargo van box truck is engineered for logistics and transportation applications, featuring a 92-horsepower EU2-compliant diesel engine. The vehicle carries a rated payload capacity ranging from 2 to 3 tons, making it suitable for light commercial freight operations. The truck accommodates three passengers and includes a spacious cargo compartment measuring 4000x2000x2000mm. Its 4x2 drivetrain configuration provides efficient fuel consumption alongside dependable performance for urban and regional delivery routes. The truck is equipped with a manual transmission, dual rear axles rated at 3000kg, and a front axle capacity of 1500kg, ensuring balanced load distribution during transport operations.

Specifications

Technical parameters

Model NumberHFC1042L3K
ChassisJAC
Loading Capacity2-3 Tons
EngineHFC4DA1-1
Front Axles Loading1500 KG
Rear Axles Loading3000 KG
TransmissionManuel
Tire7.00R16
Springs7/4+6
Box Dimension4000x2000x2000 Mm
ColorOption
Dimension (LxWxH)5990x2200x2750 mm
Total Mass6350 kg
Rated Payload3000 kg
Kerb Weight3350 kg
Passenger Capacity3
Approach/Departure Angle23°/13°
Driving Type4x2
Wheel Base3360 mm
GearboxLC5T255M3
Front/Rear Track1640/1655 mm
Number of Tyres6+1 (spare tyre)
Front/Rear Suspension1120/2095 mm
Oil Tank120L Iron
Rated Power68kw/92hp
Fuel TypeDiesel oil
Displacement/Capacity2772 ml
Emission StandardEu 2
Cylinder4
Max. Torque/Speed240N.m/1500-2900rpm
Velocity2900 rpm
Rear Bucket4000x2000x2000 mm
Dump Functionoption
