High Pressure Road Washing Truck with 10 Tons Water Tank
v1v2v3v4v5v6v7v8
Complete Truck · Road Sweeper

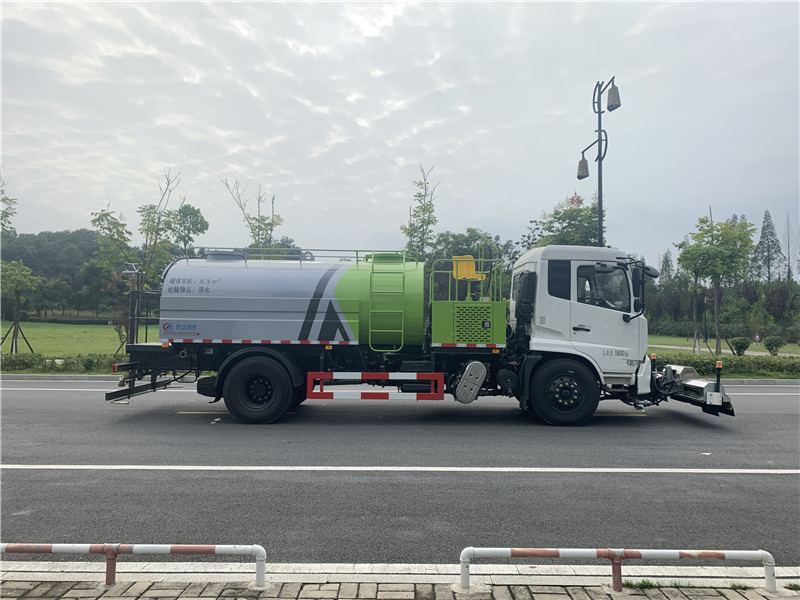

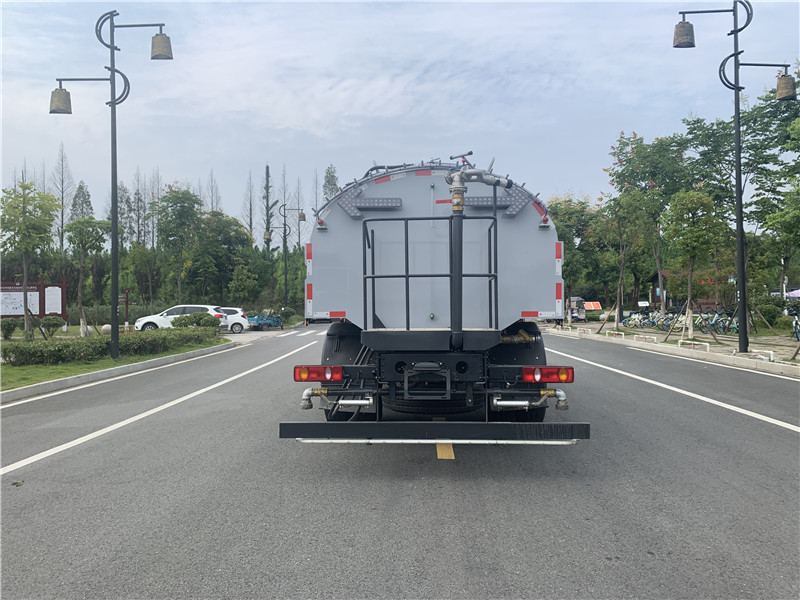

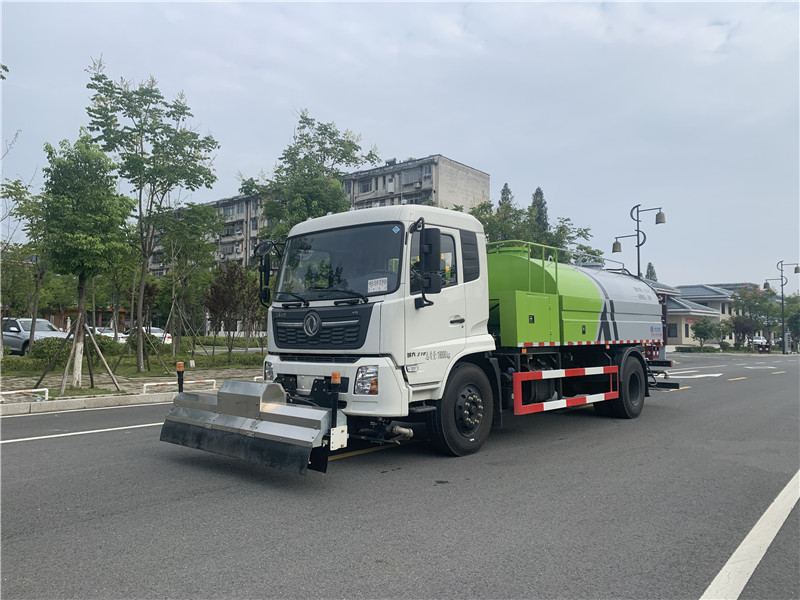

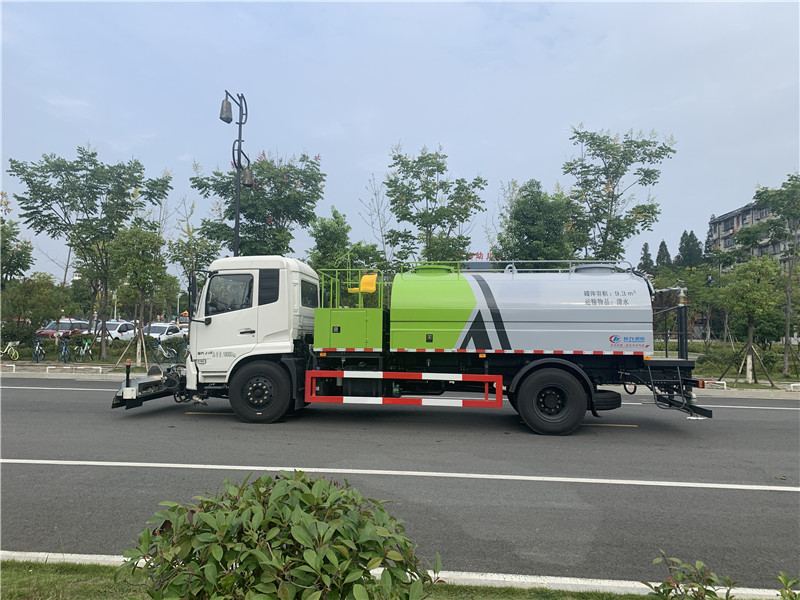

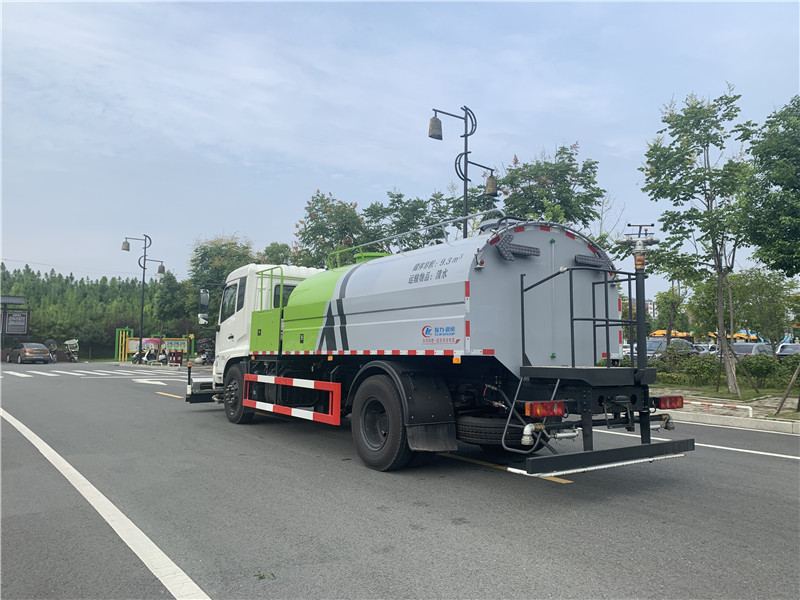

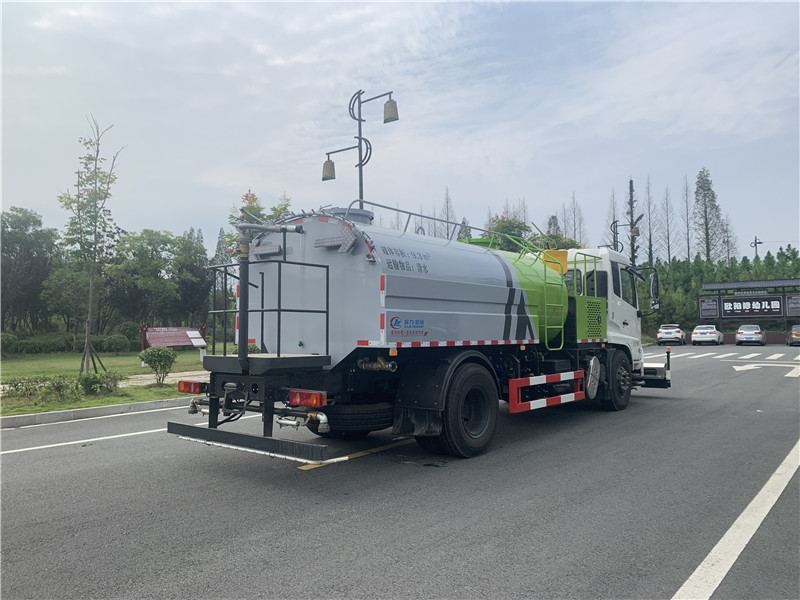

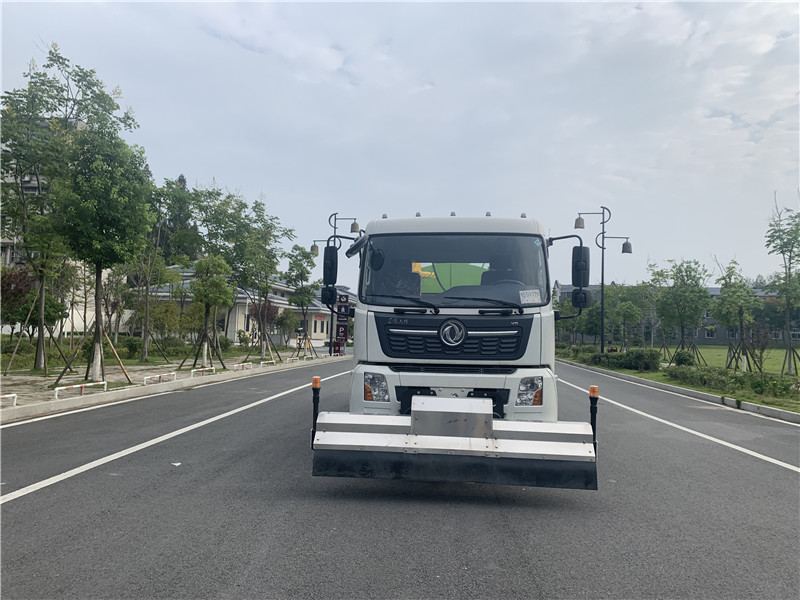

High Pressure Road Washing Truck with 10 Tons Water Tank

  • Rated Power Speed2500RPM
  • Engine ManufacturerDongfeng Cummins
  • Tank Capacity10 Cubic Meters
  • Tank Volume10 m³
  • Overall Dimensions8980×2500×3080 mm

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 47989620

Overview

About this truck

The high-pressure road washing truck features a front spray rack that compresses water molecules into fine droplets under high pressure, achieving fast and efficient cleaning. It removes dirt, grease, mud, and other stains from road surfaces. Beyond road cleaning, the vehicle finds application in industrial settings like factories and warehouses for removing harmful airborne substances and improving work environment air quality. The truck also serves building cleaning purposes. For vehicle cleaning specifically, it penetrates hidden corners to thoroughly eliminate various dirt and stubborn oil stains while providing sterilization and disinfection effects, ensuring safety and hygiene during vehicle use.

Specifications

Technical parameters

Tank Capacity10 Cubic Meters
Dust Suppression SystemYes
Power SourceDiesel
Cleaning Speed5-15 Km/h
TypeMechanical
Curb Climbing Ability30 Cm
Cleaning Spray Rack Width2.3-3.5 M
Spray Rack Deflection Angle30 °
Clean Water Rated Flow≥ 150 L/min
Spray Flow≥ 125 L/min
Rated Pressure Washing Water10 Mpa
Low Pressure Clean Flow500-900 L/min
Low Pressure Clean Width≥ 16 M
Water Gun Range≥ 35 M
Overall Dimensions8980×2500×3080 mm
Tank Dimension5400x2280x1380 mm
Tank Volume10 m³
GVW18000 kg
Curb Weight7960 kg
Payload10000 kg
Wheel Base4500 mm
F/R Track Base1880/1800 mm
F/R Suspension1430/2160 mm
Approach/Departure Angle23/12 °
Max Speed80 km/h
Axle Load5000/10000 kg
Tire Specification10.00R20
Number of Axles2
SteeringPower
Transmission8JS85TE-C
Cab Passenger3
Electric System24V
Engine ManufacturerDongfeng Cummins
Engine ModelB190-33
Engine Displacement/Power5900ml/140Kw, 190Hp
Rated Power Speed2500RPM
Maximum Torque640Nm at 1500rpm
Engine TypeDiesel, 6 direct-line, turbocharge and water cooling
Cylinder Bore102mm
Stroke120 mm
Secondary Engine ModelJX493G3, 2771cc/57kw/3600r/min
Cleaning Spray Rack Width2.3-3.5 m
Spray Rack Deflection Angle30 °
Rated Pressure Washing Water10 Mpa
Clean Water Rated Flow≥ 150 L/min
Spray Flow≥ 125 L/min
Clean Width≥ 16 m
Clean Water Flow500-900 L/min
Water Gun Range≥ 35 m
Self-Priming Height≥ 6 m
Max Speed80 Km/h
Maximum Grade30 °
Braking Length10 m
Minimum Turning Diameter19 m
Clutch TypeSACHS
Operating SystemHydraulic control with air booster, pulling
PTO TypePTO with gear pump
Maximum Output Torque850Nm
