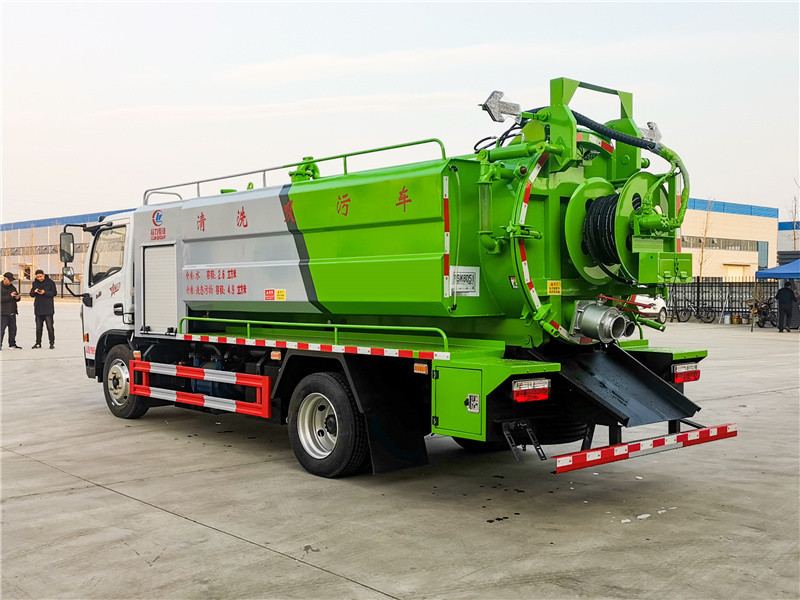

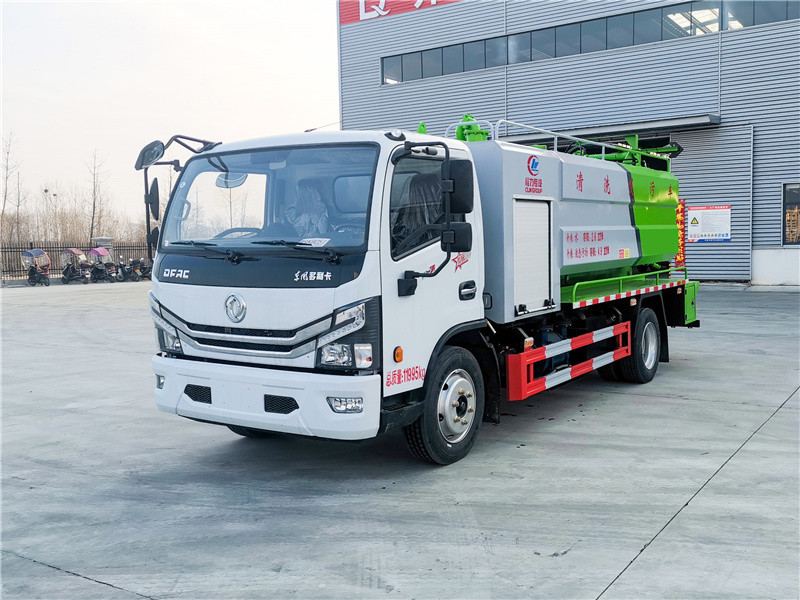

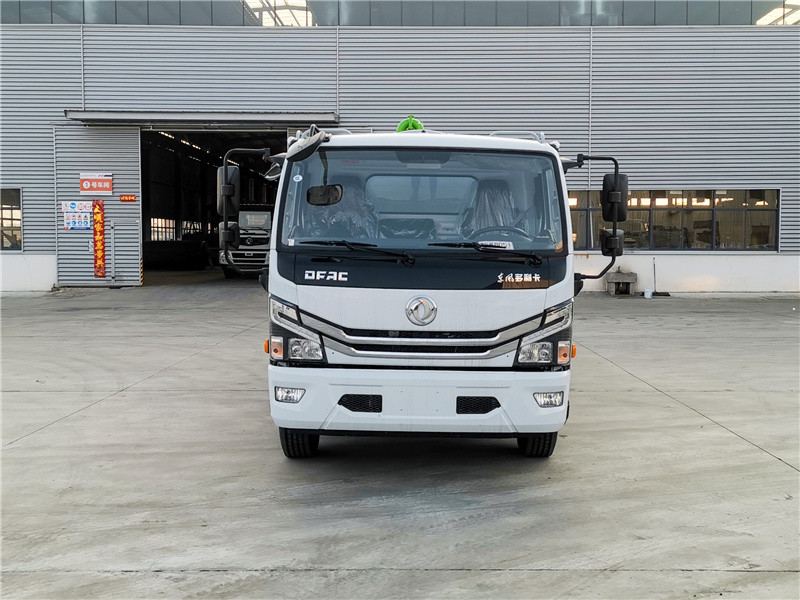

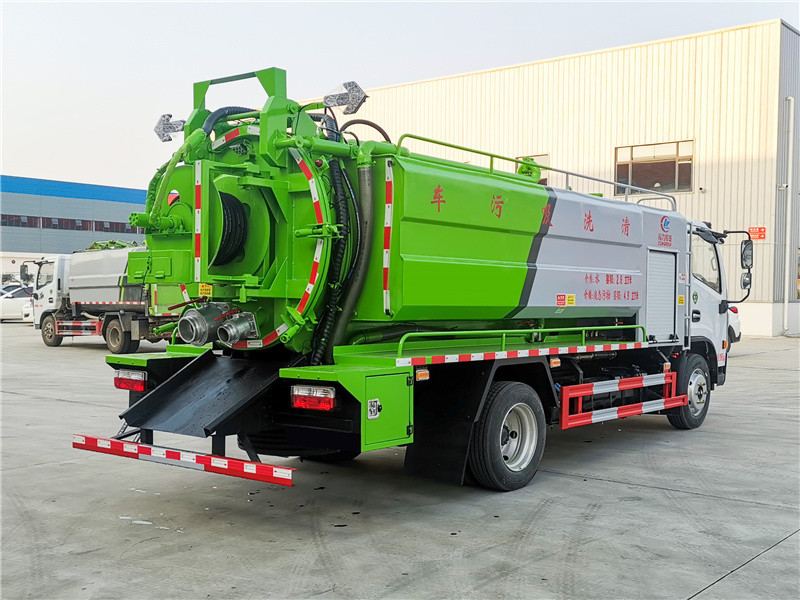

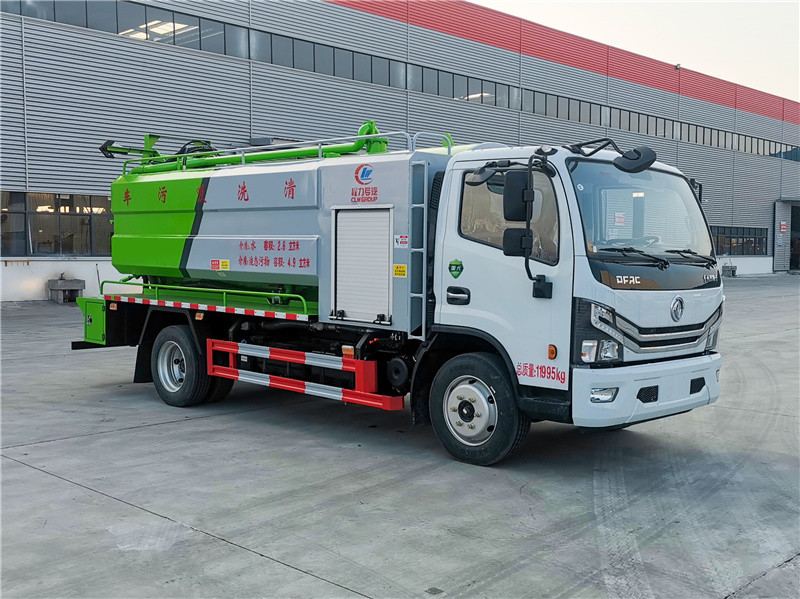

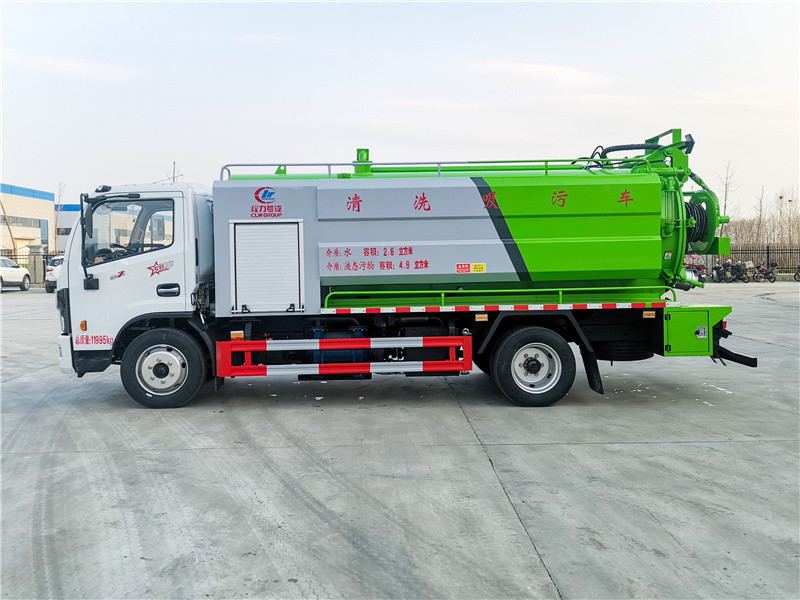

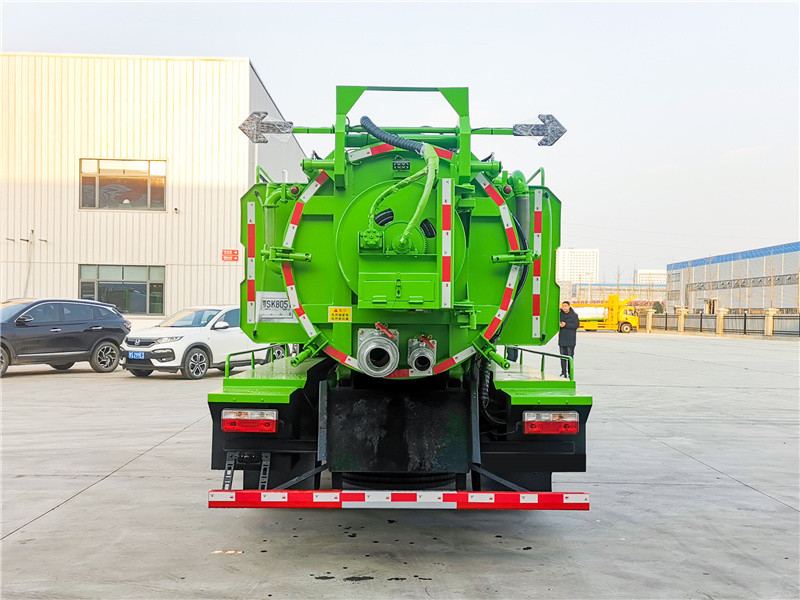

4x2 Dongfeng 10000L Vacuum Sewage Clean+Suction Truck
v1v2v3v4v5v6v7v8
Complete Truck · Vacuum Truck

4x2 Dongfeng 10000L Vacuum Sewage Clean+Suction Truck

  • Rated Power100 kW/135 hp
  • Engine ModelYC4E135 33
  • Emission StandardEU 3
  • Driving Type4×2
  • Total Mass12,000 kg
  • Clean Water Tank Volume3,000 liters

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 50544959

Overview

About this truck

This sewage cleaning and suction truck represents a modern environmental sanitation vehicle designed for collecting, transferring, and transporting sludge and sewage materials. The unit combines multiple operational functions including flushing, dredging, suction, and reverse discharge capabilities. Operating on the siphon principle, the truck achieves self-suction and self-discharge functions, enabling rapid work cycles with substantial capacity. It efficiently handles liquid substances such as feces, mud, and crude oil. The system works by creating pressure differentials: during suction, air removal lowers internal tank pressure, drawing fecal liquid upward through submerged hoses via atmospheric pressure. During discharge, compressed air forces waste through siphon tubes and hoses. The truck features high-pressure water pump cleaning functionality combined with vacuum pump suction for waste water and garbage removal.

Specifications

Technical parameters

Model NumberCL5120GQW6HQ
NameDongfeng Sewage Clean and Suction Truck
Total Mass12,000 kg
Rated Payload5,720 kg
Kerb Weight6,140 kg
Passengers3
Approach/Departure Angle17°/10°
Dimension (L×W×H)7,000×2,350×3,000 mm
Driving Type4×2
Wheelbase3,800 mm
Gearbox6TS55
Front/Rear Track2,060/1,855 mm
Tyre Model7.50R16
Number of Tyres6+1 (spare)
Front/Rear Suspension1,370/2,710 mm
Engine ModelYC4E135 33
Rated Power100 kW/135 hp
Fuel TypeDiesel oil
Displacement/Capacity4,257 ml
Emission StandardEU 3
Cylinders4
Max. Torque/Speed392 N·m/1,700 rpm
Velocity2,800 rpm
Color/LogoCustomizable
Clean Water Tank Volume3,000 liters
Clean Waste Water Tank Volume10,000 liters
Sewage Tank7,000 liters
Vacuum Suction PumpSK-12
