4x2 142hp Diesel Advertising Billboard
v1v2v3v4
Complete Truck · LED / Stage

4x2 142hp Diesel Advertising Billboard

  • Chassis Manufacturer/ModelDongfeng/EQ1125SJ8CDC
  • Rated Power150 hp/110 kW
  • Engine Manufacturer/ModelYunnei/D25TCIF1
  • Emission StandardEuro 6
  • Driving Type4x2 left hand drive
  • Total Mass12500 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 49056829

Overview

About this truck

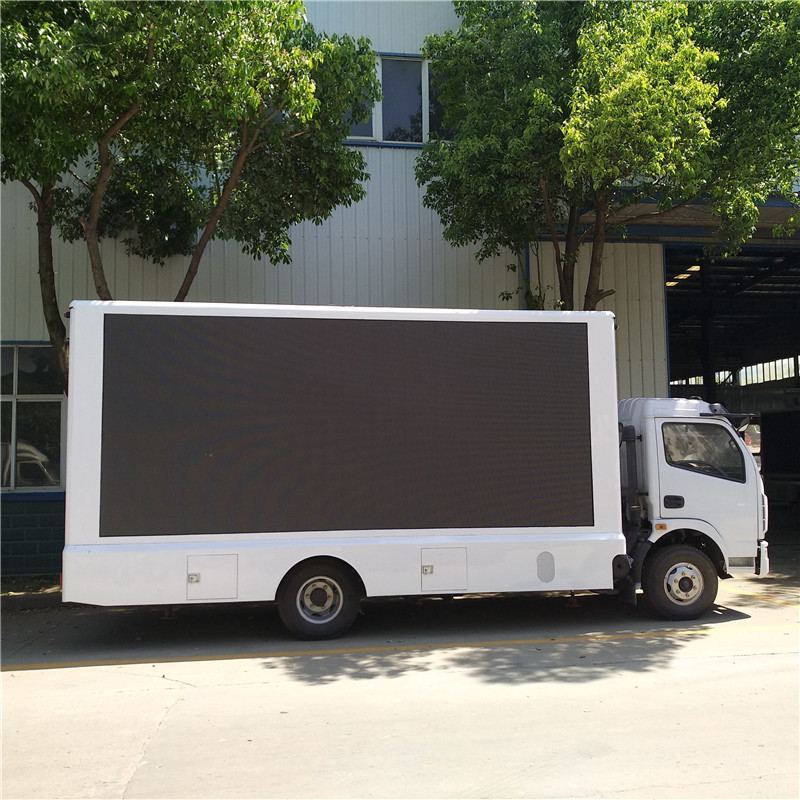

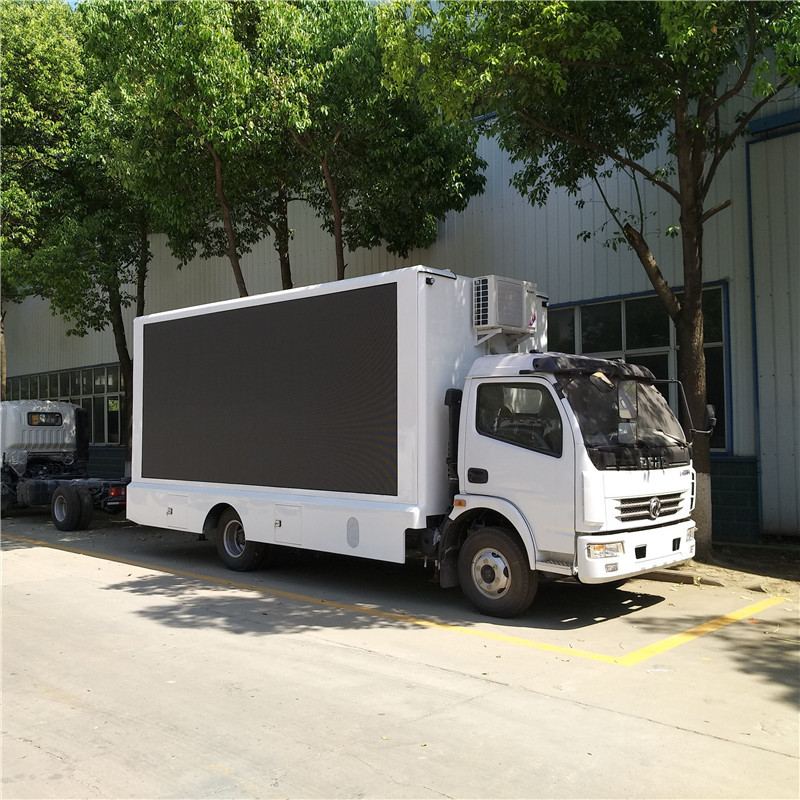

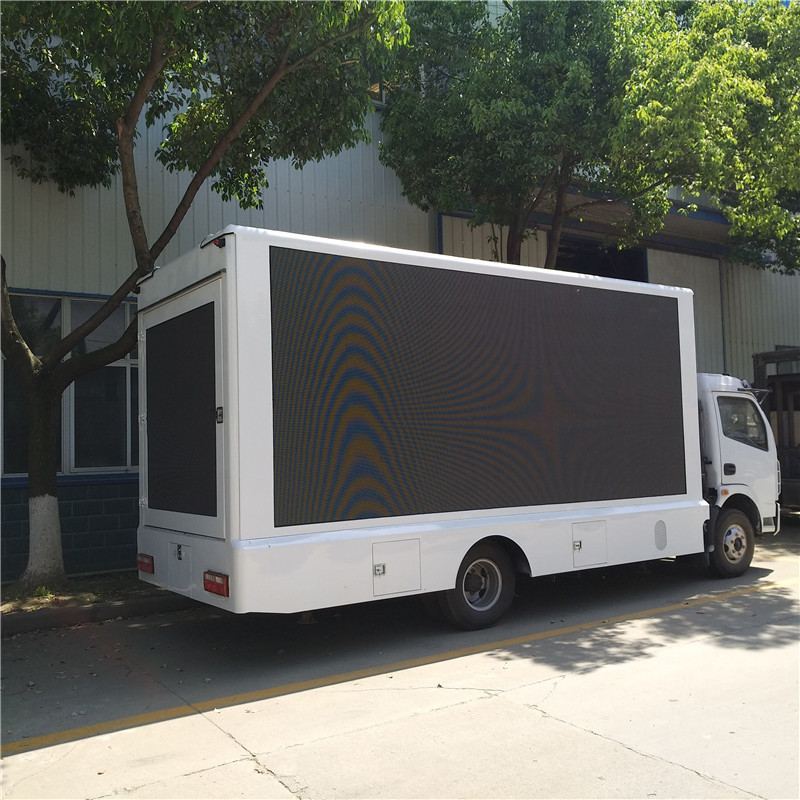

This LED advertising truck comprises several key components. The compartment features a rectangular frame structure with aluminum checkered plate interiors, lighting, shutters, and exhaust fans. It includes 2-4 speakers, a power amplifier, computer, and control system. The vehicle uses customizable high-resolution LED screens (P5/P4/P3 options) deployable on one to three sides. An optional hydraulic lifting system raises the screen 1.2-1.5 meters for improved visibility. The truck operates via a high-power ultra-quiet diesel generator, enabling independent operation without grid dependency. Four hydraulic outriggers stabilize the vehicle on uneven terrain. An optional advertising light box with intelligent digital switching displays 2-6 images automatically. The system accepts diverse media formats including video, audio, pictures, and documents.

Specifications

Technical parameters

Chassis Manufacturer/ModelDongfeng/EQ1125SJ8CDC
Driving Type4x2 left hand drive
Wheelbase3800 mm
GearboxSeven speed manual (6 forward, 1 reverse)
Front/Rear Track1903/1770 mm, 1640 mm
Tyre825R20 (6+1 spare)
Suspension1130/1810 mm front/rear; 8/10+7 leaf springs
Engine Manufacturer/ModelYunnei/D25TCIF1
Rated Power150 hp/110 kW
Fuel TypeDiesel oil
Displacement2500 ml
Emission StandardEuro 6
Cylinder ConfigurationStraight 4-cylinder turbo with electric common rail
Max. Torque400 N.m at 3000 rpm
Dimensions (LxWxH)6995x2450x3500 mm
Total Mass12500 kg
Rated Payload8000 kg
Kerb Weight4500 kg
Passengers3
Approach/Departure Angle20/12 degrees
LED Screen Size4480x1728 mm (left/right); 1280x1440 mm (rear)
LED Screen TypeThree sides full color
Pixel Pitch5 mm
Spare LED Modules5 pcs (P6, 320x160 mm each)
LED Module BrandsTEEHO/ROYAL DISPLAY/GKGD
Display MonitorAOC 14-inch
ComputerPentium dual-core, Windows, 2GB RAM, 120GB HDD
Amplifier200W with USB microphone support
Speakers4 units, 30W each, waterproof
Display SoftwareOnbon
Supported FormatsVideo, audio, pictures, documents (multiple formats)
Generator BrandOUMA
Generator TypeDiesel
Generator Capacity18 kW
Generator Noise LevelSilent low noise
Alternative Power SupplyExternal 30m wire plug
Screen Lift and StageOptional
SubframeEquipped
Interior FlooringAluminum checkered plate
CeilingWaterproof wood
LightingEquipped
LadderEquipped
Ventilation FansEquipped
SkylightsEquipped
Cabin TypeSingle cab
Screen Pixel OptionsP5/P4/P3
Screen Sides Options1/2/3
Hydraulic LiftOptional
Hydraulic StageOptional
