4x2 EU6 Dongfeng 3-Sides LED Screen Van
v1v2v3v4
Complete Truck · LED / Stage

4x2 EU6 Dongfeng 3-Sides LED Screen Van

  • Rated Power115 hp
  • Engine Manufacturer/ModelQuanChai/4B2-115C50
  • Emission StandardEuro 6
  • Driving Type4×2 left hand drive
  • Total Mass4495 kg
  • Hydraulic LiftingEquipped

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48853610

Overview

About this truck

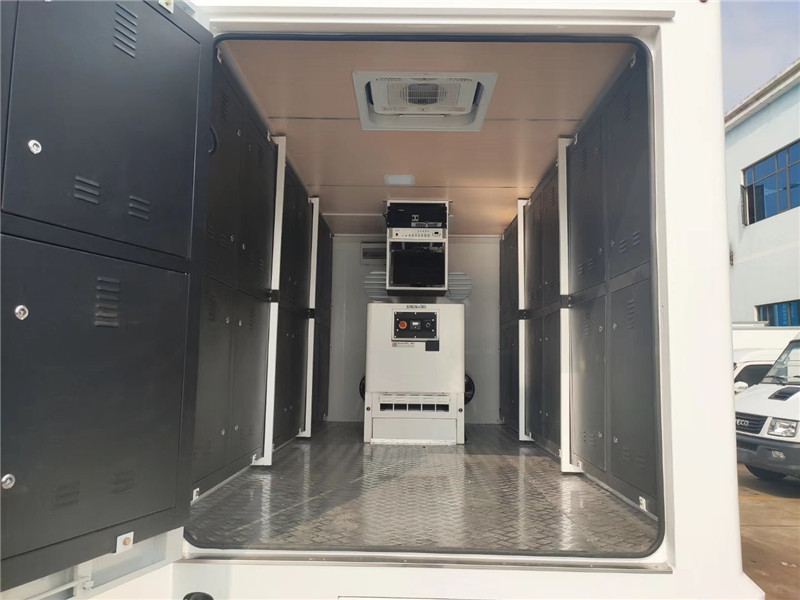

This LED advertising vehicle features a rectangular compartment with aluminum checkered plate flooring and integrated lighting. It combines P5/P4/P3 high-resolution LED screens with optional hydraulic lifting that raises the display 1.2-1.5 m for better visibility. Power comes from an independent 15 kW diesel generator, eliminating grid dependency. Up to three display sides, audio system (4 waterproof speakers, 200W amplifier, control computer), and hydraulic outriggers for stability on uneven ground.

Specifications

Technical parameters

Dimension (L×W×H)5803×2300×3300 mm
Total Mass4495 kg
Kerb Weight4300 kg
Passengers3
Wheelbase3300 mm
Driving Type4×2 left hand drive
GearboxSix speed manual (5 forward, 1 reverse)
Tire7.00R16
Number of Tires6 + 1 spare
Engine Manufacturer/ModelQuanChai/4B2-115C50
Rated Power115 hp
Fuel TypeDiesel oil
Displacement2545 ml
Emission StandardEuro 6
Cylinder ConfigurationStraight/4/intercooling/turbo charge/electric common rail + SCR
Max Torque320 N·m at 3200 rpm
Screen TypeTwo sides full color, rear monochrome
LED Pixel Pitch6 mm
LED Screen Size3840×1728 mm (left & right); 1280×1440 mm (rear)
Generator15 kW OUMA diesel generator
ComputerHuntkey with English Windows Software
Amplifier200 W
Loudspeaker4× 30W waterproof column speakers
Hydraulic LiftingEquipped
Hydraulic StageEquipped
