4x2 JAC P5 LED Advertising Screen Lift Stage

Rated Power92 hp
Engine ModelJAC HFC4DA1-1
Emission StandardEuro 2
Driving Type4×2
Total Mass4495 kg
Passenger Capacity3

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48852861

Overview

About this truck

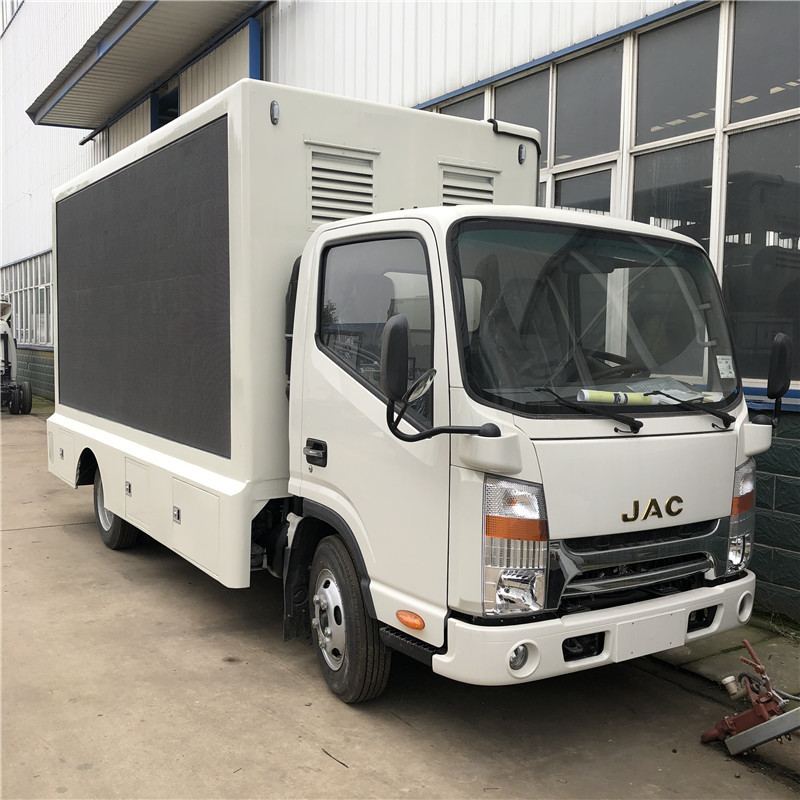

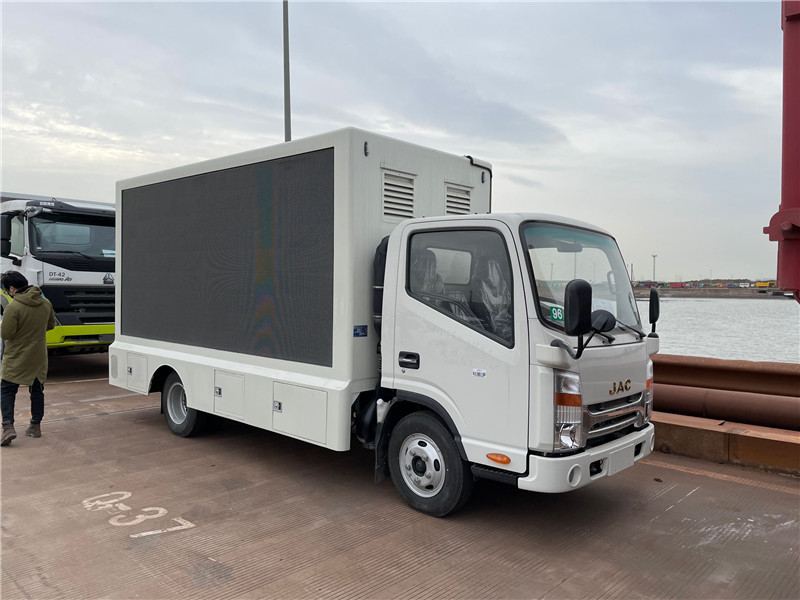

This mobile LED advertising vehicle features a rectangular compartment with aluminum checkered flooring and integrated lighting. It is equipped with P5/P4/P3 high-resolution LED screens configurable for one to three sides, a 15 kW diesel generator for independent power, optional hydraulic lifting (1.2-1.5 m), four hydraulic outriggers for stabilization, an integrated audio system, and an optional hydraulic stage platform.

Specifications

Technical parameters

NameLED Advertising Truck

Dimension (L×W×H)5995×2190×3050 mm

Total Mass4495 kg

Kerb Weight4300 kg

Passenger Capacity3

Wheelbase3360 mm

Driving Type4×2

GearboxFive-speed manual forward, one reverse

Tire6.50R16 10PR

Engine ModelJAC HFC4DA1-1

Rated Power92 hp

Fuel TypeDiesel oil

Displacement2771 ml

Emission StandardEuro 2

Max. Torque225 N.m

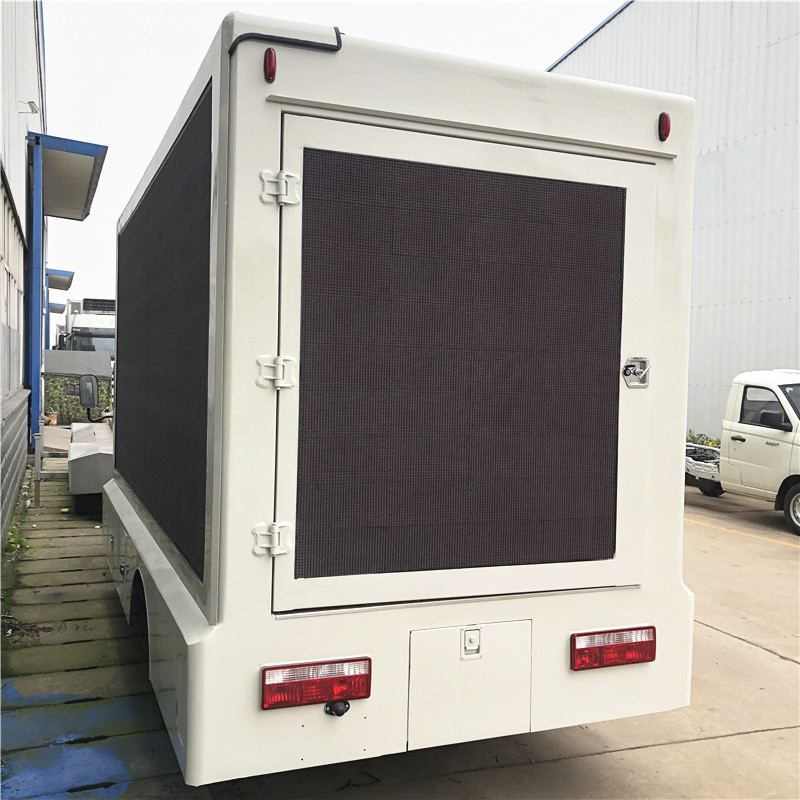

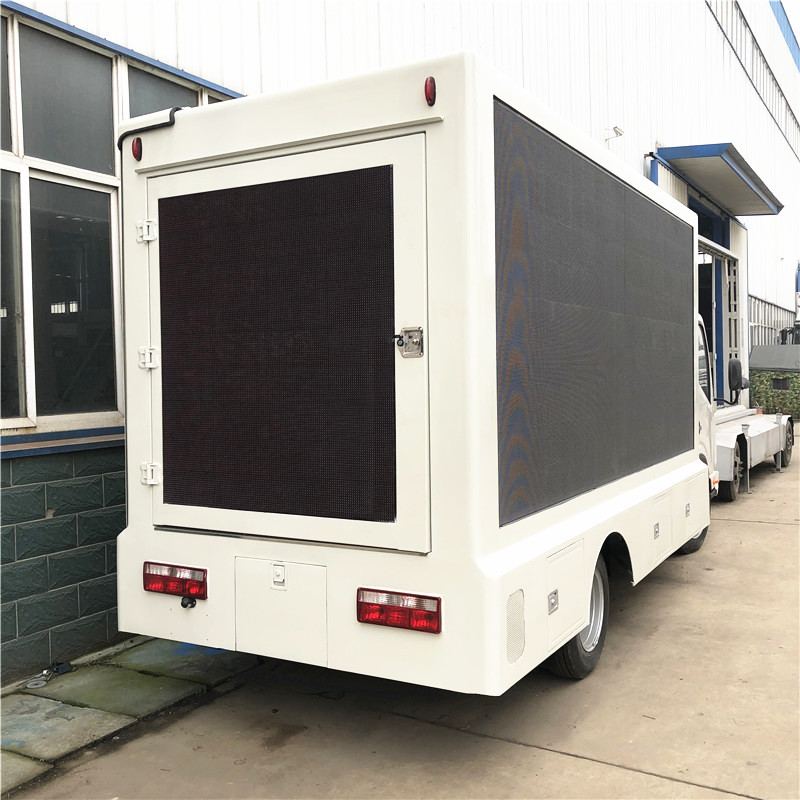

LED Screen TypeTwo-side full color, rear monochrome

LED Screen Size3840×1728 mm (sides), 1280×1440 mm (rear)

LED Pixel Pitch5/4/3 mm

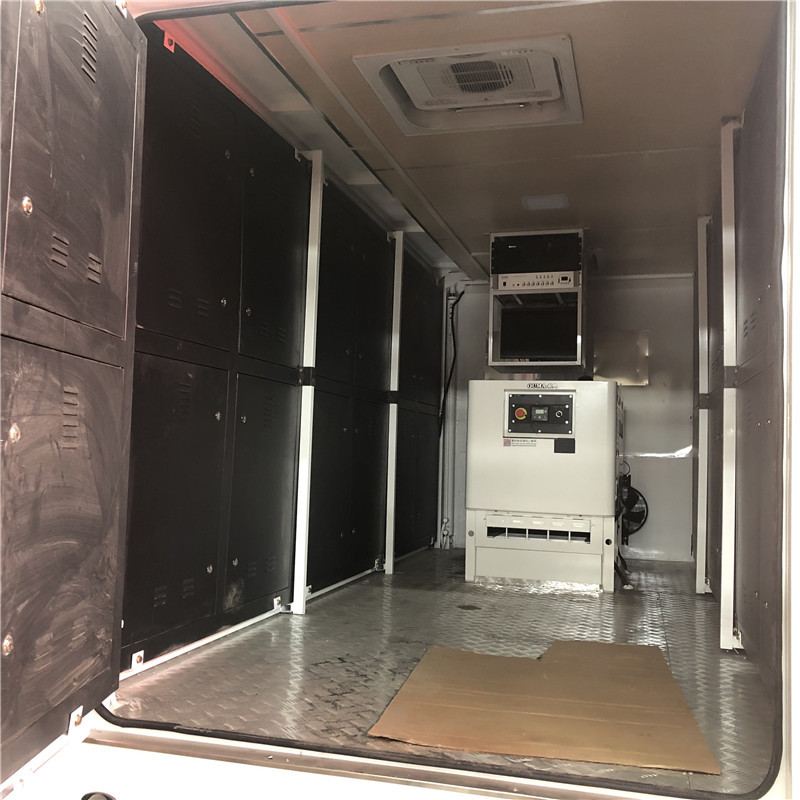

Generator15 kW OUMA diesel

ComputerHuntkey

Amplifier200W

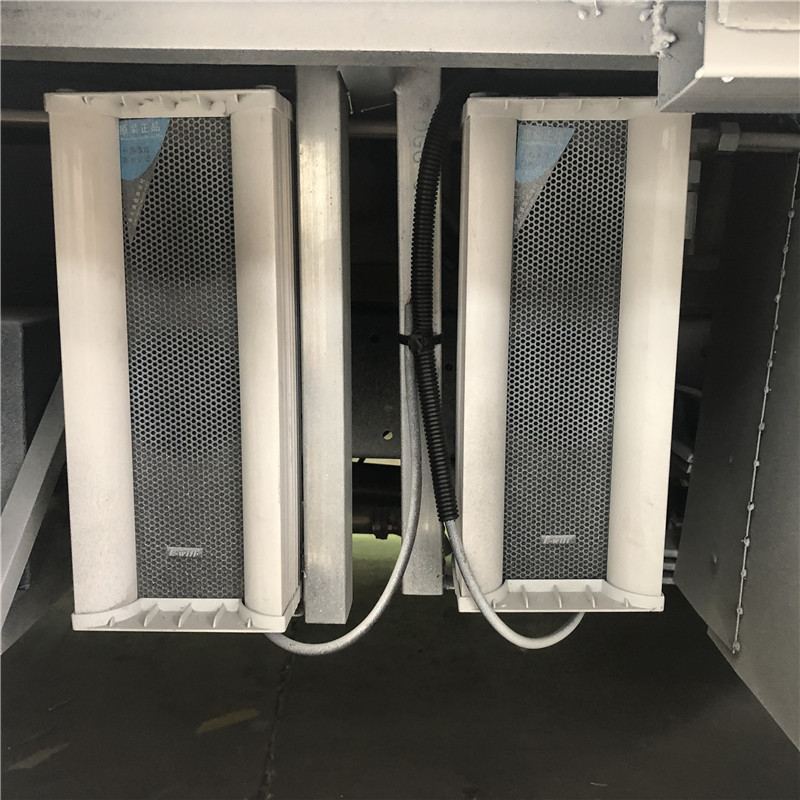

LoudspeakerFour 30W waterproof units

Hydraulic StageEquipped

Screen Hydraulic LiftEquipped
