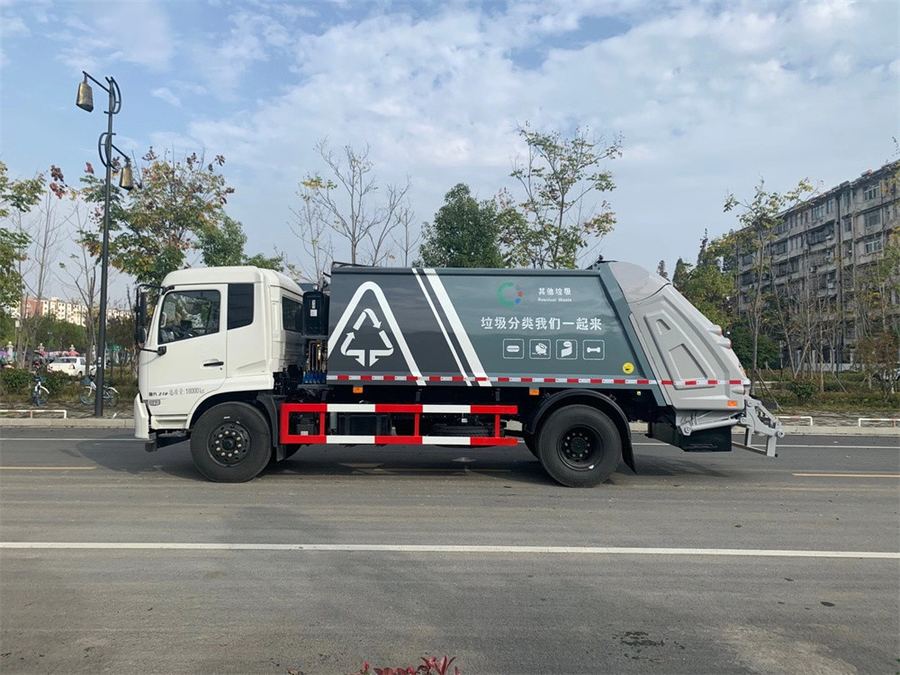

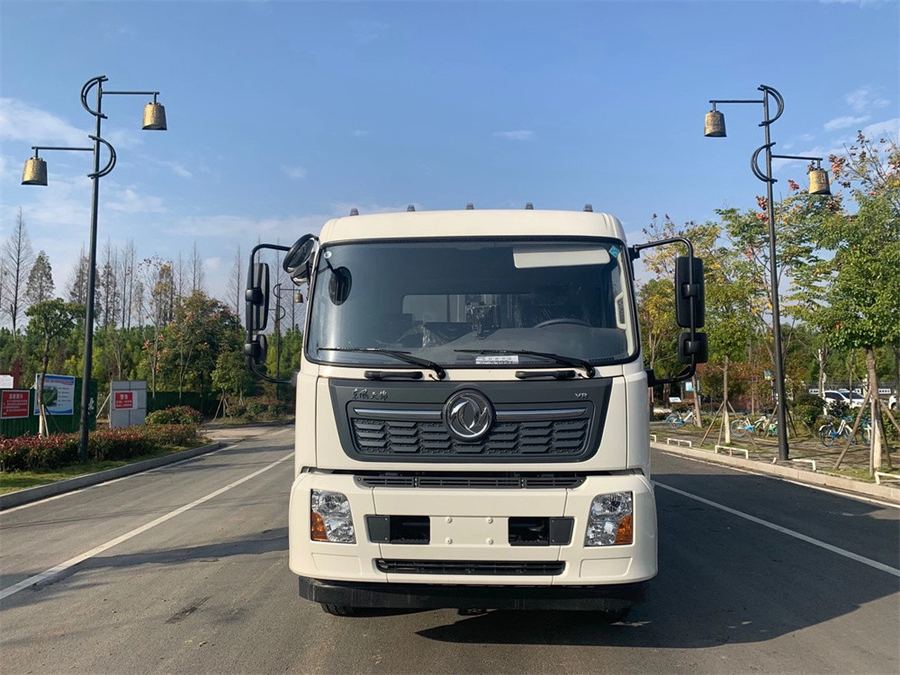

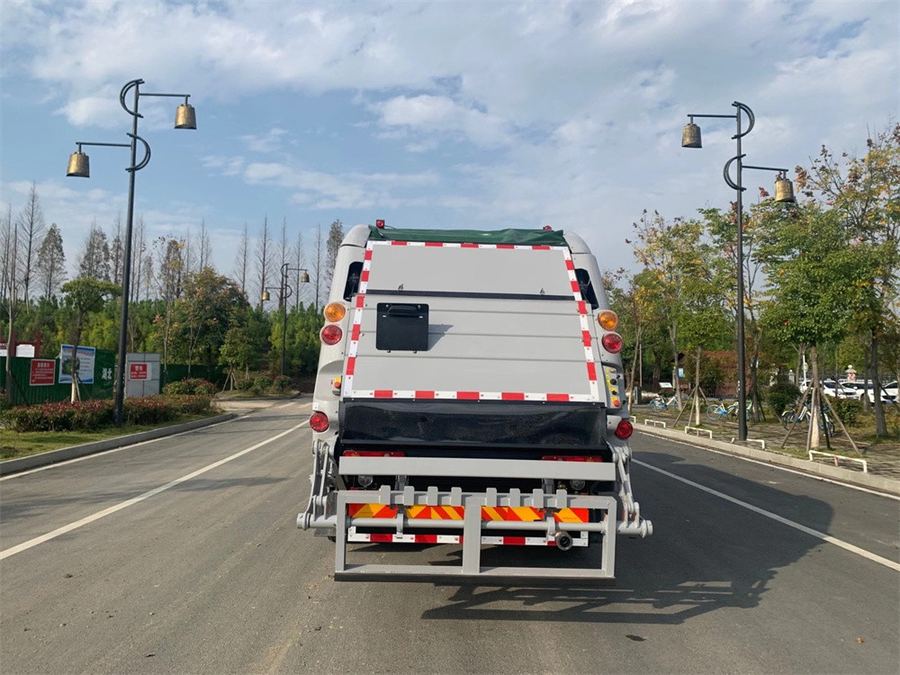

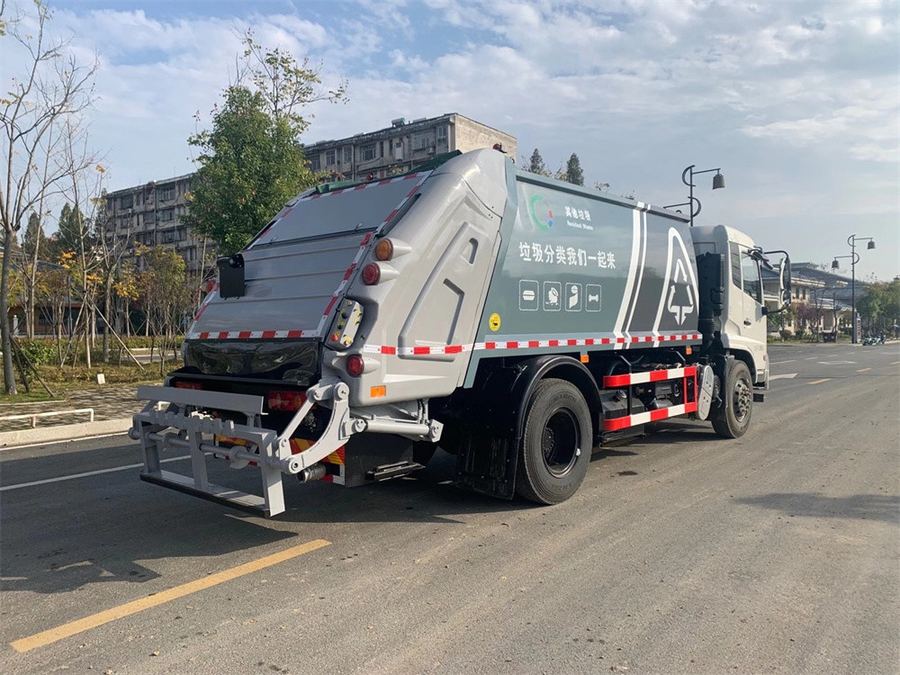

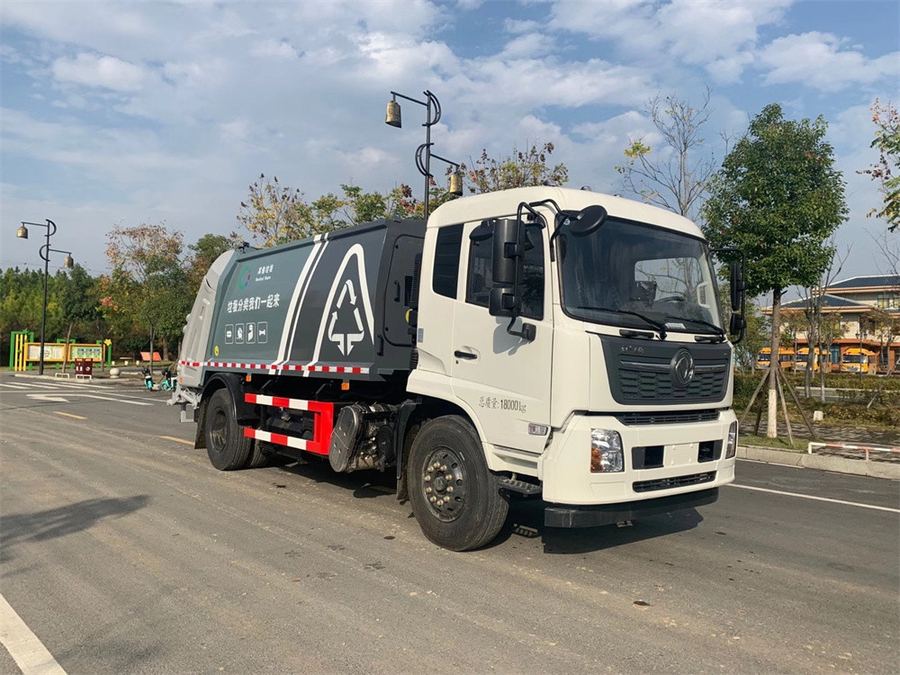

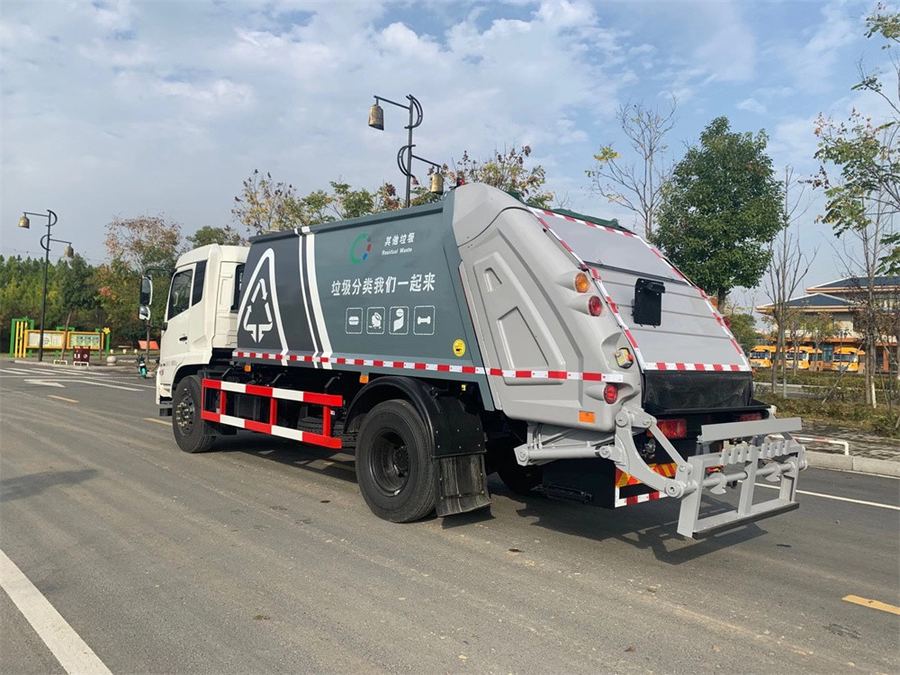

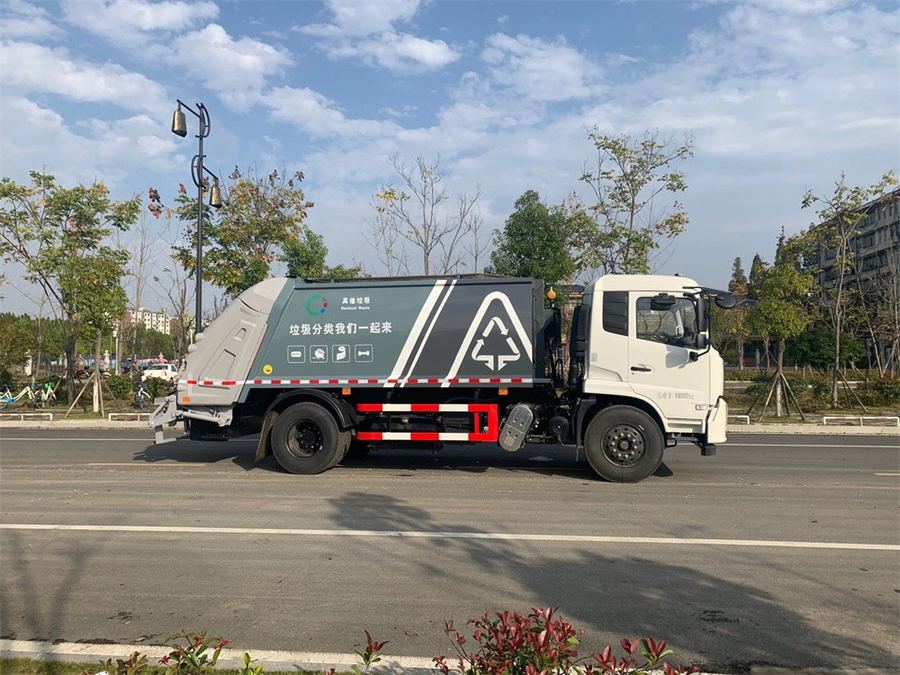

Euro 6 Dongfeng Garbage Compactor Truck 16m3
v1v2v3v4v5v6v7v8
Complete Truck · Garbage

Euro 6 Dongfeng Garbage Compactor Truck 16m3

  • Chassis Manufacturer/ModelDONGFENG TIANJIN
  • Rated Power230 hp
  • Engine Manufacturer/ModelCUMMINS B6.2NS6B230
  • Emission StandardEuro 6
  • Driving Type4×2
  • Total Mass18,000 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48286217

Overview

About this truck

Garbage trucks are designed for collecting, loading, and transporting household waste while compressing and crushing loaded garbage to increase density and reduce volume, thereby improving collection and transportation efficiency. The new garbage truck features reliable quality, low failure rates, easy maintenance, and low operating costs. Various types exist based on collection methods: compressed garbage trucks use mechanical, electrical, and hydraulic systems with computer and manual controls to crush and compact garbage; self-dumping garbage trucks employ hydraulic systems to tilt the carriage; swing arm garbage trucks feature detachable bins enabling multiple bin-to-vehicle use; sealed garbage trucks serve urban street garbage treatment with sealed self-dumping functions; and hanging bucket self-loading trucks use chain and hydraulic linkage devices to automatically collect garbage from multiple bins and self-dump. Each type addresses specific garbage treatment needs in different environments.

Specifications

Technical parameters

Model NumberDFL1180
Dimension (L×W×H)9210×2500×3300 mm
Total Mass18,000 kg
Rated Payload7,000 kg
Kerb Weight11,000 kg
Passenger Capacity3
Approach/Departure Angle17°/9°
Chassis Manufacturer/ModelDONGFENG TIANJIN
Driving Type4×2
Wheel Base4,700 mm
Gearbox8-speed manual
Front/Rear Track1876/1820 mm
Tyre Model10.00R20
Number of Tyres6+1 (spare)
Front/Rear Suspension1430/2680 mm
Engine Manufacturer/ModelCUMMINS B6.2NS6B230
Rated Power230 hp
Fuel TypeDiesel oil
Displacement/Capacity6,200 ml
Emission StandardEuro 6
Cylinder Count6
Max. Torque/Speed640 N.m/1500 rpm
Velocity2,500 rpm
Tank Volume16 m³
FunctionDelivery/life use waste garbage
Compressor and Filling Cycle Time25–30 seconds
Loading Cycle Time17–25 seconds
Discharge Cycle Time30–45 seconds
Compressor Density0.6-0.75 kg/m3
Rear Loading DeviceFlip board/triangulation/swinging arm
ControlElectric and Hydraulic
Tire10.00R20
Highlight16cbm Garbage Compactor, CUMMINS Engine
