Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48952052

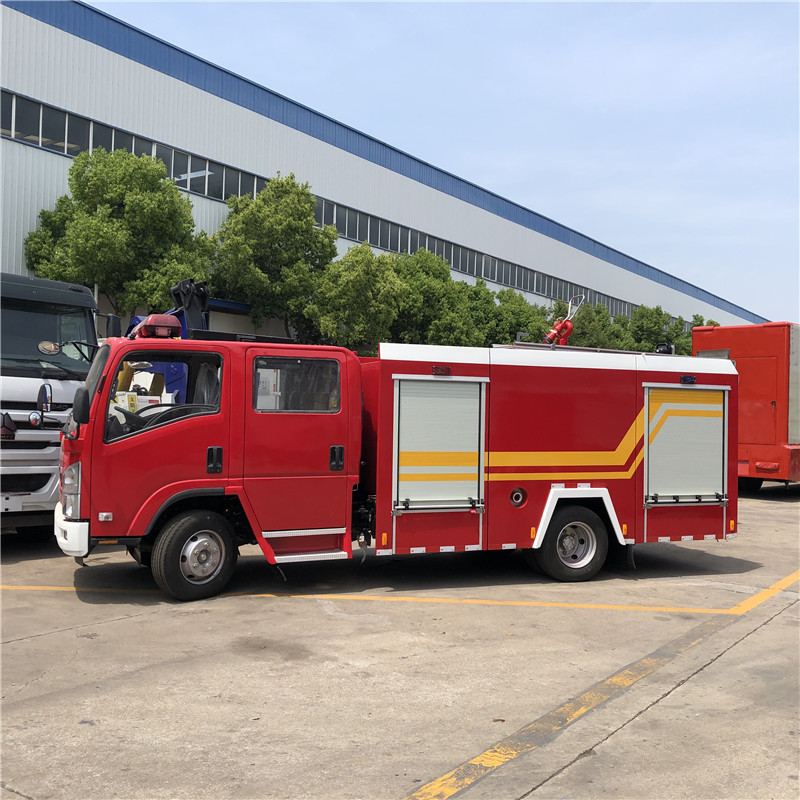

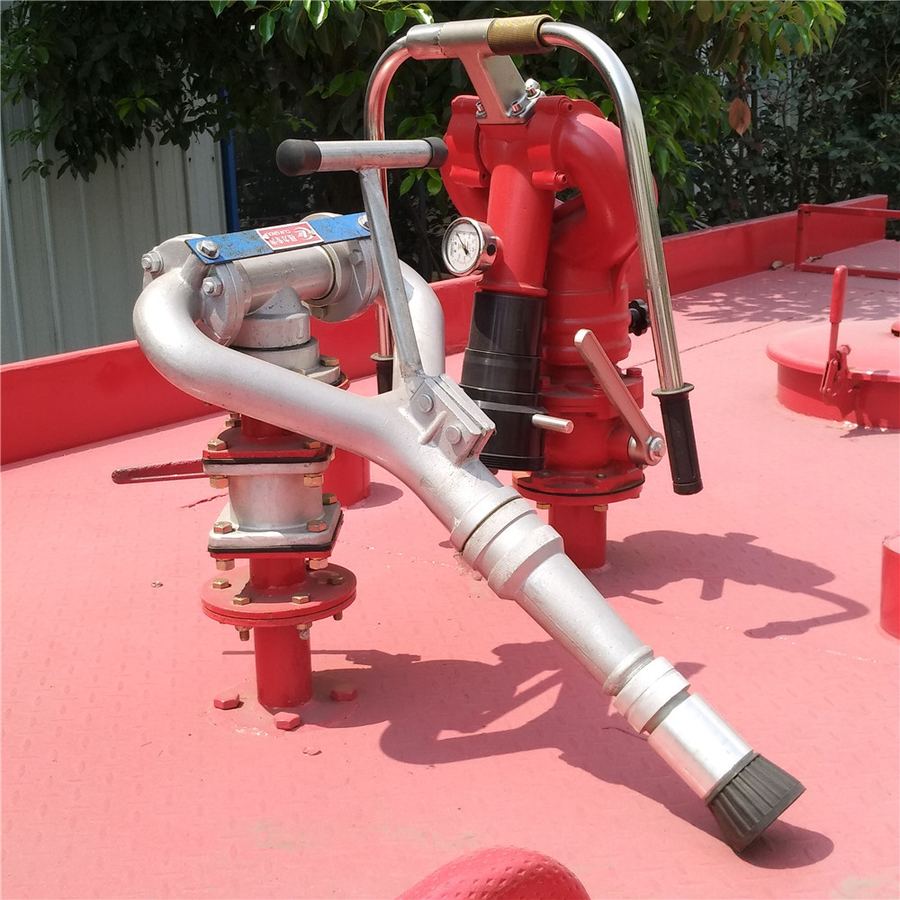

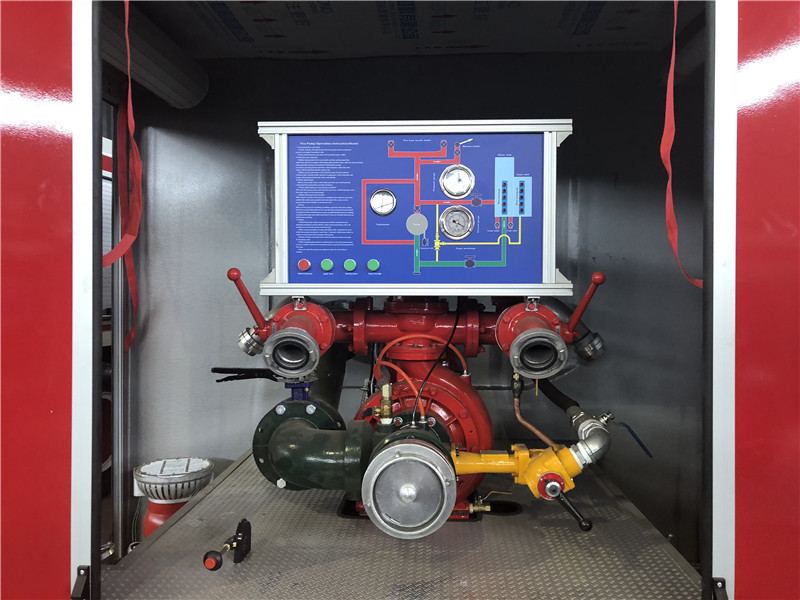

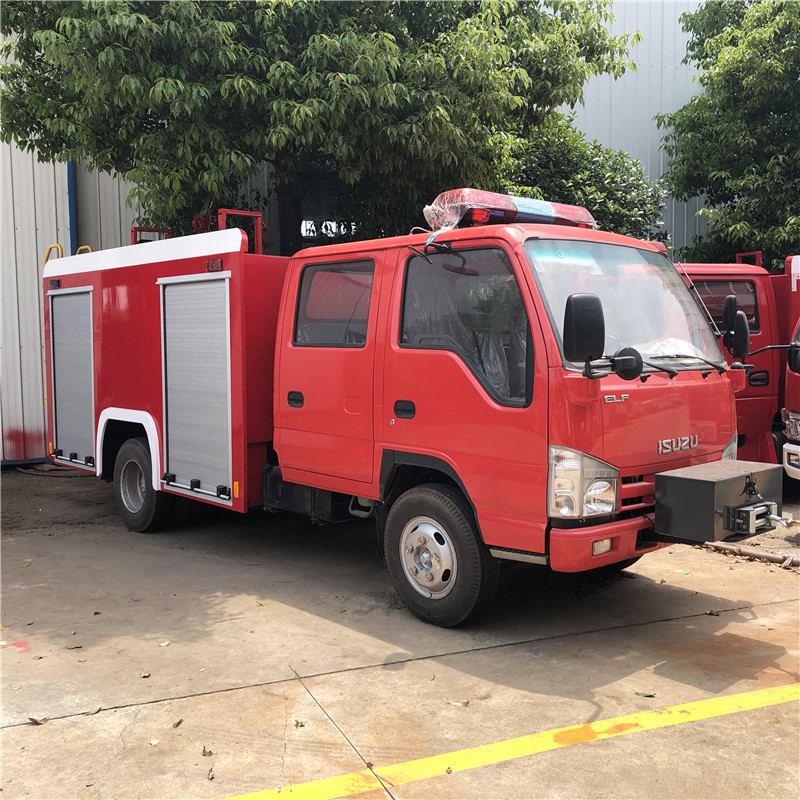

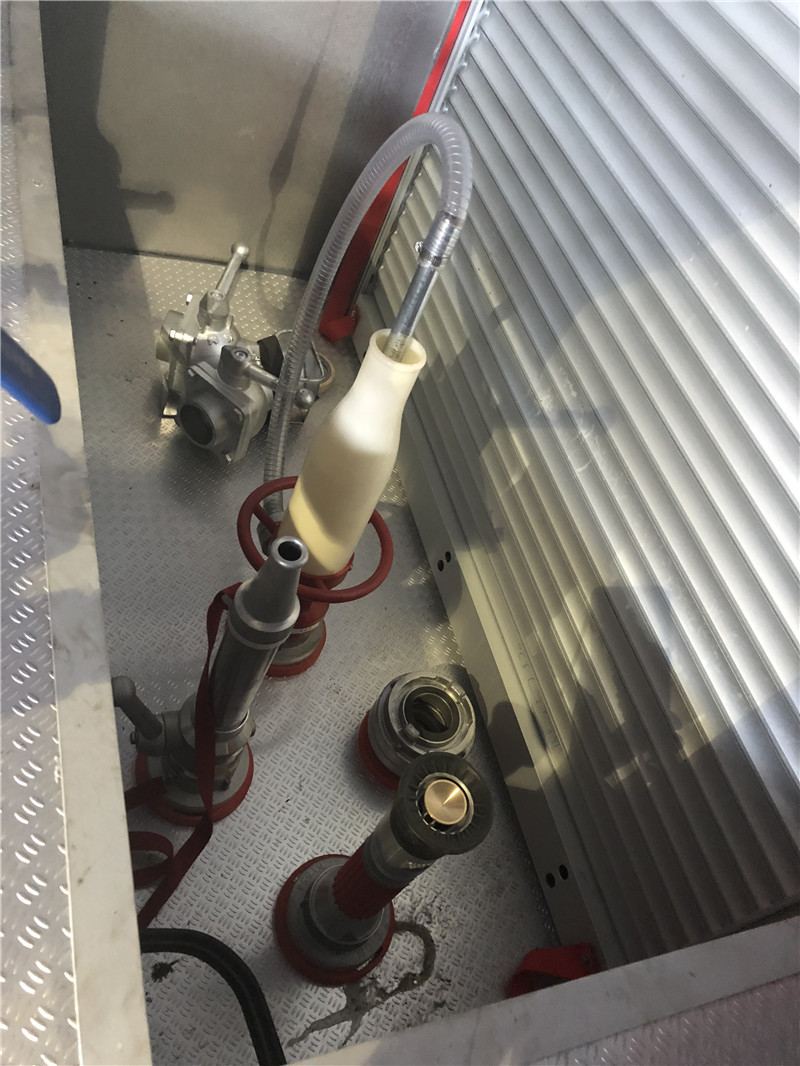

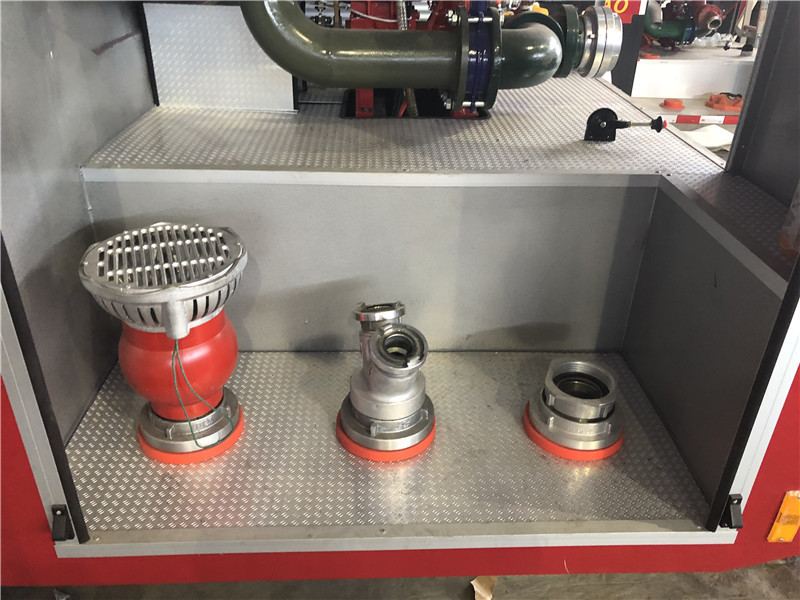

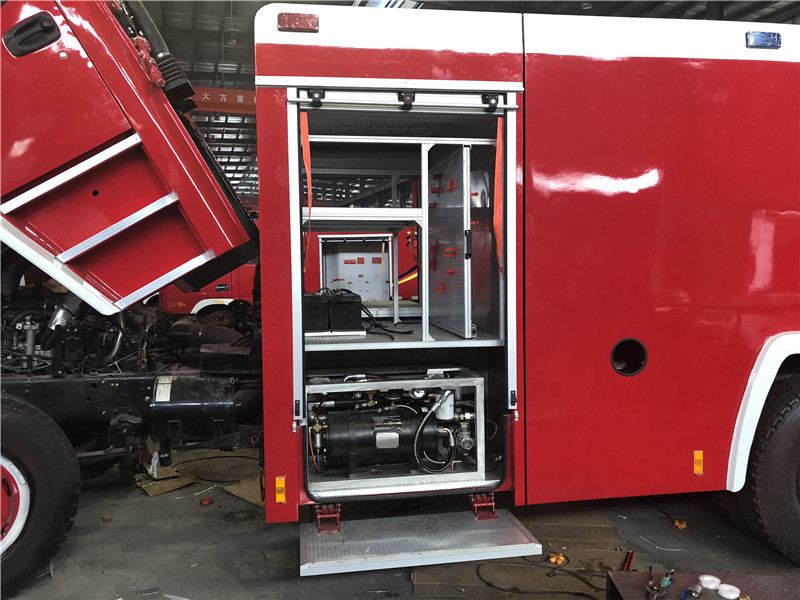

This fire fighter truck is a 4X2 configuration built on an ISUZU 100P chassis with EURO 5 emission compliance. It features a 3,000-liter water tank capacity and is equipped with a CB10/20 fire pump delivering 20L/s at normal pressure with a 1.0MPa force rating. The vehicle includes a PS20 fire cannon with 360° horizontal rotation and -30° to 80° pitch capability, achieving ranges exceeding 40 meters. The crew cab accommodates six occupants (two front, four rear) in an all-steel welded structure. The water tank utilizes high-quality carbon steel with anti-corrosion treatment and includes internal anti-sway plates. Equipment features dual Φ100mm rear water inlets with butterfly valves, multiple Φ65mm and Φ80mm outlet pipelines with ball valve controls, and a comprehensive drainage system. Power derives from a diesel engine producing either 99hp or 120hp with 220N·m torque. Maximum speed reaches 90km/h. The vehicle measures 6,200mm length × 2,400mm width × 2,850mm height with a 3,300mm wheelbase. Standard equipment includes four water suction tubes, multiple diameter hoses, water filters and separators, three fire-fighting water guns, lifesaving tools, and a protective railing. The exterior features bright red paint with white roof and fender accents, plus warning lights and safety signage.
