Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 49057289

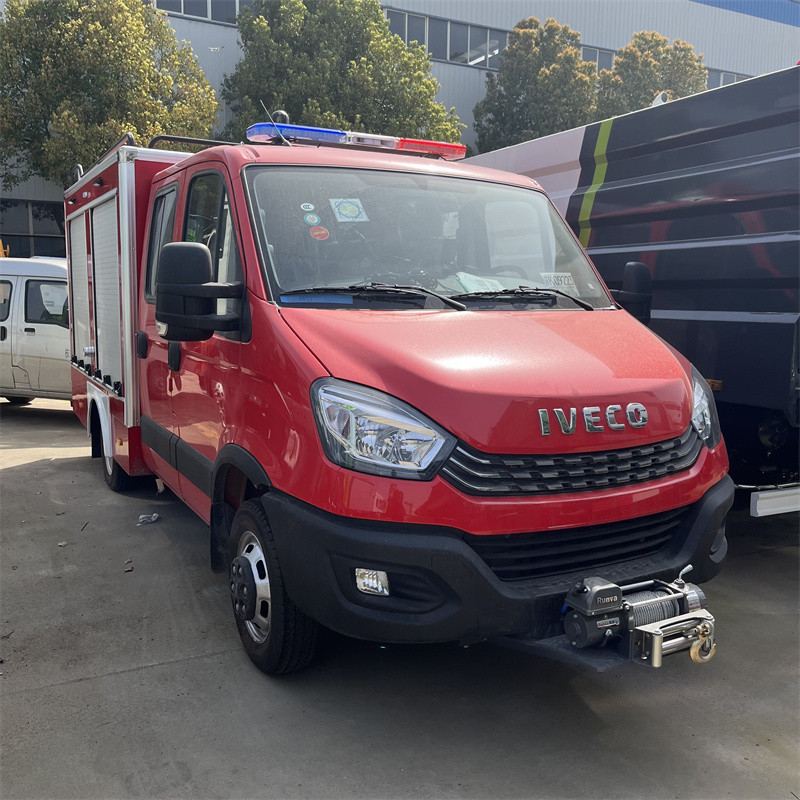

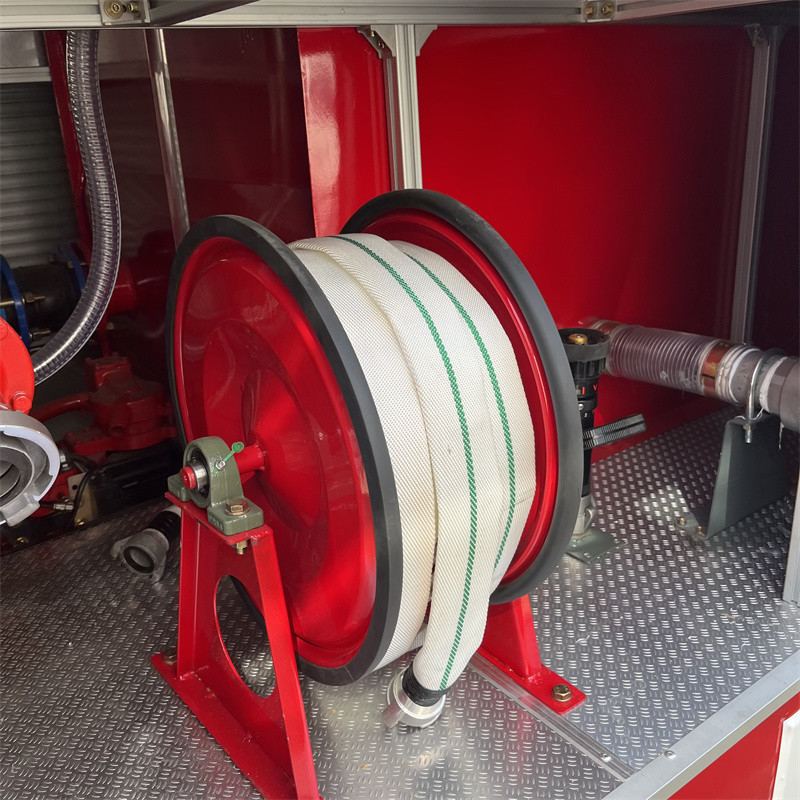

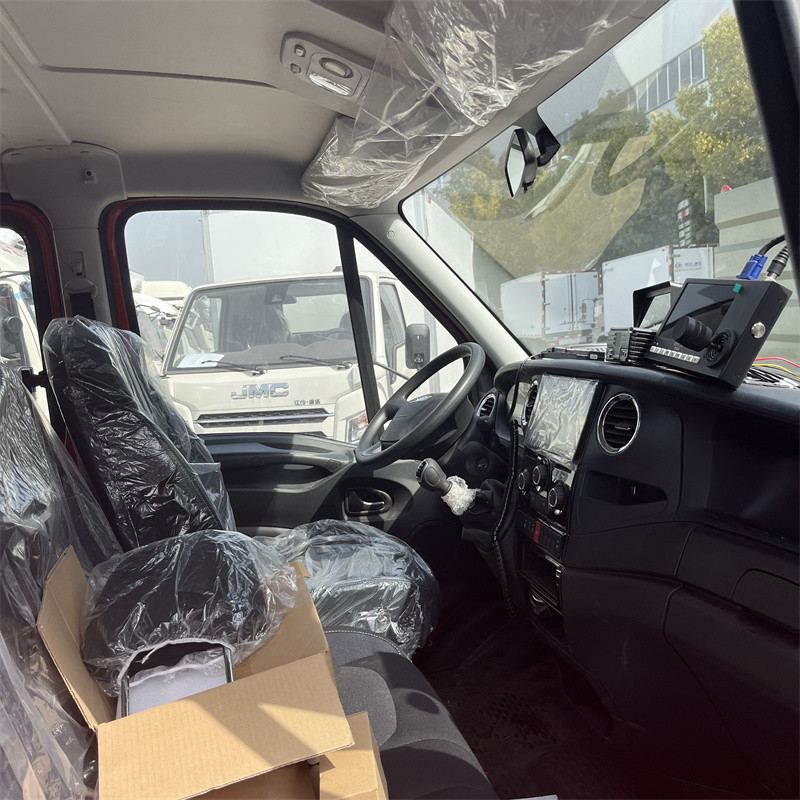

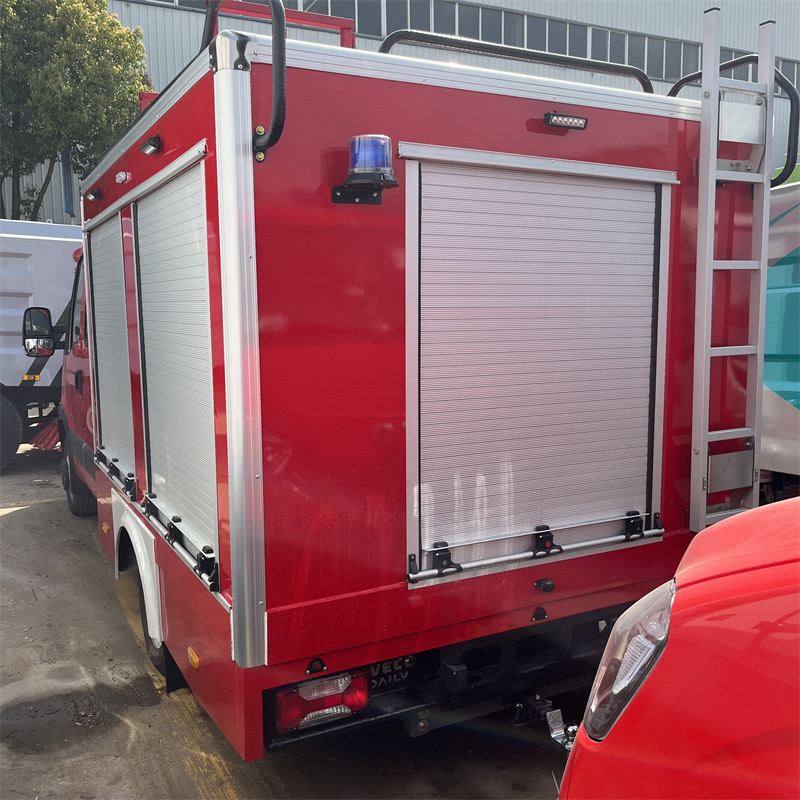

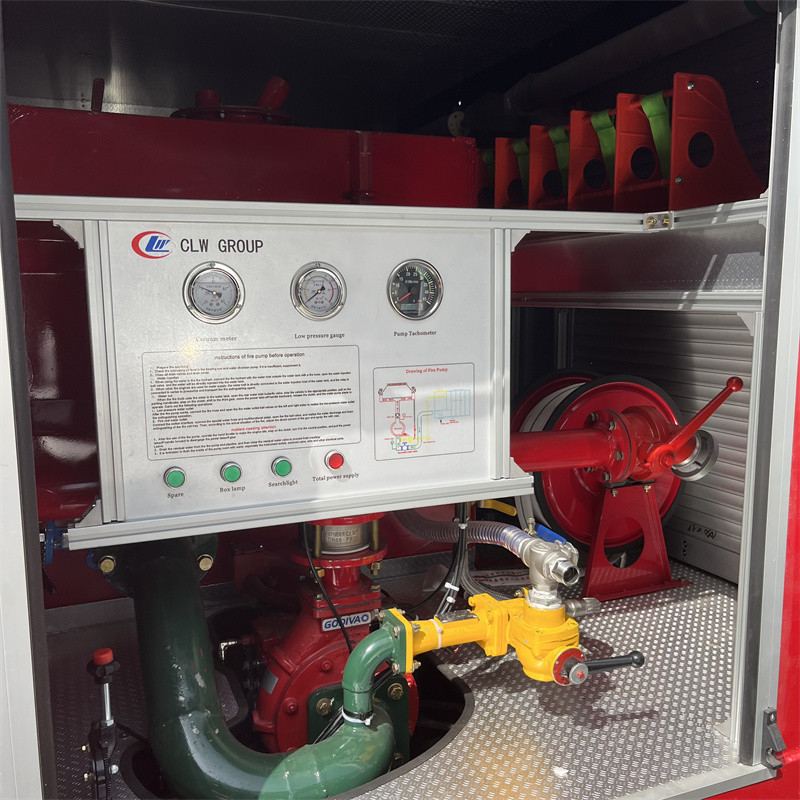

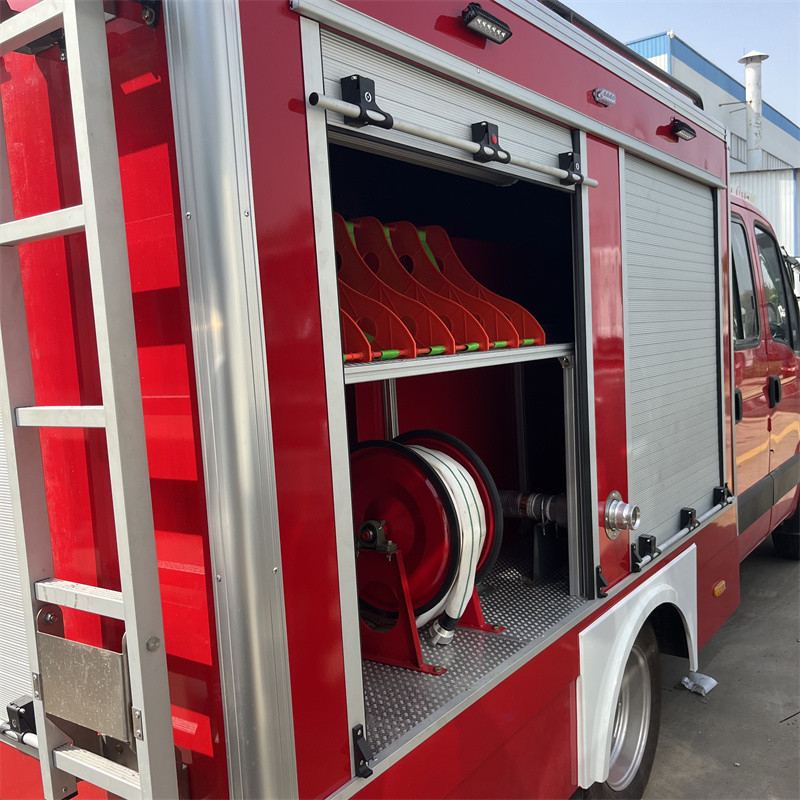

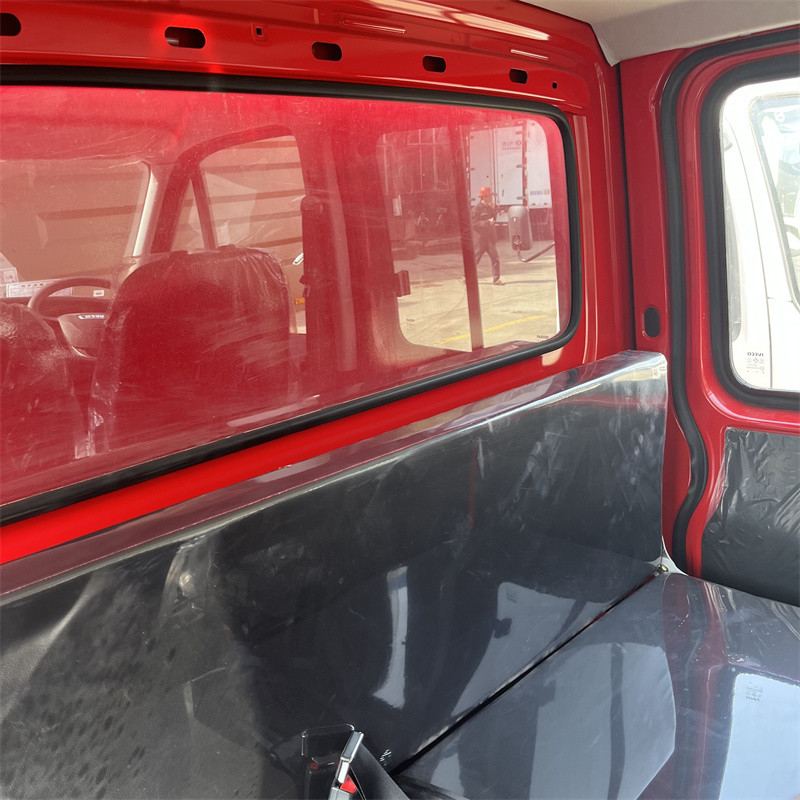

This 4X2 EURO 6 Iveco mini fire truck features a 3000-liter water capacity system designed for fire fighting operations. The vehicle is built on an Iveco chassis with a 130-horsepower diesel engine delivering 220N.m of torque. It accommodates six personnel with a crew cab configuration and achieves a maximum speed of 90 km/h. The fire suppression system includes a CB10/20 normal fire pump with a flow capacity of 20L/s at normal pressure and a PS20 fire cannon offering 360-degree horizontal rotation and -30 to 80 degree pitch adjustment, with a range exceeding 40 meters. The vehicle measures 6200mm in length, 2400mm in width, and 2850mm in height, sitting on a 3300mm wheelbase with 7.00R16 tires. The tank body employs high-quality carbon steel with anti-corrosion treatment and internal anti-sway plating. The equipment configuration includes suction tubes, water hoses, filters, separators, multiple fire water guns, foam equipment, and comprehensive lifesaving tools. The vehicle comes equipped with warning lights, alarm systems, and interior lighting throughout the cab, pump room, and equipment areas.
