Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48952062

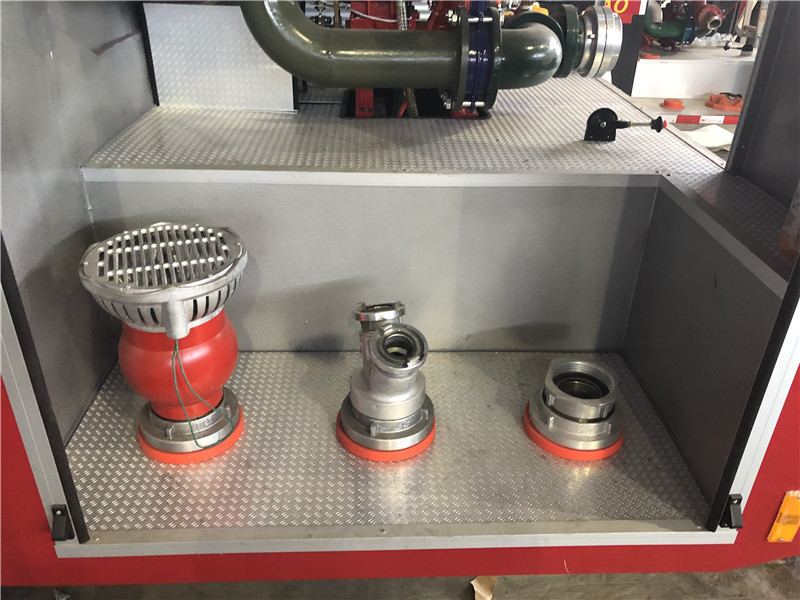

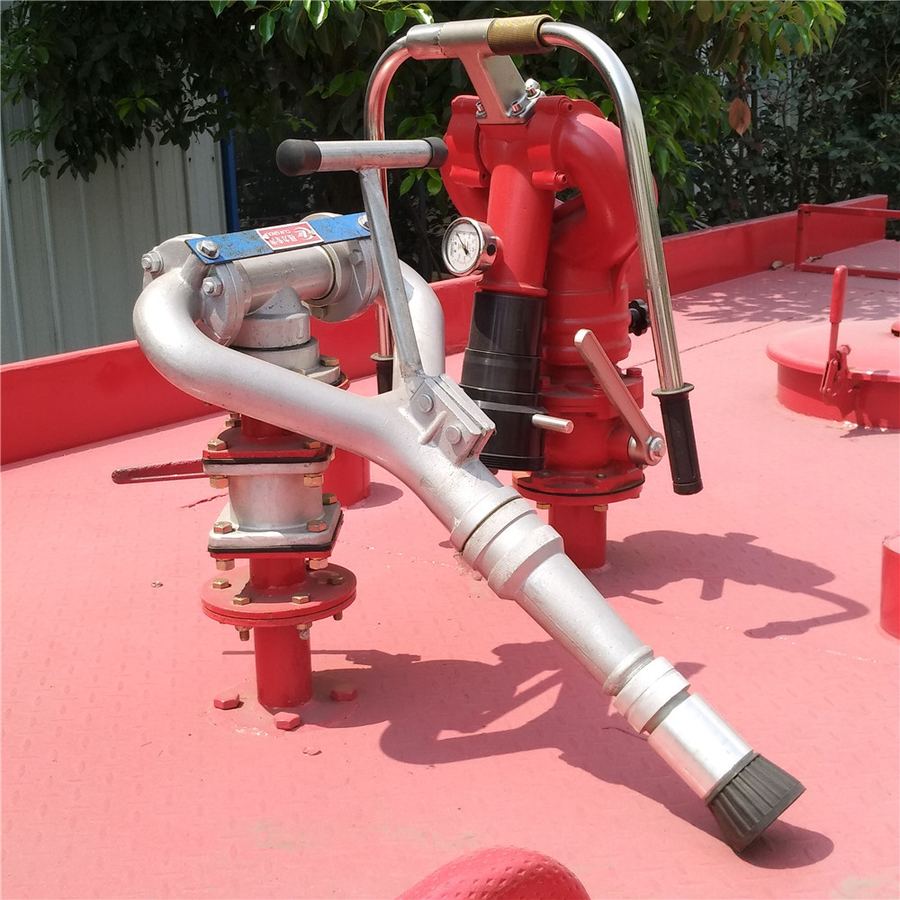

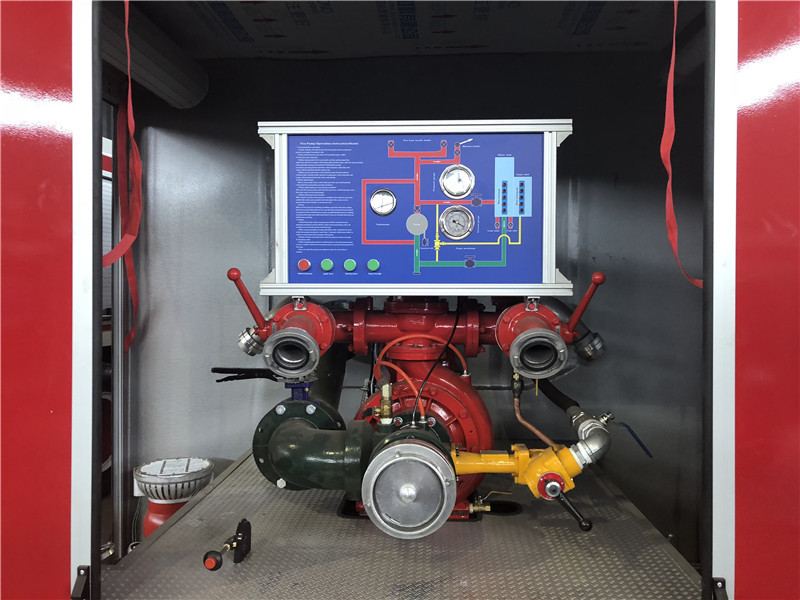

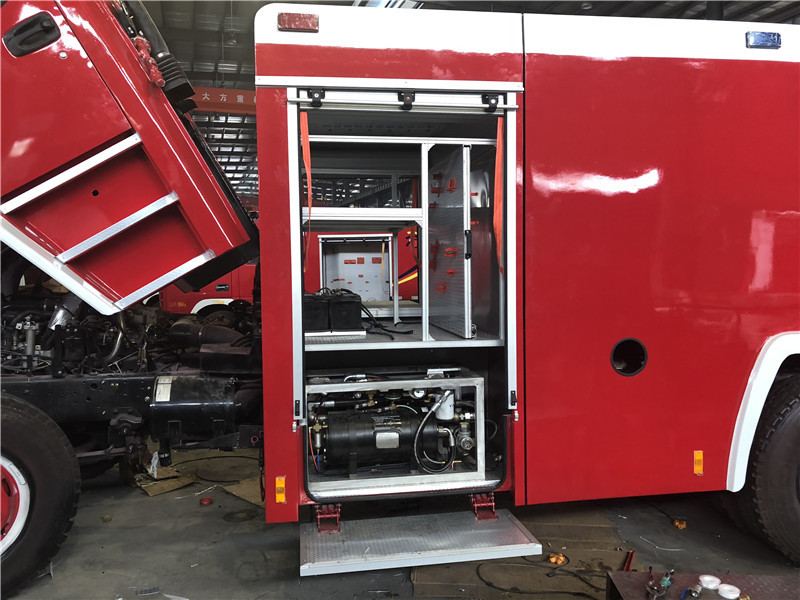

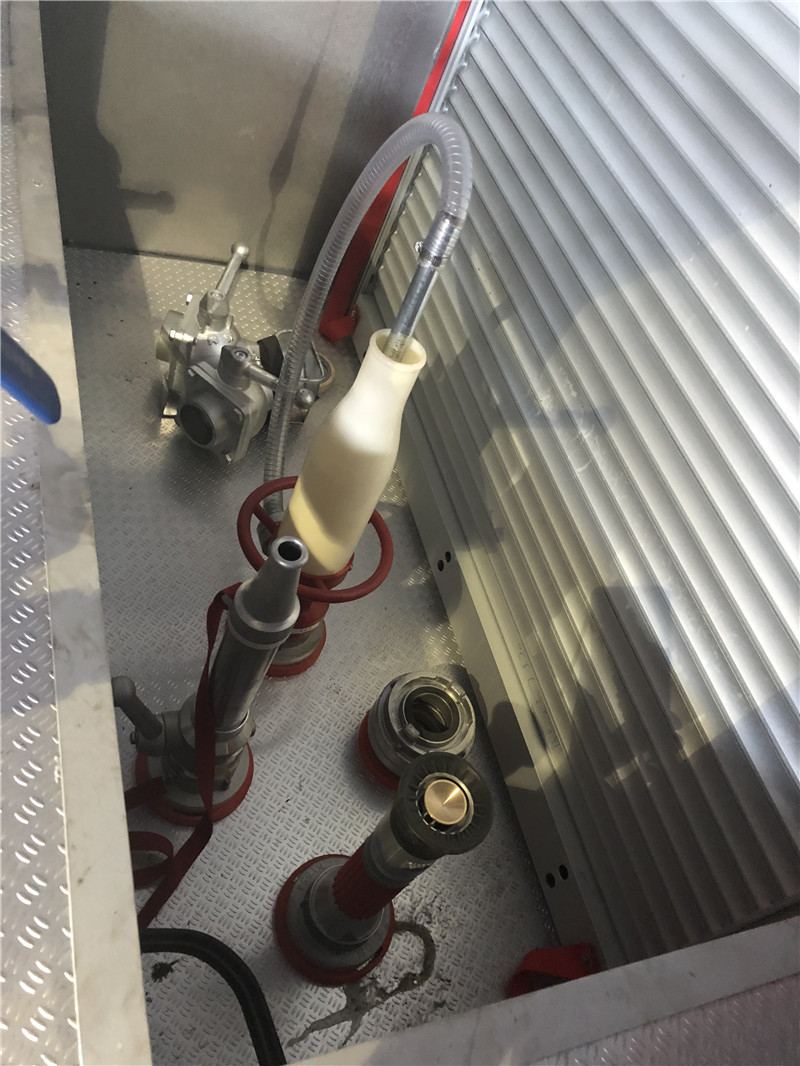

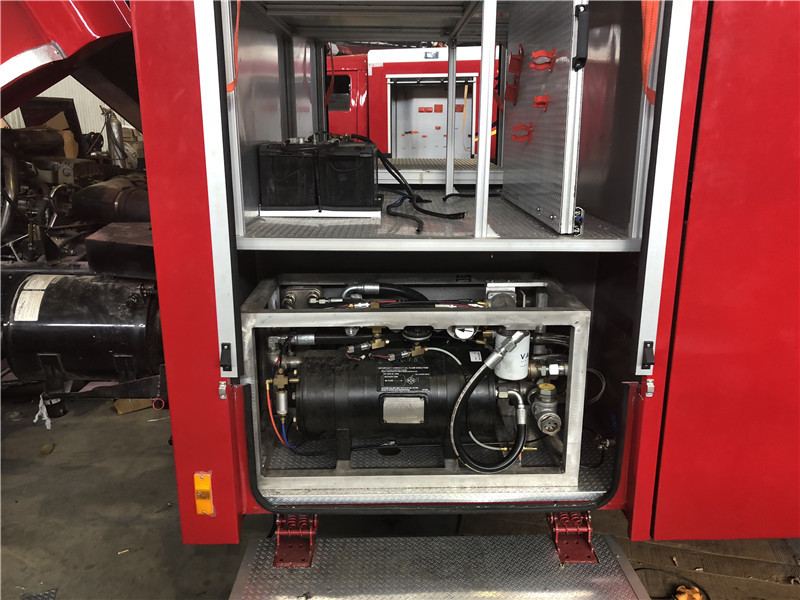

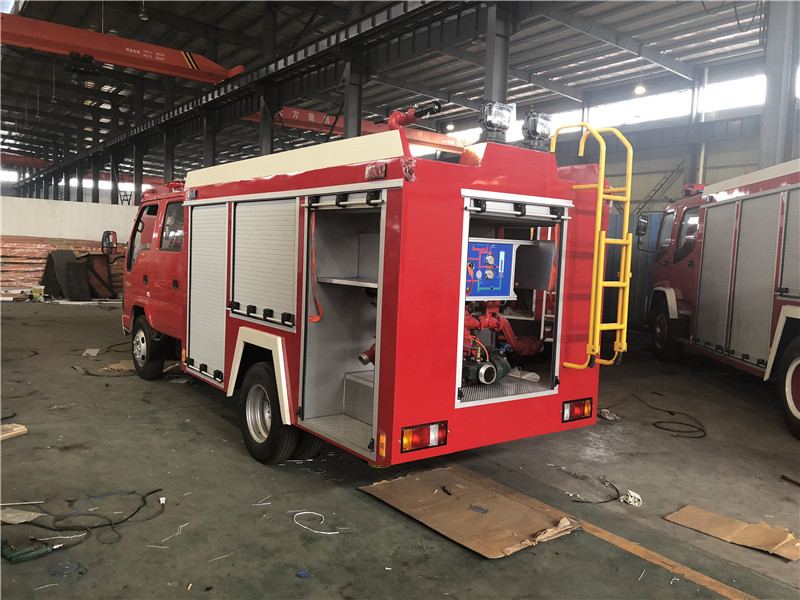

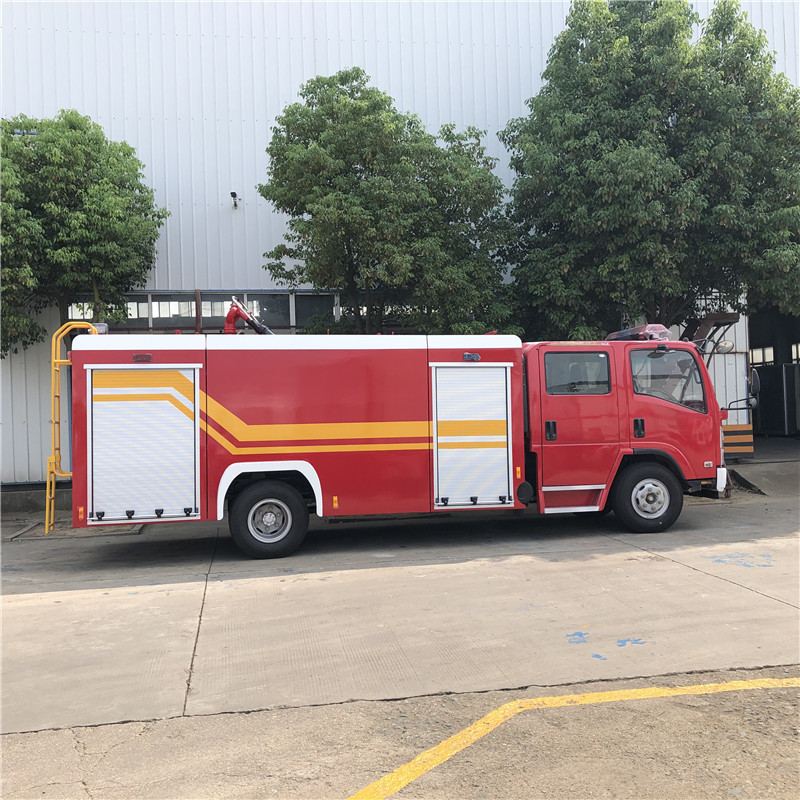

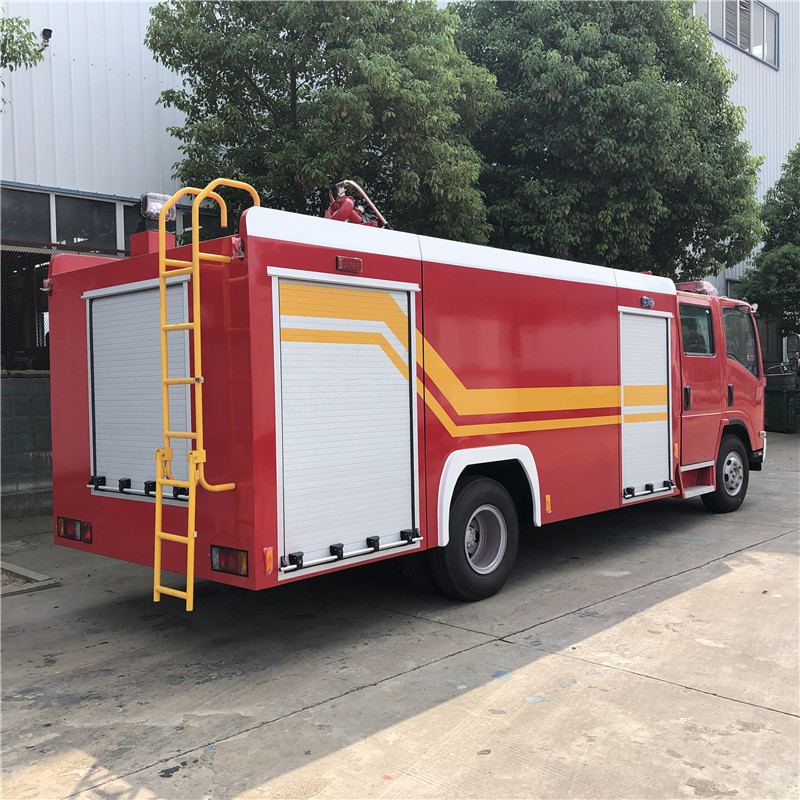

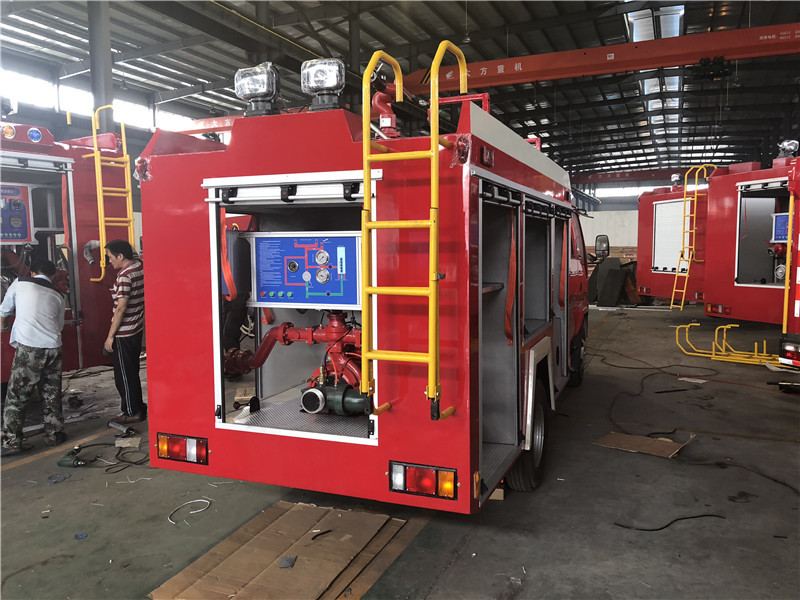

This fire fighting vehicle is built on an ISUZU 700P chassis with a 4HK1-TCG61 engine producing 190 horsepower. The 4×2 configuration delivers a maximum speed of 95 km/h and meets EURO 6 emissions standards. The truck features a crew cab seating six occupants and includes a 4,000-liter water tank constructed from high-quality steel plate with anti-sway internal structure. The CB10/20 fire pump operates at 1.0 MPa with a flow rate of 20 liters per second, achieving water diversion in under 30 seconds from a 7-meter suction depth. A PL20 fire monitor mounted on the vehicle delivers water over 40 meters and foam beyond 35 meters with 360-degree horizontal rotation capability. The truck is equipped with sandwich-type power take-off featuring forced adjustable water cooling and splash oil lubrication. Comprehensive fire fighting equipment includes water suction tubes, hoses in multiple diameters, water filters, separators, fire guns, foam equipment, and hand tools such as fire axes and shovels. The vehicle complies with GB7956 fire performance standards and GA39.4-92 liquid tank specifications.
