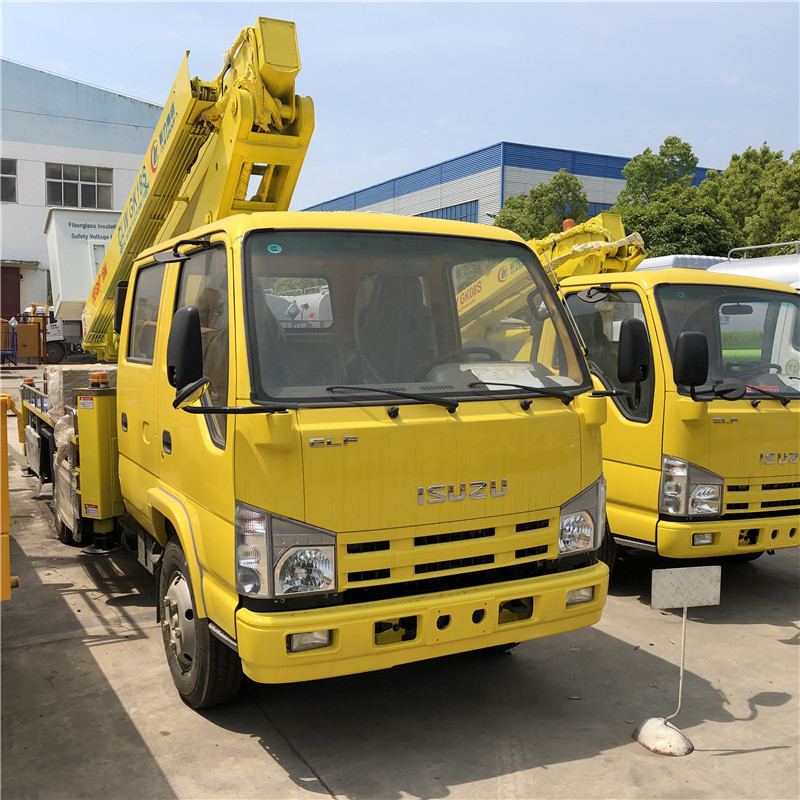

4x2 Isuzu 17-31m High Altitude Basket Truck

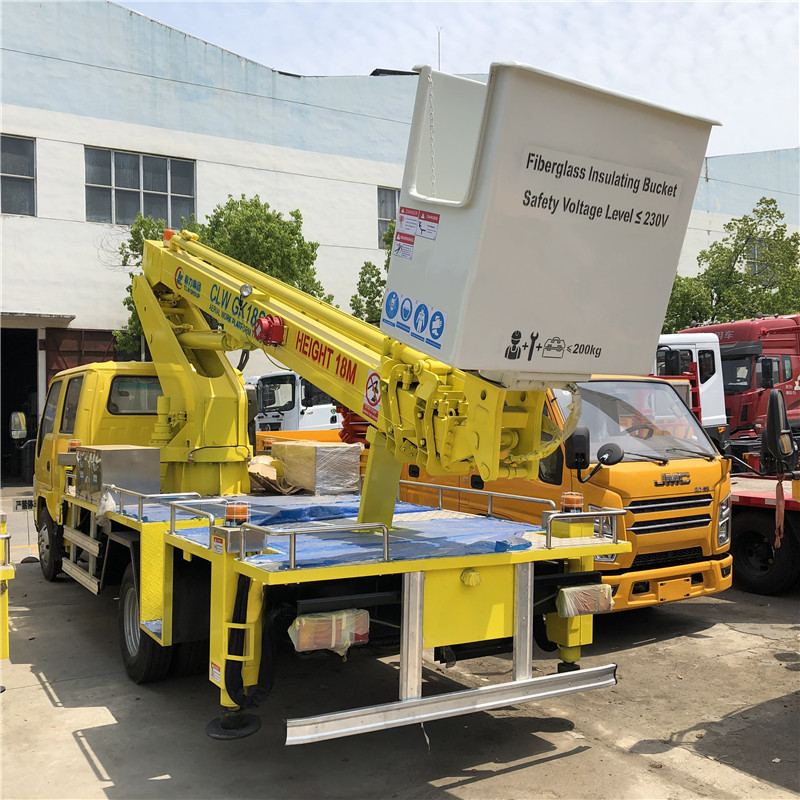

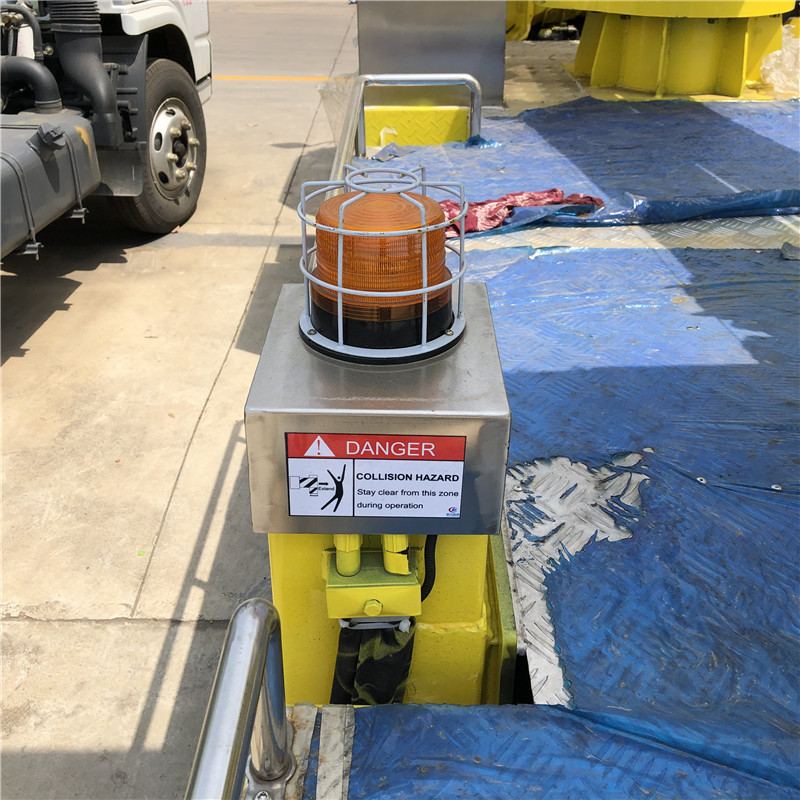

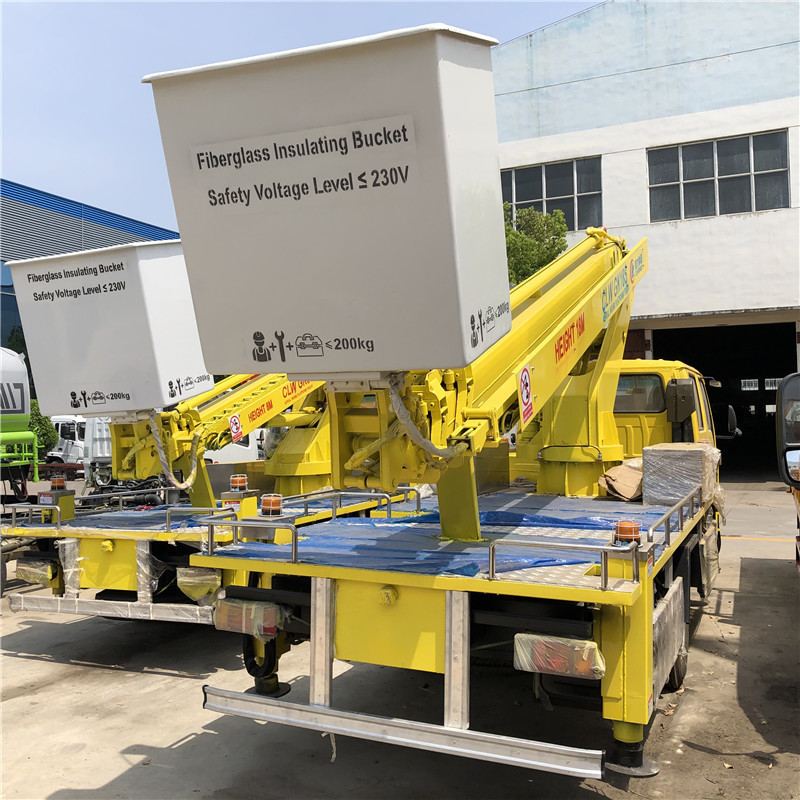

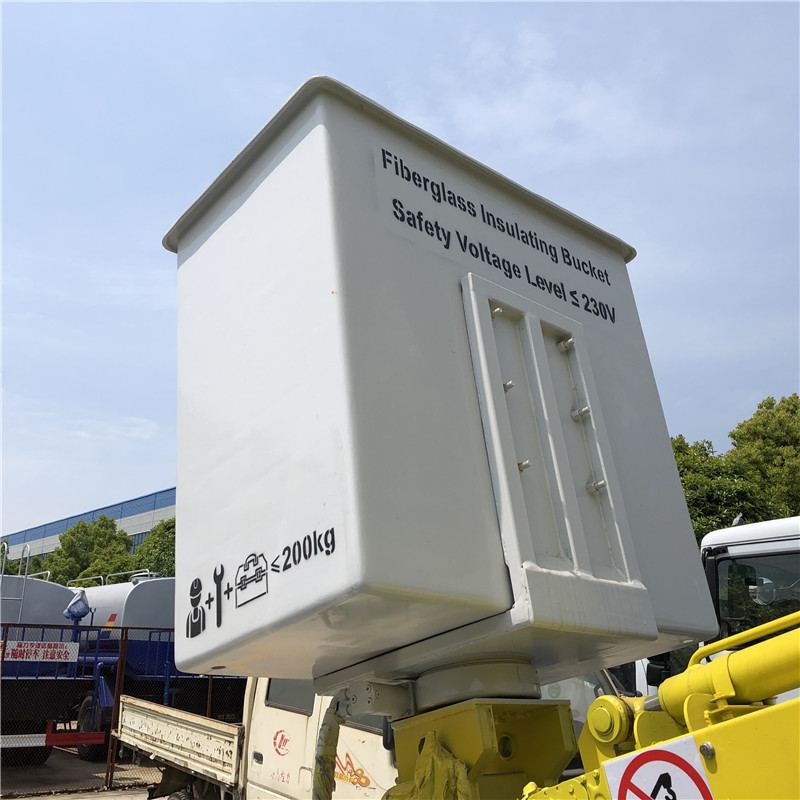

This aerial work platform is engineered with a telescopic straight-arm boom featuring a four-section telescopic operating arm and a turntable capable of 360-degree rotation via manual or remote control operation. The platform accommodates a maximum load of 200 kg and features a stainless steel coaming with anti-skid patterned surface. The worktable incorporates mechanical self-balance technology to maintain equilibrium during operation, with a maximum jib extension angle of 80 degrees for optimal positioning. Night operation capability is available through installable work lights on the platform. Safety features include computer-controlled systems with automatic limiting, operation alarms, and real-time display monitoring. The hexagonal working arm enhances structural strength through synchronous telescoping with external hydraulic cylinders and chain mechanisms for easier maintenance and fault identification. The outrigger system employs front V-shaped and rear H-shaped construction with adjustable independent legs. Hydraulic locks secure cylinders at required positions, while balance valves ensure stable arm operation. Core components utilize domestic brands with imported parts for critical systems. An emergency hydraulic pump enables safe descent if engine failure occurs.
