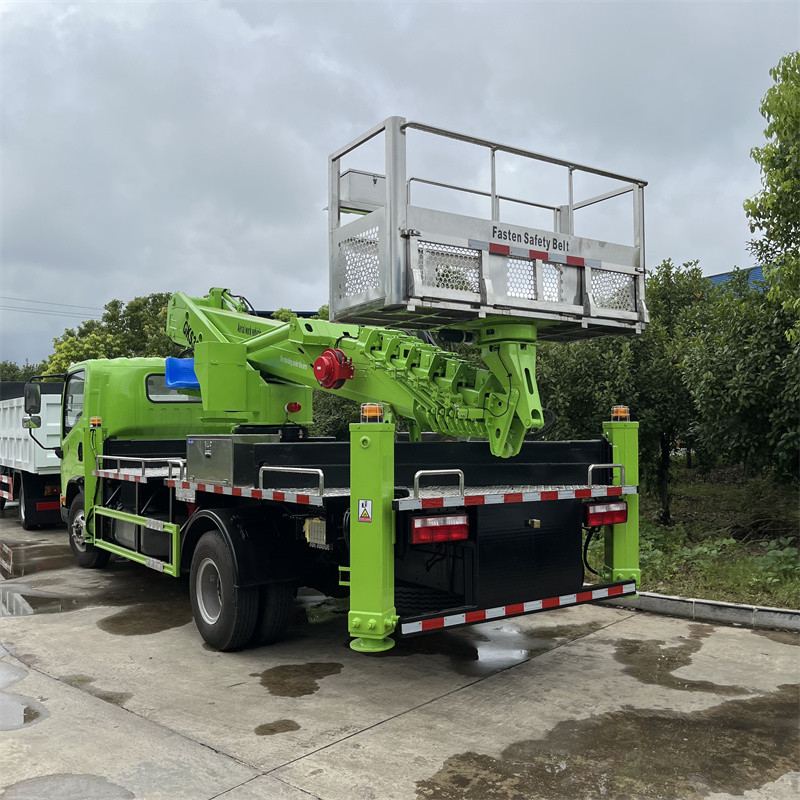

4x2 26m FAW Aerial Work Platform Telescopic

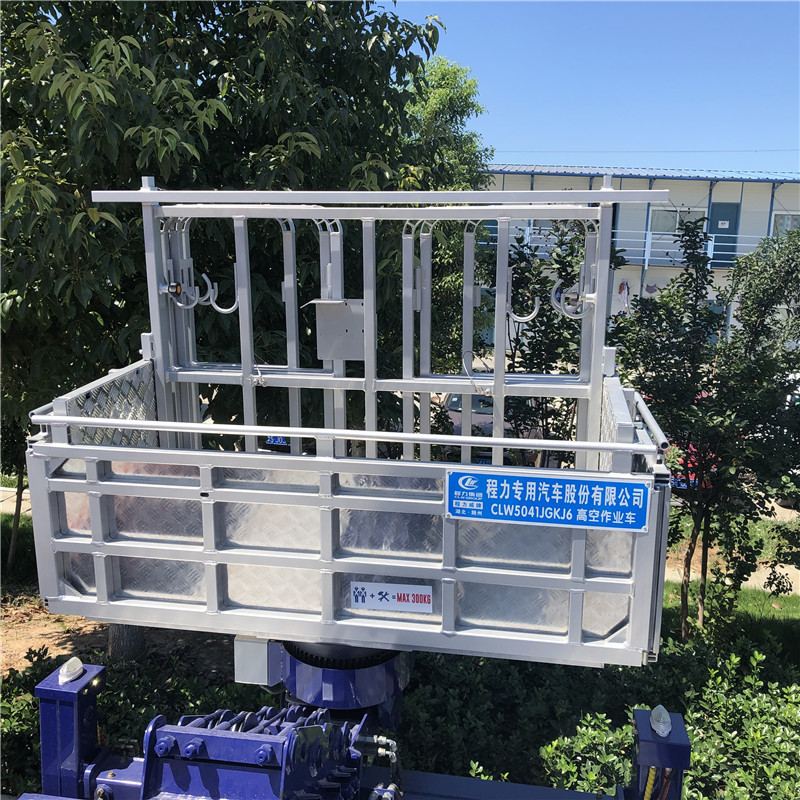

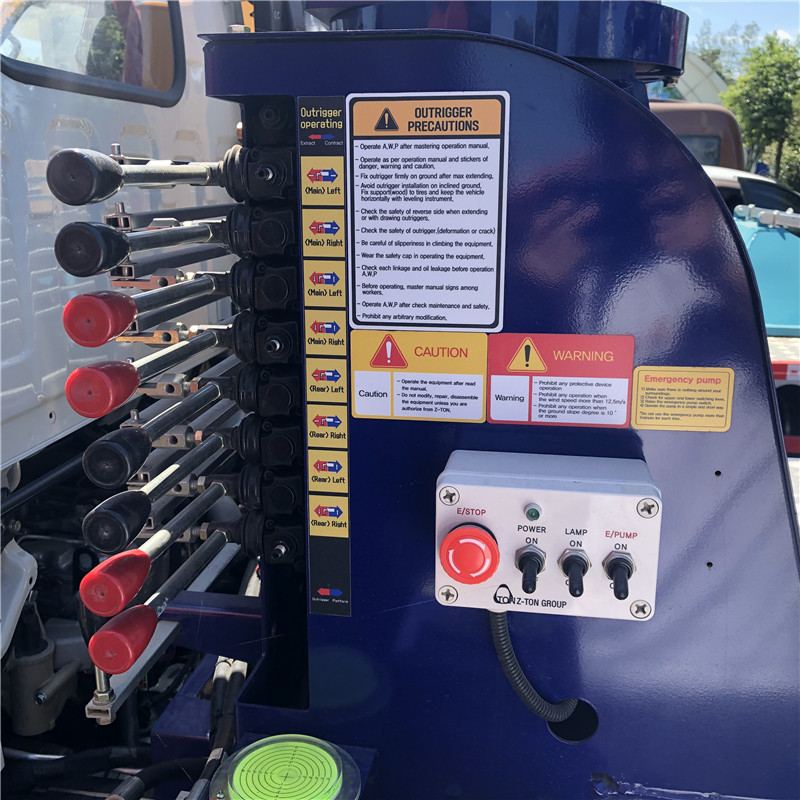

This 4X2 26 meters FAW aerial work platform features a telescopic straight arm structure with four-section telescopic operation arm and 360-degree rotating turntable. The platform accommodates a maximum weight of 200 kg and employs mechanical self-balance design to maintain equilibrium during operation. The jib extends to an 80-degree maximum angle for optimal positioning. Safety features include computer control with automatic limits, dangerous work alarms, and a real-time display showing vehicle conditions. The hexagonal working arm provides enhanced strength with synchronous telescopic action and external oil cylinders for easier maintenance observation. Independent outriggers using front V and rear H configuration offer larger stress surfaces and superior stability, adjustable to uneven terrain. The system incorporates two-way hydraulic locks on vertical outrigger cylinders and arm cylinders, plus a two-way balance valve for stable arm operation. Core components utilize domestic well-known brands with imported parts for critical elements. Safety interlocking prevents misoperation between outrigger and working arm systems. Optional night work lighting and emergency electric pump for engine failure scenarios enhance operational capability and worker safety.
