Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48310545

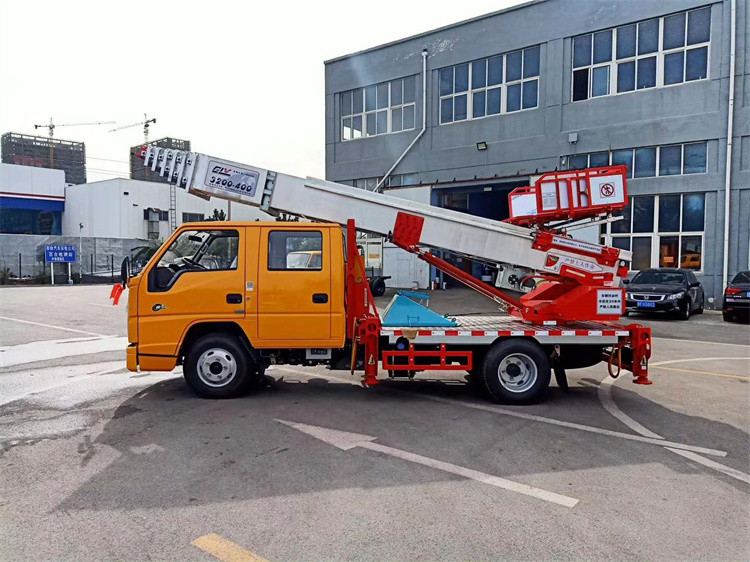

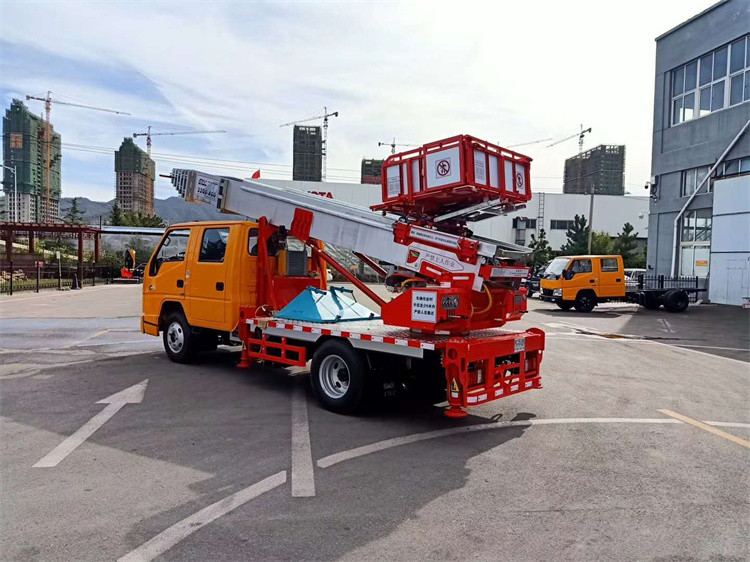

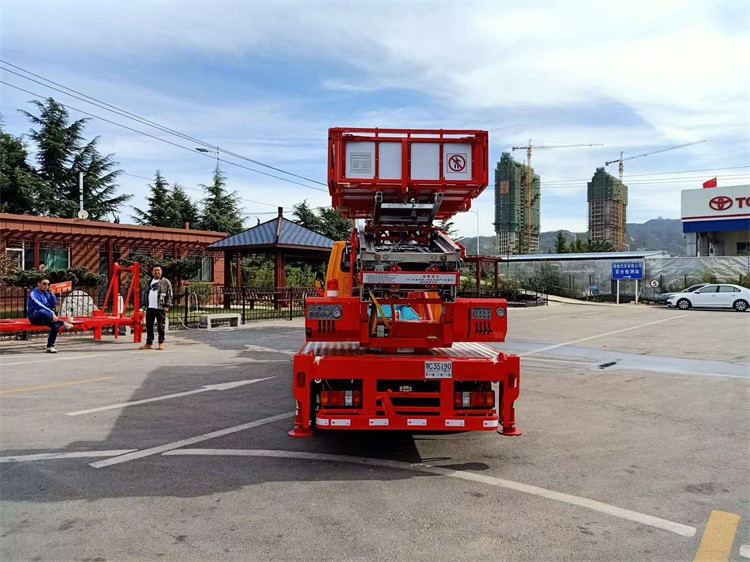

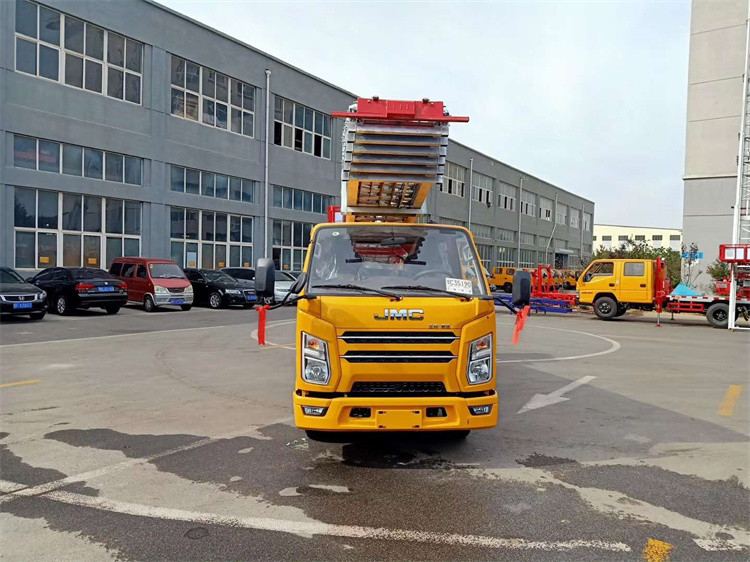

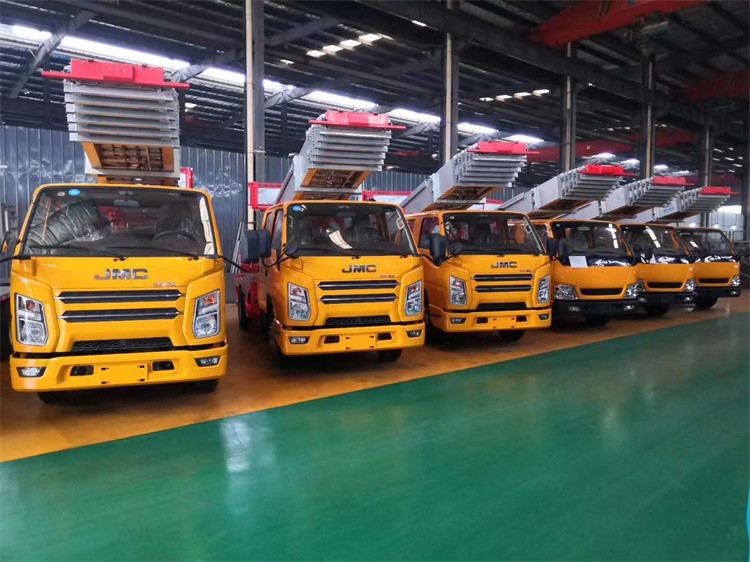

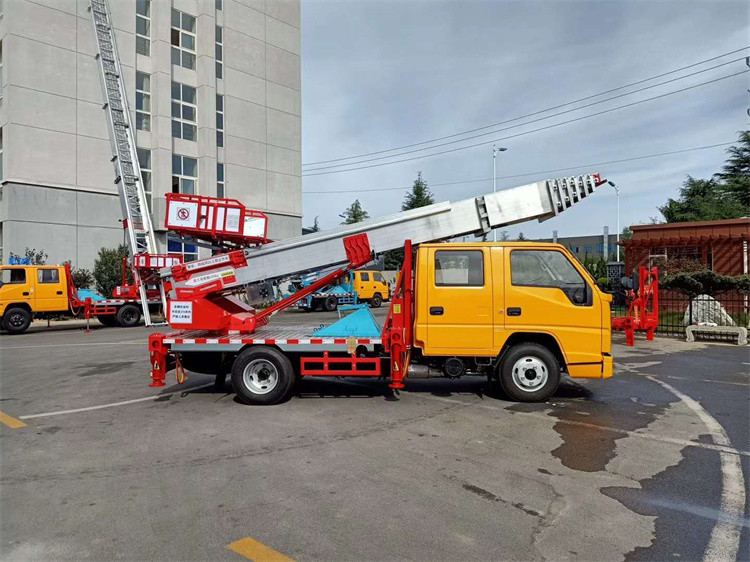

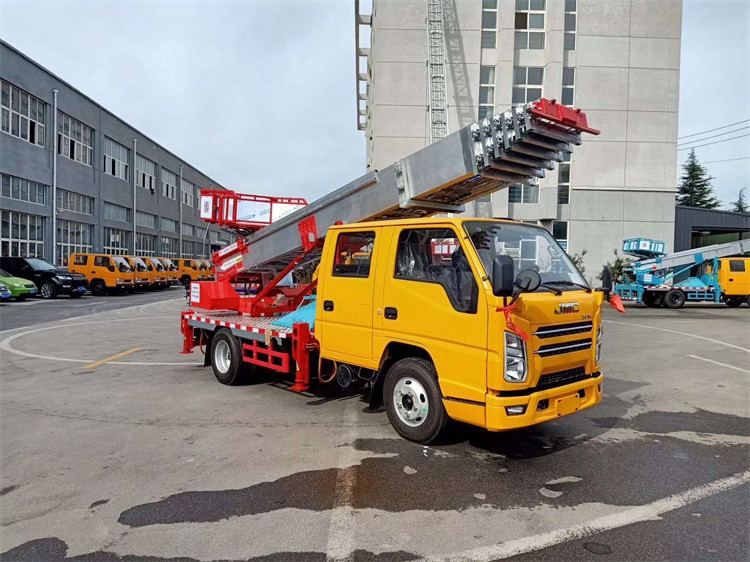

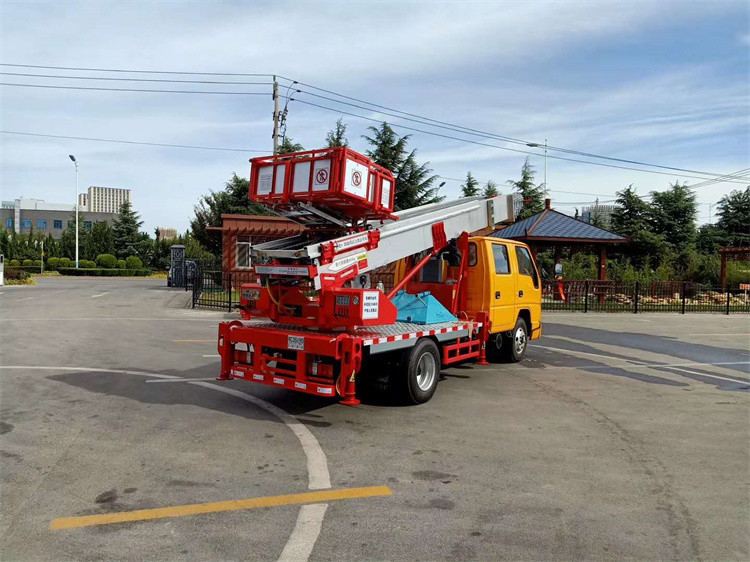

The JMC 28 Meters High Building Moving Ladder Truck is an aerial work platform featuring a Korean-sourced ladder arm with imported key components. The vehicle incorporates hydraulic telescopic outriggers with eight hydraulic cylinders arranged in an H-type configuration, providing stability and simultaneous or separate operation capability. It offers wireless remote control functionality within an 80-meter range, allowing operators to work safely without prolonged sun exposure. The system includes photoelectric switches for precision elevator arm control with adjustable travel based on operational requirements. Drag chains are integrated into horizontal telescopic tubing to ensure smooth extension and longevity. The improved dump hopper (1160×900×370mm) facilitates convenient transportation and automatic unloading of sand and stone materials. Additional features include hydraulic cooling radiators and optional 220V onboard power supply for electric operation tools.
