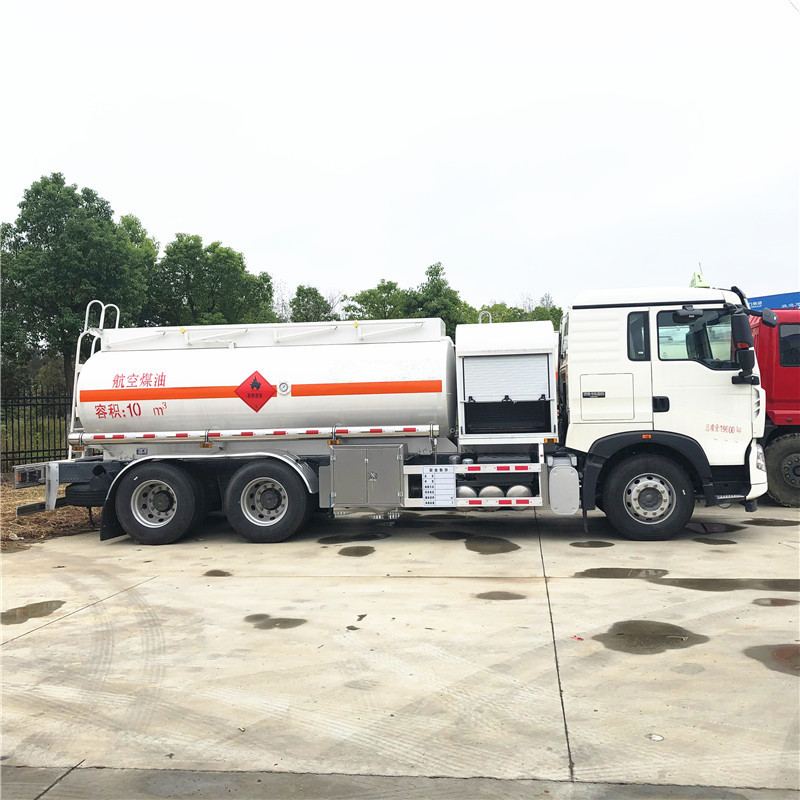

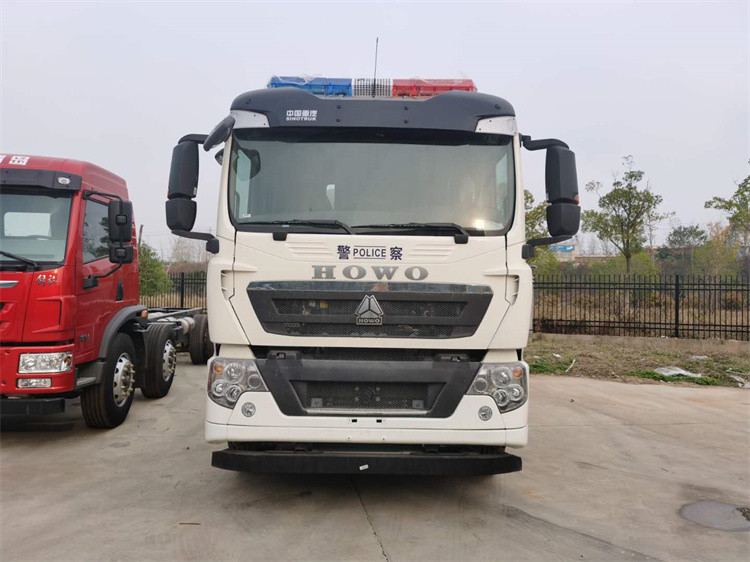

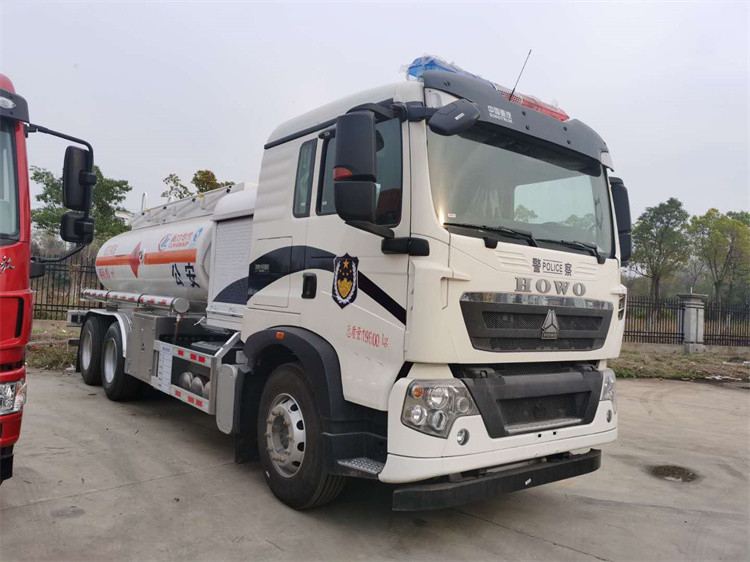

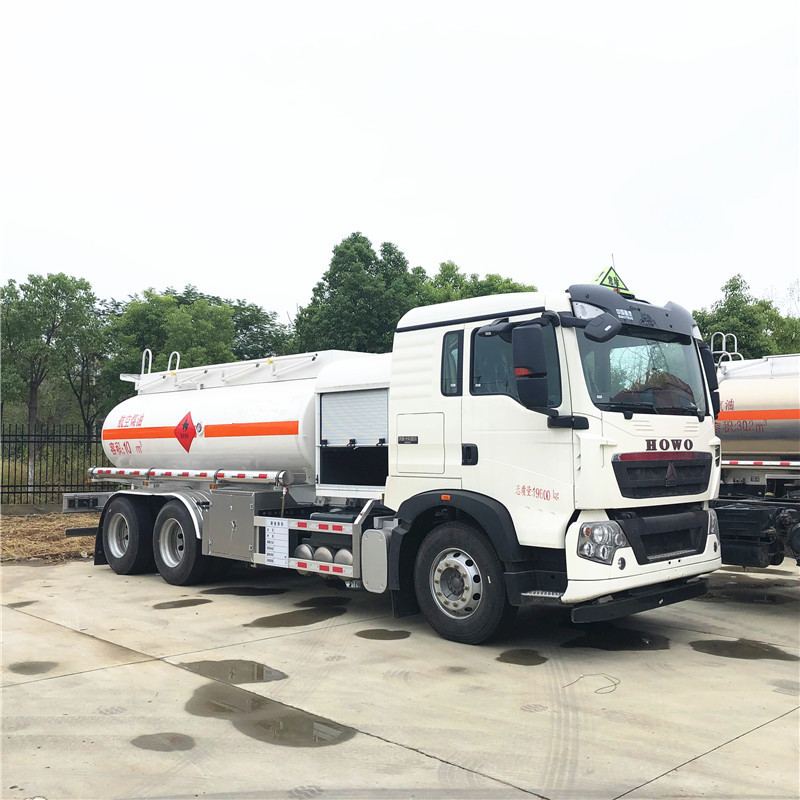

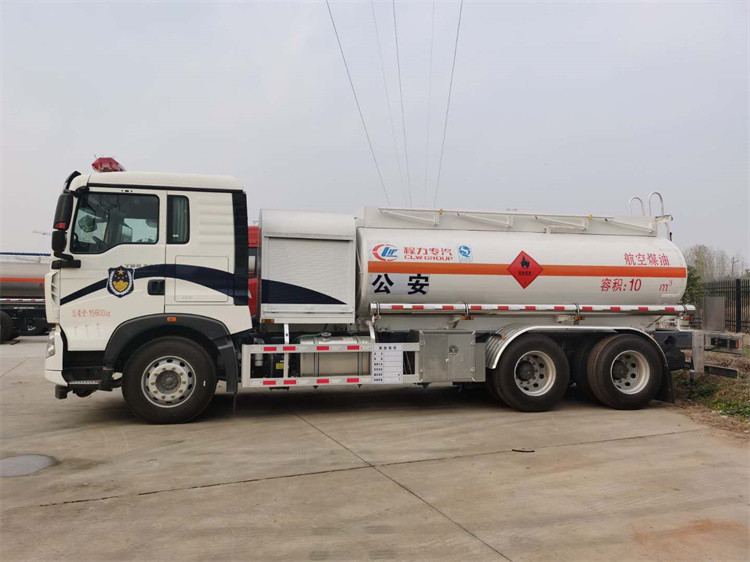

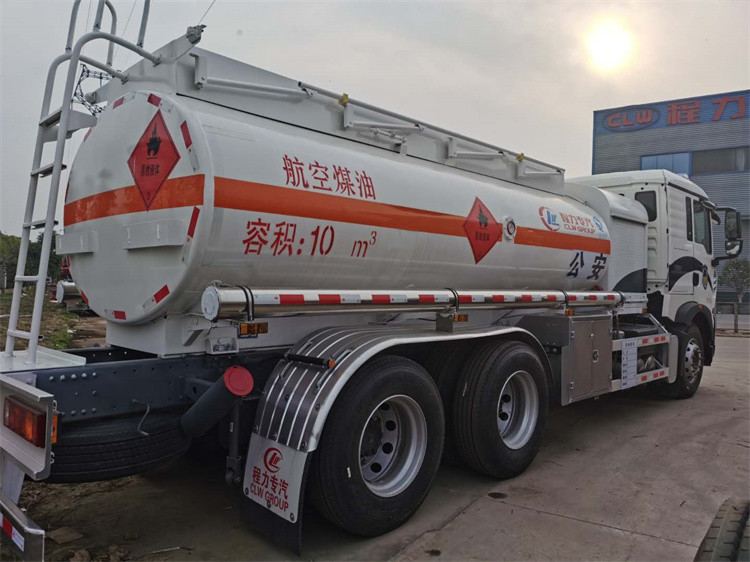

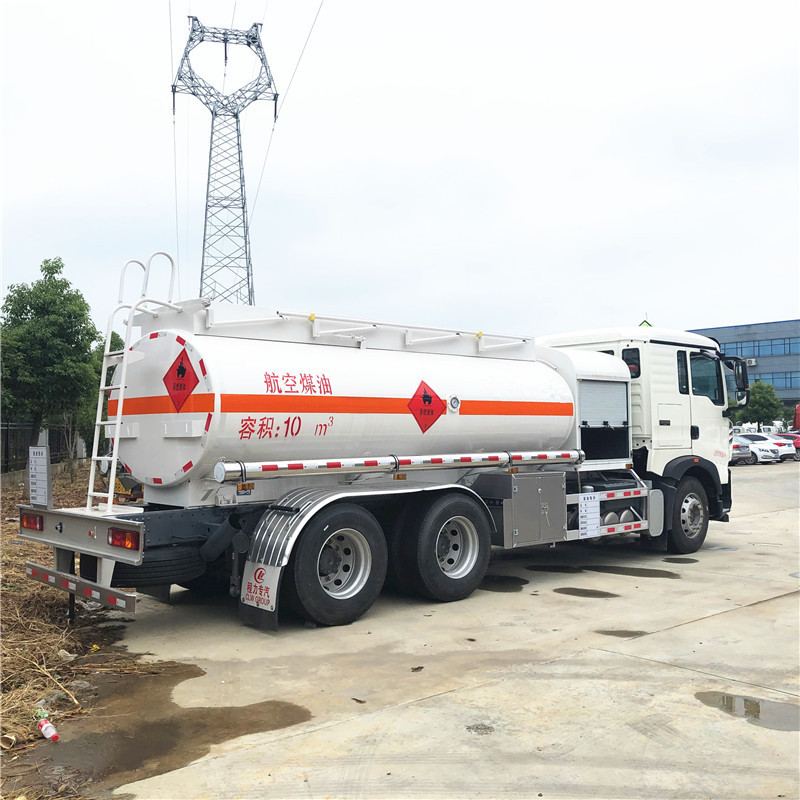

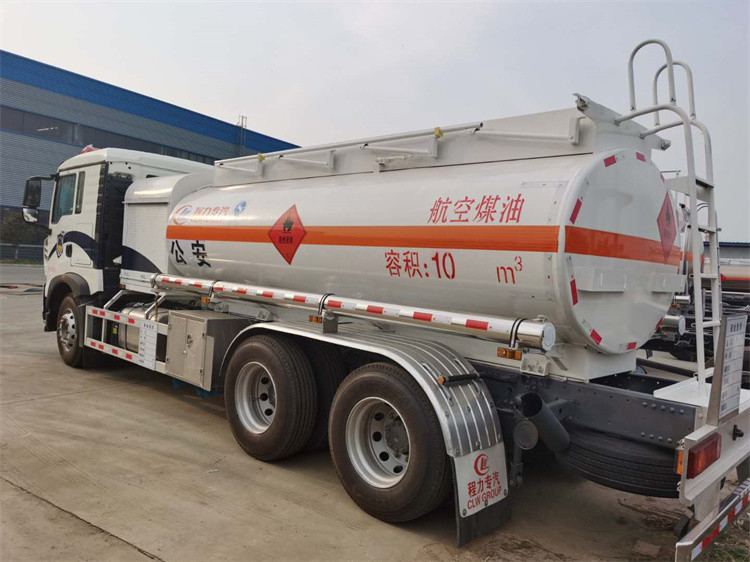

10-20m3 Sinotruk Howo Air Jet Aviation Refueling Truck
v1v2v3v4v5v6v7v8v9
Complete Truck · Oil & Chemical Tanker

10-20m3 Sinotruk Howo Air Jet Aviation Refueling Truck

  • Rated Power250kw/340hp
  • EngineWP10.340E22
  • Emission StandardEu 3
  • Driving Type6x4
  • Total Mass26000 kg
  • Tank Volume10000-20000 liters

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48337616

Overview

About this truck

Aircraft refueling trucks are specialized vehicles designed to deliver fuel services to aircraft, playing a critical role in aviation safety and operational efficiency. These essential ground support vehicles function at the intersection of aviation and transportation industries, requiring expertise in both aircraft fuel supply technology and vehicle manufacturing. The industry categorizes refueling trucks into several types: airport fixed units connected to fuel storage via pipelines, mobile variants offering flexibility to serve aircraft at various locations and challenging terrain, multifunctional models incorporating oil quality inspection and purification devices, and specialized trucks for specific aircraft types including military and helicopter operations. The Sinotruck HOWO model represents a modern mobile solution featuring a 20 cubic meter aluminum alloy tank with gravity jet refueling capabilities. Its design emphasizes portability for remote areas where fixed infrastructure is unavailable, combining robust diesel engine performance with sophisticated pumping and filtration systems to ensure fuel quality and delivery reliability.

Specifications

Technical parameters

Model NumberZZ1257N5841W
MaterialAluminium Alloy
Wheelbase4600+1350 Mm
Tank Volume10000-20000 liters
Rated Working Pressure1.0MPa
Maximum Allowable Pressure Difference0.15 Mpa
Liquid Level GaugeStainless Steel
Refueling PumpAluminum Alloy Oil Pump
Reel Refueling Flow Rate100L-150L/min
Pipeline Pumping Flow Rate700L/min
EngineWP10.340E22
Dimension(LxWxH)9800x2550x3450 mm
Total Mass26000 kg
Rated Payload15452 kg
Kerb Weight12500 kg
Passenger3
Approach/Departure Angle16°/12 °
Manufacture/ModelSinotruck howo/ZZ1257N5841W
Driving Type6x4
GearboxHW19710
Front/Rear Track2011/1860 mm
Tyre model12R22.5
The Number of Tyre10+1 (spare tyre)
Front/Rear Suspension1340/2560 mm
Frame(8+5/300)
Axles LoadingFront 7.5T Rear 16T
Oil Tank400L Iron
Manufacturer/ModelWP10.340E22
Rated Power250kw/340hp
Fuel TypeDiesel
Displacement/Capacity9726 ml
Emission StandardEu 3
Cylinder6
Max. Torque/ speed1250N.m/ 1400-1600rpm
Velocity2200 rpm
Color/LogoCustomizable
Body parts configurationsTank body: The tank body is made of high-quality aluminum alloy, with light weight, large volume, corrosion resistance and no pollution, ensuring the quality of the oil. Refueling pump: Aluminum alloy oil pump (mechanically sealed), with a reel refueling flow rate of 100L-150L/min, a pipeline pumping flow rate of 700L/min, and a working pressure of 0.25MPa. Flowmeter: 0.2 level accuracy, with a diameter of 50 waist wheel flow rate. Filter separator: rated flow rate 400L/min, rated working pressure 1.0MPa, maximum allowable pressure difference 0.15 Mpa, in accordance with the requirements of API 1581 third edition. Gravity refueling reel: Automatic reset reel, with a refueling hose diameter of 25mm and a length of 15m. Liquid level gauge: stainless steel floating ball inside the tank, with a 10 inch aluminum alloy dial on the left side of the tank, allowing for a clear observation of the current volume of liquid inside the tank. Operating system: centralized control from an independent control room. Instrument indications include pump inlet vacuum gauge, pump outlet pressure gauge, oil pump tachometer, filter differential pressure gauge, etc. The operation of opening and closing valves includes the main power switch, lighting switch, emergency stop switch, oil pump speed control knob, refueling valve, circulating filtration valve, sampling valve, and sea valve control combination switch.
