Model NumberV7

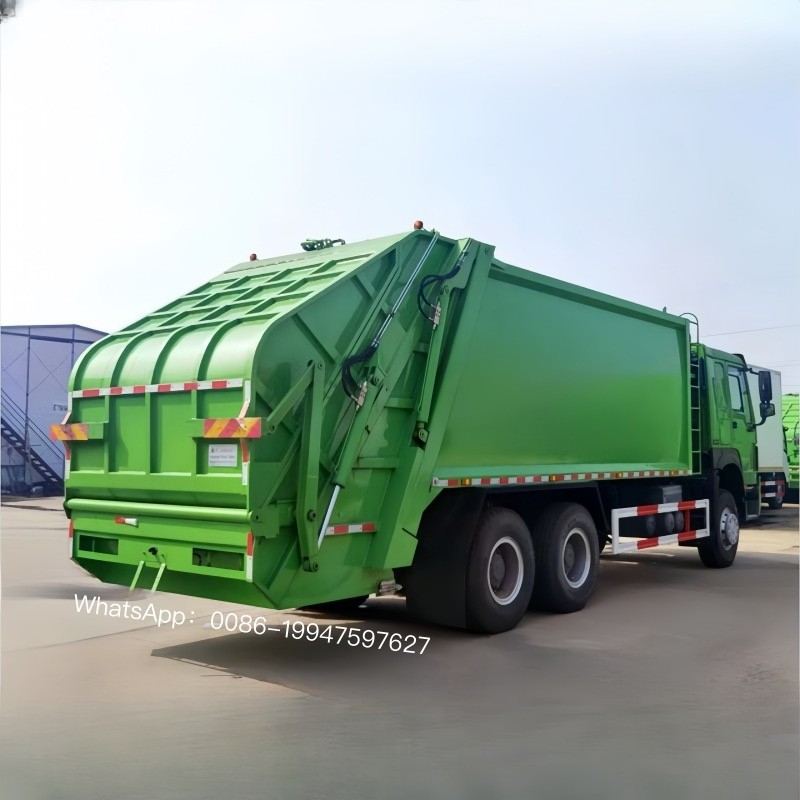

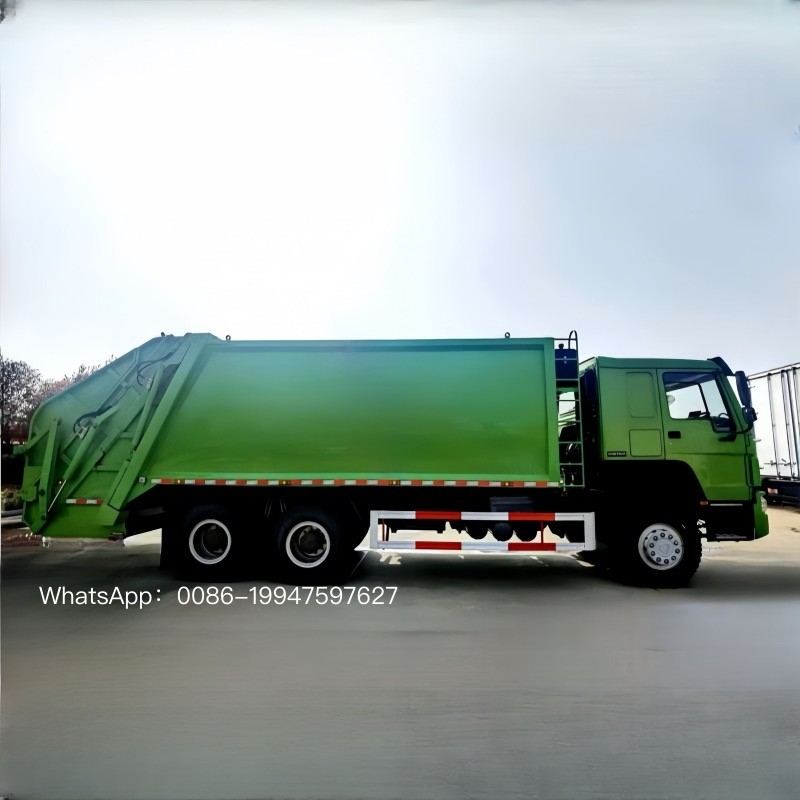

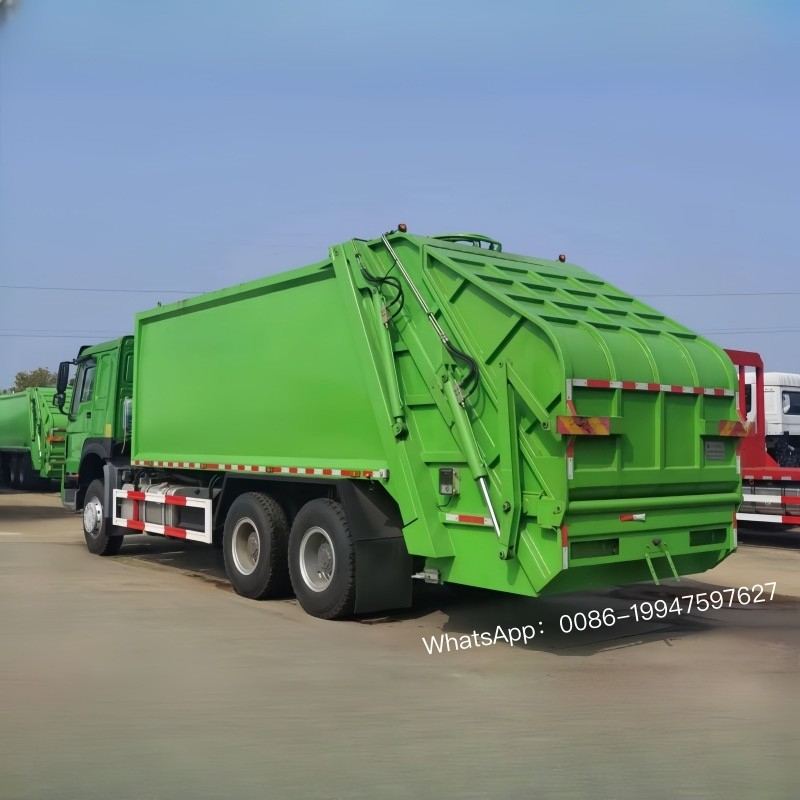

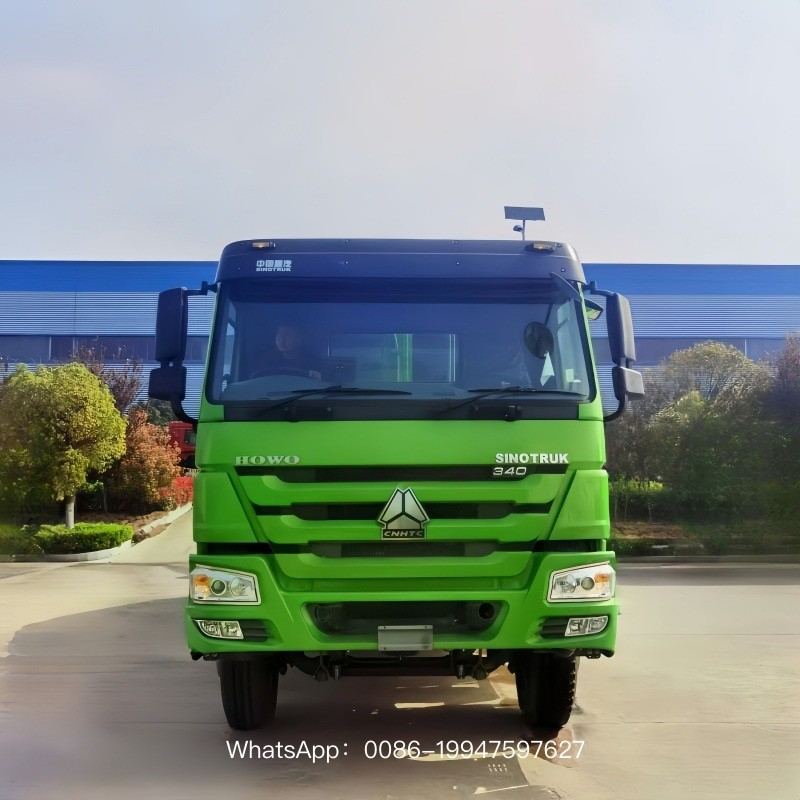

Product NameGarbage Compactor Truck
Volume20-22 Cubic
ConditionNew
OperationCab/Rear/Remote
Box MaterialQ345R
Garbage Can240/660/1100 Liters
Rear CoverEquipped
Warranty1 Year
Highlight6X4 garbage truck, right hand drive garbage truck, 22cbm garbage truck
No.Items
1High pressure filter
2Back pressure valve
3Hydraulic oil tank
4Multi way valve
5Hydraulic oil pipe
6Hydraulic cylinder
7Proximity switch
8Integrated nylon slider
9Tail lighting
10Sewage tank
11Rear rotating mechanism
12Remote control device
13Electronic control device
14Balance valve
15Curved box body
16Sewage tank
17Stuffer locking hook
NameHOWO Garbage Compactor Truck
Dimension (LxWxH)11800x2500x3200(mm)
Total Mass28000 Kg
Rated Payload14400 Kg
Kerb Weight13600 Kg
Passenger3
Manufacture/ModelHOWO
Driving Type6*4 right hand drive
Wheel Base4600+1350 mm
Gearboxnine speed forward and one reverse, manual
Tyre12.00r20
The Number of Tyre10+1(spare tyre)
ACIncluded
Manufacturer/ModelWEICHAI/WP10.340E22
Rated Power340hp
Fuel TypeDiesel oil
Displacement/Capacity9726ml
Emission StandardEuro 2
CylinderIn-line/6/turbo/intercooling
LOGO/ColorCustomizable
Body MaterialQ345
ThicknessSide 5mm/bottom 6mm
Container Capacity20-22 m3
PLC ControlEquipped, Simmens
Hydraulic CylindersBele with high pressure filter
Oil PumpRuizhi
Remote ControlEquipped
LifterFor bins 240L/660/1100L etc.
Indication LanguageIn English
