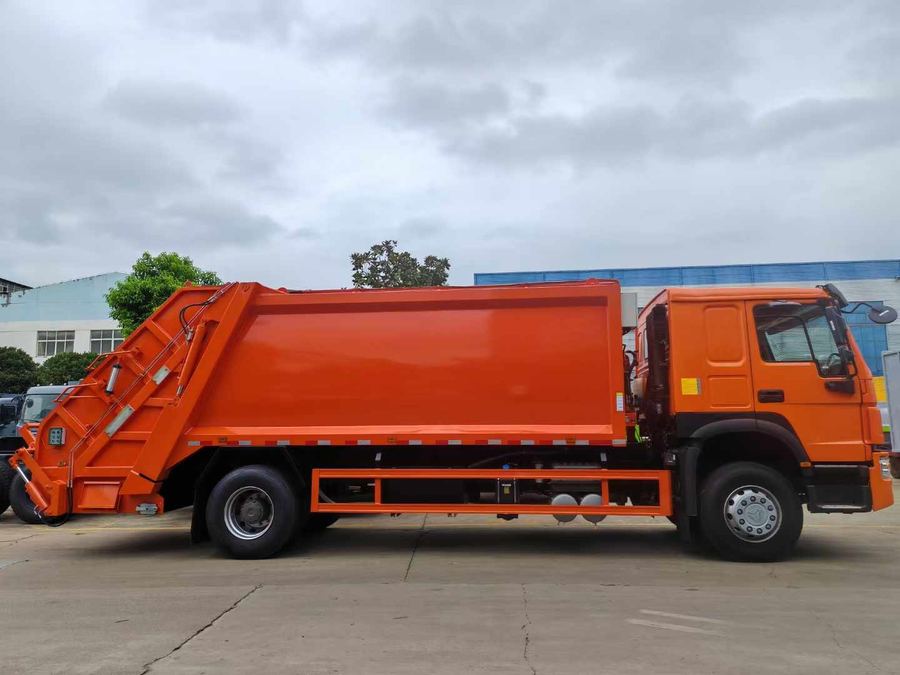

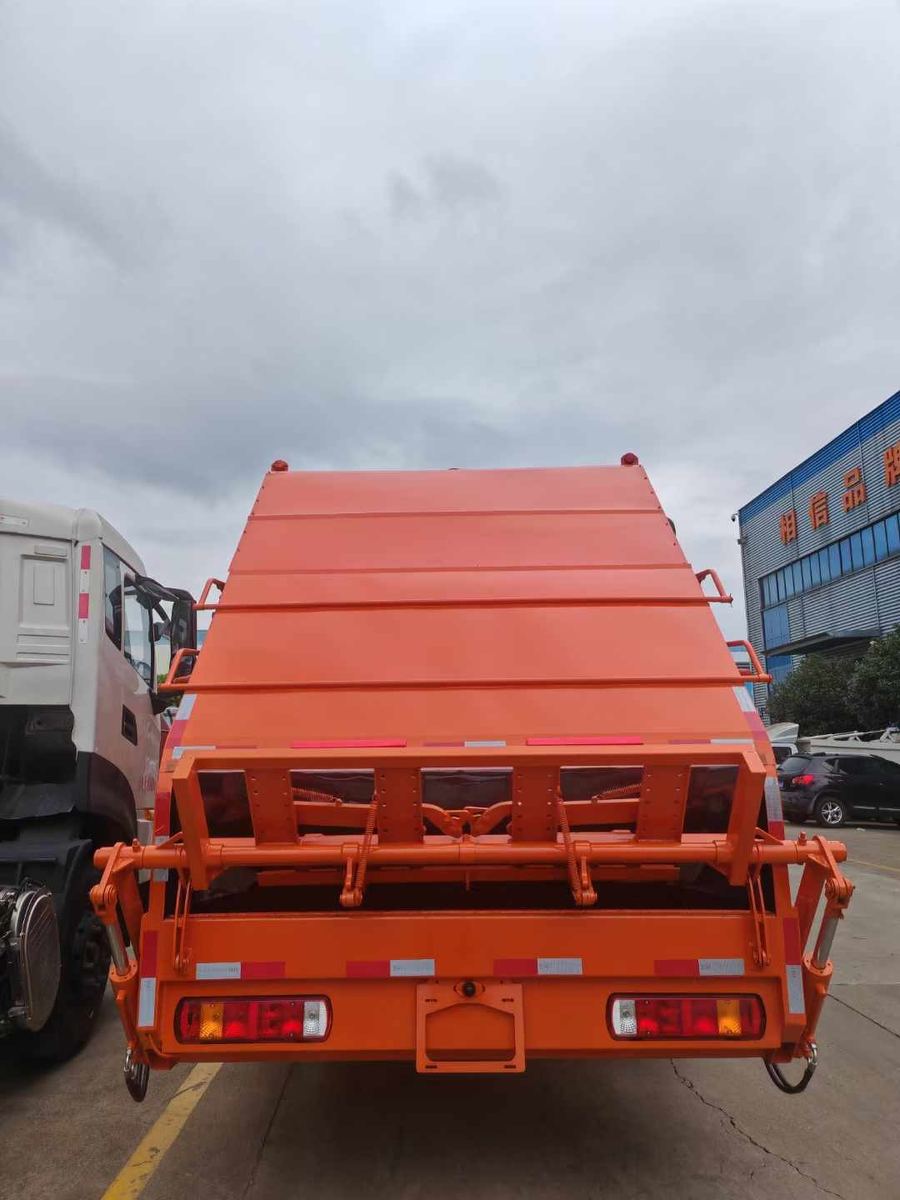

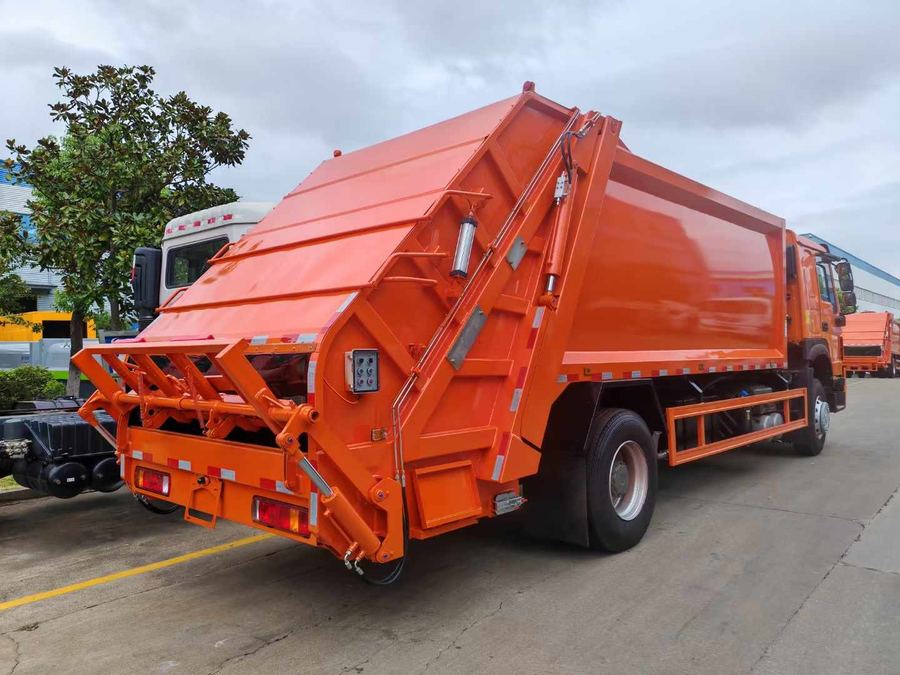

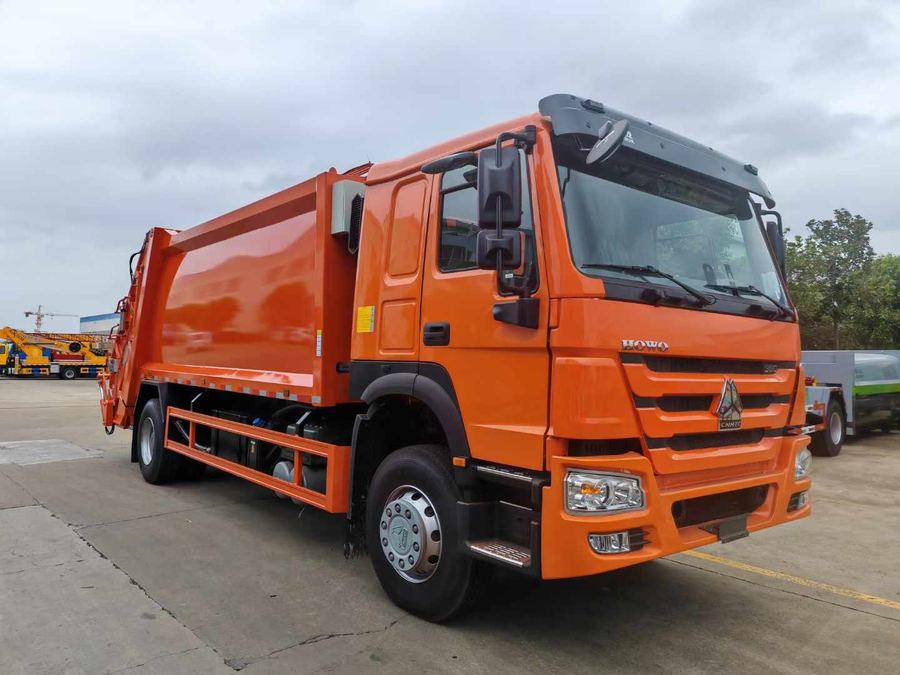

4x2 Sinotruck Howo Garbage Compactor Truck 15cbm
v1v2v3v4v5
Complete Truck · Garbage

4x2 Sinotruck Howo Garbage Compactor Truck 15cbm

  • Chassis Manufacture/ModelSinotruck/ZZ1167M4611W
  • Rated Power196 kW/266 hp
  • Engine Manufacturer/ModelWD615.62
  • Emission StandardEU 2
  • Driving Type4x2
  • Total Mass18,000 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 49218451

Overview

About this truck

Garbage trucks are primarily designed for collecting, loading, and transporting household waste. They feature mechanical, electrical, and hydraulic systems that compress and crush loaded garbage to increase density and reduce volume, significantly improving garbage collection and transportation efficiency. This model offers reliable quality, low failure rate, easy maintenance, and low operating costs. The compressed garbage truck uses a computer-controlled linkage system with manual operation capability, employing fillers and shovels to squeeze, compact, and push garbage into the compartment. Various configurations are available, including self-dumping, swing arm, sealed, and hanging bucket models, each suited for different urban sanitation environments and waste treatment applications.

Specifications

Technical parameters

Model NumberZZ1167M4611W
Dimension (LxWxH)9300x2500x3450 mm
Total Mass18,000 kg
Rated Payload7,000 kg
Kerb Weight11,000 kg
Passengers3
Approach/Departure Angle15/12 degrees
Chassis Manufacture/ModelSinotruck/ZZ1167M4611W
Driving Type4x2
Wheelbase4,600 mm
GearboxHW15710
Front/Rear Track1676/1620 mm
Tire Model12.00R20
Number of Tires6+1 (spare)
Front/Rear Suspension1430/2280 mm
Engine Manufacturer/ModelWD615.62
Rated Power196 kW/266 hp
Fuel TypeDiesel oil
Displacement/Capacity9,726 ml
Emission StandardEU 2
Cylinders6
Max Torque/Speed1100 N.m/1100-1600 rpm
Velocity2,600 rpm
Tank Volume15 m³
FunctionHousehold waste garbage delivery
Compressor/Filling Cycle Time25-30 s
Loading Cycle Time17-25 s
Discharge Cycle Time30-45 s
Compressor Density0.6-0.75 kg/m3
Rear Loading DeviceFlip board/triangulation/swinging arm
