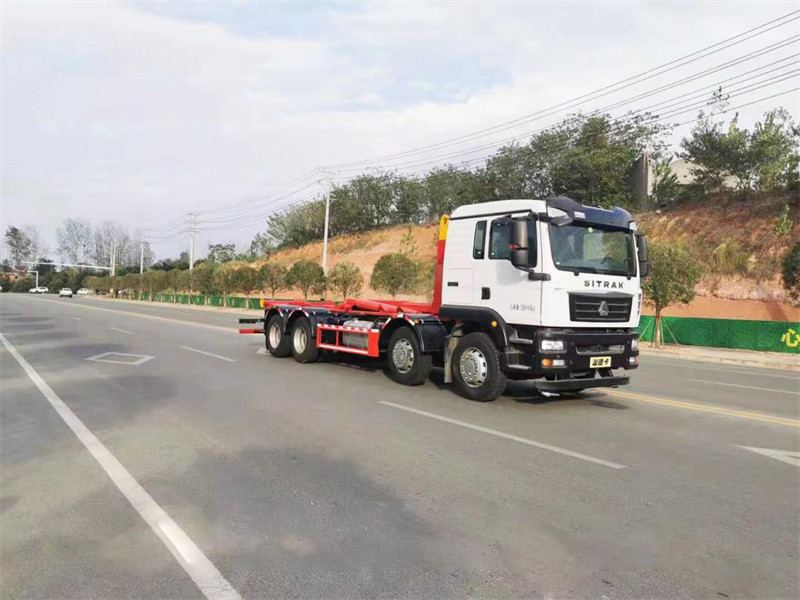

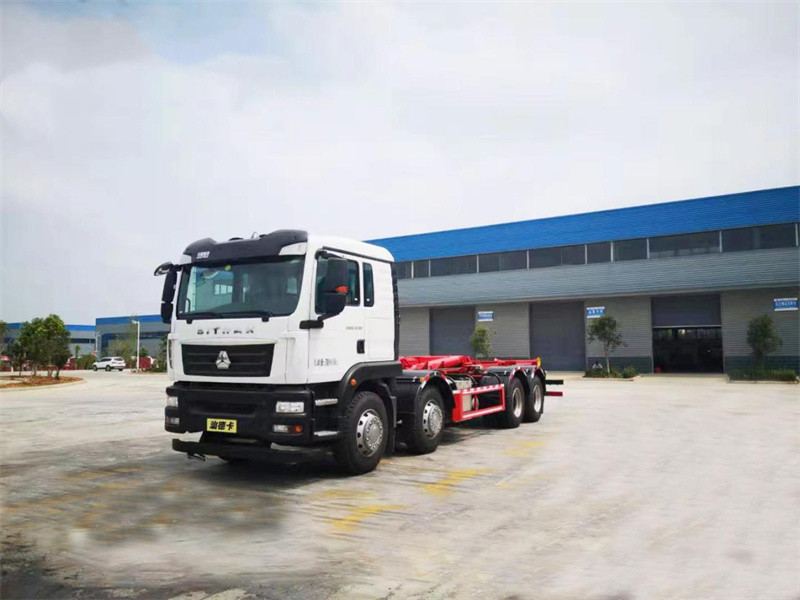

26 Tons Sinotruk Howo Hook Lifting Arm Garbage Truck
v1v2v3v4v5v6v7
Complete Truck · Garbage

26 Tons Sinotruk Howo Hook Lifting Arm Garbage Truck

  • Chassis Manufacturer/ModelMC07.34-60
  • Rated Power250 kW / 340 hp
  • Engine Manufacturer/ModelMC07.34-60
  • Emission StandardEU 6
  • Driving Type8×4
  • Total Mass31,000 kg

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48850543

Overview

About this truck

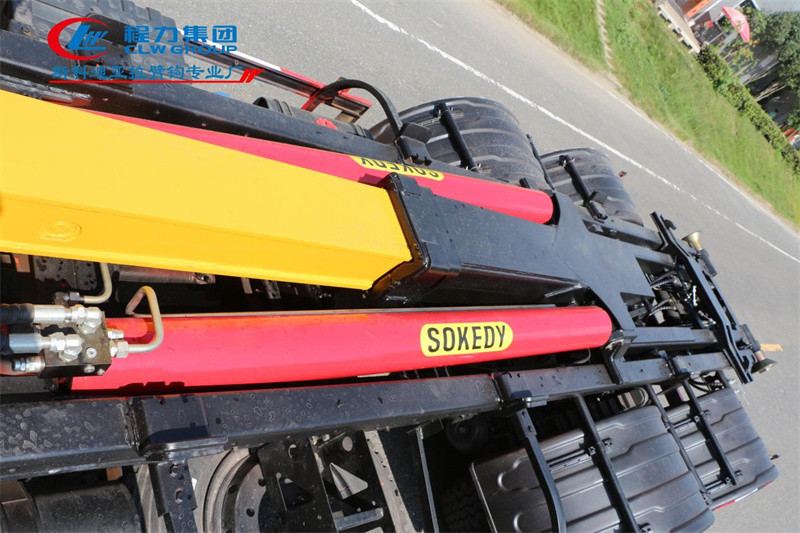

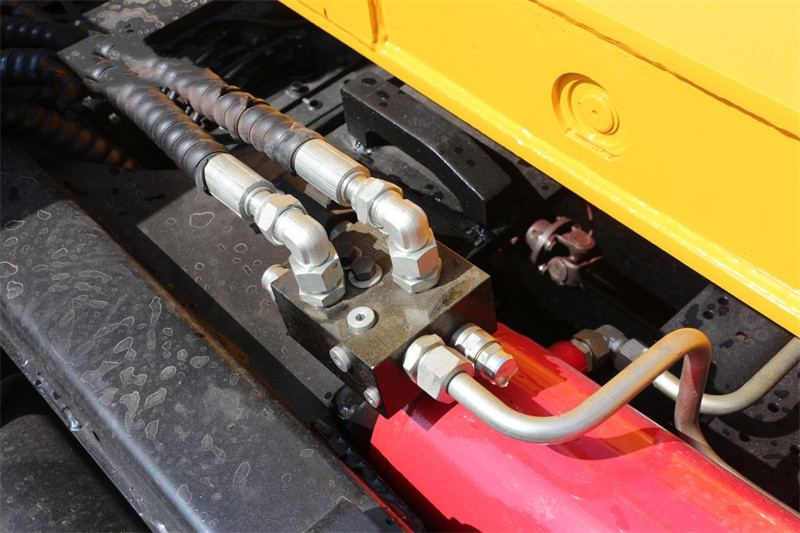

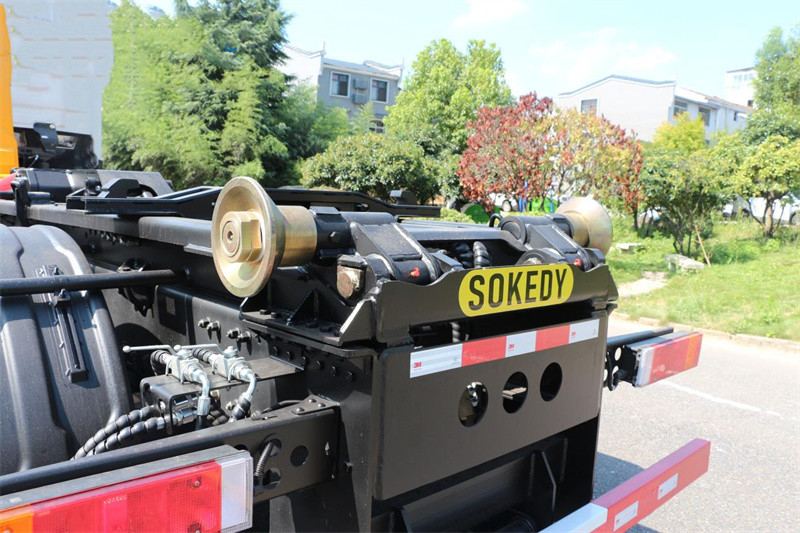

The hook arm garbage truck, also called a carriage detachable garbage truck, is engineered for collecting and transporting waste in municipal sanitation, property management, and industrial settings. It features a fully hydraulic control system where the garbage bin and chassis can be completely separated, enabling one vehicle to work with multiple bins for efficient circular transportation. Beyond waste collection, the truck handles sand and gravel transport in construction fleets and construction waste removal. Its fully enclosed garbage bin design simplifies the operation process, improves safety, and effectively prevents secondary pollution. The specialized device combines a hook arm tilting mechanism with a cargo truck chassis. The high-tech designed swinging hook arm can carry multiple large carriages per vehicle, streamlining loading and unloading. This design reduces labor costs, improves work efficiency, and prevents secondary pollution during transport—positioning it as an ideal replacement for dump trucks.

Specifications

Technical parameters

Name26 Tons Hook Lifting Truck
Dimension (L×W×H)9650×2550×3200 mm
Total Mass31,000 kg
Rated Payload13,100 kg
Kerb Weight17,770 kg
Passengers3
Approach/Departure Angle17°/10°
Chassis Manufacturer/ModelMC07.34-60
Driving Type8×4
Wheel Base1800+3800+1350 mm
GearboxHW19710
Front/Rear Track2060/1855 mm
Tire Model11.00R20
Number of Tires12+1 (spare)
Front/Rear Suspension1450/1252 mm
GVW31,000 kg
Engine Manufacturer/ModelMC07.34-60
Rated Power250 kW / 340 hp
Fuel TypeDiesel oil
Displacement6870 ml
Emission StandardEU 6
Cylinders6
Max Torque/Speed1250 N.m / 1200–1800 rpm
Velocity2200 rpm

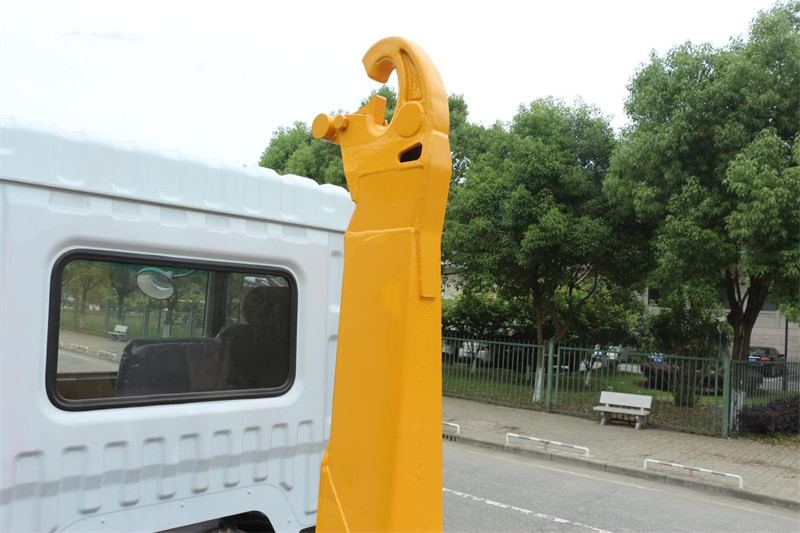

Hook TypeExtend
Hook Height1570 mm
Loading Weight26 T
Corresponding Box Length4250–6500 mm
Tilt Angle48°
Equipment Weight3000 kg
Whole Machine Weight2350 kg
Maximum System Pressure32 MPa
Recommended Flow110 L/min
Fuel Tank140 L standard assembly (yes)
