Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48571654

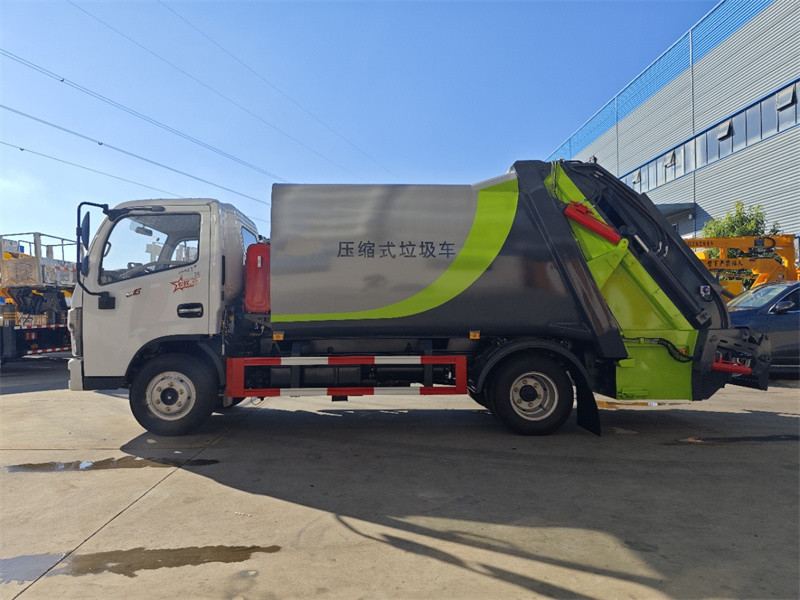

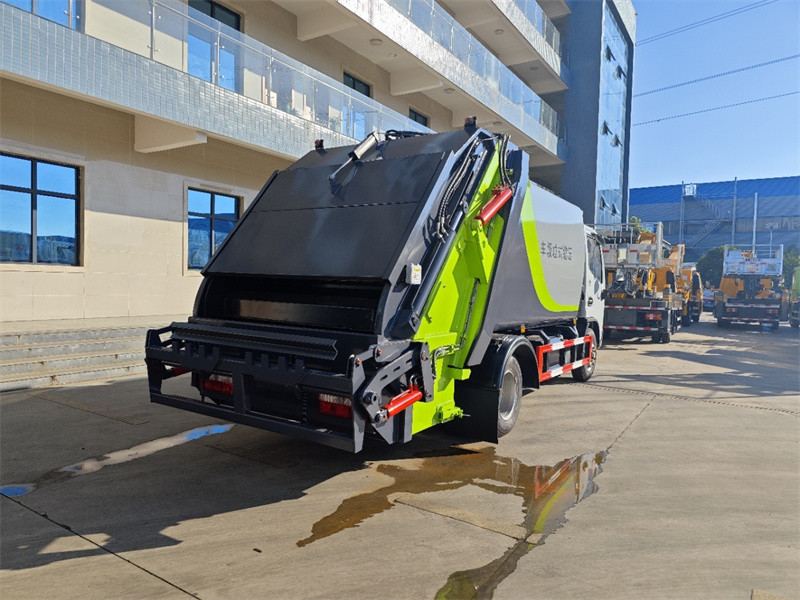

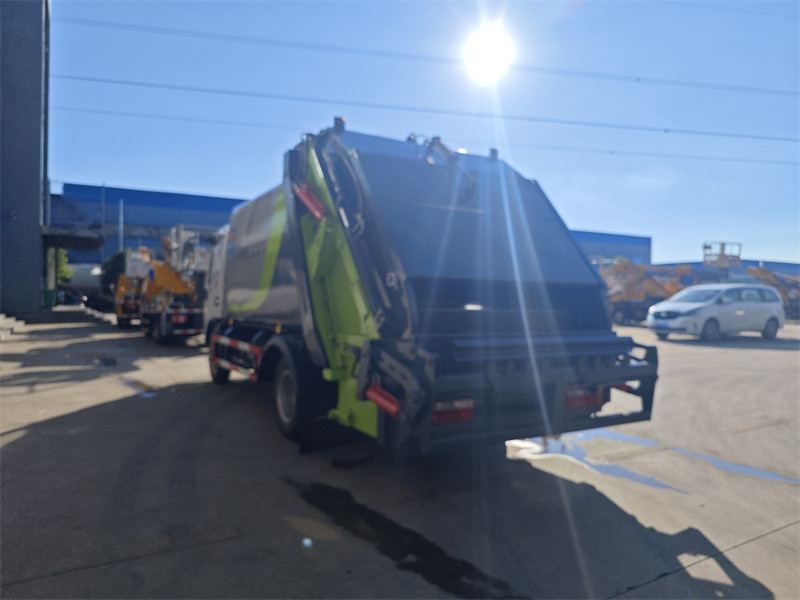

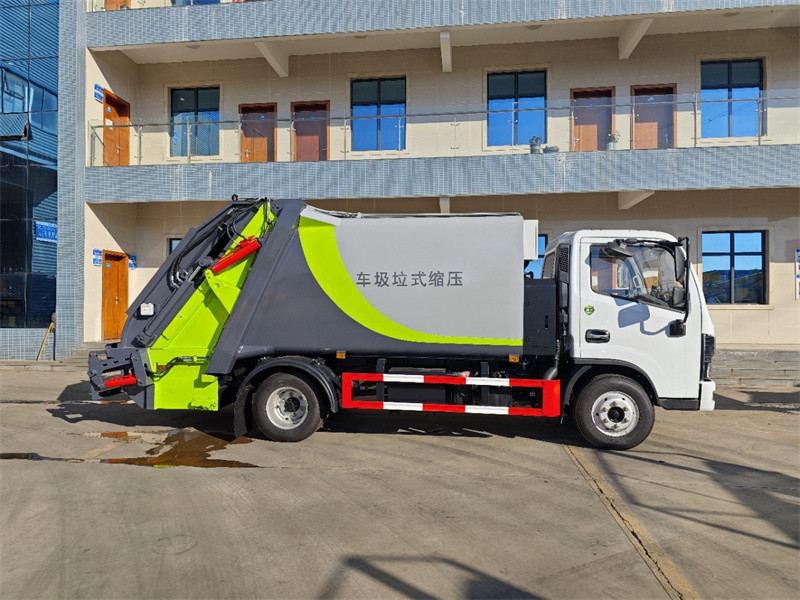

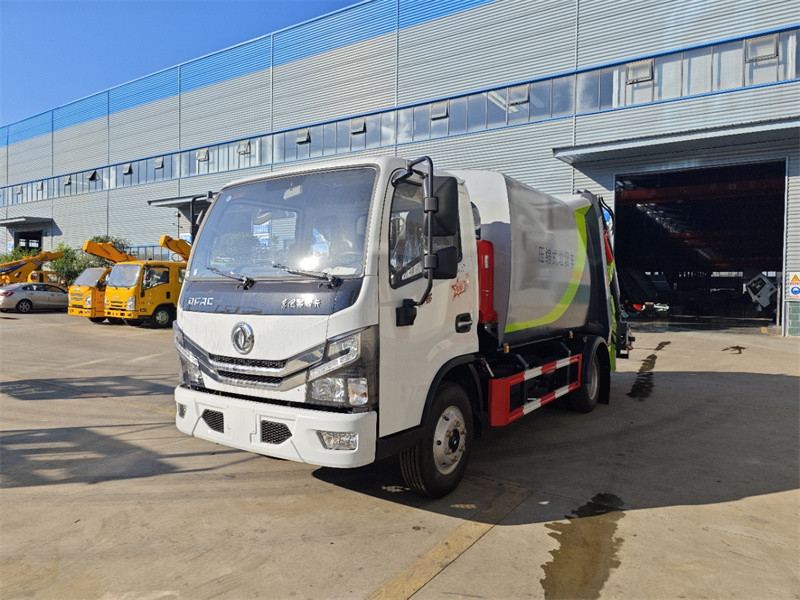

The 4X2 EURO 6 DONGFENG garbage compactor features an 8 cubic meter sealed bin designed for household waste collection. The vehicle integrates electrical and hydraulic systems with mechanical controls to dump, crush, compact, and lift garbage into the carriage while containing all sewage in dedicated tanks. Key construction elements include a reinforced frame using Q345 high-strength steel with 6mm side and bottom plating, welded via automated robot processes. The push shovel comprises rectangular tubing with folding panels for uniform waste distribution and thorough discharge. The hydraulic system incorporates branded components: Jiangsu Zhongmei/Weisenbole multi-channel valves, Anhui Wanye/Changyuan pumps, Siemens PLC control, and Feida/Boli cylinders with HALLITE UK-sourced seals. A bidirectional balance valve prevents filler collapse if hydraulic hoses rupture. The filler assembly uses cold-bent high-strength wear-resistant materials with integral nylon sliders providing self-lubrication. Leakage ports direct internal sewage to lower storage boxes, preventing transportation pollution. Electronic controls feature programmable logic controller integration ensuring sequential operation and automated engine throttle management. Dual sewage collection boxes with sealed discharge valves eliminate secondary environmental contamination. Operations occur via cab control panels and rear-mounted controls with remote capability.
