Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 48568192

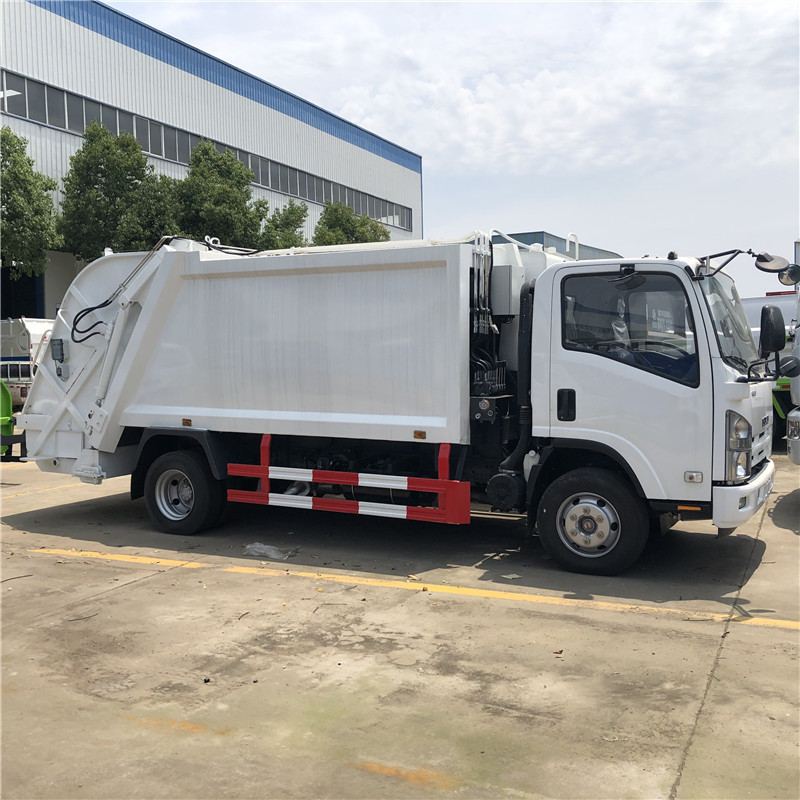

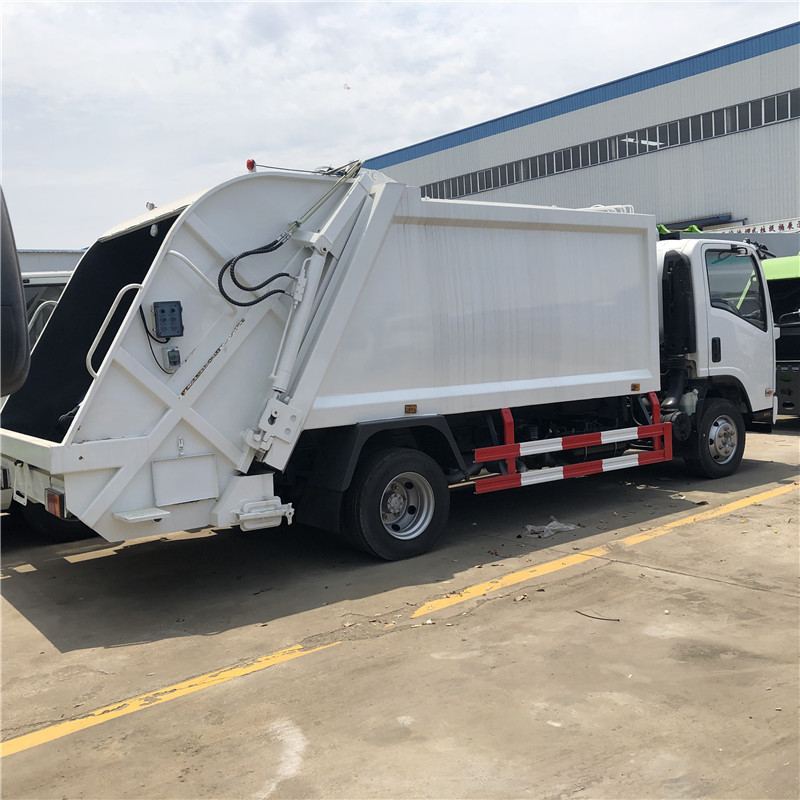

This 4x2 ISUZU 700P garbage compactor truck is a fully enclosed waste collection vehicle combining mechanical, electrical, and hydraulic integration. The 8-cubic-meter capacity unit uses a sealed garbage bin with filler, shovel, and hydraulic transmission system to achieve automatic garbage dumping, crushing, and compacting while collecting sewage to prevent secondary pollution during transport. The box body employs reinforced beams and Q345 high-strength steel plates (6mm sides and bottom) welded through robot automation, eliminating dust leakage and water seepage. The push shovel features a lightweight rectangular tube skeleton with folding panels for even garbage distribution and thorough discharge. Key hydraulic components utilize established brands: Jiangsu Zhongmei/Weisenbole multi-channel valves, Anhui Wanye/Changyuan oil pumps, and Jiangsu Feida/Hubei Boli hydraulic cylinders with UK-imported HALLITE sealing components. A bidirectional balance valve ensures safe descent; if the oil pipe ruptures, the filler won't suddenly drop. The filler assembly comprises cold-bent high-strength wear-resistant skateboard with integral nylon sliders featuring self-lubricating properties. Leakage ports in the curved plate direct internal sewage into the lower collection box. A large-capacity side sewage tank with galvanized discharge ports prevents transportation pollution. The electronic control system adopts Siemens PLC programming logic, automating engine throttle to match filling cycles while reducing idle consumption. Operation controls in the driver's cab and rear vehicle section provide automatic, manual, and remote control modes for all mechanisms.
