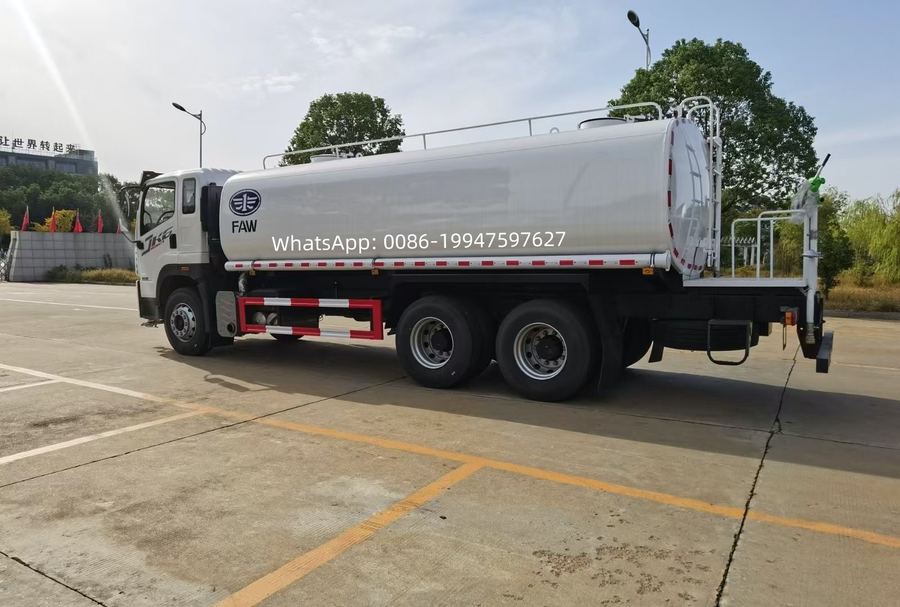

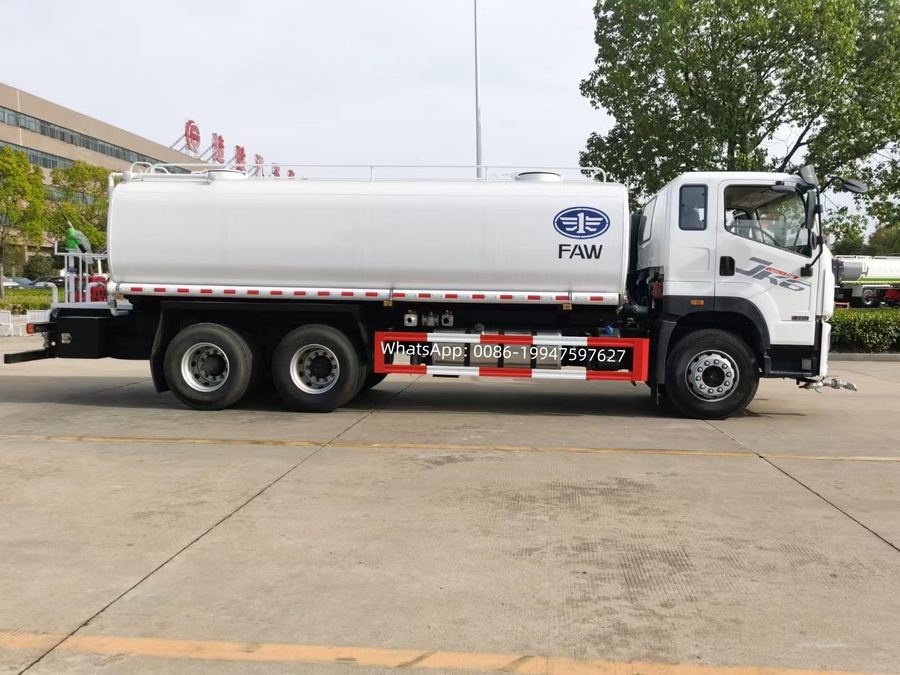

Euro5 5000 Gallon FAW Water Tank Sprinkler
v1
Complete Truck · Water & Milk Tanker

Euro5 5000 Gallon FAW Water Tank Sprinkler

  • Engine BrandXICHAI
  • Emission StandardEuro 5
  • Gross Vehicle WeightApproximately 31,900 kg
  • Water Tank Volume20 m³ (5,000 gallon)
  • Loading CapacityApproximately 20,000 kg
  • Overall Dimensions10,500 × 2,550 × 3,100 mm

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 53241624

Overview

About this truck

The water tank truck is engineered for road washing, landscaping, green belt maintenance, construction site watering, and high-altitude building applications. It functions as both a sanitation watering vehicle and drinking water transport truck. Standard equipment includes front spray (duck bill nozzle), rear flush capability, rear spray, and side spray functions with a rear-mounted rotating platform. The platform features a 360-degree rotatable water cannon with adjustable spray patterns (column to mist) and multiple intensity settings. The truck incorporates a high-power self-priming pump capable of drawing water from natural sources, power take-off system, miscellaneous material filtration, fire interface compatibility, and self-flowing ball valve system using national standard components. The pipeline is reinforced with thickened flanges and large-diameter ball valves, delivering excellent overall performance with emphasis on safety, reliability, and efficient maintenance.

Specifications

Technical parameters

Model NumberJ6K
Overall Dimensions10,500 × 2,550 × 3,100 mm
Water Tank Volume20 m³ (5,000 gallon)
Gross Vehicle WeightApproximately 31,900 kg
Net WeightApproximately 11,900 kg
Loading CapacityApproximately 20,000 kg
Wheelbase5,600+1,350 mm
Maximum Speed89 km/h
ConditionYear 2025 (latest)
Cabin TypeFlat-top, sleeper, power steering, air conditioner, 3 passengers, left-hand drive
Traction System6×4
Transmission10 forward, 2 reverse (manual)
Tire Model12.00R20
Number of Tires10+1 pcs
Engine BrandXICHAI
Engine ModelCA6DL1-32E5
Engine Power320 hp
Engine TypeDiesel, 6-cylinder, turbocharged
Displacement7.7L
Emission StandardEuro 5
Tank MaterialCarbon Steel or Stainless Steel
Spray Width≥16 m
Spray Distance≥30 m
FunctionsFront/rear spraying, left/right side spraying, platform-mounted cannon, adjustable spray patterns
