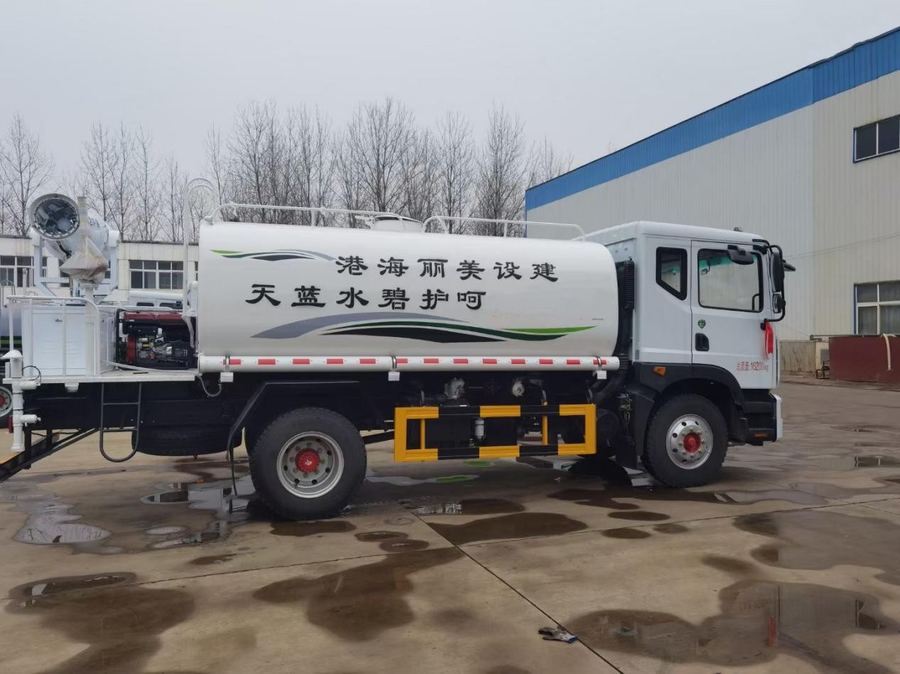

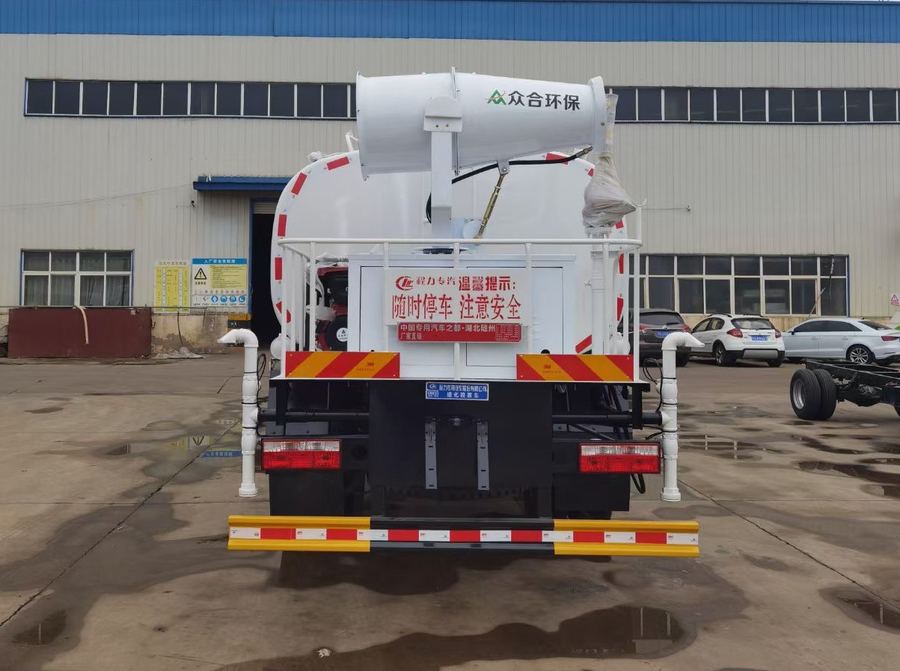

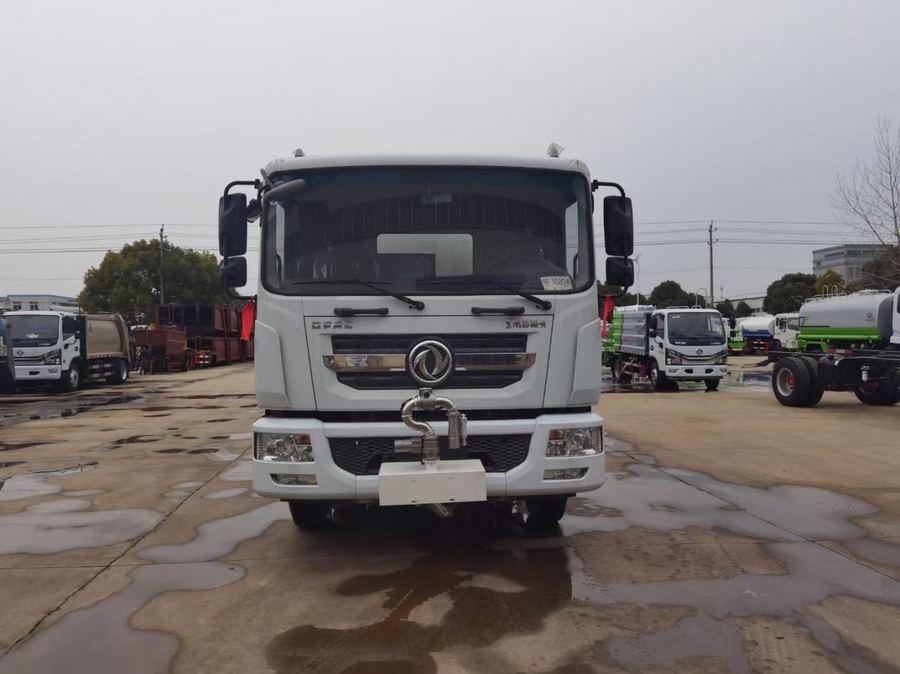

10000L Dongfeng Water Bowser Fog Cannon
v1
Complete Truck · Water & Milk Tanker

10000L Dongfeng Water Bowser Fog Cannon

  • Chassis ModelDONGFENG, Optional HOWO, ISUZU, SHACMAN
  • EngineCUMMINS, B170 33
  • Emission StandardEuro 3
  • Gross Vehicle Weight (kg)Approximately 16480
  • Water Tank MaterialCarbon Steel Or Stainless Steel
  • Loading (kg)Approximately 10000

Chassis, capacity, configuration, emission and LHD/RHD all customizable. Model code: 52758248

Overview

About this truck

The water tank truck serves multiple purposes including road washing, tree and green belt irrigation, lawn greening, road construction, and factory/mine applications. It functions as both a watering vehicle and water transportation unit. Standard features include front spray (duck bill), back flush, rear spray, side spray, and a rear-mounted working platform equipped with a rotatable 360° water cannon. The cannon adjusts between column and mist spray patterns with multiple intensity settings from flush to drizzle. The truck incorporates a high-powered self-priming pump capable of drawing water from natural sources, featuring a power take-off system, filter screens, fire interface, and self-flowing ball valve system. Components meet national standards, with thickened piping, reinforced flanges, and large-diameter ball valves ensuring reliable, efficient, and easily maintained operation.

Specifications

Technical parameters

Model NumberD9
Product NameWater Tank Truck
Volume10000 Liters
Chassis ModelDONGFENG, Optional HOWO, ISUZU, SHACMAN
EngineCUMMINS, B170 33
Wheelbase3950 Mm
FunctionSpraying Water And Delivery Drinking Water
Drive Model4x2
Tire9.00R20
Transmission8-speed, Manual
Emission StandardEuro 3
Water Tank MaterialCarbon Steel Or Stainless Steel
Overall Dimensions (mm)8210 x 2500 x 3200
Gross Vehicle Weight (kg)Approximately 16480
Net Weight (kg)Approximately 6480
Loading (kg)Approximately 10000
Max Speed (Km/h)89
ConditionNew, year 2025
CabinD9 cabin, sleeper, power steering, electric window, central lock, air conditioner, 3 passengers, left hand drive
Engine Power170hp
Engine TypeDiesel, turbocharger inter-cooler, 6 cylinder
Displacement5.9L
Transmission Type8 forward, 1 reverse, manual operated
Number of Tires6+1 pcs
Spraying Width≥14m
Spraying Distance≥28m
Vertical Suction6-8 m
